HODEDAH
Assembly Instructions
This instruction booklet contains important safety information, please read and keep for future reference.
ITEM # HI224-G (MOP-SP)

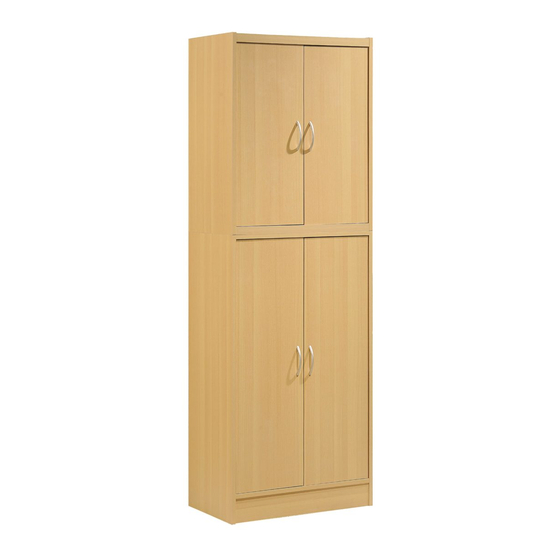

4 DOOR PANTRY

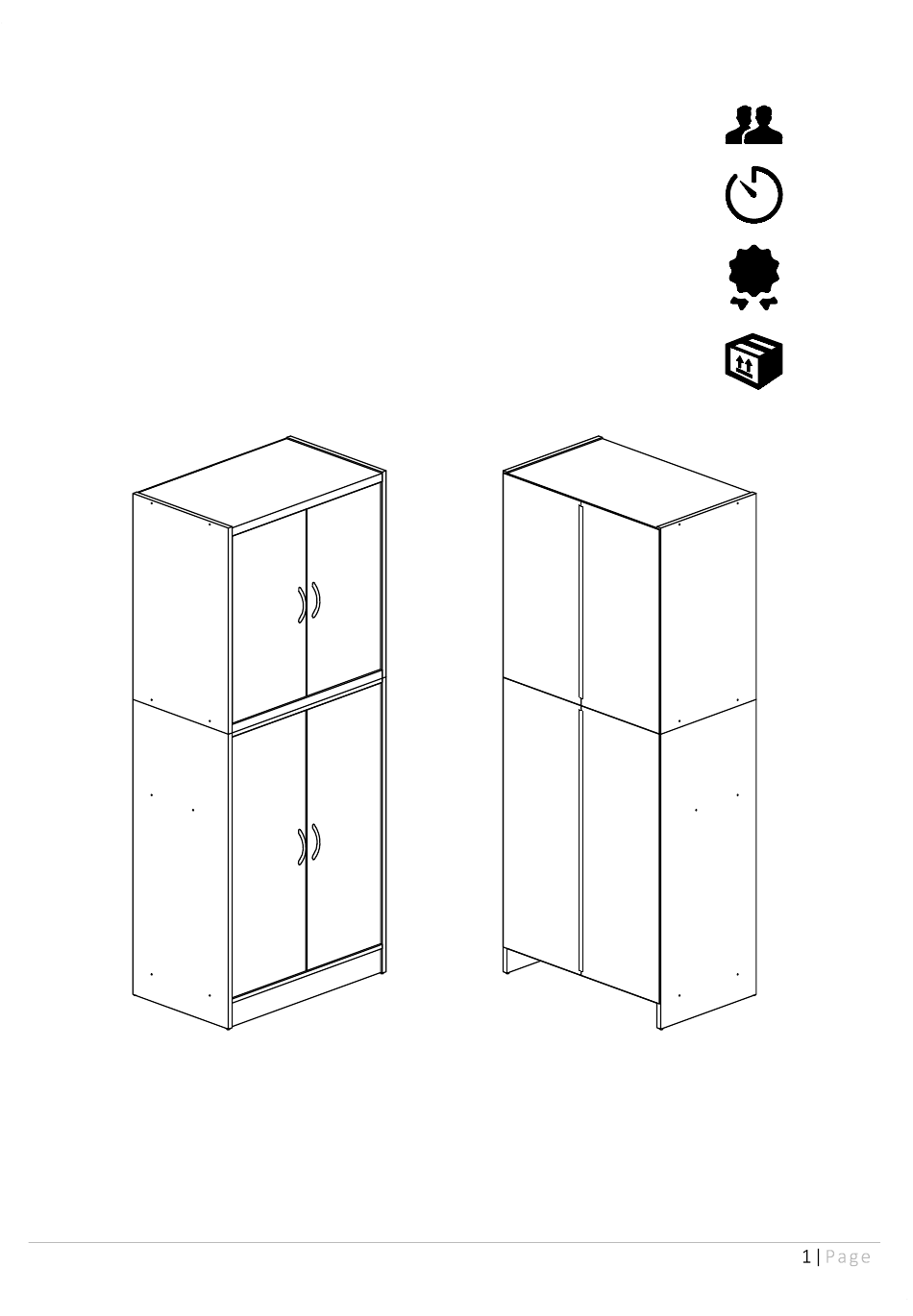

FRONT VIEW
Product Dimensions: Height 71.69" x Width 23.93" x Depth 14.6"
www.Hodedah.com
®
Weight Capacity per shelf 30lb.
BACK VIEW
2 people
90 mins
1 YR LTD
1 Box
Advertisement
Table of Contents
Related Manuals for Hodedah HI224-G
Summary of Contents for Hodedah HI224-G
- Page 1 HODEDAH ® Assembly Instructions 2 people This instruction booklet contains important safety information, please read and keep for future reference. 90 mins ITEM # HI224-G (MOP-SP) 4 DOOR PANTRY 1 YR LTD 1 Box FRONT VIEW BACK VIEW Product Dimensions: Height 71.69" x Width 23.93" x Depth 14.6"...
-
Page 2: Warranty
FREE of charge within ONE YEAR of purchase! WARRANTY Hodedah warrants this product to be free from defects in materials and workmanship and agrees to remedy any such defect. This warranty covers one year from the date of original purchase. This is solely limited to replacement of defective parts and no assembly for labor is included. -
Page 3: Product Care And Maintenance
HODEDAH ® · Never open more than one drawer at a time. · The use of tip-over restranits may reduce but not eliminate the risk of tip-over. Let's get started… Helpful hints, read before beginning assembly · Make sure you receive all boxes. If your item is packed in one box, box count will read 1 of 1, likewise if your item is packed in two boxes, box count will read 1 of 2 and second box will read 2 of 2. -
Page 4: Hardware List
HODEDAH ® Hardware List 20 Pcs 24 Pcs 8 Pcs 70 Pcs Screw M6 x 40mm 20 Pcs Pvc Dowel Shelf Support Nail Pvc Cap 1 Pc 8 Sets 8 Pcs 4 Pcs Magnet + Metal Piece Allen Key 8 Pcs... -
Page 5: Parts List
HODEDAH ® Parts List Left Side Panel Kick Panel Bottom Panel 1069 x 368 x 15mm 578 x 89 x 15mm 578 x 368 x 15mm 1 Pc 1 Pc 1 Pc Partition Panel Back Strengthening Panel Front Strengthening Panel... - Page 6 HODEDAH ® The Breakdown www.Hodedah.com...
-
Page 7: Pre-Assembly
HODEDAH ® Pre - Assembly Insert 8 shelf supports ④ into panels ’s non thru holes. SHELF SUPPORT 8 Pcs. Protection Nail 4 Pcs. Nail 4 Protection Nail ⑨ , with hammer onto the bottom edge of panels www.Hodedah.com... - Page 8 HODEDAH ® Pre - Assembly Insert magnets ⑦ Pvc Dowel 24 Pcs. onto panels and J 's non-thru holes, make sure the magnets. MAGNET 8 Pcs. Insert PVC dowels ③ to panels ’s non-thru holes, using hammer to gently tap them in.
-
Page 9: Door Panel Assembly
HODEDAH ® Door Panel Assembly Fix and fasten metal pieces ⑦ with screw ⑦ at all door panels Insert door supports ⑧ to both ends of all door panels Fasten 2 screws ② from all door panels 's thru hole into the handle ②... - Page 10 HODEDAH ® Step 1 * Place and fix Panels onto Panel by inserting the (Left) dowels onto the non-thru holes at Panel * Using allen key ⑥ to fasten screw ① from the 6 thru holes of panel Screw Allen Key M 6 x 40mm 1 Pc.
- Page 11 HODEDAH ® Step 2 * Place and fix Panels onto Panel by inserting the (Right) dowels onto the non-thru holes at Panel * Using allen key ⑥ to fasten screw ① from the 6 thru holes of panel Screw Allen Key M 6 x 40mm 1 Pc.
- Page 12 HODEDAH ® Step 3 Place 2 back Panels onto the back of the main unit, and join 2 panels together with H-profile by slotting one side each of panel R into the track of H-profile. Then align them properly for nailing.
- Page 13 HODEDAH ® Step 4 * Place and fix Panels onto Panel by inserting the (Left) dowels onto the non-thru holes at Panel * Using allen key ⑥ to fasten screw ① on panel Screw Allen Key M 6 x 40mm 1 Pc.
- Page 14 HODEDAH ® Step 5 * Place and fix Panels onto Panel by inserting the (Right) dowels onto the non-thru holes at Panel * Using allen key ⑥ to fasten screw ① on panel Screw Allen Key M 6 x 40mm 1 Pc.
- Page 15 HODEDAH ® Step 6 Place 2 back Panels onto the back of the main unit, and join 2 panels together with H-profile by slotting panel into the track of H-profile. Then align them properly for nailing. Use hammer to install the nails at center of the edges. Nails should be about 100mm apart.
- Page 16 HODEDAH ® Step 7 Join upper part and lower part together . Fasten screw ⑩ using holes on panels to panel Screw M4 x 25mm 6 Pcs. www.Hodedah.com...
- Page 17 HODEDAH ® Step 8 Place adjusting panels onto shelf supports. www.Hodedah.com...
- Page 18 HODEDAH ® Step 9 Install door panels by pushing down the springs to insert them onto each hole of panels , & Cover screw heads ① with cap. www.Hodedah.com...
- Page 19 HODEDAH ® FITTING OF ANTI-TIP SAFETY STRAP STEP 1: · Attach the mounting bracket a to the furniture in the solid part below the top panel a few inches away from the side of the unit. · Screw b through the smallest hole of a .
-
Page 20: Job Complete
HODEDAH ® Job Complete Enjoy & Thank you for purchasing from Hodedah! In the interest of our environment please dispose of all packaging thoughtfully. www.Hodedah.com...
