HODEDAH
Assembly Instructions
This instruction booklet contains important safety information, please read and keep for future reference.
ITEM # HID 4400-D
3 DOOR WARDROBE

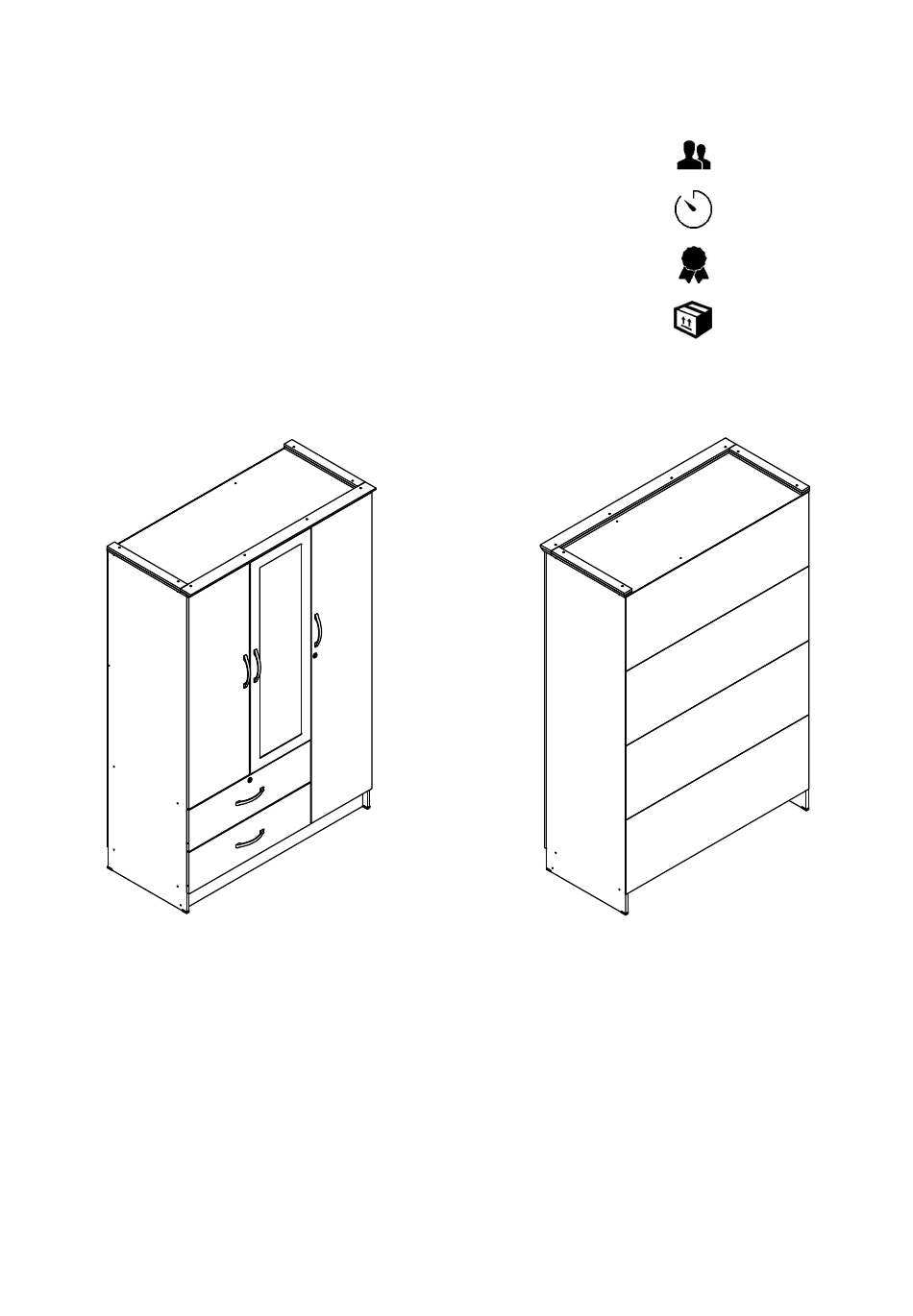

FRONT VIEW
Product Dimensions:
www.Hodedah.com
®
Height 71.8'' x Width 47.6'' x Depth 21.6''
Weight Capacity per drawer: 25 Ibs
Weight Capacity per shelf: 25 Ibs
2 people
120 mins
1 YR LTD
2 Box
BACK VIEW
1 |
Page
Advertisement
Table of Contents
Related Manuals for Hodedah HID 4400-D
Summary of Contents for Hodedah HID 4400-D
- Page 1 HODEDAH ® Assembly Instructions 2 people This instruction booklet contains important safety information, please read and keep for future reference. 120 mins ITEM # HID 4400-D 1 YR LTD 3 DOOR WARDROBE 2 Box FRONT VIEW BACK VIEW Product Dimensions: Height 71.8'' x Width 47.6'' x Depth 21.6''...
- Page 2 FREE of charge within ONE YEAR of purchase! WARRANTY Hodedah warrants this product to be free from defects in materials and workmanship and agrees to remedy any such defect. This warranty covers one year from the date of original purchase. This is solely limited to replacement of defective parts and no assembly for labor is included.
-
Page 3: Product Care And Maintenance
HODEDAH ® · Never open more than one drawer at a time. · The use of tip-over restraints may reduce but not eliminate the risk of tip-over. Let's get started… Helpful hints, read before beginning assembly · Make sure you receive all boxes. If your item is packed in one box, box count will read 1 of 1, likewise if your item is packed in two boxes, box count will read 1 of 2 and second box will read 2 of 2. - Page 4 HODEDAH ® Hardware List I JCBCW M5 x 40mm M4 x 38mm M4 x 35mm SCREW CSK SCREW CSK SCREW T/MS SCREW M4 x 16mm M3.5 x 12mm M4 x 22mm CSK SCREW CSK SCREW WOOD DOWEL CAM BOLT NAIL...
-
Page 5: Hardware List
HODEDAH ® Hardware List II ALLEN KEY CAM LOCK METAL RUNNER 14" CAM NUT 15 mm ANTI-TIP KIT Important 1. Before you throw the package, please use the Check Box to identify the parts and hardware to ensure that you have everything you need. - Page 6 HODEDAH ® Part List I Page www.Hodedah.com...
-
Page 7: Part List
HODEDAH ® Part List II Page www.Hodedah.com... - Page 8 HODEDAH ® The Breakdown 1200 x 395 x 15 Page www.Hodedah.com...
- Page 9 HODEDAH ® Step 1 M4 x 16mm CSK SCREW M3.5 x 12mm CSK SCREW V - BRACKET AC51 SQUARE NAIL (15mm) METAL RUNNER 14" - Attach V - Bracket (L) to panels (3) & (5) with 4 x CSK Screw (E) using a Phillips head screwdriver.
- Page 10 HODEDAH ® Step 3 M4 x 38mm CSK SCREW PVC BRAZIL HANDLE - 160mm T/MS SCREW M4 x 22mm CAM LOCK - Attach panels (17) & (18) to panels (16). - Insert 8 x CSK Screw (B) to panels (17) & (18) and tighten with a Phillips head screwdriver.
- Page 11 HODEDAH ® Step 5 M3.5 x 12mm CSK SCREW METAL RUNNER 14" Repeat x2 - Attach Metal Runners (R) to drawer side with 6 x CSK Screw (F) using a Phillips head screwdriver. Step 6 JCBCW M5 x 40mm SCREW ALLEN KEY - Attach panels (6) &...
- Page 12 HODEDAH ® Step 7 ALLEN KEY JCBCW M5 x 40mm SCREW - Attach panels (8) & (9) to panel (5). - Insert 3 x JCBCW Screw (A) to panel (5) and tighten with a Allen Key (P). Step 8 JCBCW M5 x 40mm SCREW ALLEN KEY - Attach panel (3) to panels (6), (7), (8), (9), (22).
- Page 13 HODEDAH ® Step 9 JCBCW M5 x 40mm SCREW ALLEN KEY - Attach panel (4) to panels (6), (7), (22). - Insert 5 x JCBCW Screw (A) to panel (4) and tighten with an Allen Key (P). Step 10 M4 x 35mm CSK SCREW - Attach panels (1) &...
- Page 14 HODEDAH ® Step 11 M4 x 16mm CSK SCREW 95A HINGES - Attach panels (11) , (12) , (13) to panels (3) , (4) , (5). - Attach Hinges 95A (J) to panels (3) , (4) , (5) , (11) , (12) , (13) with 36 x CSK Screw (E) using a Phillips head screwdriver.
-
Page 15: Final Step
HODEDAH ® Step 13 Almost there METAL SHELF SUPPORT PIPE (765mm) - Insert 8 x Metal Shelf Support (M) into panels (4) & (5) . - Insert panels (10) into wardrobe . - Place Pipe (N) into V - Bracket (L) . - Page 16 HODEDAH ® FITTING OF ANTI-TIP SAFETY STRAP STEP 1: · Attach the mounting bracket a to the furniture in the solid part below the top panel a few inches away from the side of the unit. · Screw b through the smallest hole of a .
-
Page 17: Job Complete
HODEDAH ® Job Complete Enjoy & Thank you for purchasing from Hodedah! 17 | Page www.Hodedah.com...
