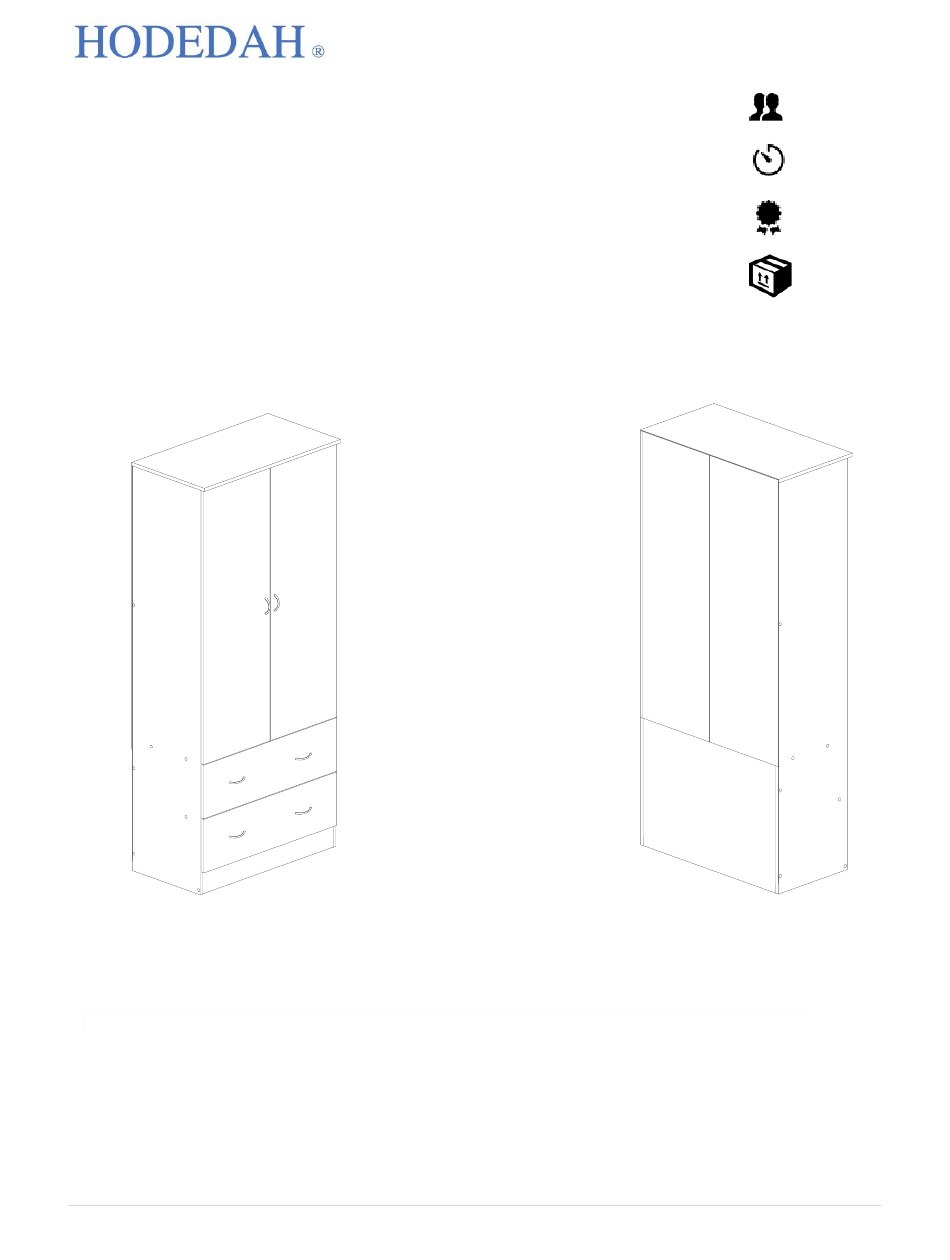

Assembly Instructions
2 people
This instruction booklet contains important safety information, please read and keep for future reference.
60mins
ITEM # HI29-A
1 YR LTD

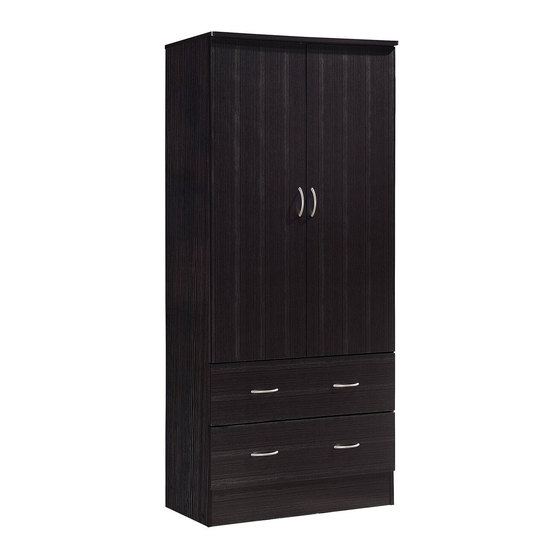

2 DOOR WARDROBE
1 Box
BACK VIEW
FRONT VIEW
Product Dimensions:
Height 72" x Width 32" x Depth 17"
Weight Capacity Per Drawer 20 lbs.
1 |
P a g e
www.Hodedah.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Hodedah HI29-A
Summary of Contents for Hodedah HI29-A
- Page 1 Assembly Instructions 2 people This instruction booklet contains important safety information, please read and keep for future reference. 60mins ITEM # HI29-A 1 YR LTD 2 DOOR WARDROBE 1 Box BACK VIEW FRONT VIEW Product Dimensions: Height 72” x Width 32” x Depth 17”...
- Page 2 ______________________________________________ WARRANTY Hodedah warrants this product to be free from defects in materials and workmanship and agrees to remedy any such defect. This warranty covers one year from the date of original purchase. This is solely limited to replacement of defective parts and no assembly for labor is included. This warranty does not apply to any product that has been improperly assembled, subjected to misuse, abuse or which has been altered or repaired in any way.
-
Page 3: Product Care And Maintenance
Never push, drag or pull your furniture, to move to a new location carefully with two or more people carry the unit to its new location. Avoid extreme changes in temperature by arranging furniture away from radiators, heat and air vents and air conditioning units. P a g e www.Hodedah.com... -
Page 4: Hardware List
1. Before you throw the package, please use the Check Box to identify the parts and hardware to ensure that you have everything you need. 2. Check and measure the bolts before applying them to parts. 3. Do not completely tighten all hardware until the entire assembly is complete, unless indicated otherwise. P a g e www.Hodedah.com... -
Page 5: Parts List
Drawer - Right 2Pcs 2Pcs 2Pcs Panel Panel Side Panel 780x238x15mm 300x128x15mm 300x128x15mm Drawer End Drawer Base Drawer Base 2Pcs 2Pcs 2Pcs Panel Panel Supporting Panel 709x128x15mm 718x294x2.5mm 285x50x15mm Back Panel Kick Panel 1450x396x2.5mm 766x70x15mm P a g e www.Hodedah.com... - Page 6 The Breakdown… P a g e www.Hodedah.com...
- Page 7 In hardware list, you will find two bundles of drawer slide (I), here you need to differentiate left and right as shown in picture below. Left Drawer Slide(I) Flat Shaped - Left "L" Shaped - Left Right Drawer Slide(I) "L" Shaped - Right Flat Shaped - Right P a g e www.Hodedah.com...
- Page 8 Step 1 *Insert PVC dowel (A) to panel 2, 3, 4, 5, 6, 7, 8, 11, 12 and 17's into the holes as shown, using hammer to gently tap them in. P a g e www.Hodedah.com...
- Page 9 3 as shown by using 2 screws (D). Place the flat shaped - left of the drawer slide (I) at the panel 2 as shown. Then tighten each drawer slide(I) with 3 screws (D). P a g e www.Hodedah.com...
- Page 10 2 by slightly tapping them with hammer. *Insert and fasten screws (C) (Using predrilled holes on panel 2) into the panel 4, 5, 6, 7, 8 and 17. 10 | P a g e www.Hodedah.com...
- Page 11 *Fasten screws (C) from outside of panel 3, using the predrilled holes to attach panels 4, 5, 6, 7, 8 and 17. *Place the nail leg (M) on the two sides of panel 2 and panel 3. 11 | P a g e www.Hodedah.com...
- Page 12 2, 3 & 4 onto the non-thru holes of panel 1. *Gently tap panel 1 on panels 2, 3 & 4 dowels. *Fasten 4 screws (C) on panel 1 to attach panels 2 & 3. 12 | P a g e www.Hodedah.com...
- Page 13 *Fix approximately 30 pieces of nails (F) into Panel 16 using a hammer. *Cover all the screws (C)' head with sticker (L) provided by stick up onto hole of screw (C)' heads one by one. 13 | P a g e www.Hodedah.com...
- Page 14 (J). 1. Panels 9 doors can be used for both right side and left side. 2. Fasten 2 screws (E) from inner side of door panel 9 into the handle (H) holes. 14 | P a g e www.Hodedah.com...
- Page 15 *Insert Panel 14 into the drawer and align properly. (As shown) *Insert the minifix (B)(nuts) with the cross arrow mark facing upwards and aim to panel 11,12 and 15 's top thru holes.(As shown) 15 | P a g e www.Hodedah.com...
- Page 16 *Tighten screws (C) to panel 13's upper thru holes to fix up to the panel 15. *Flip the drawer over. *Tighten 2 screw (E) from inner side of panel 10 into the handle (H) holes. 16 | P a g e www.Hodedah.com...
- Page 17 "L" shaped - left of the drawer slide stick to the end of drawer front panel 10. "L" shaped - right of the drawer slide stick to the end of drawer front panel 10. 17 | P a g e www.Hodedah.com...
- Page 18 Step 9 Almost there *Place hanger (G) onto panel 2 and 3's V-bracket. Fasten 4 screw (D) on hinges (J). You can align and adjust the door panels by tightening and loosening the screw. 18 | P a g e www.Hodedah.com...
- Page 19 *Take all drawers, and slide them (the white rollers at drawer slide at both side of drawers are to go into the track of the slide at each side panel.)All the way gently, one drawer by one drawer starting from bottom to the top accordingly. 19 | P a g e www.Hodedah.com...
- Page 20 20 | P a g e www.Hodedah.com...
- Page 21 Job Complete… Enjoy & Thank you for purchasing from Hodedah! 21 | P a g e www.Hodedah.com...
