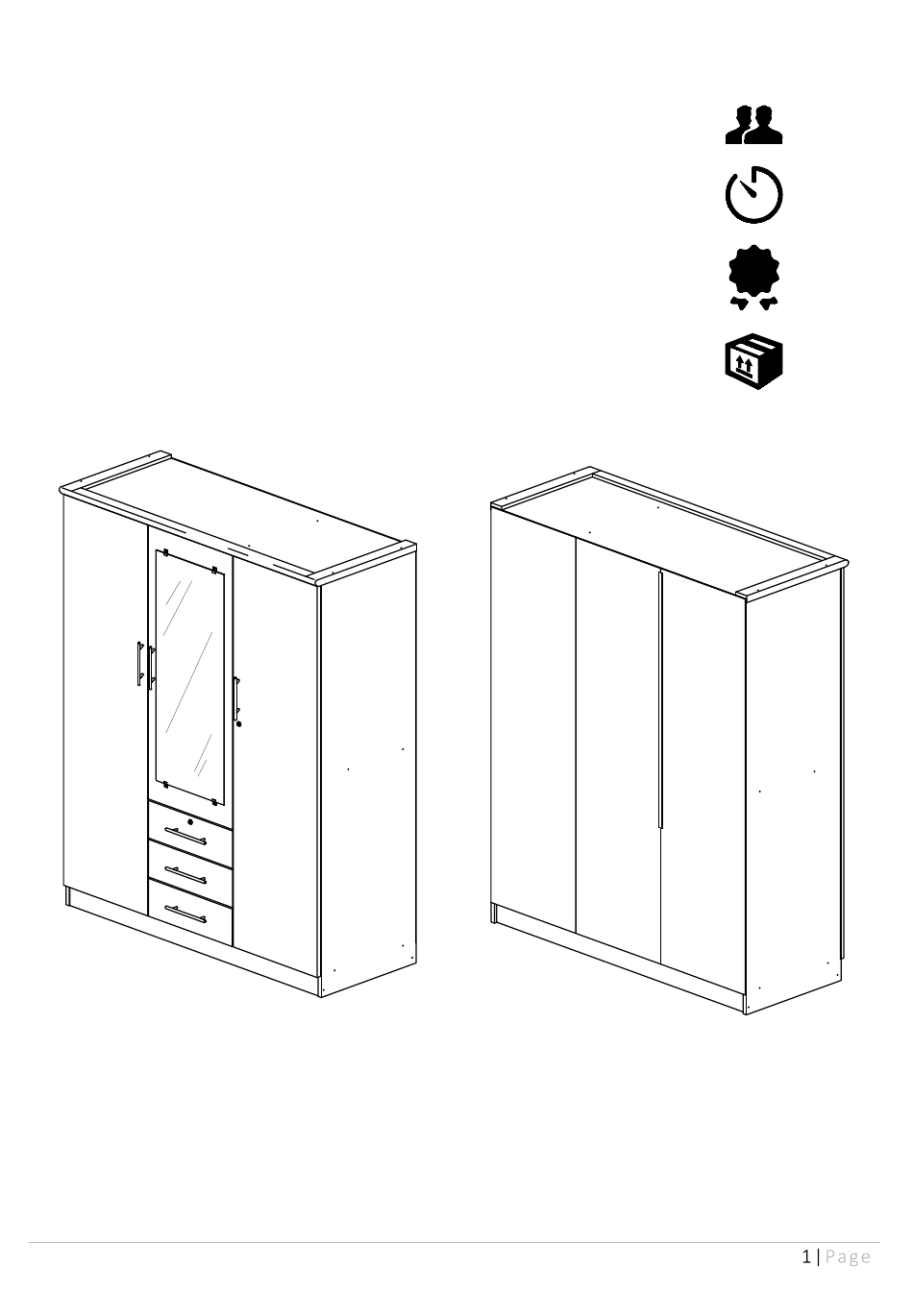

HODEDAH
Assembly Instructions
This instruction booklet contains important safety information, please read and keep for future reference.
ITEM # HI45A-G

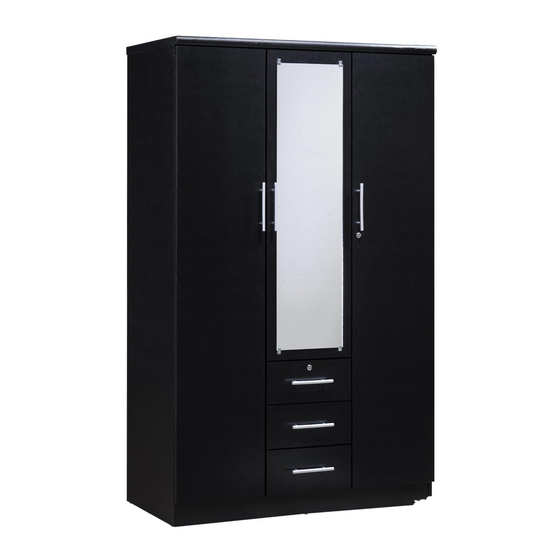

3 DOOR WARDROBE
FRONT VIEW
Product Dimensions: Height 72.83" x Width 47.24" x Depth 18.9"
www.Hodedah.com
®
Weight Capacity Per Drawer 25lbs
Weight Capacity Per Shelf 25lbs
BACK VIEW
2 people
90 mins
1 YR LTD
3 Box
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hodedah HI45A-G
Summary of Contents for Hodedah HI45A-G
- Page 1 HODEDAH ® Assembly Instructions 2 people This instruction booklet contains important safety information, please read and keep for future reference. 90 mins ITEM # HI45A-G 3 DOOR WARDROBE 1 YR LTD 3 Box FRONT VIEW BACK VIEW Product Dimensions: Height 72.83" x Width 47.24" x Depth 18.9"...
-
Page 2: Warranty
FREE of charge within ONE YEAR of purchase! WARRANTY Hodedah warrants this product to be free from defects in materials and workmanship and agrees to remedy any such defect. This warranty covers one year from the date of original purchase. This is solely limited to replacement of defective parts and no assembly for labor is included. -
Page 3: Product Care And Maintenance
HODEDAH ® · Never open more than one drawer at a time. · The use of tip-over restranits may reduce but not eliminate the risk of tip-over. Let's get started… Helpful hints, read before beginning assembly · Make sure you receive all boxes. If your item is packed in one box, box count will read 1 of 1, likewise if your item is packed in two boxes, box count will read 1 of 2 and second box will read 2 of 2. -
Page 4: Hardware List
HODEDAH ® Hardware List 8 Pcs 38 Pcs 1 Pc Shelf Support Pvc Dowel Hanging Rod 2 Pcs 2 Pcs 1 Pc V-Bracket Lock Allen Key 24 Pcs 4 Pcs 28 Pcs Screw M6 x 50mm Screw M6 x 40mm... - Page 5 HODEDAH ® Accessories Drawer Slide - A * Fix On Side Panels Ⓐ 3 Sets *Fix On Side Panels A & G * Fix On Side Panels Ⓖ * Fix On Drawer Side Panels Ⓠ 3 Sets Drawer Slide - B *Fix On Side Panels Q * Fix On Drawer Side Panels Ⓠ...
-
Page 6: Parts List
HODEDAH ® Parts List Left Side Panel Kick Panels Kick Panel 1165 x 89 x 15mm 401 x 76 x 15mm 1816 x 444.5 x 15mm 1 Pc 2 Pcs 1 Pc Bottom Panel Back Strengthening Panel Top Panel 1165 x 444.5 x 15mm... - Page 7 HODEDAH ® Parts List Left Door Mid Door Right Door 1722 x 394 x 15mm 1206 x 394 x 15mm 1722 x 394 x 15mm 1 Pc 1 Pc 1 Pc Upper Drawer Front Panel Lower Drawer Front Panel Left Drawer Side Panels...
- Page 8 HODEDAH ® The Breakdown II) Door & Drawer : I) Main Unit : www.Hodedah.com...
-
Page 9: Pre-Assembly
HODEDAH ® Pre - Assembly 1. Insert the PVC dowels ③ to panels 2. Place the drawer slide ⑱ ’s non-thru holes as onto the 2 holes area shown, using hammer to gently tap them in. shown at panels Then tighten it with SHELF SUPPORT 8 Pcs. - Page 10 HODEDAH ® Pre - Assembly Insert the PVC dowels ③ to Pvc Dowel 26 Pcs. panels ’s non-thru holes as shown, using hammer to gently tap them in. www.Hodedah.com...
-
Page 11: Door Panel Assembly
HODEDAH ® Door Panel Assembly * Insert 6 Hinges ⑬ and 3 hinges ⑭ into door panels 's non-thru hole as shown, then tighten screws ⑪ through hinges ⑬ and ⑭ 's thru hole. -Tighten 2 screws ① from inner side of panels into the handle ①... - Page 12 HODEDAH ® Assembly Of Drawers : 1 DRAWERS -Place panel on each side of panel as shown. -Then, tighten screw ⑫ to panel 's lower thru holes to fix them onto panel -Next tighten screw ⑫ to panel 's upper thru holes to fix up to the panel...
- Page 13 HODEDAH ® Assembly Of Drawers : 2 DRAWERS -Place panel on each side of panel as shown. -Then, tighten screw ⑫ to panel 's lower thru holes to fix them onto panel -Next tighten screw ⑫ to panel 's upper thru holes to fix up to the panel...
- Page 14 HODEDAH ® Step 1 Fix Panel onto 2 Panels by inserting the dowels onto the non-thru holes at Panel Next, fix Panel and 2 Panels onto panel by inserting the dowels onto the non-thru holes at Panel Fix panels onto panel...
- Page 15 HODEDAH ® Step 2 Fix Panels onto Panels by inserting the dowels onto the non-thru holes at Panel Using allen key ⑦ to tighten screw ⑧ from the 3 thru holes of panel Using allen key ⑦ to tighten screw ⑧ from the 2 thru holes of panel 360°...
- Page 16 HODEDAH ® Step 3 Fix Panel onto Panels by inserting the panel 's dowels onto non-thru holes at Panel Using allen key ⑦ to tighten screw ⑧ from the 3 thru holes of panel Screw Allen Key M 6 x 40mm 1 Pc.
- Page 17 HODEDAH ® Step 4 Fix Panel onto Panels by inserting the dowels onto the non-thru holes at Panel Using allen key ⑦ to tighten screw ⑧ from the 2 thru holes of panel Fix Panel onto Panels by inserting the panels and I 's dowels onto non-thru holes at Panel Using allen key ⑦...
- Page 18 HODEDAH ® Step 5 -Fix panel onto panels and align properly by inserting the 6 dowels of panels onto the non thru holes of panel -Pushing and light tapping of panel to have panel panel fix tightly. -Use allen key ⑦ to tighten 2 screws ⑧ and 4 screws ⑨ from the thru-holes of panel...
- Page 19 HODEDAH ® Step 6 -Lift up the main unit carefully and let it stand up properly. -Place hanging rod onto both panels 's V-bracket. -Put adjusting panels onto shelf supports as shown. -Take drawers (drawers ), and slide them (the...
- Page 20 HODEDAH ® Step 7 Join the door panels 's hinges with panel 's hinges as shown. You can align the door by tightening and loosening the screws as shown. Join the door panels 's hinges with panel 's hinges as shown.
- Page 21 HODEDAH ® Step 8 Place 3 back Panels onto the back of the main unit, and join 2 panels together with H-profile by slotting one side each of panel T into the track of H-profile. Then align them properly for nailing.
- Page 22 HODEDAH ® FITTING OF ANTI-TIP SAFETY STRAP STEP 1: · Attach the mounting bracket a to the furniture in the solid part below the top panel a few inches away from the side of the unit. · Screw b through the smallest hole of a .
-
Page 23: Job Complete
HODEDAH ® Job Complete Enjoy & Thank you for purchasing from Hodedah! In the interest of our environment please dispose of all packaging thoughtfully. www.Hodedah.com...
