HODEDAH
Assembly Instructions
This instruction booklet contains important safety information, please read and keep for future reference.
ITEM # HI71DR-G (MOP-SP)
7 DRAWER CHEST

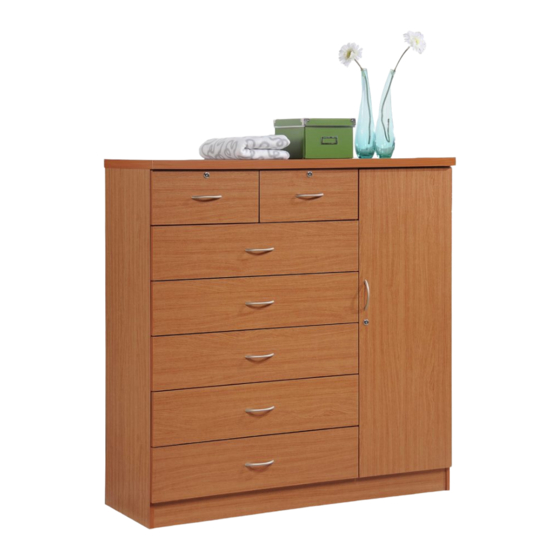

FRONT VIEW
Product Dimensions: Height 48.39" x Width 47.24" x Depth 17.76"
www.Hodedah.com
®
Weight Capacity Per Drawer 25Ibs.
Weight Capacity Per Shelf 25Ibs.
2 people
90 mins
1 YR LTD
2 Box
Advertisement
Table of Contents
Related Manuals for Hodedah HI71DR-G
Summary of Contents for Hodedah HI71DR-G
- Page 1 HODEDAH ® Assembly Instructions 2 people This instruction booklet contains important safety information, please read and keep for future reference. 90 mins ITEM # HI71DR-G (MOP-SP) 7 DRAWER CHEST 1 YR LTD 2 Box FRONT VIEW BACK VIEW Product Dimensions: Height 48.39" x Width 47.24" x Depth 17.76"...
- Page 2 FREE of charge within ONE YEAR of purchase! WARRANTY Hodedah warrants this product to be free from defects in materials and workmanship and agrees to remedy any such defect. This warranty covers one year from the date of original purchase. This is solely limited to replacement of defective parts and no assembly for labor is included.
- Page 3 HODEDAH ® · Never open more than one drawer at a time. · The use of tip-over restranits may reduce but not eliminate the risk of tip-over. Let's get started… Helpful hints, read before beginning assembly · Make sure you receive all boxes. If your item is packed in one box, box count will read 1 of 1, likewise if your item is packed in two boxes, box count will read 1 of 2 and second box will read 2 of 2.
- Page 4 HODEDAH ® Hardware List 20 Pcs 66 Pcs 72 Pcs Screw M6 x 40mm Screw M4 x 32mm 20 Pcs Screw M3.5 x 14mm Pvc Cap *For # 15 Drawer Slides 33 Pcs 8 Sets 170 Pcs Mini Fix Pvc Dowel...
- Page 5 HODEDAH ® Accessories Drawer Slide - A * Fix On Side & Stand Panels Ⓐ , Ⓗ 7 Sets *Fix On Side Panels A , H & I * Fix On Stand Panels Ⓗ , Ⓘ * Fix On Drawer Side Panels Ⓠ...
- Page 6 HODEDAH ® Parts List Left Side Panel Kick Panel Bottom Panel 1165 x 89 x 15mm 1165 x 412 x 15mm 1200x 413 x 15mm 1 Pc 1 Pc 1 Pc Front Strengthening Panel Back Strengthening Panel Strengthening Panel -Back...
- Page 7 HODEDAH ® Parts List D rawer Front Panels -Big Drawer - Left Side Panels Drawer - Right Side Drawers Panels 394 x 116 x 15mm 793 x 180 x 15mm 394 x 116 x 15mm 5 Pcs 7 Pcs 7 Pcs...
- Page 8 HODEDAH ® www.Hodedah.com...
- Page 9 HODEDAH ® Pre - Assembly Insert the mini fix ⑥ (nuts) with the Place the drawer slide A ⑭ onto the 2 holes area cross arrow mark facing upward and shown at left side panel an d . Then tighten it aim to panel &...
- Page 10 HODEDAH ® Pre - Assembly Insert mini fix ⑥ (nuts) with the cross arrow mark facing upward and aim to the panel 's top thru holes. (As shown) Insert pvc dowels ⑤ to both end of the panels & as shown.
- Page 11 HODEDAH ® Assembly Of Small Drawers : 2 DRAWERS -Place panel and panel R on each side of panel & as shown. Handle Handle Screw 2 Pcs. M4 x 20mm 4 Pcs. -Then, tighten screw ② to panel and panel...
- Page 12 HODEDAH ® Assembly Of Big Drawers : 5 DRAWERS -Place panel panel on each side of panel as shown. -Then, tighten screw ② to panel and panel 's lower thru holes to fix them onto panel -Next tighten screw ②...
- Page 13 HODEDAH ® Step 1 * Fix Panel onto Panel by inserting the dowel onto the non-thru holes at Panel as shown. * Fix Panel onto Panel A by inserting the (Left) dowels onto the non-thru holes at Panel * Using allen key ⑧ to tighten screw ① from the 6 thru holes...
- Page 14 HODEDAH ® Step 2 * Fix Panel onto Panel by inserting the (Right) dowels onto the non-thru holes at Panel (with drawer slide A ⑭ downward and the small white roller facing frontward) onto panel *Place Panel and panel by inserting the (down) dowels onto non-thru holes at bottom area of panel .
- Page 15 HODEDAH ® Step 3 * Fix Panel onto Panel by inserting the (Left) dowels onto the non-thru holes at Panel * Using allen key ⑧ to tighten screw ① from the 2 thru holes of panel * Fix panel onto panel...
- Page 16 HODEDAH ® Step 4 Mini Fix Cap Dowel / Mini Fix Installation 8 Pcs. Place and fix panel onto panel panel , panel and panel , and align properly by inserting the 8 (down) mini fix screws ⑥ onto the L-thru holes at top edge of panel .
- Page 17 HODEDAH ® Step 5 * Lay the chest at face down position, Place the 3 back Panels onto the back of the main unit, and join the 2 panel togather with H-profile by slotting one side each of panel M into the track of H-profile. Then align them properly for nailing.
- Page 18 HODEDAH ® Step 6 * Lift up the main unit carefully and let it stand up properly. * Cover all the screw ① 's head with the pvc cap provided by pushing the cover's stem onto the hole of screw head one by one for all screws .
- Page 19 HODEDAH ® Step 7 * Insert Hinges ⑪ into door panel 's non-thru hole as shown, then tig hten screw ③ through hinges ⑪ 's thru hole. -Disassemble the lock ⑫ into 5 parts as shown,then install the lock ⑫ by insert the lock ⑫ 's cylinder into middle thru hole of panel then fix the lock up.
- Page 20 HODEDAH ® Step 8 * You can align the door panel by tightening and losening the screw as shown. * Place hanging rod onto both panels V-bracket. HANGING ROD 1 Pc. www.Hodedah.com...
- Page 21 HODEDAH ® FITTING OF ANTI-TIP SAFETY STRAP STEP 1: · Attach the mounting bracket a to the furniture in the solid part below the top panel a few inches away from the side of the unit. · Screw b through the smallest hole of a .
