Summary of Contents for Hodedah HI 288

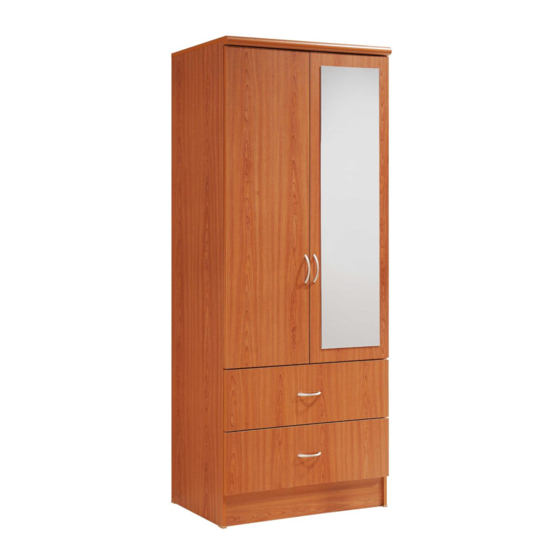

- Page 1 Hodedah www.hodedah.com support @hodedah.com HI 288 '' X D16 '' X H71...
- Page 2 Hodedah www.hodedah.com support @hodedah.com PART & HARDWARE LIST PLASTIC DOWEL M8 X 25MM DRAWER SLIDE 14" CB SCREW M3.5 X 12MM CB SCREW M3.5 X 16MM ALUMINIUM PIPE (787MM) CB SCREW M4 X 25MM HANDLE IP994 (96MM) - PVC CB SCREW M4 X 35MM...
- Page 3 Hodedah www.hodedah.com support @hodedah.com - This product contains small components, please ensure that they are kept away from small children. - THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. DO NOT RETURN PRODUCT TO THE STORE.
- Page 4 - Never push, drag or pull your furniture (especially on carpet). Warranty Information Hodedah warrants this product to be free from defects in material and workmanship agrees to remedy any such defect. This warranty covers one year from the date of original purchase. This is solely limited to be repair or replacement of defective parts and no assembly labor is included.
- Page 5 Hodedah www.hodedah.com support @hodedah.com STEP 1 PLASTIC DOWEL M8 X 25MM - Insert 18 x Plastic dowel (A) into Panels (1), (2) (3), (4), (5), (6) & (7) using a plastic hammer.
- Page 6 Hodedah www.hodedah.com support @hodedah.com STEP 2 HANDLE IP994 (96MM) - PVC CB SCREW M3.5 X 12MM P/H SCREW M4 X 20MM CB SCREW M3.5 X 16MM DRAWER SLIDE 14" BACK VIEW front VIEW - Assemble 4 x Drawer slide (K1) to Panel (1) & (7) with 12 x CB Screw M3.5 x 12m (B) using Philips head screwdriver.
- Page 7 Hodedah www.hodedah.com support @hodedah.com STEP 5 CB SCREW M3.5 X 16MM CABINET STOPPER CB Screw M4 X 25MM HANDLE IP994 (96MM) - PVC P/H SCREW M4X36 CB Screw M4 X 35MM 12 x 2pcs BOTTOM VIEW - Fixed 1 x Cabinet stopper (J) into panel (8) base, with 1x CB Screw M3.5 x 16mm (C). Tighten using a Philips head screwdriver.
- Page 8 Hodedah www.hodedah.com support @hodedah.com STEP 6 ALLEN KEY CB SCREW M3.5 X 12MM CB SCREW M4 X 35MM POWER NAIL " DRAWER SLIDE 14" JCBC W M6 X 40MM ALUMINIUM PIPE (787M) - Fix 2 x Drawer slide 14" (K2) into both Panel (14) using 6 x CB Screw M3.5 x 12mm (B) & tighten with Philip head screwdriver.
- Page 9 Hodedah Hodedah www.hodedah.com www.hodedah.com support @hodedah.com support @hodedah.com STEP 6 STEP 6 ALLEN KEY ALLEN KEY JCBC W M6 X 40MM - Attach Panel (6) into Panel (1) with 1 x JCBC W M4 x 40mm (F) & tighten with Allen Key (G).
- Page 10 Hodedah Hodedah www.hodedah.com www.hodedah.com support @hodedah.com support @hodedah.com STEP 6 STEP 6 PVC LEG STUD (L&R) CB SCREW M3.5 X 12MM ALLEN KEY JCBC W M6 X 40MM - Fix 2+2 x Pvc leg stud (I) into Panel (1) & (7) using 4 x CB Screw M3.5 x 12mm (B) & tighten with Philip head screwdriver.
- Page 11 Hodedah www.hodedah.com support @hodedah.com STEP 6 POWER NAIL " H- PROFILE (1670mm) - Slot both Panel (9) into groove at H- profile (O). - Attach Panel (9) at the back of wardrobe, use 62 x Power nail (H) for fix it. Knock by using a hammer.
- Page 12 Hodedah www.hodedah.com support @hodedah.com STEP 7 - Attach Panel (10) & (11) Hinges (N) with 8 x CB Screw M3.5 x 16mm (C) into Panel (1) & Panel (7) using Philip screwdriver. Job Complete ! In the interest of our environment please dispose of all packaging throughtfully.
