Hodedah HID8600-G Assembly Instructions Manual

2 door wardrobe
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HODEDAH
Assembly Instructions
This instruction booklet contains important safety information, please read and keep for future reference.
ITEM # HID8600-G

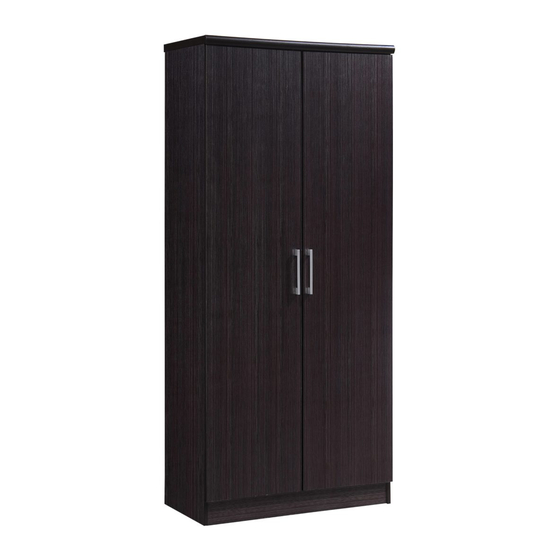

2 DOOR WARDROBE

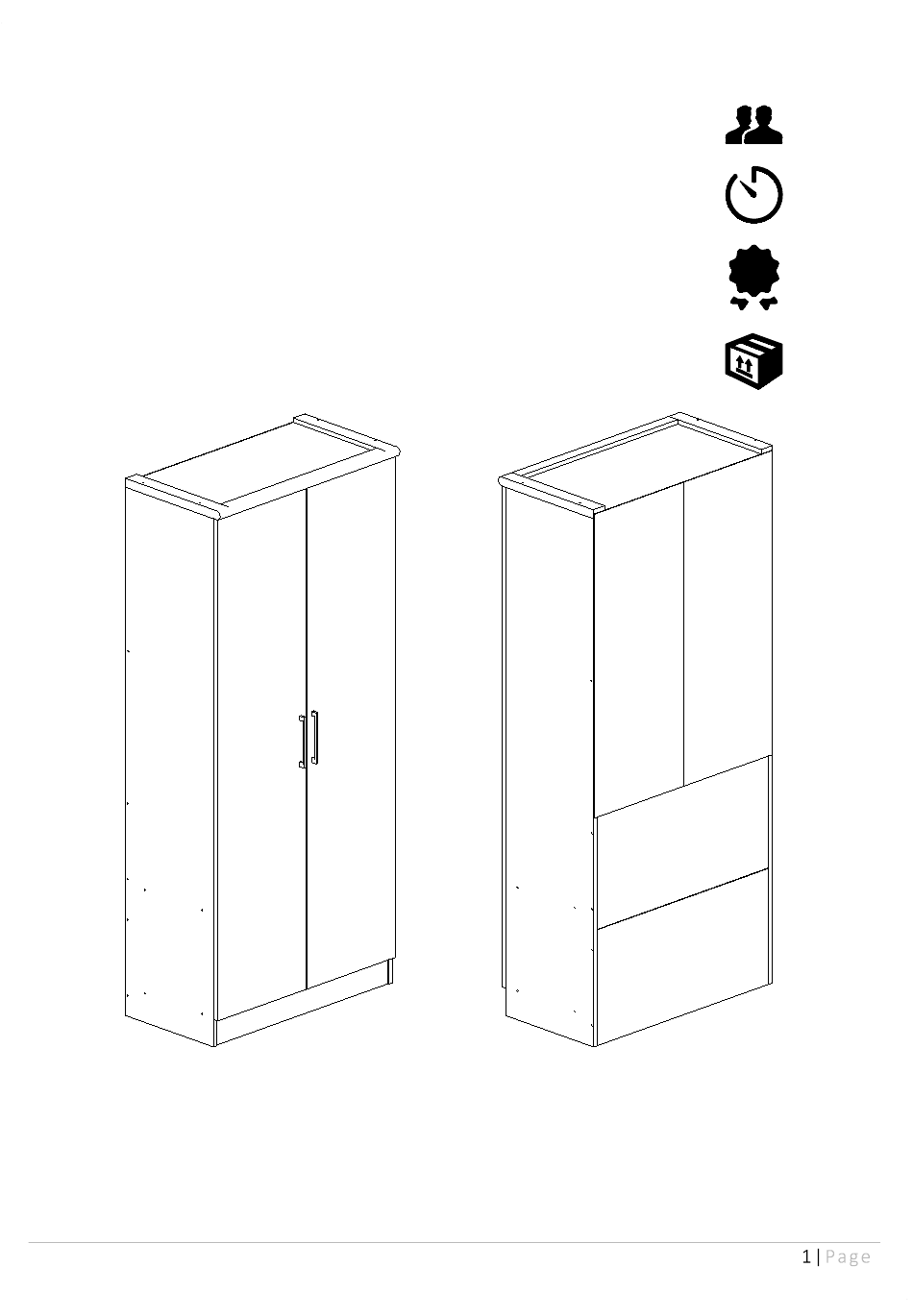

FRONT VIEW
Product Dimensions: Height 71.61" x Width 31.50" x Depth 16.73"
www.Hodedah.com
®
Weight Capacity Per Shelf 30lbs
BACK VIEW
2 people
90 mins
1 YR LTD
2 Boxs

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HID8600-G and is the answer not in the manual?

Questions and answers

Related Manuals for Hodedah HID8600-G

Summary of Contents for Hodedah HID8600-G

  • Page 1 HODEDAH ® Assembly Instructions 2 people This instruction booklet contains important safety information, please read and keep for future reference. 90 mins ITEM # HID8600-G 2 DOOR WARDROBE 1 YR LTD 2 Boxs FRONT VIEW BACK VIEW Product Dimensions: Height 71.61" x Width 31.50" x Depth 16.73"...

  • Page 2: Warranty

    FREE of charge within ONE YEAR of purchase! WARRANTY Hodedah warrants this product to be free from defects in materials and workmanship and agrees to remedy any such defect. This warranty covers one year from the date of original purchase. This is solely limited to replacement of defective parts and no assembly for labor is included.

  • Page 3: Product Care And Maintenance

    HODEDAH ® · Never open more than one drawer at a time. · The use of tip-over restranits may reduce but not eliminate the risk of tip-over. Let's get started… Helpful hints, read before beginning assembly · Make sure you receive all boxes. If your item is packed in one box, box count will read 1 of 1, likewise if your item is packed in two boxes, box count will read 1 of 2 and second box will read 2 of 2.

  • Page 4: Hardware List

    HODEDAH ® Hardware List 18 Pcs 28 Pcs 35 Pcs 29 Pcs Screw M6 x 40mm Screw M3.5 x 14mm Nail Pvc Dowel *For # 5 HINGERS 6 Sets 12 Pcs 1 Pc 12 Pcs Hinges Shelf Support Screw M 10 X 1/2 MM...

  • Page 5: Parts List

    HODEDAH ® Parts List Left Side Panel Kick Panels Kick Panel (Back) & Back 768 x 89 x 15mm Strengthening Panel 1791 x 394 x 15mm 768 x 39 4 x 75mm 1 Pc 1 Pc 1 Pc Kick Panel (Back) & Back...
  • Page 6 HODEDAH ® The Breakdown www.Hodedah.com...

  • Page 7: Pre-Assembly

    HODEDAH ® Pre - Assembly 1.Insert the PVC dowels ④ on top of panel using hammer to gently tap them in. 2.Fasten V-Bracket ⑪ onto panel using 2 screws ② . 3.Insert 6 shelf supports ⑥ onto panel 4.Place hinges ⑤ on panel .
  • Page 8 HODEDAH ® Pre - Assembly Insert dowels ④ to panel using hammer to gently tap them in. Pvc Dowel 25 Pcs. www.Hodedah.com...

  • Page 9: Door Panel Assembly

    HODEDAH ® Door Panel Assembly 1.Insert 6 Hinges ⑤ into door panel .Fasten screws ② through hinges ⑤ . 2.Fasten 2 screws ⑨ from inner side of panel into handle ⑨ . Screw M3.5 x 14mm 12 Pcs. HINGERS 6 Pcs.
  • Page 10 HODEDAH ® Step 1 Screw 1.Place panel onto panel M 6 x 40mm 9 Pcs. inserting panel 's dowels into panel 's non-thru holes. B,C,D,E,F 2.Place panel Allen Key onto left side panel by inserting the 1 Pc. dowels onto left side panel non-thru holes.
  • Page 11 HODEDAH ® Step 2 Screw B,C,D,E,F 1.Place panel M 6 x 40mm 9 Pcs. onto right side panel by inserting the dowels onto right side of panel non-thru holes. 2.Use allen key ⑩ to fasten screws ① Allen Key 1 Pc.
  • Page 12 HODEDAH ® Step 3 1.Place panel onto Panel inserting panel 's dowels into panel 's non-thru holes and align properly. 2.Use allen key ⑩ to fasten screws ① onto panel Screw Allen Key M 6 x 50mm 1 Pc. 4 Pcs.
  • Page 13 HODEDAH ® Step 4 Insert hinges on panel into panel You can adjust the door panels by fastening and loosening the screws. www.Hodedah.com...
  • Page 14 HODEDAH ® Step 5 1.Place hanger onto V-bracket on panels 2.Place panels onto shelf supports. Hanging Rod 1 Pc. www.Hodedah.com...
  • Page 15 HODEDAH ® Step 6 1 .Place panels M onto the back of main unit, then align them properly for nailing. 2.Use hammer to insert the nails at the center of the edges. Gap between nails should be about 100mm. Nail 32 Pcs.
  • Page 16 HODEDAH ® Step 7 Cover all the screw heads with cap ⑬ . Pvc Cap 18 Pcs. www.Hodedah.com...
  • Page 17 HODEDAH ® FITTING OF ANTI-TIP SAFETY STRAP STEP 1: · Attach the mounting bracket a to the furniture in the solid part below the top panel a few inches away from the side of the unit. · Screw b through the smallest hole of a .

  • Page 18: Job Complete

    HODEDAH ® Job Complete Enjoy & Thank you for purchasing from Hodedah! In the interest of our environment please dispose of all packaging thoughtfully. www.Hodedah.com...
