ASSEMBLY INSTRUCTIONS

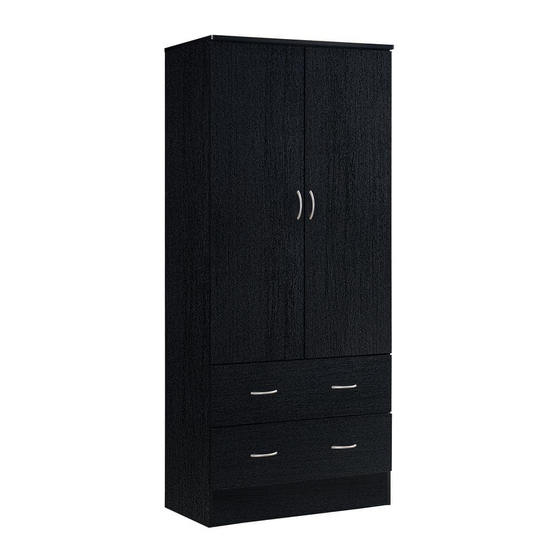

HI 29 -A ( WARDROBE )
~ Before assembly, pleas read the instructions ~
~ Keep these instructions for future reference ~
FRONT VIEW
HODEDAH
www.hodedah.com
support@hodedah.com
~ Follow these steps to assemble the chest cabinet~
BACK VIEW
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the HI 29 -A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hodedah HI 29 -A

Summary of Contents for Hodedah HI 29 -A

  • Page 1 HODEDAH www.hodedah.com support@hodedah.com ASSEMBLY INSTRUCTIONS HI 29 -A ( WARDROBE ) ~ Before assembly, pleas read the instructions ~ ~ Follow these steps to assemble the chest cabinet~ ~ Keep these instructions for future reference ~ BACK VIEW FRONT VIEW...
  • Page 4 HODEDAH www.hodedah.com support@hodedah.com 1 Top Panel 2 Right Side Panel 800x425x15mm 1800x400x15mm 1) Main Unit : 3 Left Side Panel 4 Kick Panels 5 Back Strengthening Panels 2Pcs 1800x400x15mm 766x70x15mm 766x70x15mm 7 Kick Panels Kick Panels 766x100x15mm 766x100x15mm 8 Partition Panel...
  • Page 5 Screw M3.5x16mm Screw M3.5x21mm PVC Dowel Minifix Screw M4x45mm 48Pcs 27Pcs 6Sets 12Pcs 24Pcs Aluminium Pipe Handle (96mm) Drawer Slide - A Hinges 5/8 Nail 6Pcs (350mm) 4Pcs (760 x 19mm) 40Pcs 2Sets *Fix On Side Panels V - Bracket L - Leg Sticker 2Pcs...

  • Page 6: Pre-Assembly

    HODEDAH www.hodedah.com support@hodedah.com Pre - Assembly Insert PVC dowel (A) to panel 2, 3, 4, 5, 6, 7, 8, 11 and 12 's non-thru holes as shown, using hammer to gently tap them in. PVC Dowel 27Pcs...
  • Page 7 HODEDAH www.hodedah.com support@hodedah.com Pre - Assembly Tighten V-Bracket (K) on panel 2 and 3 as shown by using 2 scews Place the drawer slide (I) at the predrilled holes on the panel 2 and 3 as shown. Then tighten the drawer slide(I) with 3 screws (D).
  • Page 8 HODEDAH www.hodedah.com support@hodedah.com Assembly Instruction Step 1 *Place and fix Panel 4, 5, 6, 7, 8 onto Panel 2 by inserting the (Left) dowels onto the non-thru holes at Panel 2. *Using tighten screws (C) from the 5 thru holes of panel 2, one by one.
  • Page 9 HODEDAH www.hodedah.com support@hodedah.com Assembly Instruction Step 2 *Fix Panel 3 onto Panels 4, 5, 6, 7 and 8 by inserting the panel 4, 5, 6, 7 and 8 's dowels onto non-thru holes at Panel 3. *Using tighten 5 screws (C) from the thru holes of panel 3.
  • Page 10 HODEDAH www.hodedah.com support@hodedah.com Assembly Instruction Step 3 -Fix Panel 1 onto panel 2 and 3 and align properly by inserting the 5 dowels of panel 2 ,3 and 4 onto the non thru holes of panel 1. -Pushing and light tapping of panel 1 to have panel 1, panel 3, panel 2 , panel 4 fix tightly.
  • Page 11 HODEDAH www.hodedah.com support@hodedah.com Assembly Instruction Step 4 *Fix 40 x Nails (F) into Panel (16) using a Hammer. *Cover all the scrrews (C)' head with sticker (M) provided by Nail Sticker stick up onto hole of screw (C)' heads one by one for all the...
  • Page 12 HODEDAH www.hodedah.com support@hodedah.com Door Panel Assembly Instruction Step 1 *Insert 4 Hinges (J) into door panel 9 's non-thru hole as shown, then tighten screws (D) through hinges (J) 's thru hole. *Remark : Door Panels 9 can use for both sides (Right door or left door).
  • Page 13 HODEDAH www.hodedah.com support@hodedah.com Assembly Of Drawers *Insert the mini fix (B) *Insert Panel 14 into the drawer and align properly. (As shown) *Insert the mini fix (B)(nuts) with the cross arrow mark Minifix facing upward and aim to 6Sets panel 11,12 and 15 's top...
  • Page 14 HODEDAH www.hodedah.com support@hodedah.com *Place panel 13 on each side of panel 11 and 12 as shown. *Then, tighten screw (C) to panel 11 's upper thru holes to fix them onto panel 13. *Next tighten screw (C) to panel 12 's upper thru holes to fix up to the panel 13.
  • Page 15 HODEDAH www.hodedah.com support@hodedah.com Assembly Instruction Step 5 *Place aluminiun pipe onto both panel 2 and 3 's V-bracket. *Tighten screw (D) through hinges (J)' s thru hole. *You can align the door panel 2 and 3 by tightening and loosening the screw as shown.
  • Page 16 HODEDAH www.hodedah.com support@hodedah.com Assembly Instruction Step 6 *Take drawer 10, and slide them (the white roller at drawer slide at both side of drawers are to go into the track of the slides at each side panel.) all the way gently, one drawer by one drawer starting from bottom one.
