HODEDAH
Assembly Instructions
This instruction booklet contains important safety information, please read and keep for future reference.
ITEM # HID8020-G (MOP-SP)

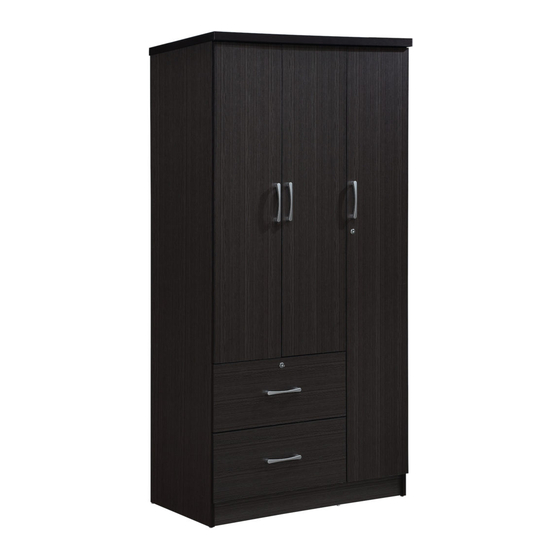

3 DOOR WARDROBE

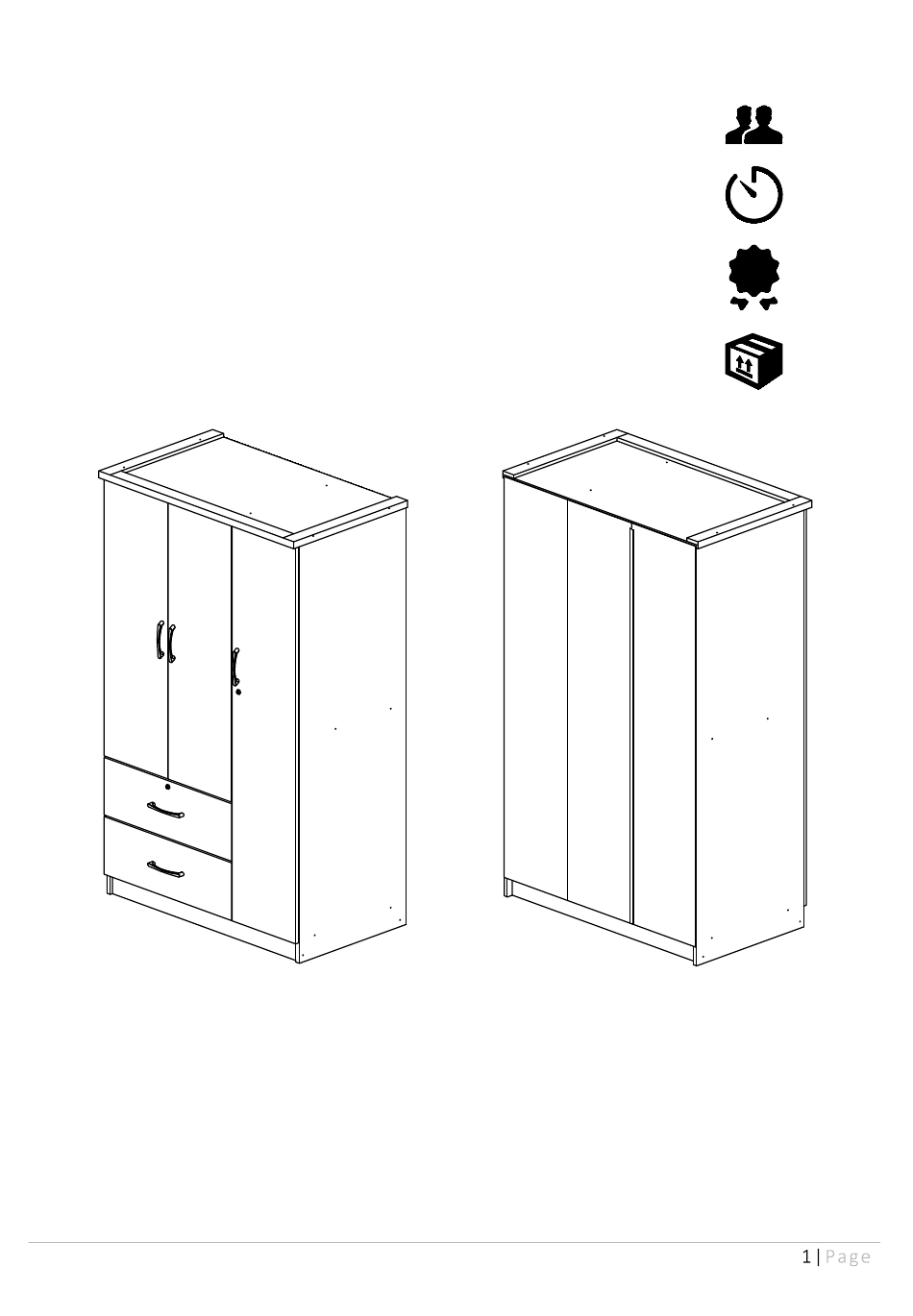

FRONT VIEW
Product Dimensions: Height 72.01" x Width 35.98" x Depth 20.98"
www.Hodedah.com
®
Weight Capacity Per Drawer 25lbs
Weight Capacity Per Shelf 25lbs
BACK VIEW
2 people
120 mins
1 YR LTD
2 Boxs
Advertisement
Table of Contents
Related Manuals for Hodedah HID8020-G(MOP-SP)
Summary of Contents for Hodedah HID8020-G(MOP-SP)
- Page 1 HODEDAH ® Assembly Instructions 2 people This instruction booklet contains important safety information, please read and keep for future reference. 120 mins ITEM # HID8020-G (MOP-SP) 3 DOOR WARDROBE 1 YR LTD 2 Boxs FRONT VIEW BACK VIEW Product Dimensions: Height 72.01" x Width 35.98" x Depth 20.98"...
-
Page 2: Warranty
FREE of charge within ONE YEAR of purchase! WARRANTY Hodedah warrants this product to be free from defects in materials and workmanship and agrees to remedy any such defect. This warranty covers one year from the date of original purchase. This is solely limited to replacement of defective parts and no assembly for labor is included. -
Page 3: Product Care And Maintenance
HODEDAH ® · Never open more than one drawer at a time. · The use of tip-over restranits may reduce but not eliminate the risk of tip-over. Let's get started… Helpful hints, read before beginning assembly · Make sure you receive all boxes. If your item is packed in one box, box count will read 1 of 1, likewise if your item is packed in two boxes, box count will read 1 of 2 and second box will read 2 of 2. -
Page 4: Hardware List
HODEDAH ® Hardware List 8 Pcs 34 Pcs 1 Pc Shelf Support Pvc Dowel Hanging Rod 2 Pcs 1 Pc 22 Pcs Screw M6 x 40mm V-Bracket Allen Key 56 Pcs 20 Pcs 6 Sets Screw M3.5 x 14mm Screw M4 x 32mm... - Page 5 HODEDAH ® Accessories Drawer Slide - A 2 Sets * Fix On Side Panels Ⓐ *Fix On Side Panels A & G * Fix On Side Panels Ⓖ * Fix On Drawer Side Panels Ⓠ 2 Sets Drawer Slide - B *Fix On Side Panels Q * Fix On Drawer Side Panels Ⓠ...
-
Page 6: Parts List
HODEDAH ® Parts List Left Side Panel Kick Panels Kick Panels 860 x 89 x 15mm 432 x 76 x 15mm 1816 x 495 x 15mm 1 Pc 2 Pcs 1 Pc Bottom Panel Partition Panel Back Strengthening Panel 860 x 494 x 15mm... - Page 7 HODEDAH ® Parts List Right Door Upper Drawer Front Panel Lower Drawer Front Panel 1722 x 293 x 15mm 590 x 253 x 15mm 590 x 253 x 15mm 1 Pc 1 Pc 1 Pc Back Panels Adjust Panels Left Drawer Side Panels...
- Page 8 HODEDAH ® The Breakdown www.Hodedah.com...
-
Page 9: Pre-Assembly
HODEDAH ® Pre - Assembly Insert the PVC dowels ③ to panels ’s non-thru holes , using hammer gently to tap them in. Place the drawer slide ⑱ onto the 2 holes area shown at side panel Then fasten it with 2 screws ⑰... - Page 10 HODEDAH ® Pre - Assembly Insert PVC dowels ③ to panels E , H, Q, R ’s non-thru holes , using hammer to gently tap them in. Pvc Dowel 26 Pcs. www.Hodedah.com...
-
Page 11: Door Panel Assembly
HODEDAH ® Door Panel Assembly * Insert 6 Hinges ⑩ and 3 hinges ⑪ into door panels 's non-thru hole , then fasten screws ⑧ through hinges ⑩ and ⑪ 's thru hole. HINGES 6 Pcs. Screw M3.5 x 14mm 18 Pcs. - Page 12 HODEDAH ® Assembly Of Top Drawer -Place panel on each side of panel -Then, fasten screw ⑨ to panel 's lower thru holes to fix them onto panel -Next fasten screw ⑨ to panel 's upper thru holes to fix up to the panel -Then tighten screw ⑨...
- Page 13 HODEDAH ® Assembly Of Bottom Drawer -Place panel on each side of panel -Then, fasten screw ⑨ to panel 's lower thru holes to fix them onto panel -Next fasten screw ⑨ to panel 's upper thru holes to fix up to the panel...
- Page 14 HODEDAH ® Step 1 Fix Panel onto 2 Panels by inserting the dowels onto the respective non-thru holes at Panel Next, fix Panel and 2 Panels onto panel by inserting the dowels onto the non-thru holes at Panel Fix panel...
- Page 15 HODEDAH ® Step 2 Fix Panel onto Panels by inserting the dowels onto the non-thru holes at Panel Using allen key ⑥ to fasten screw ⑦ from the 3 thru holes of panel , one by one. Fix Panel onto Panels...
- Page 16 HODEDAH ® Step 3 Place and fix Panel onto Panel by inserting the (Left) dowels onto the non-thru holes at Panel Using allen key ⑥ to fasten screw ⑦ from the 2 thru holes of panel Fix Panel onto Panels...
- Page 17 HODEDAH ® Step 4 Fix panel onto panels and align properly by inserting the 6 dowels of panels onto the non thru holes of panel Pushing and light tapping of panel to have panel , panel , panel and panel fix tightly.
- Page 18 HODEDAH ® Step 5 -Lift up the main unit carefully and let it stand up properly. -Place iron tube onto both panels 's V-bracket. -Put adjusting panels P onto shelf supports . -Take drawers (drawers ), and slide them (the white rollers at drawer slide at both side of drawers are to go into the track of the slides at each side panel.) all the way gently, one drawer by one drawer starting...
- Page 19 HODEDAH ® Step 6 Join the door panels 's hinges with panels 's hinges . You can align the door by fastening and loosening the screws . 360° www.Hodedah.com...
- Page 20 HODEDAH ® Step 7 Place 2 back Panels onto the back of the main unit, and join 2 panels together with H-profile by slotting one side each of panel into the track of H-profile. Then align them properly for nailing.
- Page 21 HODEDAH ® FITTING OF ANTI-TIP SAFETY STRAP STEP 1: · Attach the mounting bracket a to the furniture in the solid part below the top panel a few inches away from the side of the unit. · Screw b through the smallest hole of a .
-
Page 22: Job Complete
HODEDAH ® Job Complete Enjoy & Thank you for purchasing from Hodedah! In the interest of our environment please dispose of all packaging thoughtfully. www.Hodedah.com...
