Start-up

Start / Stand-by screen
When the CP plus is connected to the power
supply, a start screen is displayed after a few
seconds.

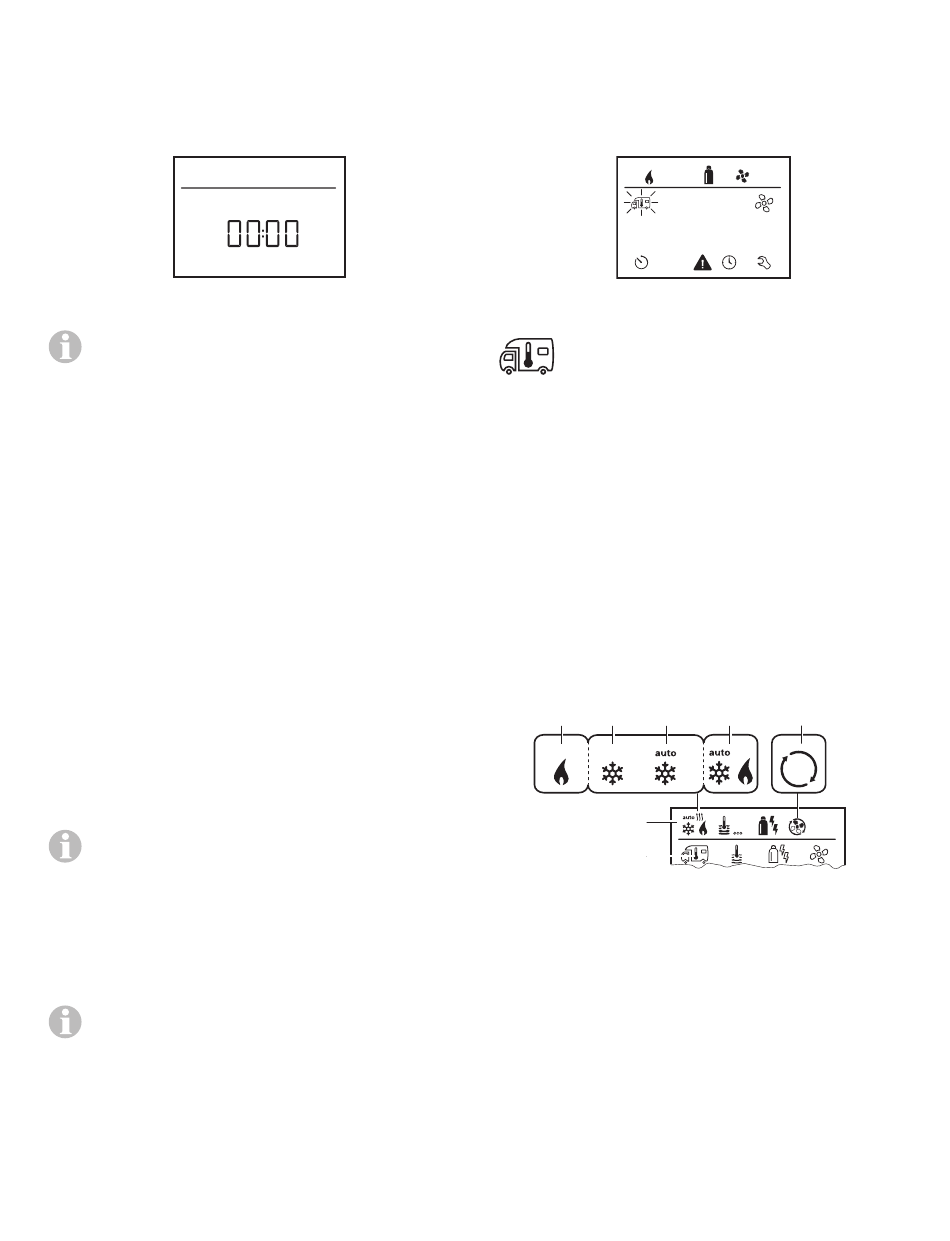

Fig. 2
• The display alternates between the cur-
rent time and the room temperature
that you set.
• Special displays on command via
CI-BUS (refer to "Special displays" on
page 12).
• After repairs or upgrades, "initial start-
up" has to be repeated.

Functions

The functions of menu lines (Fig. 1 – 3, 4) of the
CP plus can be selected in any sequence. The
operating parameters are shown in the status
line (Fig. 1 – 2) or in the display (Fig. 1 – 6).

Switch on / off

Switch on
• Tap the rotary push button.
Previously set values and operating pa-
rameters are active again when the panel
is switched on.
Switch off
• Press the rotary push button for more than
4 seconds.
The switching off process of the
CP plus may take a few minutes due to in-
ternal time lags of the furnace or air condi-
tioning system.

Select the setting level

• Tap the rotary push button.
The display shows the setting level. The first
icon flashes.
Fig. 3
Change the room
temperature
• Use the rotary push button (Fig. 1 - 8) to se-
lect the icon in the menu line (Fig. 4 - 3).
• Tap the button to go to the setting level.
• Use the rotary push button to select the fur-
nace ("HEATER") or air conditioning system
("AC").
• Use the rotary push button to select between
"OFF", "VENT", "COOL", "AUTO".
• Push rotary push button to confirm the
selection.
• Select the desired temperature with the
rotary push button.
• Tap the rotary push button (8) to confirm the
value.
a b c
2
3
Fig. 4
Furnace ("HEATER")
Adjustable temperature range 40 – 86 °F
(1 °F increments) or 5 – 30 °C (1 °C increments)
a = Combi (D) on – icon is lit;
the icon flashes until the room
temperature is reached.
d e
5
