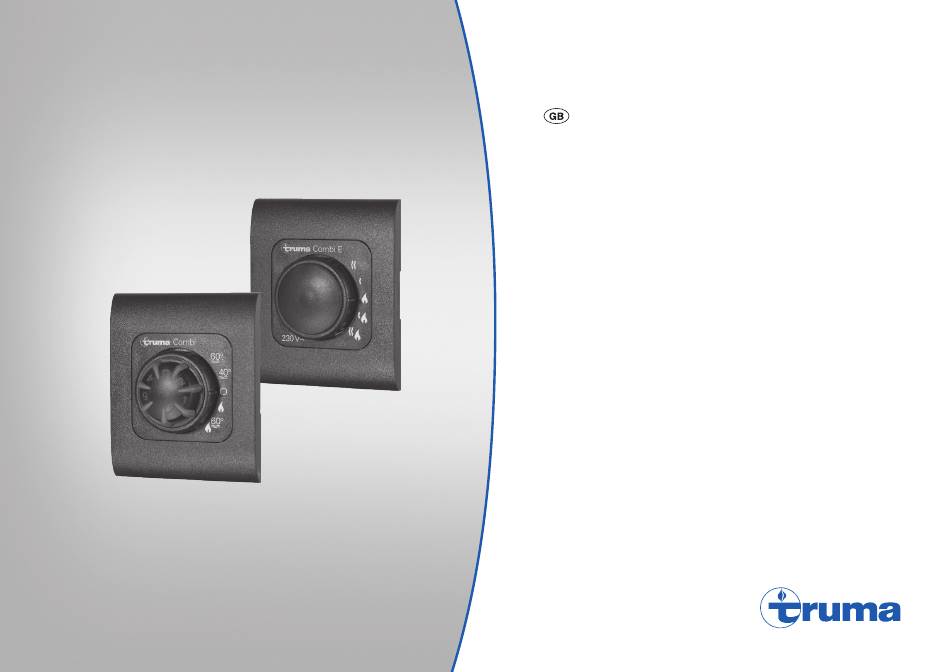

- Page 1 Truma CP (E) classic Operating instructions Page To be kept in the vehicle!
-
Page 2: Table Of Contents
Maintenance ..............11 Truma Combi Diesel E heater (with heating elements for Disposal ................11 electric mode). The CP classic control panel is also required. The control panels are intended for installation in caravans and motor homes. Installation in boats is not permitted. -
Page 3: Operating Instructions Safety Instructions
LED flashing “Warning” r = Red LED lit, red LED flashing “Fault” Safety instructions CP E classic power selector switch – The heater or control panel must not be used unless it is in perfect working order. (Combi Diesel E only) –... -
Page 4: Start-Up
Start-up Heating mode Heating mode is possible with or without water Appliances with electrical heating elements content depending on the operating mode. Select diesel, electric or mixed mode using the power selector switch. Illumination of the yellow LED (o) at the power selector switch indicates that the appliance is Hot water mode operating with 230 V . -
Page 5: Switching Off
The appliance automatically selects the required operating Appliances with gas mode level according to the temperature difference between the set- If the appliance is not going to be used for a long period of ting on the control panel and the current room temperature. time, close the quick-acting valve in the gas supply line and Once the room temperature selected on the control ... -
Page 6: Mixed Mode
Accessories Mixed mode (Combi Diesel E only) Cover frames are available as accessories. Fault in the 230 V power supply The yellow LED (o) on the power selector switch goes off and the yellow LED (g) on the control panel flashes 2 x. Refer to the troubleshooting guide for possible causes. -
Page 7: Troubleshooting Guide (Combi Gas Heater)
Troubleshooting guide (Combi Gas heater) Flashing code at the analogue CP classic control panel Flash sequence LED: – On / Off: 0.5 seconds Pause between flash sequence: 5 seconds Fault Cause Remedy No LED is on, the appliance is – Automatic restart is blocked, e.g. - Page 8 – No fault. After-run switches itself off after max. 5 minutes adjustment immediately temperature of the appliance After switching on the green and – Faulty electronics – Contact Truma Service the red LED illuminate If these actions do not remedy the problem, please contact Truma Service.
-
Page 9: Troubleshooting Guide (Combi Diesel Heater)
Troubleshooting guide (Combi Diesel heater) Flashing code at the analogue CP classic control panel Flash sequence LED: – On / Off: 0.5 seconds Pause between flash sequence: 5 seconds Fault Cause Remedy No LED illuminates after – No operating voltage –... - Page 10 – Contact Truma Service cable defective Yellow LED flashes 8 x – FrostControl heating element – Disconnect heating element plug from electronic control unit, has a short circuit replace heating element If these actions do not remedy the problem, please contact Truma Service.
-
Page 11: Technical Data
Technical data Dimensions (LxWxH) 53 x 53 x 44 mm Subject to technical changes. Maintenance The control panels are maintenance free. Disposal The appliance must be disposed of in accordance with the ad- ministrative regulations of the respective country in which it is used. - Page 12 Should problems occur, please contact the Truma Service Centre or one of our authorised service partners (see www.truma.com). In order to avoid delays, please have the unit model and serial number ready (see type plate). Truma Gerätetechnik GmbH & Co. KG Service Wernher-von-Braun-Straße 12...
