Operating Instructions

Display and Operating Elements

hot
eco
6
7
9

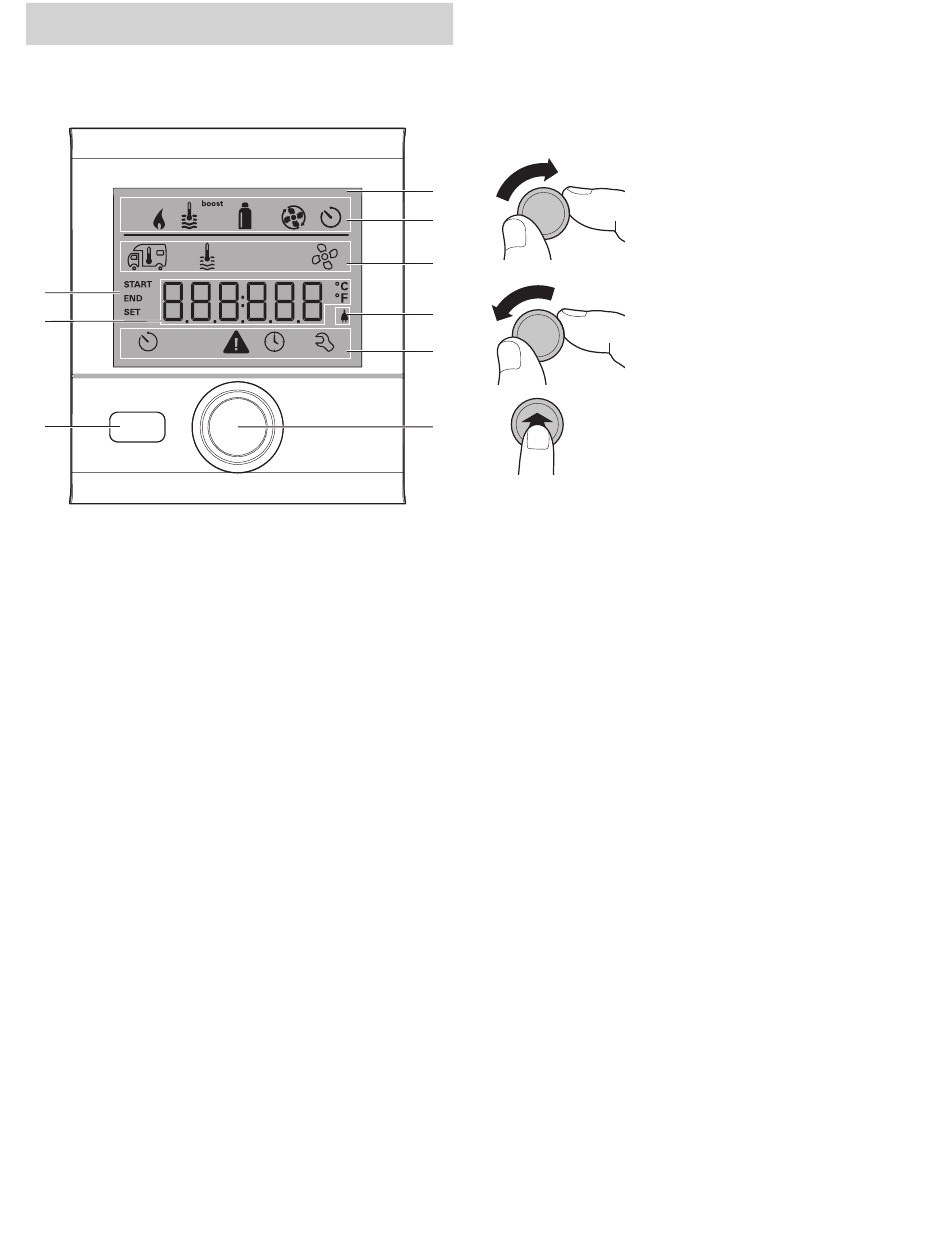

Fig. 1
1 Display
2 Status line
3 Menu line (top)
4 Menu line (bottom)
5 Power supply display
120 V AC (mains supply)
6 Time switch display
7 Settings/Values (displayed text)

8 Rotary push button

9 Back button

Description

• A rotary push button (8) is used to select
menu items in the menu lines (3 + 4) and to
adjust settings.
• Information is shown on a backlit display (1).
• The back button (9) is used to go back to a
previous menu.
4
Rotary push button
The rotary push button (8) is used to select and
change setpoints and parameters; it is then
tapped to save the values. Selected menu items
flash.
+
1
2
3
–
5
4
8
Back button
Press the back button (9) to go back to a previ-
ous menu and cancel settings. This means that
the previous values remain unchanged.

Initial start-up

Perform the following steps for initial start-up:
• Switch on the power supply.
– 12 V DC for the CP plus and furnace or air
conditioning system.
• Start searching for the appliances in the
menu item "Service menu" –> "RESET" –>
"PR SET".
When you have confirmed the selection, the
CP plus is initialized. "INIT .." appears on the
display while this is in progress. This stores the
devices that have been found in the control
panel.
Turn clockwise
• The menu is scrolled
through from left to right
• Increase values (+)
Turn counterclockwise
• The menu is scrolled
through from right to left
• Reduce values (-)
Tap
• Save a selected value
• Select a menu item, go
to the setting level
Press and hold
• Main switching function
– control panel on/off.
