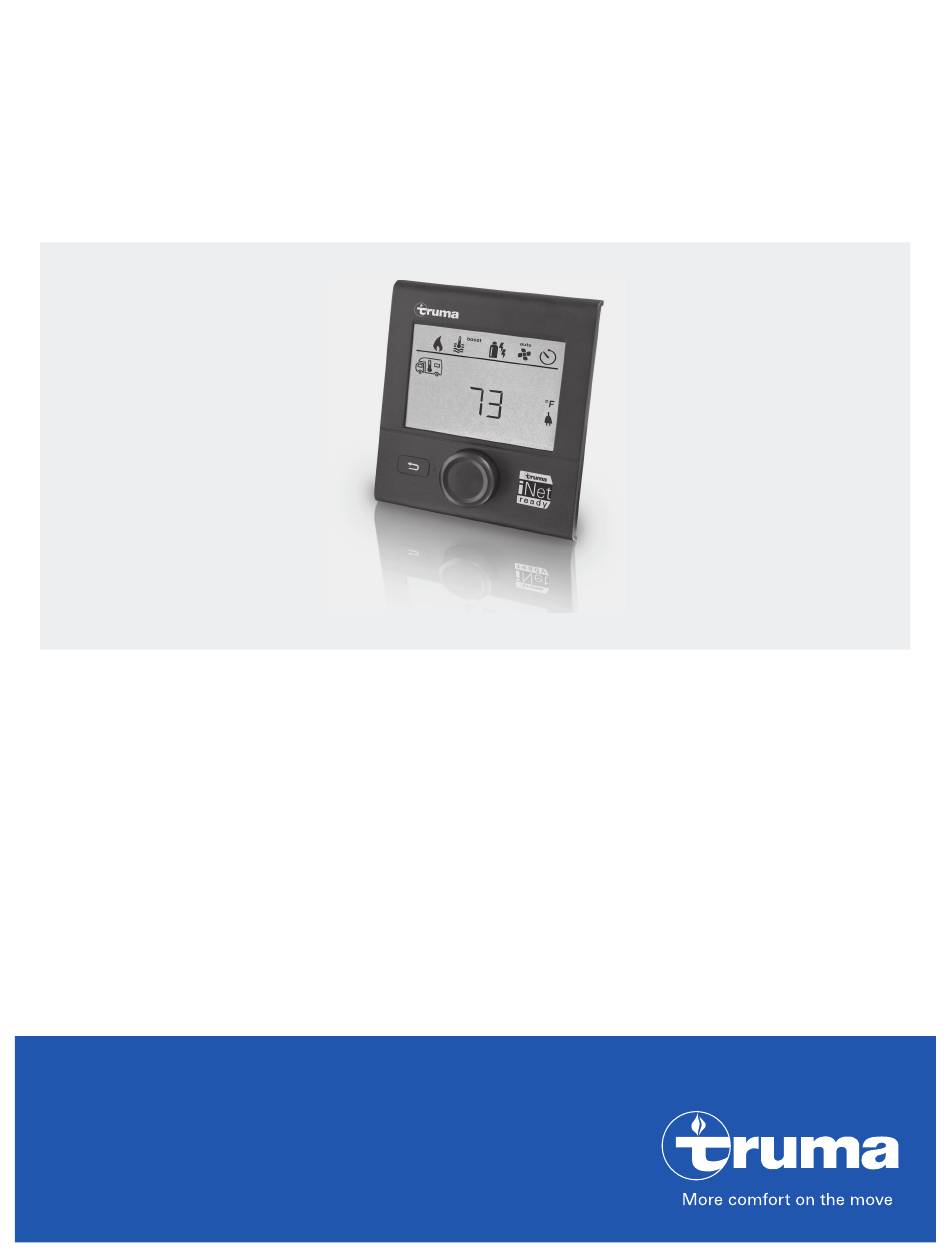

- Page 1 Truma CP plus VarioHeat Operating instructions To be kept in the vehicle. This document is part of the product.
-
Page 2: Table Of Contents
Display and Operating Elements ........4 Trademark information Description ................4 Rotary push button ..............4 Truma CP plus VarioHeat control panel referred Back button ................4 to as CP plus VarioHeat below. Initial start-up ................4 Truma AquaGo referred to as AquaGo below. -
Page 3: Consumer Safety Information
Intended use Consumer Safety Information The CP plus VarioHeat is suitable only for in- Safety Definitions stallation in RVs used for recreation, travel, or camping. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or The CP plus VarioHeat controls and monitors hurt you and others. -
Page 4: Operating Instructions
Operating Instructions Display and Operating Elements Rotary push button The rotary push button (8) is used to select and change setpoints and parameters; it is then tapped to save the values. Selected menu items flash. Turn clockwise • The menu is scrolled through from left to right •... -
Page 5: Start-Up
Start-up Switch off • Press the rotary push button for more than Start / Stand-by screen 4 seconds. When the CP plus VarioHeat is connected to the power supply, a start screen is displayed after a The switch off process of the few seconds. CP plus VarioHeat may take a few minutes due to internal time lags of the furnace, air conditioning system or hot water system... -
Page 6: Select The Fan Level
Air conditioning system (“AC”) Adjustable temperature range 60 - 88 °F (1 °F increments) or 16 – 31 °C (1 °C increments) Air conditioning system can also be oper- ated with IR remote, see page 12. Icon Displayed Description text COOL Air conditioning system is switched on... -
Page 7: Change Hot Water Mode
Air conditioning system (“AC”) Hot water mode Air conditioning system can also be oper- Icon Displayed Description ated with IR remote, see page 12. text – AquaGo is switched off. Icon Displayed Description text The AquaGo is now running in energy-saving mode. –... - Page 8 Enter start time 2. Tap the rotary push button to confirm the Use the rotary push button to set the hours and value. then the minutes. 24 h mode 12 h mode Fig. 12 = a. m. = p. m. Select the hot water temperature Fig.
-
Page 9: Set Clock
Presetting: OFF The room temperature sensor of the connected furnace can be adjusted individually to suit the The function of the Truma automatic climate location of the sensor. Settings can be made in control depends on proper installation. the range from 41 °F to 23 °F (5 °C to -5 °C) in 4. - Page 10 4.2 CLEAN (Only AquaGo comfort / AquaGo comfort plus.) Irritation of skin and eyes in case of contact with decalcification agent Wear protective gloves, eye protection and face protection to avoid contact. Fig. 18 The directions in the AquaGo operating instructions must be followed. Default setting: °C (Celsius).
-
Page 11: Special Displays
Newly connected devices are recognized If an operating parameter is outside the tar- and recorded in the control panel. get range, the CP plus VarioHeat immediately jumps to the “Warning / Error” menu level and • Switch on the power supply displays the respective –... -
Page 12: Ir Remote Control
Malfunction The CP plus VarioHeat recognises all settings In the event of an error, the CP plus VarioHeat (except dehumidification mode) that are immediately jumps to the “Warning / Error” made on the air conditioning system using menu level and displays the respective fault the IR remote control. - Page 13 Technical data Display LCD, monochrome, with backlighting Diagonal 3.3 in. (84 mm) Dimensions (L x W x H) 3.62 x 4.06 x 1.58 in. (92 x 103 x 40 mm) Operating temperature range 13 °F to 140 °F (-25 °C to +60 °C) Storage temperature range 13 °F to 158 °F (-25 °C to +70 °C) Interface TIN bus...
-
Page 14: Troubleshooting Charts
If these measures do not remedy the malfunction or if error codes are displayed that you cannot find in the troubleshooting chart, contact your dealership, Truma Service 1-855-558-7862 or one of our authorized Service Partners. AquaGo (W) - Page 15 Error code Potential cause Solution E 5 W Flame detected at incorrect time There is an error in flame detection of the burner because the flame was detected: before ignition or before the release of gas or after the gas was switched off. E 6 W Error in the safety circuit for gas There is a heating request but gas cannot be...
-
Page 16: Aventa Eco / Comfort
If none of the measures in the troubleshooting chart proves successful or fault codes are displayed that cannot be found in the troubleshooting chart, please contact the Truma Service Center at 1-855-558-7862 or one of our authorized service partners. - Page 20 In case you encounter any problems, please contact the Truma Service Center at 855-558-7862 or one of our authorized service partners. For details see www.truma.net. Please have the model number and serial number (on type plate of appliance) handy when you call.
