Packing List - Jimmy HW10 Manual

Packing List

Handheld
Floorhead Metal tube
cleaner
1 1
Electric
Upholstery
mattress
tool
head
1 1

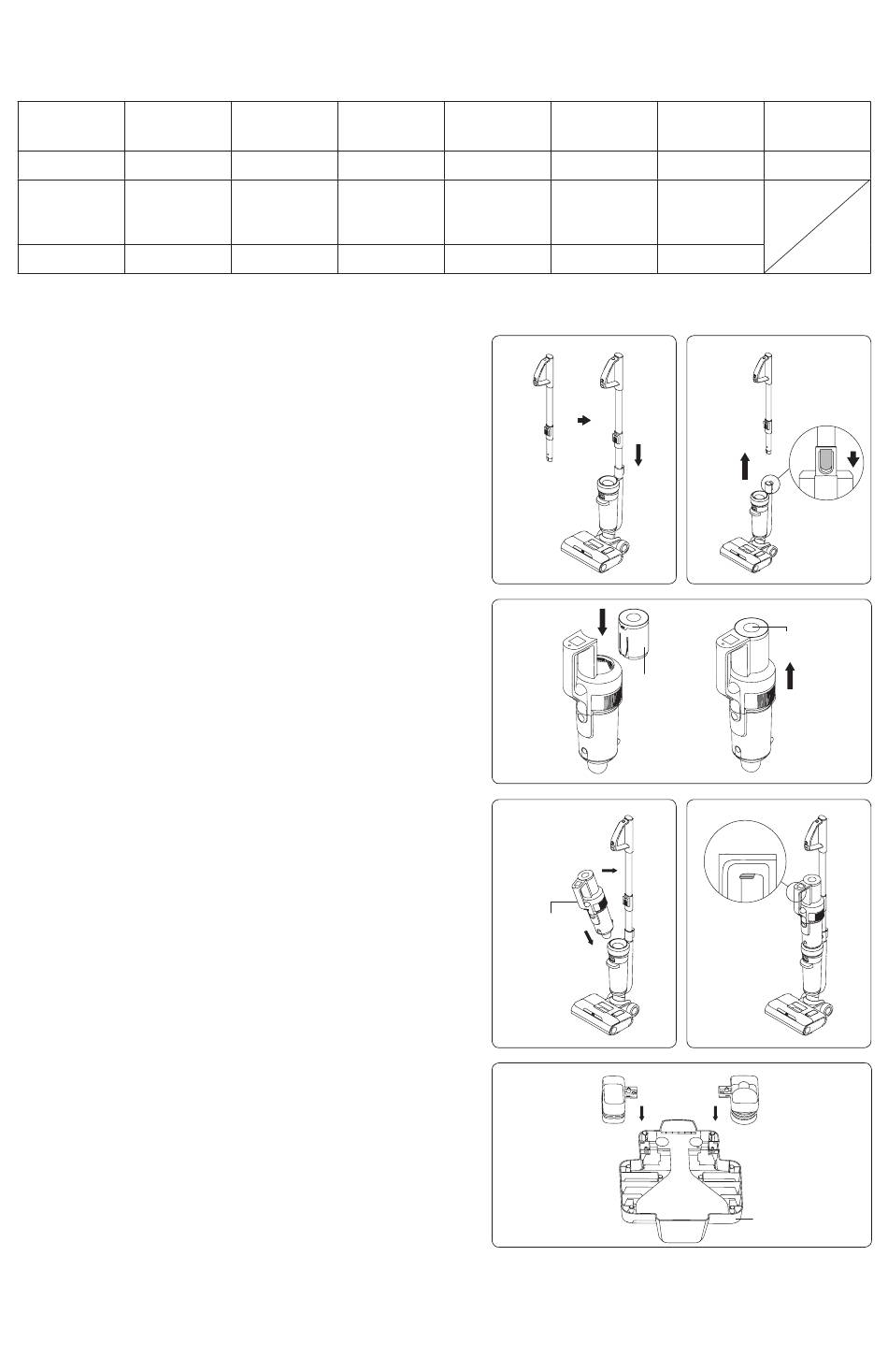

Product assembly and
disassembly
Note: Cut off electricity before product assembly and
disassembly.
Metal tube assembly and disassembly
Insert the metal tube into the mainbody vertically
until a"click"sound is heard. Make sure metal
tube is firmly locked(Fig 1). To remove the metal
tube, push the metal tube release button down
to the end and pull the metal tube upward.(Fig 2)
Battery pack assembly and disassembly
1.Slide battery pack along the slot and press the
battery pack down firmly until a"click"sound is
heard. The battery pack is locked.
2.Press the battery pack release button and pull
the battery pack in the direction opposite to the
assembly to unlock the battery pack.
Note: Except for the replacement of the battery pack, the
battery pack doesn't need to be taken out frequently.
Handheld vacuum cleaner assembly
Insert the dust cup suction inlet of the handheld
vacuum into the groove of the mainbody cover.
Push the handheld cleaner towards the metal
tube until a "click" sound is heard, the handheld
vacuum cleaner is installed successfully to
mainbody. And machine is used as a upright
vacuum cleaner at this time (Fig 4). To remove
the handheld vacuum cleaner, just press the
handheld release button and lift the handheld
vacuum cleaner diagonally upwards. (Fig 5)
Charging holder assembly (Fig 6)
Press the holder 1 and holder 2 into the charging
base until a "click" sound is heard.
Battery
pack
1 1
Crevice Cleaning
tool solution
1 1
Charging
Adaptor
base
1 1
Holder 1 Holder 2
1 1
1
Metal tube
3
4
Handheld
v a c u u m
cleaner
6
holder2
Carpet Cleaning
brushroll brush
1
Instruction
Manual
1
2
Metal tube
Battery pack
release button
Battery
pack
5
Handheld
r e l e a s e
button
holder1
Charging
base
1
release
button
3
