Dirty water tank full indicator
When the upright vacuum cleaner detects that
the dirty water tank is full, the whole machine will
stop and give a voice reminder. Please clean the

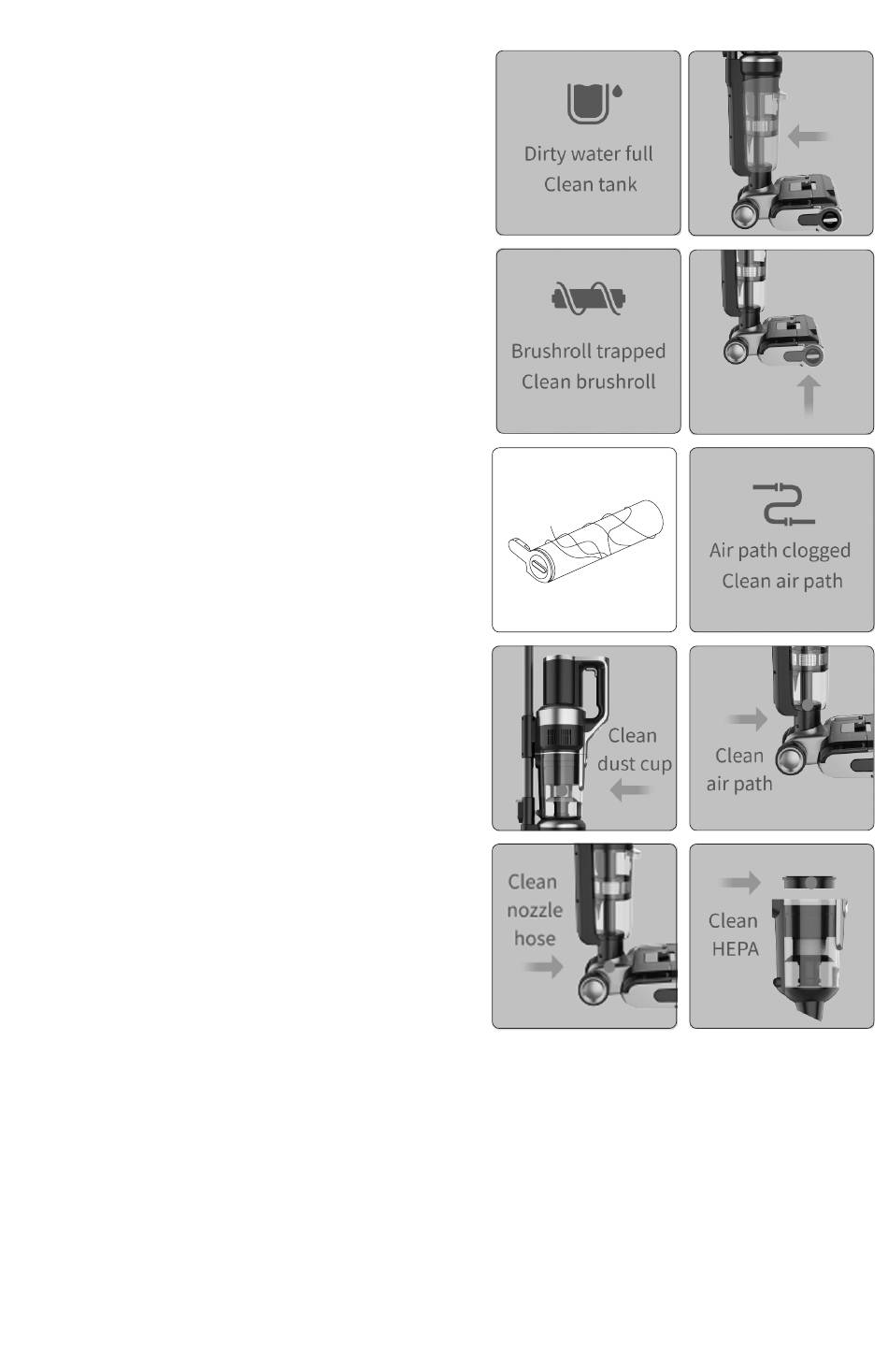

full dirty water tank and put it back. (Fig 26 and
Fig 27 alternately display)
When it is detected that the dirty water tank is full
in self clean mode, the machine will stop working
and give a voice reminder. Please clean the full
dirty water tank and put it back.
Dirty water tank cleaning: Take out dirty water
tank upper cover and filter frame, dump the
dirty water, assemble the dirty water tank after
washing, and put it back on the floorhead. (refer
to " Cleaning and Maintenance of dirty water
tank" for details)
Brushroll stuck indicator
When the cleaner is in working or cleaning
mode, if the brushroll is stuck, the whole machine
will stop and give a voice reminder. (Fig 28
and Fig 29 alternately display) Please take out
the brushroll, clean up the foreign matter or
entangled hair on the brushroll.
Brushroll cleaning: After removing the window,
pull out brushroll, use the blade on the cleaning
brush to cut the hairs winding on brushroll, and
clean the foreign matter attached to the brushroll
and floorhead, Install brushroll and window back.
(Fig 30) (refer to " Cleaning and Maintenance of
Floorhead Assembly " for details)
Air path blocked indicator
When the upright cleaner is in working or self
clean mode, if the air path is blocked, the
machine will stop working and give a voice
reminder. Please follow the instruction on display
screen to check the possible blocked parts and
clean up.
When handheld vacuum cleaner is working, if the
air path is blocked, cleaner will automatically stop. At this time, the dust cup and HEPA need to
be cleaned. (The content displayed on the screen is: the blockage of the upright vacuum cleaner
is shown in Fig 31-1、31-2、31-3、 31-4、31-5, and the blockage of the handheld vacuum
cleaner is shown in Fig 31-1、31-2)
Air path cleaning:
1.Disassemble the dirty water tank, take out dirty water tank upper cover and filter, wash all parts
and them asssemble back.
2.Use pipe brush to clean the dirt, foreign objects and hair inside air path of floorhead.
3.Remove the dust cup, empty the dust cup, remove HEPA, then take out cyclone and
disassemble it, clean all parts and reassemble the dust cup. (Refer to "Cleaning and
Maintenance" for details)
