Summary of Contents for Scotchman CPO-315-HFA-CNC

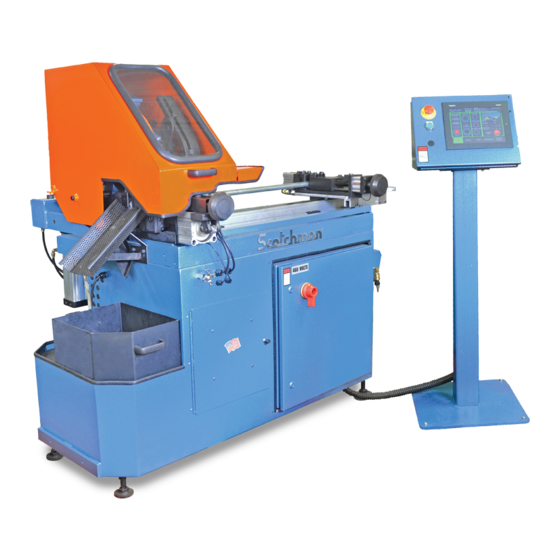

- Page 1 You have downloaded a manual for our MODEL CPO-315-HFA-CNC COLD SAW Please download our Cold Sawing Guide too. Please read the manual before operating this saw!!
- Page 2 MODEL CPO-315-HFA-CNC COLD SAW PRINTED MAY 2020 SCOTCHMAN INDS. - 180 E US HWY 14 - PO BOX 850 - PHILIP, SD 57567 Call: 1-800-843-8844...
- Page 26 6.3 SAW CAPACITIES SEE FIGURE 15 BELOW. Figure 15 is a chart showing the maximum capacities of this machine in various materials. RFA/ST RFA/ST CAPACITIES WITH MAXIMUM DIAMETER 90° ONLY 90° ONLY BUNDLE FEED BLADES 315 MM INCHES Ø3-1/2 Ø3 Ø3 Ø89 Ø76...
- Page 32 CAUTION: ALWAYS DISCONNECT THE AIR SUPPLY BEFORE REMOVING THE FILLER PLUG FROM THE RESERVOIR. IF THE FILLER PLUG IS REMOVED WHILE THE MACHINE IS CONNECTED TO AIR PRESSURE, THE FLUID IN THE TANK WILL BE PURGED THROUGH THE OPENING UNDER PRESSURE. Before powering the saw, check the oil level in the reservoir (A).
- Page 36 7.2 CUTTING OILS AND LUBRICANTS SECTION 11.2 lists Scotchman.s parts numbers for cutting oils and lubricants. Using high quality lubricants and oils will greatly increase the life of this equipment. We recommend using only pure, synthetic, water soluble, cutting oil for coolant.
- Page 57 10.4 SHUTTLE ASSEMBLY ITEM PART # DESCRIPTION 045670 T-Plate Alum 073455 M-5 x 20 DIN 912 SHCS 045669 Roller Block - Tall Bearing INA #SCE68 045233 047254 HFA Roller 045680 Sensor Target 221220 M-10 x 40 DIN 912 SHCS 045673 Spacer - Linear Drive 045671 Hold Down - Linear Rail...
- Page 58 Page 57...
- Page 59 10.5 POWER DOWN FEED ASSEMBLY ITEM PART # DESCRIPTION 045599 10" CYLINDER 3.25 1P4ML0000647 045425 Reservoir 077715 Pivot Bolt Cylinder Bracket 045232 116012 3/8 Nylon Lock Nut 077746 1/4" NPT x 169 Plastic 221210 M-10 x 25 SHCS 045230 Bracket Assembly (Upper) 221210 M-10 x 25 SHCS 077738...
- Page 73 10.10 ELECTRICAL UNIT - LINE CIRCUIT ITEM PART # DESCRIPTION 045483 230 Volt Power Supply 045485 Mini Circuit Breaker 045491 Manual Starter 045508 9 Amp Contactor 045512 24 Volt DC Relay 045490 Manual Starter 17-25 Amp 045481 Manual Starter 4-6.3 Amp 045537 Can Open Bus Master Module 045487...
- Page 85 11.2 COOLANTS AND LUBRICANTS UNIT PART DESCRIPTION 1 Gal. 075751 Saw Coolant 5 Gal. 075752 Saw Coolant 55 Gal. 075754 Saw Coolant 1 Gal. 075756 Stainless Coolant 5 Gal. 075757 Stainless Coolant 1 Qt. 075753 Air Line Lubricant 1 Gal. 075759 Air Line Lubricant 1 Gal.
