Scotchman CPO-350-NF-5HP Operator's Manual

Cold saw
Hide thumbs Also See for CPO-350-NF-5HP:
Table of Contents

Advertisement

Quick Links

Download this manual
You have downloaded a manual for our
MODEL CPO-350-NF SAW
Please read this Manual
before operating this saw!!

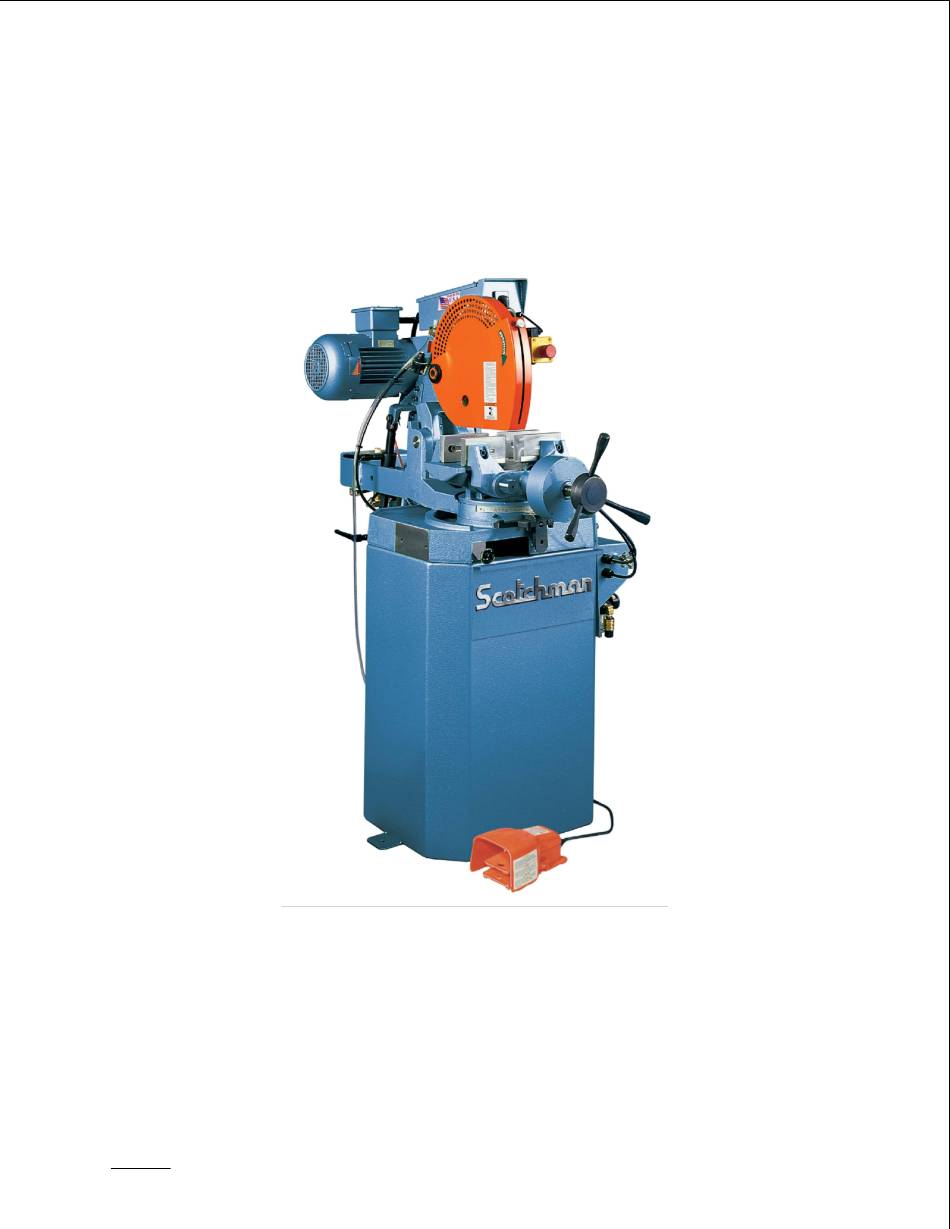

NOTE: Saw shown in above picture has power vise and power down-feed options.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CPO-350-NF-5HP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Scotchman CPO-350-NF-5HP

Summary of Contents for Scotchman CPO-350-NF-5HP

  • Page 1 You have downloaded a manual for our MODEL CPO-350-NF SAW Please read this Manual before operating this saw!! NOTE: Saw shown in above picture has power vise and power down-feed options.
  • Page 2 MODEL CPO-350-NF-5HP COLD SAW S/N B2220NF & AFTER FEBRUARY 2024 SCOTCHMAN INDS. - 180 E US HWY 14 - PO BOX 850 - PHILIP, SD 57567 Phone: 1-800-843-8844...

  • Page 3: Table Of Contents

    Power Down Feed Set-up & Maintenance Stroke Control Adjustment (Power Down Feed) Guard Adjustment (Power Down Feed) Installing Blades (Power Down Feed) SCOTCHMAN IND. - 180 E US HWY 14 - PO BOX 850 - PHILIP, SD 57567 Call: 1-605-859-2542 Page 2...
  • Page 4 Overview of Scotchman Measuring Systems 10.8 Cutting Coolants & Lubricants 10.9 Material Stop 30 Inch (76 CM) 11.0 STOCK BLADES SCOTCHMAN IND. - 180 E US HWY 14 - PO BOX 850 - PHILIP, SD 57567 Call: 1-605-859-2542 Page 3...

  • Page 5: Introduction

    All electrical connections shall be made by a qualified electrician. This machine must be grounded in accordance with the National Electric Code. Page 4 SCOTCHMAN INDS. - 180 E. HWY 14 - PO BOX 850 - PHILIP, SD 57567 PHONE: 1-800-843-8844...

  • Page 6: Warranty

    THIS MACHINE IS TOP HEAVY!! It must be anchored to the floor via the holes in the saw base. 3.0 WARRANTY Scotchman Industries, Inc. will, within three years of the date of purchase, replace F.O.B. the factory or refund the purchase price for any goods which are defective in materials or workmanship, provided the buyer, at the seller’s option, returns the defective goods freight and delivery prepaid to the seller, which...

  • Page 7: Installation & Set-Up

    4.0 INSTALLATION AND SET-UP CAUTION: THIS SECTION DISCUSSES INSTALLATION, SET-UP AND START-UP PROCEDURES. PLEASE READ IT THOROUGHLY BEFORE OPERATING THIS MACHINE. IF YOUR MACHINE IS EQUIPPED WITH EITHER THE POWER VISE OR THE POWER DOWN FEED OPTION, READ ALL SECTIONS CONCERNING THESE OPTIONS BEFORE OPERATING THE SAW.
  • Page 8 VISE 677933 FIGURE 1 Page 7...

  • Page 9: Machine Moving Procedures

    4.2 MACHINE MOVING PROCEDURES SEE FIGURE 2 ON THE FOLLOWING PAGE. This machine is shipped on a pallet and can be moved to the installation location by means of a fork lift. CAUTION : THIS MACHINE IS TOP HEAVY AND MUST BE MOVED WITH CARE, ON HARD, FLAT SURFACES ONLY.

  • Page 10: Lifting Eye

    LIFTING EYE 677933 LIFTING FORKS FIGURE 2 Page 9...

  • Page 11: Physical Inspection

    4.3 PHYSICAL INSPECTION Once the machine is located, check it for any possible damage incurred in shipment. Remove the lifting eyelet and install the draw handle. CAUTION: DO NOT USE THE LIFTING EYELET FOR ANY MACHINES OTHER THAN THIS SAW. MAKE SURE THAT THE DRAW HANDLE HAS A JAM NUT ON THE THREADS BEFORE INSTALLING IT ON THE SAW.

  • Page 12: Electrical Requirements

    4.4 ELECTRICAL REQUIREMENTS SEE FIGURE 3-1 THRU 3-2 ON THE FOLLOWING PAGES. CAUTION: TO PREVENT DAMAGE TO THE MACHINE AND DANGER TO THE OPERATOR, ALL ELECTRICAL CONNECTIONS SHOULD BE MADE BY A QUALIFIED ELECTRICIAN. THIS MACHINE OPERATES WITH LIQUID COOLANT AND MUST BE GROUNDED IN ACCORDANCE WITH NATIONAL ELECTRIC CODES.
  • Page 13 3 L2 5 L3 13 NO 2 T1 4 T2 6 T3 14 NO 060071 230V MOTOR 460V MOTOR FIGURE 3-1 Page 12 SCOTCHMAN INDS. - 180 E. HWY 14 - PO BOX 850 - PHILIP, SD 57567 PHONE: 1-800-843-8844...
  • Page 14 3 L2 5 L3 13 NO 2 T1 4 T2 6 T3 14 NO 060071 460V 230V MOTOR MOTOR FIGURE 3-2 Page 13 SCOTCHMAN INDS. - 180 E. HWY 14 - PO BOX 850 - PHILIP, SD 57567 PHONE: 1-800-843-8844...

  • Page 15: Machine Start-Up

    Scotchman offers a lock-out switch for this machine as an option, if your plant is not equipped with lock-out capabilities. If you are interested in this option, REFER TO SECTION 7.14 or contact your local dealer or the factory.

  • Page 16: Frl Use And Maintenance

    4.6 FRL USE AND MAINTENANCE SEE FIGURE 4 ON THE NEXT PAGE CAUTION: SHUT OFF AIR SUPPLY BEFORE SERVICING THE FRL The FRL (Filter Regulator Lubricator) is an important and often overlooked item on a cold saw. It helps to keep moisture from contaminating the pneumatic system and adds a little oil to keep the system lubricated.
  • Page 17 Scotchman Air Line Then pull water trap free. Filter Lubricant is recommended can be removed by squeezing the Qt.

  • Page 18: Guard Adjustment - Manual Machines

    4.7 GUARD ADJUSTMENT - MANUAL MACHINES SEE FIGURE 5 BELOW. FOR GUARD ADJUSTMENT PROCEDURES ON SAWS EQUIPPED WITH THE POWER DOWN FEED OPTION, REFER TO SECTION 7.8. The proper adjustment of the blade guard on this machine is crucial to the operation of the machine and the safety of the operator.

  • Page 19: Coolant System

    4.8 COOLANT SYSTEM SEE FIGURE 6 BELOW. This saw has a mist coolant system. The mister is mounted on the saw guard. The amount of coolant that is applied to the blade is controlled with the adjustment knob on the mister. Make sure sufficient air pressure is supplied to the machine and coolant is in the coolant tank.

  • Page 20: Maintenance & Lubrication

    5.0 MAINTENANCE AND LUBRICATION 5.1 LUBRICATION SEE FIGURE 7 BELOW. Once a week, grease all of the pivot pins (A) and oil all of the rivet connections on the guard linkage (D). Clean the chips out of the vise at least once a day and apply penetrating oil to the vise spindle and guide pins (B) and (C).

  • Page 21: Cutting Oils & Lubricants

    5.2 CUTTING OILS AND LUBRICANTS SECTION 10.8 lists Scotchman’s parts numbers for cutting oils and lubricants. Using high quality lubricants and oils will greatly increase the life of this equipment. Use only our P/N 075760, (SYNCON-2) coolant in this saws coolant system. For the best results, we recommend that it is used straight and not diluted.
  • Page 22 MADE IN THE USA BEST IN THE BUSINESS WARRANTY Page 21 SCOTCHMAN INDS. - 180 E. HWY 14 - PO BOX 850 - PHILIP, SD 57567 PHONE: 1-800-843-8844...

  • Page 23: Machine Operation

    6.0 MACHINE OPERATION 6.1 INSTALLING THE BLADE - MANUAL MACHINES SEE FIGURE 8 BELOW. FOR INSTALLING BLADES ON MACHINES EQUIPPED WITH THE POWER DOWN FEED OPTION, REFER TO SECTION 7.9. Remove Knob (A) & Spread Open Lower Guard To Access Saw Blade - Left Hand Thread FIGURE 8...
  • Page 24 CAUTION: THIS MACHINE IS DESIGNED TO USE CARBIDE TIPPED BLADES ONLY. USE ONLY BLADES DESIGNED FOR THIS MACHINE. DO NOT MODIFY ANY BLADE TO FIT THIS MACHINE. DO NOT USE BLADES DESIGNED FOR THIS MACHINE ON ANY OTHER EQUIPMENT. The CPO-350 NF saw is designed to use a maximum 350mm diameter blade. The arbor is size 40mm with four 12mm pins spaced at 64mm.

  • Page 25: Saw Capacities

    6.2 SAW CAPACITIES CPO - 350 - NF #060332 03/21 90° 45° CAPACITIES WITH MAXIMUM DIAMETER BLADES 350 MM INCHES Ø4-1/2 Ø4-1/4 Ø114 Ø108 INCHES 4-1/4 X 4-1/4 4 X 4 108 X 108 102 X 102 INCHES 4-1/4 X 4-1/4 4 X 4 108 X 108 102 X 102...

  • Page 26: Selecting The Proper Blade & Cutting Speed

    Please see SECTION 11.0 for a list of the blades we have available and their part numbers. If you have any further questions, please contact your local dealer or call Scotchman Ind. a 1-800-843-8844. The chart below shows the surface feet per minute for the 300mm and 350mm diameter blades.

  • Page 27: Material Clamping

    If your saw is equipped with either the power vise or the power down feed options: SEE SECTION 7.0 - OPTIONAL EQUIPMENT, for additional information. Page 26 SCOTCHMAN INDS. - 180 E. HWY 14 - PO BOX 850 - PHILIP, SD 57567 PHONE: 1-800-843-8844...
  • Page 28 Cut thru the thinnest Cut angle with the web section whenever possible up whenever possible. with tube and solids. Square Tube Jaws Special form jaws for multiple parts or special shapes FIGURE 10 Bolt and Lock Nut for Adjusting Blade Cutting Depth Adjust cutting depth every time the blade is changed.

  • Page 29: Miter Locking Device

    6.5 MITER LOCKING DEVICE SEE FIGURE 12 ON THE FOLLOWING PAGE. All models manufactured for domestic sales are equipped with a miter locking device which allows quick set-up for mitering at 45 degrees, left and right, and 90 degrees for straight cutting. A miter locking device is available as an option for models manufactured for international sales.
  • Page 30 FIGURE 12 Page 29...

  • Page 31: Optional Equipment

    7.0 OPTIONAL EQUIPMENT 7.1 POWER VISE The power vise is an option that is normally ordered with the saw. It is not recommended as a retro-fit in the field. The power vise allows automatic clamping of the material, which improves productivity and reduces operator fatigue.
  • Page 32 TO ADJUST THE VISE TO THE SIZE OF MATERIAL BEING CUT: Release the locking collar (D) on the vise spindle. The vise spindle is left hand threaded and the locking collar must be turned clockwise to release it. Open the vise, using the positioning handles (E), and place the material in the vise. Crank the vise closed to within approximately 1/8 of an inch (3mm) from the material and relock the locking collar (D).

  • Page 33: Replacing The Spindle In The Power Vise

    7.3 REPLACING THE SPINDLE IN THE POWER VISE SEE FIGURE 14 BELOW. CAUTION: DISCONNECT THE MACHINE’S POWER AND AIR SUPPLY Disconnect the air lines (A). The air connections on the cylinder are snap connectors. To release the air connections, push the collar around the hose into the fitting and pull the hose out. To reconnect the lines, simply push the air line into the fitting as far as it will easily go.

  • Page 34: Replacing The Seals In The Power Vise

    7.4 REPLACING THE SEALS IN THE POWER VISE SEE FIGURE 15 BELOW. CAUTION: DISCONNECT THE MACHINE’S POWER AND AIR SUPPLY SEAL KIT IS P/N 076371 - Contains two small and two large o-rings and an oil seal. Locations below. Open the vise to its full open position. Disconnect the air lines from the cylinder (A).

  • Page 35: Power Down Feed

    7.5 POWER DOWN FEED The power down feed option, used in conjunction with the power vise option, changes a manual saw into a semi-automatic saw. These options will increase productivity and reduce operator fatigue. The power down feed option will not retrofit to machines with serial number 11940491 and prior in the field. This option can be used on machines with or without the power vise option.
  • Page 36 To check the oil level there is a sight glass in the back of the reservoir (E). The head must be in the full UP position. The recommended oil is our P/N 060520 or a SAE 10W (ISO 32) non-foaming hydraulic oil, such as Mobil DTE 10 or equivalent.

  • Page 37: Stroke Control Adjustment (Power Down Feed)

    7.7 STROKE CONTROL ADJUSTMENT (POWER DOWN FEED) SEE FIGURE 17 ON THE FOLLOWING PAGE. Before powering the machine, the up and down strokes of the saw head must be set. The stroke is set by the collars (A & B) on the shaft (C). TO SET THE STROKE: The saw blade control switch for the saw blade is located in the electrical box on top of the motor.
  • Page 38 FIGURE 17 Page 37...

  • Page 39: Guard Adjustment (Power Down Feed)

    7.8 GUARD ADJUSTMENT (POWER DOWN FEED) SEE FIGURE 18 ON THE FOLLOWING PAGE. CAUTION: THE GUARD MUST BE ADJUSTED EVERY TIME THAT THE STROKE OF THE MACHINE IS ADJUSTED. TO ADJUST THE GUARD: Before adjusting the guard, set the up and down stroke of the machine by following the instructions in SECTION 7.7.

  • Page 40: Detail View

    DETAIL VIEW FIGURE 18 Page 39...

  • Page 41: Installing Blades (Power Down Feed)

    7.9 INSTALLING BLADES (POWER DOWN FEED) SEE FIGURE 19 ON THE FOLLOWING PAGE. CAUTION: USE ONLY CARBIDE TIPPED BLADES DESIGNED FOR THIS MACHINE. DO NOT MODIFY ANY BLADE TO FIT THIS MACHINE. DO NOT USE BLADES DESIGNED FOR THIS MACHINE ON ANY OTHER EQUIPMENT. The CPO-350-NF saw is designed to use a maximum 14 inch (350mm) diameter blade.
  • Page 42 Use the 8mm Allen Wrench to Remove the Saw Blade Bolt and Saw Blade Flange. NOTE: BOLT IS LH THREAD FIGURE 19 Page 41...

  • Page 43: Power Down & Power Vise Trouble Shooting

    FOR THE CURRENT ELECTRIC POWER THE PD SOLENOID. DOWN-FEED SYSTEM. Hydraulic Reservoir was overfilled or seals are leaking in the cylinder. SCOTCHMAN IND. - 180 E US HWY 14 - PO BOX 850 - PHILIP, SD 57567 Call: 1-605-859-2542 Page 42...
  • Page 44 UPPER LIMIT SWITCH POWER DOWN FEED WIRING DIAGRAM (Ser. #'s 6425& Up) OIL RESERVOIR CHECK VALVE LOWER LIMIT SWITCH 13 NO 21 NC 33 NO 43 NO PD CYLINDER 14 NO 24 NC 34 NO 44 NO 060044 VISE FLOW CONTROL CYL.

  • Page 45: Material Supply Tracks

    Several Guide Assemblies can be mounted to the conveyor if needed. ► NOTE: WE ALSO HAVE COVERED ROLLER CONVEYORS AND SOLID FLAT CONVEYORS AVAILABLE. CONTACT YOUR DEALER OR THE FACTORY FOR MORE INFORMATION OR VISIT WWW.SCOTCHMAN.COM Page 44...

  • Page 46: Exploded View

    EXPLODED VIEW DETAIL VIEW 076938 13" GUIDE ASSEMBLY 029242 - 10' ROLLER CONVEYER W/LEGS WE HAVE COVERED ROLLER CONVEYORS AND SOLID FLAT TABLES (NO ROLLERS) AVAILABLE TOO. SEE AT: WWW.SCOTCHMAN.COM FIGURE 21 Page 45...

  • Page 47: Scotchman Measuring Systems

    For more information, please call your dealer or the factory. Or visit our website at: www.scotchman.com Page 46 SCOTCHMAN IND. - 180 E US HWY 14 - PO BOX 850 - PHILIP, SD 57567 Call: 1-605-859-2542...
  • Page 48 QUICK-LOC 141517 133313 MULTI-LOC DIGITAL QUICK STOP FIGURE 22 Page 47...

  • Page 49: Special Vise Jaws

    7.13 SPECIAL VISE JAWS Special vise jaws for holding square tubing, rectangular tubing and angle iron are stock items. Jaws for holding thin wall round tubes, profiles and bundles are available on a made-to-order basis. See SECTION 6.4 MATERIAL CLAMPING for examples. For prices and delivery on special jaws, contact your local dealer or the factory.
  • Page 50 UPPER LIMIT SWITCH OIL RESERVOIR CHECK VALVE LOWER LIMIT SWITCH PD CYLINDER FLOW CONTROL PK CYLINDER PK SOLENOID PD SOLENOID FIGURE 23 Page 49...

  • Page 51: Trouble Shooting Guide

    NF bearing assembly - P/N 077929 - that is a simple bolt in replacement. For instructions on spindle replacement, REFER TO SECTION 8.4 & SECTION 9.1. SCOTCHMAN INDS. - 180 E US HWY 14 - PO BOX 850 - PHILIP, SD 57567 Phone: 1-800-843-8844 Page 50...

  • Page 52: Breakage Or Excessive Dulling Of Blades

    8.2 BREAKAGE OR EXCESSIVE DULLING OF BLADES Select the proper blade and spindle speed for the material being cut. For recommendations, See SECTION 6.3. Always break in the blade before you start normal cutting. New blades have a very sharp edge. Draw the blade through the material slowly on the first few cuts.
  • Page 53 FOR BEST RESULTS, USE ONLY SCOTCHMAN COLD SAW BLADES AND COOLANT Send your blades back to our factory to be professionally resharpend on modern CNC equipment. Ship them to: Make sure to include SCOTCHMAN IND. your contact information, ATTN: BLADE DEPT.

  • Page 54: Coolant System

    8.3 COOLANT SYSTEM IF COOLANT WILL NOT FLOW: A. Check the level of the coolant in the reservoir. B. Check the suction line between the reservoir and the mister unit. If there are any cracks or poor connections in the line, or if it is plugged, it will not siphon the coolant out of the reservoir. ►...

  • Page 55: Belt & Spindle Bearing Replacement

    8.4 BELT & SPINDLE BEARING REPLACEMENT SEE FIGURE 24 ON THE FOLLOWING PAGE. ► NOTE: DISCONNECT POWER BEFORE PROCEEDING TO REMOVE THE DRIVE BELT, USE THE FOLLOWING STEPS: If a blade is installed on the machine, remove it before proceeding. Remove acorn nuts (41) retaining the belt guard and remove the belt guard (24).
  • Page 56 Place the assembly in a press with the saw blade mounting flange down, so the outside of the largest diameter of the bearing housing (NOT the seal flange) sits on the wedges. Carefully press the spindle (29) and bearing (27) out of the housing (33). Remove the snap-ring (31) and place two steel wedges between the bearing (27) and seal flange (30).

  • Page 57: Parts Lists

    9.0 PARTS LISTS 9.1 DRIVE ASSEMBLY ITEM PART # DESCRIPTION ITEM PART # DESCRIPTION 677912 Belt Guard 677904 Guard Mount Studs 077915 Belt 077160 M8 Plastic Washer 077189 Lock Nut 677936 M8 Dome Nut - NF Head Sprocket Return Spring Bracket (Upper) 077898 077922 Return Spring...
  • Page 58 (Inside Handle) FIGURE 25 Page 57...

  • Page 59: Vise Assembly

    9.2 VISE ASSEMBLY ITEM PART # DESCRIPTION 221220 M10 x 40 SHCS 350 Saw Jaw - Rear (Includes F) 077319 Aluminum Vise Jaw (Right) NF (RF & LR) 077919 208012 M10 Hex Nut 077309 350 Guide Shaft 077310 Seal 077307 350 Vise Base - Sales 077100 M10 x 30 Dowel Pin...
  • Page 60 FIGURE 26 Page 59...

  • Page 61: Guard Assembly - Manual & Power Vise Machines

    9.3 GUARD ASSEMBLY - MANUAL & POWER VISE MACHINES ITEM PART # DESCRIPTION ITEM PART # DESCRIPTION Guard Shell 077358 M10 Lock Ring 077165 Spacer Ring (Thin) 218010 M5 X 10mm Set Screw Hinge Cap (Front) 077609 350 Guard Lever Assy. 077164 Spacer Ring (Thick) Coupling Arm...
  • Page 62 677901 M10 x 55 S & T 677901 M10 x 55 677901 M10 x 55 FIGURE 27 Page 61...

  • Page 63: Motor Assembly

    9.4 MOTOR ASSEMBLY ITEM PART # DESCRIPTION 076902 Fan Cover-Painted 073407 M5 X 6 Slot Head 076900 Fan Blade (24mm Dia Hole) 077370 Key 6-4-30 077855 Switchbox Gasket 073326 M8 X 30 HHCS 076987 350NF 230V 5HP Motor Painted 076989 350NF 460V 5HP Motor Painted Contact factory for information regarding replacement of internal components.
  • Page 64 FIGURE 28 Page 63...

  • Page 65: Electrical Unit

    9.5 ELECTRICAL UNIT ITEM PART # DESCRIPTION 060094 Switch Box & Lid Included with Item A 221002 M-4 x 12 SHCS Contactor 24 Volt 060071 078456 M4/6 TERMINAL BLOCK Single Wire Ground Lug - (3) Required 060049 060115 Main Switch Included with G 011844 Knob...
  • Page 66 DANGER ELECTRICAL HAZARD Turn off power and lock out before servicing. DANGER ELECTRICAL HAZARD Turn off power and lock out before servicing. FIGURE 29 Page 65...

  • Page 67: Coolant System And Base

    9.6 COOLANT SYSTEM AND BASE ITEM PART # DESCRIPTION 660110 275/350 Base Painted - Sales 677933 NF Coolant Reservoir #66 Alum Pop Rivet 154004 Liquid Check Valve 045740 077926 3/16 x 5/16 Coolant Line 060501 5/16" Black Air Tube In Line Regulator 077930 1/8"...
  • Page 68 FIGURE 30 Page 67...

  • Page 69: Cast Base And Pedestal

    9.7 CAST BASE AND PEDESTAL PART # DESCRIPTION ITEM 077228 Miter Lock Pin 077226 Miter Lock Handle Miter Lock Spring 077227 073660 M8 x 12 SHCS Miter Lock Support 077225 203210 M10 x 25 HHCS Cast Base Plate (PK Only Models may 077113 need to reroute PK hoses) 214012...
  • Page 70 FIGURE 31 Page 69...

  • Page 71: Optional Equipment Parts Lists

    10.0 OPTIONAL EQUIPMENT PARTS LISTS 10.1 POWER VISE ASSEMBLY ITEM PART # DESCRIPTION 077542 Lubricator Seal Kit -Parker (Obsolete) 077462 077539 Bowl - Parker (Obsolete when stock is gone) Cast Grip Cheek Front (inc. HH) Cast Grip Cheek Rear (inc. HH) 077319 077554 Bowl, Lubricator - Parker (Modular FRL)
  • Page 72 FIGURE 32 Page 71...

  • Page 73: Power Down Feed Assembly

    10.2 POWER DOWN FEED ASSEMBLY ITEM PART # DESCRIPTION 678560 NF/PD Bracket Assy. 221210 M10 X 25 SHCS 210017 M16 X 1.5 Jam Nut 078524 PD Cylinder Pivot 078525 350 PD Lower Brkt Assy. 140415 1/2" x 1-1/2" Clevis Pin 078520 PD Stop Rod Assy.
  • Page 74 FIGURE 33 Page 73...

  • Page 75: Power Down Feed Controls - S/N B64251003 & Up

    10.3 POWER DOWN FEED CONTROLS (S/N B64251003 & UP) ITEM PART # DESCRIPTION 077736 PD Valve Mount 077183 Cord Connector 077738 90° Swivel 047535 Flow Control Valve 077746 1/4" NPT x 1/4" Street PL Regulator with Gauge 078190 1/8" Hex Nipple 077770 Gauge 077538...
  • Page 76 BAFFLE HEAD RETURN CHECK VALVE CLAMP RELEASE FLOW MAIN CONTROL PRESSURE REG. OPTIONAL: PRESSURE REGULATOR FOR VISE SHUT CONTROL SOL. FIGURE 34 Page 75...

  • Page 77: Power Down Feed Electric Controls - S/N B64251003 & Up

    10.4 POWER DOWN FEED ELECTRICAL CONTROLS S/N B64251003 & UP (See Note) ITEM PART # DESCRIPTION 075250 Enclosure Cord Grip 077183 Subplate Drilled 075205 Electric PD Mount Strip 075210 073440 M4 x 6 SHCS 078104 End Bracket 078456 M4/6 Terminal Block Jumper Screw 078457 24 Volt Relay AC...
  • Page 78 T* U* These components were used with the old style DC controlled power down-feed Above used in S/N B64251003 to B79960607 FIGURE 35 Page 77...

  • Page 79: Guard Assembly (Power Down Feed)

    10.5 GUARD ASSEMBLY (Power Down Feed ) PART # DESCRIPTION ITEM Danger Decal 060345 060501 5/16" Black Air Tube 073090 M4 Spacer NF Guard 073415 M4 X 25 SHCS 073691 M6 X 12 Knob 076839 NF Mister Unit 077926 NF US 3/16 x 5/16 x 1/16 Tube 070010 350 NF/PD Guard Sales 077165...
  • Page 80 FIGURE 36 Page 79...

  • Page 81: Foot (304 Cm) Supply Track

    Base Material Guide 13" Paint M10 Regular Washer 214012 221120 M8 X 25 DIN9121580 12.9 SHCS 229225 M10 X 12 X 70 Shoulder Bolt Page 80 SCOTCHMAN IND. - 180 E US HWY 14 - PO BOX 850 - PHILIP, SD 57567 Call: 1-605-859-2542...
  • Page 82 076938 FULLY ASSEMBLED 13" GUIDE VIEW ASSEMBLY 029242 - 10' ROLLER CONVEYER W/LEGS FIGURE 37 Page 81...

  • Page 83: Overview Of Scotchman Measuring Systems

    10.7 OVERVIEW OF SCOTCHMAN MEASURING SYSTEMS Scotchman Ind. has several measuring systems available for our saws. They can be attached to our conveyors and increase speed and accuracy. All are AMERICAN MADE and below is the name and brief description of each.
  • Page 84 Below is an example of our Quick-Loc Measuring System on a conveyor that is mounted to a saw. To change the measurement you grab the squeeze handle and move the stop to the desired length indicated on the measuring tape. The Quick-Loc Arm is designed to pivot up out of the way if needed.

  • Page 85: Cutting Coolants & Lubricants

    10.8 CUTTING COOLANTS AND LUBRICANTS UNIT PART DESCRIPTION 1 Gal. 075760 1 GAL. SYNCON-2 (do not dilute) 55 Gal. 075761 55 GAL. SYNCON-2 (do not dilute) 1 Qt. 075753 Air Line Lubricant 1 Gal. 075759 Air Line Lubricant 10.9 MATERIAL STOP 30 INCH (76 CM) ITEM PART # DESCRIPTION...
  • Page 86 FIGURE 39 Page 85...

  • Page 87: Stock Blades

    074329 .134 350mm 84 Tooth Carbide BLADE ARE AVAILABLE IN 300mm (12 inch) & 350mm (14 inch) DIAMETERS. SEE ABOVE SCOTCHMAN INDS. - 180 E US HWY 14 - PO BOX 850 - PHILIP, SD 57567 Phone: 1-800-843-8844 Page 86...
