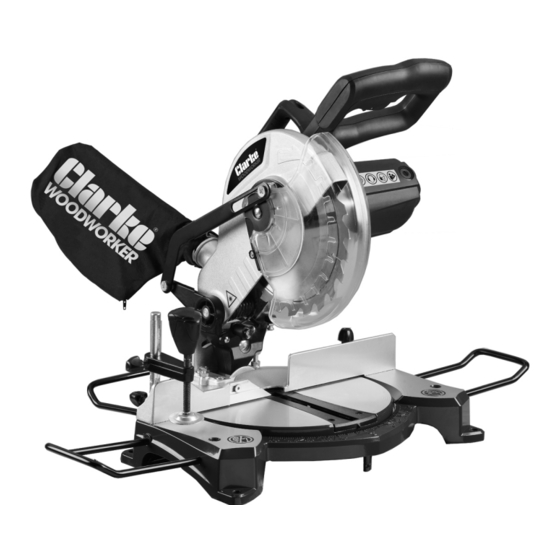

- Page 1 210MM MITRE SAW MODEL NO: CMS210B PART NO: 6461520 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC1221...
- Page 2 INTRODUCTION Thank you for purchasing this CLARKE Mitre Saw. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.
-
Page 3: Safety Warnings
SAFETY WARNINGS WORK AREA 1. Keep the work area clean and well lit. Cluttered and dark areas invite accidents. 2. DO NOT operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. -
Page 4: Additional Safety Rules For Mitre Saws
5. DO NOT overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. 6. Dress properly. DO NOT wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. - Page 5 3. DO NOT feed the workpiece into the blade or cut "freehand" in any way. Unrestrained or moving workpieces could be thrown at high speeds, causing injury. 4. NEVER cross your hand over the intended line of cutting either in front or behind the saw blade.
- Page 6 EN 847-1. 5. DO NOT use saw blades made of high-speed alloy steel (HSS steel). ONLY use replacement blades from your CLARKE dealer. 6. Observe the saw blade direction of rotation. 7. Clean any grease, oil and water off of the clamping surfaces.
-
Page 7: Laser Safety
LASER SAFETY CAUTION: METHODS OTHER THAN THOSE SPECIFIED HERE CAN RESULT IN DANGEROUS RADIATION EXPOSURE. 1. DO NOT look directly into the laser beam with unprotected eyes. 2. NEVER look into the path of the beam. 3. NEVER point the laser beam towards reflecting surfaces and persons or animals. -
Page 8: Residual Risks
RESIDUAL RISKS 1. Despite all precautions having been met, some non-obvious residual risks may still remain. 2. Residual risks can be minimised if the safety warnings are observed along with the whole of the operating instructions. 3. DO NOT load the machine unnecessarily. Excessive pressure when sawing will quickly damage the saw blade which results in reduced output of the machine in the processing and in cut precision. -
Page 9: Safety Symbols
SAFETY SYMBOLS Read instruction manual and safety instructions Wear safety goggles Wear ear defenders Wear a dust mask Important! Risk of injury. Never touch the moving saw blade! Laser Radiation, Class 2 Laser: Do not stare into the beam. Protection Class II (double shielded) Parts &... -
Page 10: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz. - Page 11 OVERVIEW Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 12: Before Use
MITRE SAW STAND ( NOT SUPPLIED You can also mount the machine to a mitre saw stand available from your local CLARKE dealer. CUTS Mitre Saw Stand Part No 6500944. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 13: Locking / Releasing The Saw Head
LOCKING / RELEASING THE SAW HEAD 1. Push down slightly on the operating handle and pull out the head locking pin and rotate it 90° degrees as shown so that the small pin rests on the grooves that hold the head locking pin in the unlocked position. -
Page 14: Clamp Position
WORKPIECE SUPPORTS 1. Fit the work supports to the base by sliding them into the mounting holes are far as they will go and locking with the x-headed securing screw. CLAMP POSITION The clamp can be attached to either side of the saw table. 1. -
Page 15: Operation
2. Loosen the lock nut and turn the 90° adjustment stop screw in or out until the blade is at 90° to the table as shown by the set square. 3. If the bevel pointer does not point to Zero on the bevel scale, loosen the screw that secures the bevel pointer and adjust the pointer as necessary. - Page 16 VERTICAL STRAIGHT CROSS CUT 1. Check the table angles are correct. 2. Place the workpiece against the fence and secure with the clamp. 3. Press the trigger release (1) with your thumb and squeeze the trigger (2). • Let the motor reach full speed before cutting.
-
Page 17: Bevel Cuts
2. Turn the table to the required angle (0° to 45° left or right). • The angle is shown on the scale by the pointer. 3. Tighten the thumbscrew to secure the chosen setting. BEVEL CUTS Bevel angles can be set from 45° left to vertical. 1. -
Page 18: The Laser Guide
THE LASER GUIDE Laser Radiation, Class 2 Laser: Do not stare into the beam. TO SWITCH ON: 1. Push the laser ON/OFF switch once. • A laser line is projected onto the material, providing an accurate guide for the cut. TO SWITCH OFF: 1. -
Page 19: Maintenance
ADJUSTMENTS CHECK AND ADJUST THE MITRE ANGLE 1. Lock the saw head in the down position see page 13. 2. Put a set square up against the left side of the fence and blade. 3. Adjust the mitre arm if necessary until the blade is perfectly square to the fence. -
Page 20: Changing The Saw Blade
Avoid the use of cleaners or lubricants. In particular spray and aerosol cleaners may chemically attack the plastic lower guard. CHANGING THE SAW BLADE 1. Insert the hex key supplied into the retaining screw. 2. Depress the blade lock and slowly rotate the retaining screw using the hex key in clockwise direction. -
Page 21: Changing The Carbon Brushes
CARBON BRUSHES. After extensive use, the carbon brushes will become worn and should be checked if the motor seems to be lacking power. Replacements are available from your CLARKE dealer. 1. Unscrew the carbon brush cover using a screwdriver. 2. The carbon brush should spring out. -
Page 22: Specifications
SPECIFICATIONS Model Number CMS210B Part Number 6461520 Rated Voltage 230 V AC @ 50Hz Input Wattage 1500 W Ingress protection IP 20 Blade Diameter 210 mm Blade bore 30 mm Max. blade thickness 2.6 mm Kerf 3.0mm Max. no load machine speed 5000 rpm Max. -
Page 23: Component Parts
COMPONENT PARTS Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 24: Component Parts List
COMPONENT PARTS LIST No Description No Description Bevel adjustment knob Washer Pointer Grubscrew Bolt Spring Steel Ball Screw Machine body Roll Pin Base Frame Grub screw Side Work support Spring Screw Spring Swing plate Fence Power cable assembly Washer Connector Washer Turntable Socket head bolt... - Page 25 No Description No Description Spring Blade Toe piece Outer retaining disc Socket head screw Blade securing bolt Sleeve 100 Screw Screw 101 Carrying Handle Hex key 102 Screw Washer 103 Handle body (right) Washer 104 Screw Washer 105 Connector Pan headed screw 106 Trigger Support clasp 107 Spring...
-
Page 26: Environmental Protection
ENVIRONMENTAL PROTECTION Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted and taken to a recycling centre for disposed in a manner compatible with the environment. By purchasing this product, the customer is taking on the obligation to deal with its safe disposal in accordance with the Waste Electrical and Electronic Equipment (WEEE). -
Page 27: Declarations Of Conformity
DECLARATIONS OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
