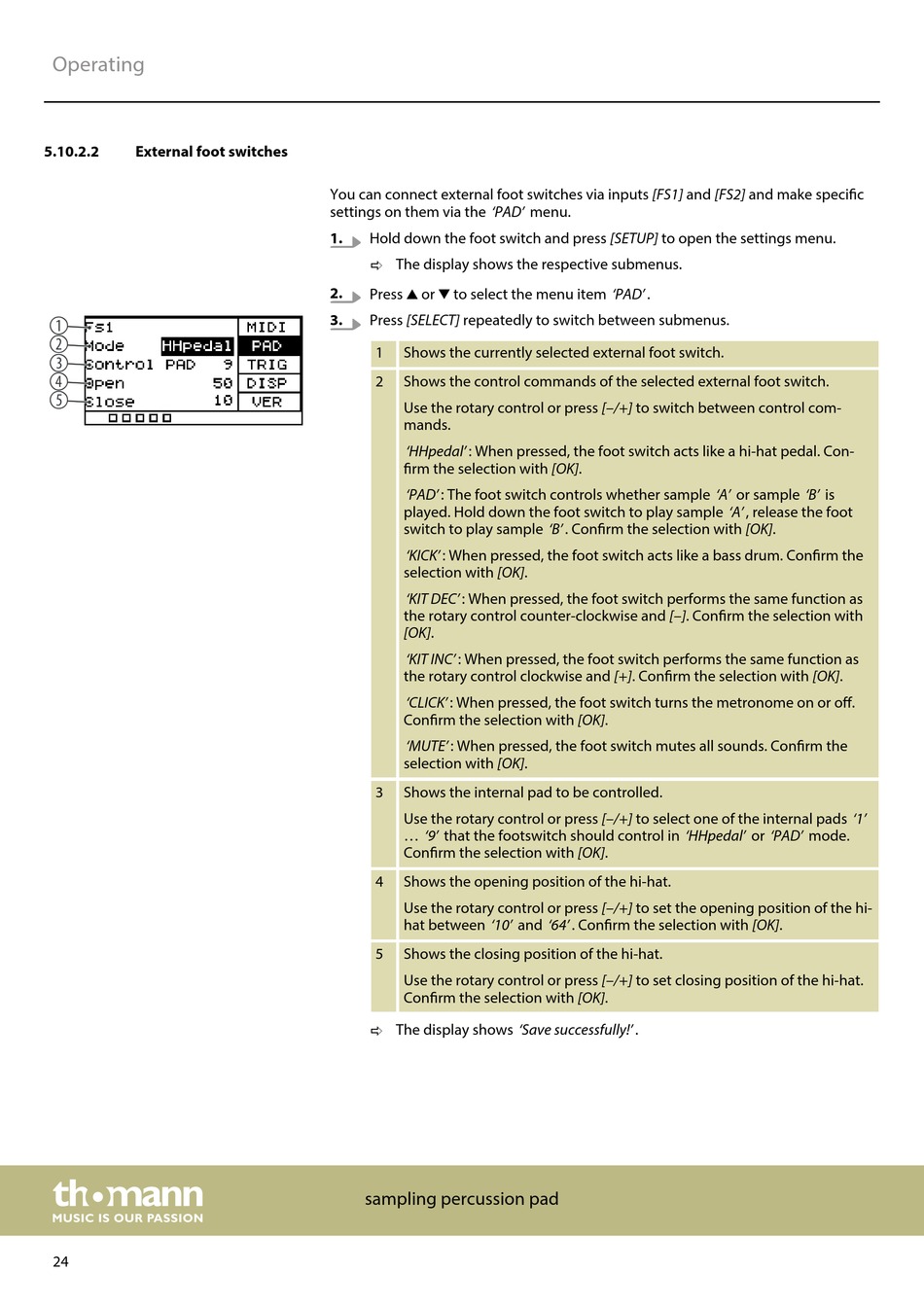

thomann Millenium NonaPad User Manual page 24

Operating
5.10.2.2 External foot switches
ö
#
$
%
&
24
You can connect external foot switches via inputs [FS1] and [FS2] and make specific
settings on them via the 'PAD' menu.
1.
Hold down the foot switch and press [SETUP] to open the settings menu.
ð The display shows the respective submenus.
2.
Press or to select the menu item 'PAD' .
3. Press [SELECT] repeatedly to switch between submenus.
1 Shows the currently selected external foot switch.
2 Shows the control commands of the selected external foot switch.
Use the rotary control or press [–/+] to switch between control com‐
mands.
'HHpedal' : When pressed, the foot switch acts like a hi-hat pedal. Con‐
firm the selection with [OK].
'PAD' : The foot switch controls whether sample 'A' or sample 'B' is
played. Hold down the foot switch to play sample 'A' , release the foot
switch to play sample 'B' . Confirm the selection with [OK].
'KICK' : When pressed, the foot switch acts like a bass drum. Confirm the
selection with [OK].
'KIT DEC' : When pressed, the foot switch performs the same function as
the rotary control counter-clockwise and [–]. Confirm the selection with
[OK].
'KIT INC' : When pressed, the foot switch performs the same function as
the rotary control clockwise and [+]. Confirm the selection with [OK].
'CLICK' : When pressed, the foot switch turns the metronome on or off.
Confirm the selection with [OK].
'MUTE' : When pressed, the foot switch mutes all sounds. Confirm the
selection with [OK].
3 Shows the internal pad to be controlled.
Use the rotary control or press [–/+] to select one of the internal pads '1'
... '9' that the footswitch should control in 'HHpedal' or 'PAD' mode.
Confirm the selection with [OK].
4 Shows the opening position of the hi-hat.
Use the rotary control or press [–/+] to set the opening position of the hi-
hat between '10' and '64' . Confirm the selection with [OK].
5 Shows the closing position of the hi-hat.
Use the rotary control or press [–/+] to set closing position of the hi-hat.
Confirm the selection with [OK].
ð The display shows 'Save successfully!' .
