thomann MIX 502 Owner's Manual

Mix series
Hide thumbs Also See for MIX 502:
Table of Contents

Advertisement

Quick Links

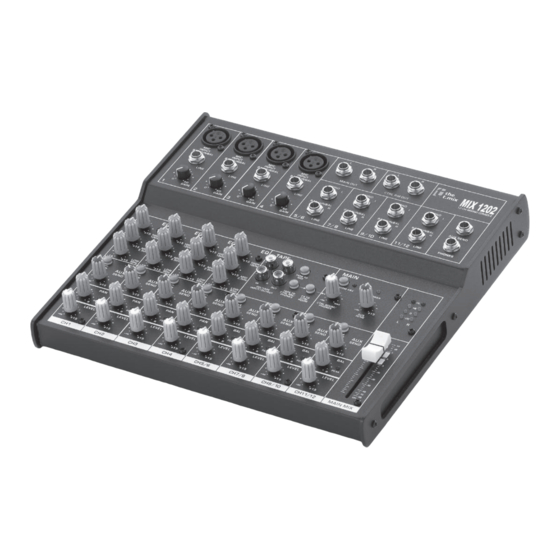

MIX 502 | MIX 802 | MIX 1202
Owner's Manual
MIX SERIES MIXER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MIX 502 and is the answer not in the manual?

Questions and answers

Related Manuals for thomann MIX 502

Summary of Contents for thomann MIX 502

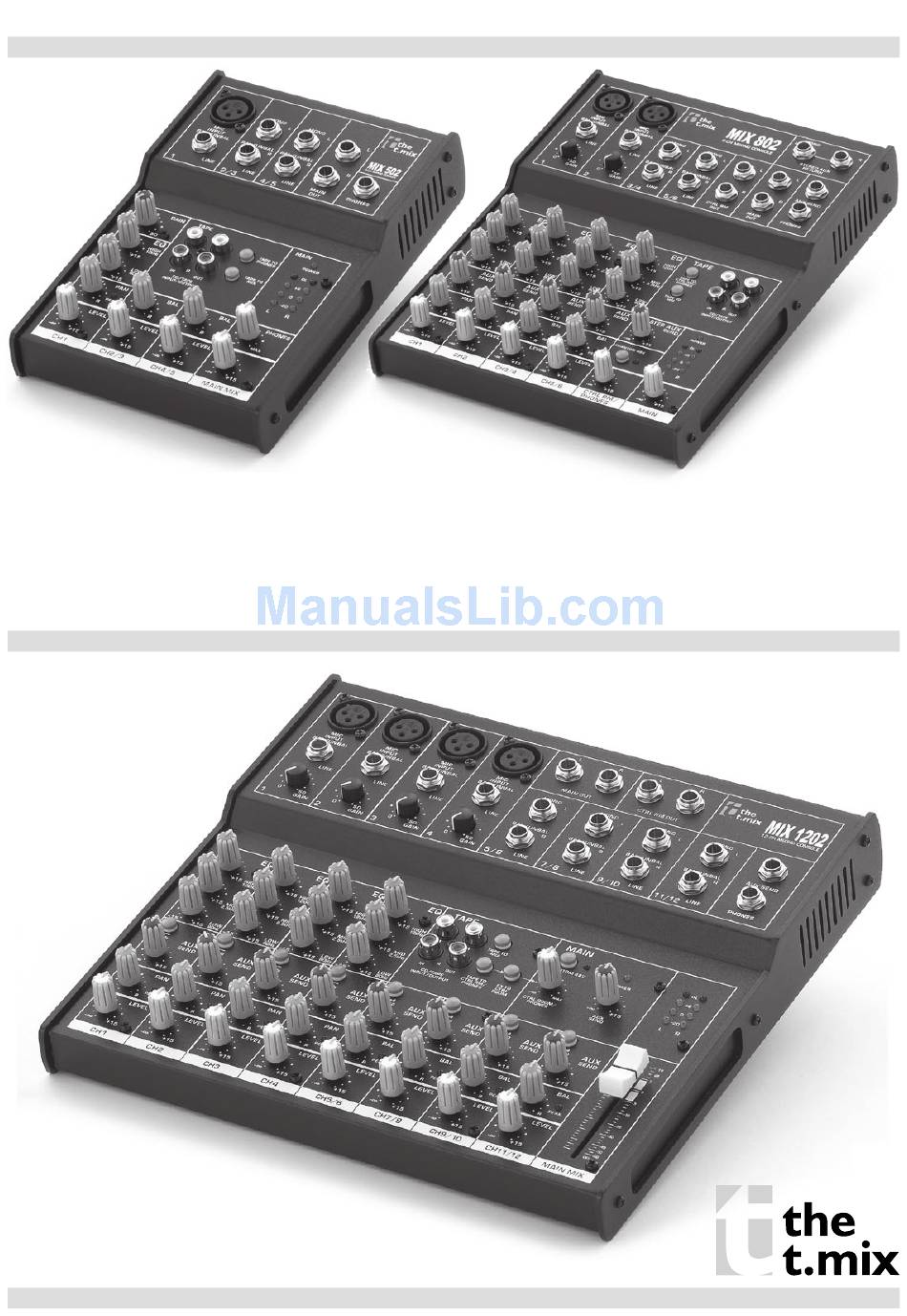

  • Page 1 MIX 502 | MIX 802 | MIX 1202 Owner‘s Manual MIX SERIES MIXER...

  • Page 2: Important Safety Instructions

    Important Safety Instructions For your own safety you should read through this chapter at first completely! Risk of electrical shocks! • Only connect the device to a properly wired and earthed mains power socket with mains voltage of 230 V ~ /50 Hz. •...

  • Page 3: Cleaning And Maintenance

    Thank you for purchasing the MIX series mixing console. This series include four mixers (MIX 502/MIX 802/ MIX 1202). There is 2-band EQ on all mono channels (MIX 502), and 3-band EQ on mono channels and stereo channels (MIX 802/MIX1202). These mixers are really ideal for small club gigs.

  • Page 4: Hookup Diagrams

    Hookup Diagrams When connecting equipment be sure to have all units switched off before. All volume controls must be turned down. Please check these hookup diagrams to learn how to connect your mixer to other devices.

  • Page 5: Control Elements

    0 dB to 50dB. EQUALIZATION The MIX series has 3-band EQ on all mono channels (except MIX 502 has 2-band EQ). And only the MIX 802 has EQ controls on stereo channels. All bands provide up to 15 dB boost or cut.
  • Page 6 This is the treble control. You can use it to get rid of high frequency of the human voice. The gain range goes from -15 dB to +15 dB with a centre frequency of 12 kHz. MID EQ (except MIX 502) t This control provides 15 dB boost or cut at 2.5 kHz. It can affect most fundamental frequencies of all musical instruments and human voice.
  • Page 7 PAN/BAL a Abbreviation of PANORAMA control for mono channels, for the stereo channels, always says, BALANCE control. You can adjust the stereo image of the signal via this control. For mono MIC/LINE channels, keep PAN control in centre position and your signal will be positioned in the middle of stage that is to say the mono signal appears equally in both sides.
  • Page 8 This control sets the level of main mix signals sent to the Main Outputs, Tape Outputs, CONTROL ROOM, PHONES, and LED Display. On the MIX 502 and MIX 802, this is a rotary control; on the MIX 1202, this is a fader.
  • Page 9 MAIN OUT 2$ These 1/4“ TRS jacks represent the end of the mixer chain, where your fully mixed stereo signal enters the real world. Connect these outputs to the inputs of your amplifiers, powered speakers, or serial effects processor (graphic equalizer, for example). CTRL ROOM OUT 2% These 1/4“...

  • Page 10: Installation Tips

    Installation Tips 1. Speakers should be placed in a position that allows for unobstructed sound projection. In many instances is beneficial for speakers to be elevated on tripod stands to achieve maximum dispersion and reach. 2. Use professional advice or service when hanging and installing speakers. Please take precau- tions to secure them to prevent them from falling and hurting someone.

  • Page 11: Wire Connections

    Wire Connections Either the 1/4” TRS phone jack or XLR connector can be wired in balanced and unbalanced modes, which will be determined by the actual application status, please wire your system as the following wiring examples:. For these applications the unit provides 1/4” TRS and XLR connectors to easily interface with most professional audio devices.

  • Page 12: Block Diagrams

    Block Diagrams...

  • Page 15: Technical Specifications

    Technical Specifications Our products are subject to a process of continual further development. Therefore modifications to the technical features remain subject to change without further notice.
  • Page 16 Observe the current existing regulations. In case of doubt contact your disposal facility. • The packaging is certified via a dual system. Take all packaging materials to an environmentally friendly disposal facility in compliance with the local regulations. Contact: Musikhaus Thomann Treppendorf 30 96138 Burgebrach Germany www.thomann.de...
