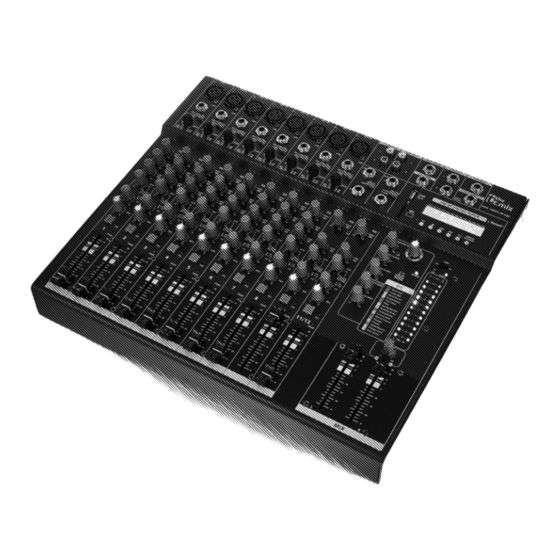

- Page 1 xmix 1402 FXMP USB mixer user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 18.02.2019, ID: 422796 (V2)
-
Page 3: Table Of Contents
Table of contents Table of contents General information......................4 1.1 Further information......................4 1.2 Notational conventions....................4 1.3 Symbols and signal words................... 4 Safety instructions......................... 6 Features............................9 Installation and starting up..................... 10 Connections and controls....................11 Technical specifications....................19 Plug and connection assignment................. -
Page 4: General Information
1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. - Page 5 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. CAUTION! This combination of symbol and signal word indicates a possible dangerous situation that can result in minor injury if it is not avoided.
-
Page 6: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended to be used for amplification, mixing and playback of signals from musical instruments and microphones. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. - Page 7 Safety instructions CAUTION! Possible hearing damage With loudspeakers or headphones connected, the device can produce volume levels that may cause temporary or permanent hearing impair‐ ment. Do not operate the device permanently at a high volume level. Decrease the volume level immediately if you experience ringing in your ears or hearing impairment.
- Page 8 Safety instructions NOTICE! Danger of short circuit Switching on phantom power will damage the device if unbalanced XLR cables are connected. Only turn on phantom power when exclusively balanced XLR cables are connected. mixer...
-
Page 9: Features
Features Features 12-channel mixer with built-in FX processor Bluetooth interface for transferring music files 8 mono channels (MIC, line) with switchable phantom power and low cut 3-band EP and pan control Control room output L/R (1/4" phone sockets) Additional RCA connections (stereo in / rec out) 1 ×... -
Page 10: Installation And Starting Up
Installation and starting up Installation and starting up Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. -
Page 11: Connections And Controls
Connections and controls Connections and controls Mono channel strip 1 [MIC] Balanced XLR mono input to connect a microphone. 2 [LINE] 1/4" phone input to connect a line level audio source (keyboards, drum modules etc., balanced or unbalanced). 3 [80 Hz HPF] High pass filter to attenuate rumble noise and other low frequency interfer‐... - Page 12 Connections and controls Stereo channel strip 14,16 [STEREO IN] RCA sockets for connecting stereo sources. 15,17 [REC OUT] Line outputs with RCA sockets for connecting recording devices. 18,19 [L] 1/4" phone input to connect the left signal of a stereo line level audio source (keyboards, drum modules etc.).
- Page 13 Connections and controls 32 [PEAK] The LED lights up on channel overload. If this happens in the STEREO IN channel press the [PAD]switch. When overload occurs in the REC OUT channel reduce the output level of the signal source connected here. 33 The channel fader sets the strength of the channel signal in the overall signal.
- Page 14 Connections and controls Effects section, AUX 34 [PARAMETER] Rotary control to set the main parameter of the currently selected effect. 35 [FX TO AUX] Rotary control to adjust the effects portion present at the output [AUX SEND]. 36 [FX TO MIX] Rotary control to adjust the effects portion in the overall signal.
- Page 15 Connections and controls Master section [AUX SEND] At this line level output the signal set with the [AUX] channel controls is present, maybe to create a monitor mix. [FX SEND] At this line level output, the sum signal set with the [FX] channel controls is present which e.g.
- Page 16 Connections and controls OPERATING ELEMENTS These buttons control a connected MP3 player. [USB/SD/Bluetooth] This button can be used to switch between USB, SD or Bluetooth modes. [+48V] LED This LED is lit when the phantom power is on. [+48V] switch When this switch is in ON position, a phantom voltage of 48 V is present at the XLR sockets in the mono channels for using condenser mics.
- Page 17 Connections and controls [CR & PHONES] Rotary control to adjust the level at the outputs [CR OUT] and [PHONES]. [L MIX R] Master fader to adjust the sum level at the outputs [MAIN OUTPUT], [CR OUT] and [PHONES]. Rear panel 60.61 [MAIN OUTPUTS] Balanced 1/4"...
- Page 18 Connections and controls Connection pattern – club gig mixer...
-
Page 19: Technical Specifications
Technical specifications Technical specifications Input connections Voltage supply IEC chassis plug C14 Microphone input Type XLR chassis socket, 3-pin, balanced Level +4 dBu ± 1 dBu max. Impedance balanced: 6 kΩ unbalanced: 3 kΩ ±200 Ω Line input Type 1/4” (6.35 mm) jack (balanced or unbalanced) Level +21 dBu ±... - Page 20 Technical specifications Control Room output Type 2 × 1/4" jack socket Level +21 dBu ± 1 dBu max. Impedance balanced: 100 Ω, unbalanced: 200 Ω Stereo headphones output 1/4" jack socket Treble +/- 10 dB, ± 1.5 dB @ 12 kHz shelving Mids +/- 10 dB, ±...
- Page 21 Technical specifications Further information Built-in effects unit Suitable for 19" Number of microphone channels Number of stereo inputs Number of Aux ways Parametic Digital interface USB 2.0 Bluetooth Optional xmix 1402 FXMP USB...
-
Page 22: Plug And Connection Assignment
Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equipment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’... - Page 23 Plug and connection assignment XLR plug (balanced) Ground, shielding Signal (in phase, +) Signal (out of phase, –) Shielding on plug housing (option) XLR plug (unbalanced) Ground, shielding Signal Bridged to pin 1 RCA connection Drawing and table indicate the pin assignment of an RCA plug. Signal Ground, shielding xmix 1402 FXMP USB...
-
Page 24: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging material For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 25 Notes xmix 1402 FXMP USB...
- Page 26 Notes mixer...
- Page 28 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
