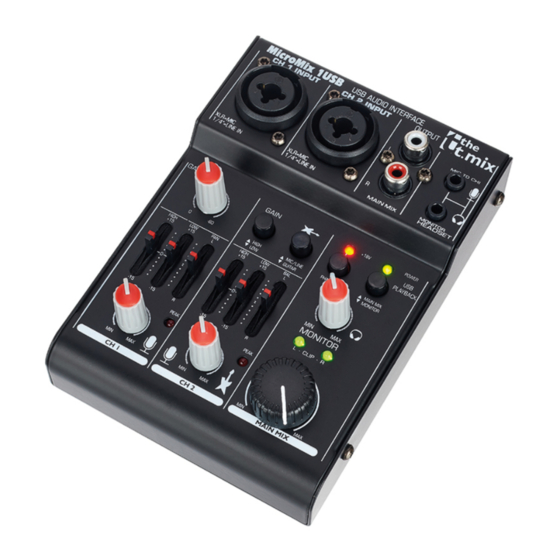

- Page 1 MicroMix 1 USB Mixer...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 19.02.2024, ID: 424895 (V2)
-
Page 3: Table Of Contents
Table of contents Table of contents General information..........................5 1.1 Symbols and signal words....................... 5 Safety instructions............................. 7 Features................................9 Installation and starting up........................ 10 Connections and controls........................11 Technical specifications........................14 Plug and connection assignment....................16 Protecting the environment......................19 MicroMix 1 USB Mixer... - Page 4 MicroMix 1 USB Mixer...
-
Page 5: General Information
Our products and documentation are subject to a process of continuous development. They are therefore subject to change. Please refer to the latest version of the documentation, which is ready for download under www.thomann.de. 1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document. - Page 6 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
-
Page 7: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended to be used for amplification, mixing and playback of signals from musical instruments and microphones. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. - Page 8 Safety instructions WARNING! Possible hearing damage due to high volumes on speakers or headphones! With speakers or headphones connected, the device can produce volume levels that may cause temporary or permanent hearing impairment. Over an extended period of time, even levels that seem to be uncritical can cause hearing damage. Do not operate the device permanently at a high volume level.
-
Page 9: Features
Features Features 2-channel mixer 2 × mono channel with XLR / 1/4" combo socket (MIC / Line), gain adjustment, 2-band EQ and pan control 18 V phantom power globally switchable Channel 2 also suitable for direct instrument connection Headset with headphone and microphone connectable (3.5 mm jack) 1 ×... -
Page 10: Installation And Starting Up
Installation and starting up Installation and starting up Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. -
Page 11: Connections And Controls
Connections and controls Connections and controls ö & MicroMix 1 USB Mixer... - Page 12 Connections and controls 1 [USB TO COMPUTER] | USB port for connecting to a computer for use as an audio interface and for power supply. 2 [MIC TO CH 1] | For connecting the microphone if a headset is in use, signal processing via channel 1. 3 [MONITOR - HEADSET] | For connecting the headphones if a headset is in use.
- Page 13 Connections and controls 14 [HIGH - LOW - PAN] | Tone and pan control for channel ‘CH1’ . Push the ‘HIGH’ control up or down to raise or lower the treble. Slide the ‘LOW’ control up or down to raise or lower the bass. Slide the ‘PAN’ control up or down to move the signal source further to the left or right in the stereo panorama.
-
Page 14: Technical Specifications
Technical specifications Technical specifications Input connections Microphone Type 2 × XLR panel socket, 3-pin, balanced input 1 & 2 Level 2 mV Impedance 1.8 kΩ (max. gain) Line input 1 Type 6.3-mm jack socket, balanced Level 10 mV Impedance 12 kΩ Line input 2 Type 6.3-mm jack socket, balanced... - Page 15 Technical specifications Level max. 5.8 V Headphone Type 3.5-mm jack socket output Impedance ≥ 16 Ω Bass ± 15 dB/80 Hz Treble ± 15 dB/12 kHz Frequency range 20 Hz ~ 22 kHz Signal-to-noise ratio 80 dB, A-weighted Total harmonic distortion (THD) ≤...
-
Page 16: Plug And Connection Assignment
Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’... - Page 17 Plug and connection assignment 1/4" TS phone plug (mono, unbalanced) Signal Ground, shielding 1/4" TRS phone plug (mono, bal‐ anced) Signal (in phase, +) Signal (out of phase, –) Ground XLR plug (balanced) Ground, shielding Signal (in phase, +) Signal (out of phase, –) Shielding on plug housing (option) MicroMix 1 USB Mixer...
- Page 18 Plug and connection assignment XLR plug (unbalanced) Ground, shielding Signal Bridged to pin 1 Three-pole 1/8" mini phone jack (stereo, unbalanced) Signal (left) Signal (right) Ground, shielding RCA connection Drawing and table indicate the pin assignment of an RCA plug. Signal Ground, shielding MicroMix 1 USB...
-
Page 19: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packing material Environmentally friendly materials have been chosen for the packaging. These materials can be sent for normal recycling. Ensure that plastic bags, packaging, etc. are disposed of in the proper manner. Do not dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 20 Repairing a device or passing it on to another user is an ecologically valuable alternative to disposal. You can return your old device to Thomann GmbH at no charge. Check the current conditions on www.thomann.de. If your old device contains personal data, delete those data before disposing of it.
- Page 21 Notes MicroMix 1 USB Mixer...
- Page 22 Notes MicroMix 1 USB Mixer...
- Page 24 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
