Enclosure Dimensions - Altronix AL642ADA220 Application Manual

1.25" (31.75mm)
1.0" (25.4mm)
Altronix is not responsible for any typographical errors.
140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056
website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty
42ADA220 Application Guide
- 8 -

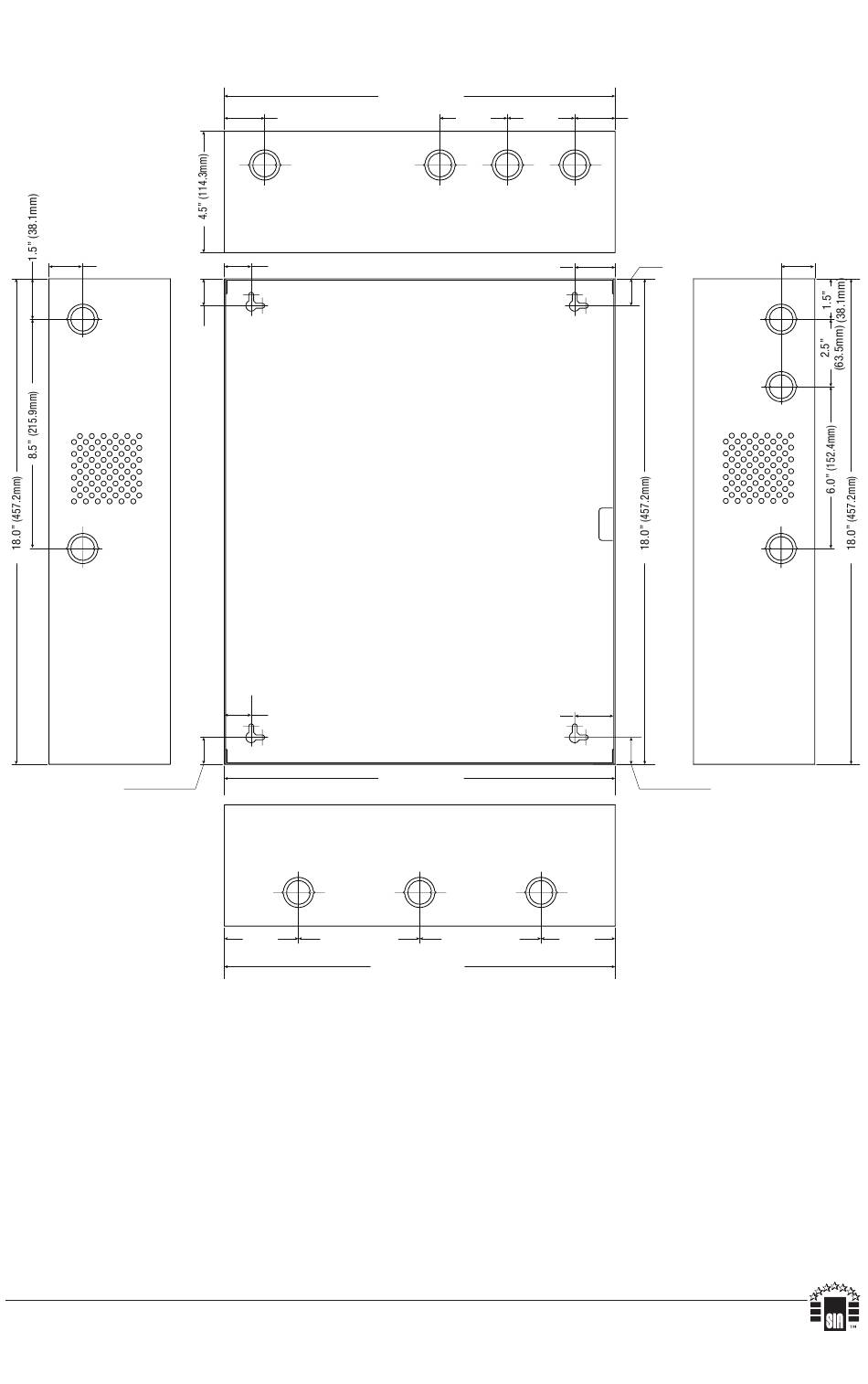

Enclosure Dimensions:

18" x 14.5" x 4.5" (457.2mm x 368.3mm x 114.3mm)
1.5" (38.1mm)
1.0" (25.4mm)
1.0"
(25.4mm)
1.0" (25.4mm)
2.75"
4.5" (114.3mm)
(69.9mm)
14.5" (368.3mm)
2.5" 2.5"
(63.5mm) (63.5mm)
1.5" (38.1mm)
1.5" (38.1mm)
14.5" (368.3mm)
4.5" (114.3mm)
14.5" (368.3mm)
H10U
1.5" (38.1mm)
1.0" (25.4mm)
1.25" (31.75mm)
1.0" (25.4mm)
2.75"
(69.9mm)
