Enclosure Dimensions - Altronix AL642ULADA Application Manual

1.25"
4.5" (114.3mm)
(31.8mm)
1.5"
(38.1mm)
2.0"
(50.8mm)
2.0"
(50.8mm)
1.25" (31.8mm)
Altronix is not responsible for any typographical errors.
140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056
website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A.
42ULADA Application Guide
- 8 -

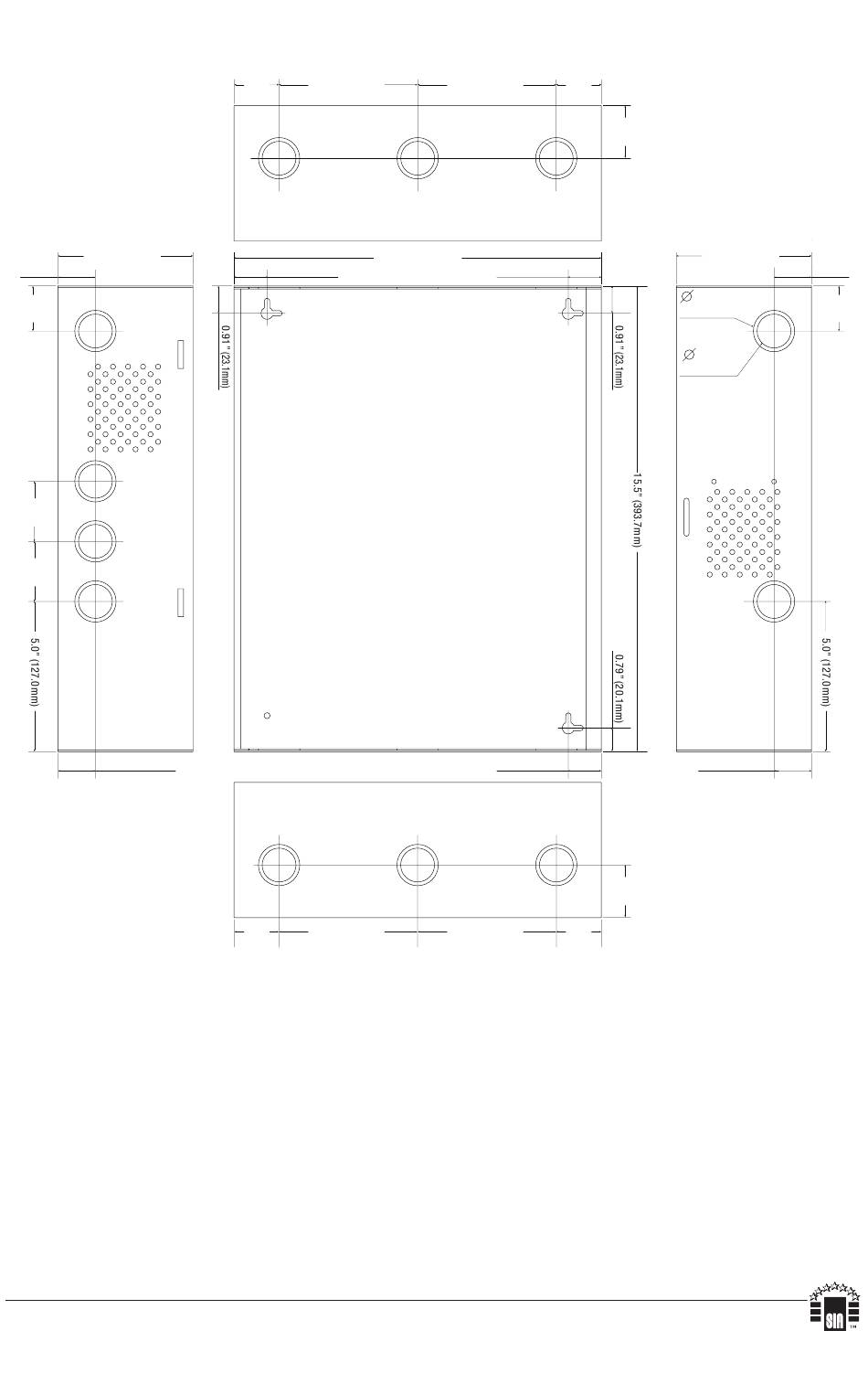

Enclosure Dimensions:

15.5" x 12" x 4.5" (393.7mm x 304.8mm x 114.3mm)
1.5"
4.615" (117.2mm)
(38.1mm)
12.23" (310.6mm)
1.1" (27.9mm)
1.5"
4.615" (117.2mm)
(38.1mm)
1.5"
4.615" (117.2mm)
(38.1mm)
1.1" (27.9mm)
1.1" (27.9mm)
1.5"
4.615" (117.2mm)
(38.1mm)
L04S
1.75"
(44.5mm)
4.5" (114.3mm)
1.375"
(34.9mm)
1.125"
(28.6mm)
1.25" (31.8mm)
1.75"
(44.5mm)
42 ULADA Application Guide
1.25"
(31.8mm)
1.5"
(38.1mm)
