Summary of Contents for Wampat W04E4151R

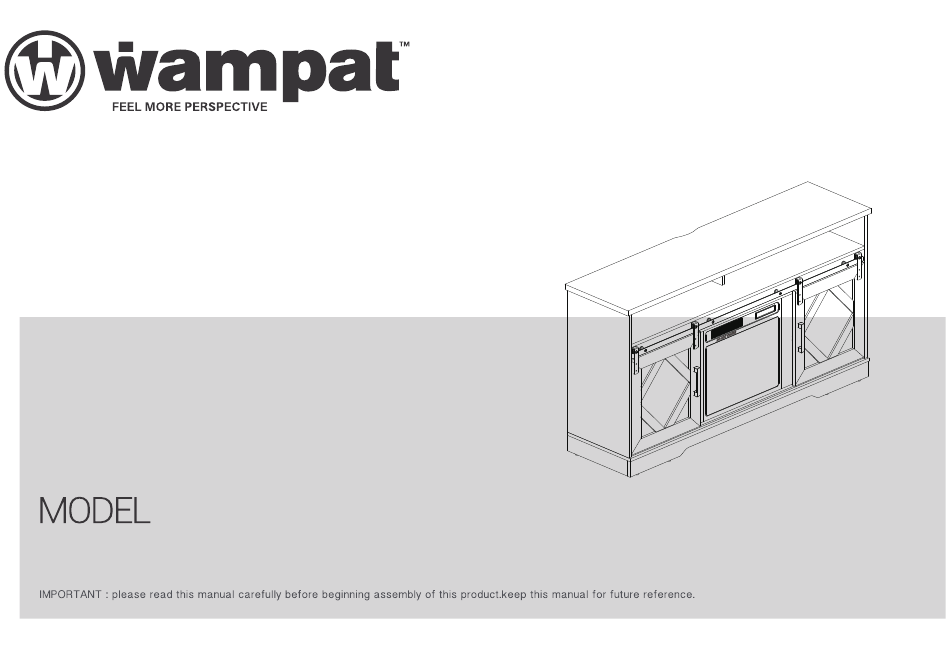

- Page 1 Assembly Instructions W04E4151R W04E4152W...
- Page 4 A × 31 B ×31 D × 8 C ×39 E× 2 F × 8 G × 14 H × 4 K × 4 I × 6 J × 8 L×1 N × 4 M × 1 O × 2 P ×...
- Page 5 Screw part(H) to panels(1,2) using part(L,M ). ３...
- Page 6 Screw parts (A) into panel (3)
- Page 7 Insert dowel(C) into panel(3), then attach panel(2) to panel(3), Insert and secure cam locks(B) to panel (2) to lock it.
- Page 8 Screw parts(A) and Insert dowel(C) into panel(3), then attach panel(6) to panel(3), Insert and secure cam lock(B) to panel(6) to lock it.
- Page 9 Screw parts (A) into panels (4,5).
- Page 10 Insert dowel(C) into panels (2,3), then attach panels(4,5) to panels (2,3), Insert and secure cam locks(B) to panels (2,3) to lock it.
- Page 11 Slide panel(7) into designated area.
- Page 12 Screw parts(A) into panel(8),...
- Page 13 Insert dowels(C)into panel( 4,5,6 ), then attach panel(8) to panel(4,5,6), Insert and secure cam locks(B) to panel (4,5,6) to lock it.
- Page 14 Screw parts(A) into panel(11), Insert dowels(C) into panels (9,10), then attach panel(11) to panels (9,10), Insert and secure cam locks(B) to panels (9,10) to lock it.
- Page 15 Insert dowel(C) into panel(3), then attach panels(9,10) to panel(3), Insert and secure cam locks(B) to panels (9,10) to lock it.
- Page 16 Slide panels(12) into designated area.
- Page 17 Insert dowels(C) into panels(4,5,9,10) , attach panel(13)to panels(4,5,9,10) using screws(F).
- Page 18 Screw parts(A) into panel(13).
- Page 19 Screw parts(A) into panels(16)and Insert dowels(C) into panel(14,15), then attach panels(14,15) to panel(16), Insert and secure cam lock(B) to panels (14,15) to lock it.
- Page 20 Insert dowels(C)into panel(13), then attach panels(14,15,16) to panel(13), Insert and secure cam lock(B) to panels (14,15,16) to lock it. Secure pins(I) to panels (14,15,16)
- Page 21 Secure parts(G) to panels(3,4,5,8,9,10,13).
- Page 22 · Attach parts(19) to panels(4,5,9,10) using parts(D).
- Page 23 ！ Attach parts (E,N) to panels(17,18), Then screw part(K) to panel(17,18) using part( J ), but don't fix the screws tight!
- Page 24 After installing the doors (17, 18) in position, adjust door height and leveling, then fix screws tight and slide doors (17, 18) into designated area.
- Page 25 Unscrew the 3 screws which already in the back bottom of the fireplace. then fix the L-shaped iron plate to the bottom of fireplace using the screws.
- Page 26 Insert fireplace from back of the tv stand, then fix L shape to panel 13 .
- Page 27 Screw parts (O) into panel(20) using parts (P)， Attach panel (20) to panels (9,10) using parts(O,P)
- Page 28 To prevent TV cabinet from toppling, install the parts (Q).
