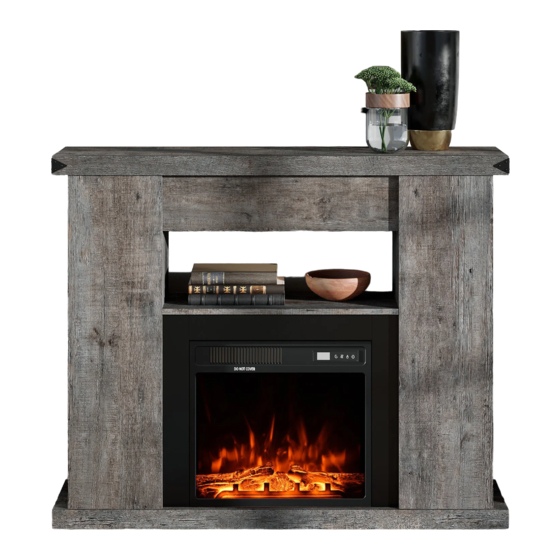

- Page 1 All manuals and user guides at all-guidesbox.com Assembly Instructions W04H4121G...
- Page 2 All manuals and user guides at all-guidesbox.com...
- Page 3 All manuals and user guides at all-guidesbox.com...
- Page 4 All manuals and user guides at all-guidesbox.com ● The provided glue(H) is to secure wood dowels(A) in place . When first inserting dowels, locate the appropriate hole for the dowel , place a small amount of glue in the Wooden dowel Cam bolt Cam lock Sticker...
- Page 5 All manuals and user guides at all-guidesbox.com x 12 Screw parts (B) into panels (3,4) . Ø6x24mm ３...
- Page 6 All manuals and user guides at all-guidesbox.com x 10 Screw parts (B) into panels (1,2) . Ø6x24mm...
- Page 7 All manuals and user guides at all-guidesbox.com x 12 · Insert dowels(A) into panels(1,2) . · Attach panels (3,4) to panels (1,2). · Insert and secure cam locks (C) to panels (1,2) to lock it. Ø8x30mm Ø15x12mm...
- Page 8 All manuals and user guides at all-guidesbox.com Screw parts (B) into panel (9) . Ø6x24mm...
- Page 9 All manuals and user guides at all-guidesbox.com · Insert dowels(A) into panel(12)， then attach panels (10,11) to panel (12). · Then attach panels (10,11,12) to panel (9). · Insert and secure cam locks (C) to panels Ø8x30mm Ø15x12mm (10,11,12) to lock it.
- Page 10 All manuals and user guides at all-guidesbox.com · Insert dowel(A) into panel(8) . · Attach panels (8,9,10) to panel (2). · Insert and secure cam locks (C) to panels ( 8,9,10) to lock it. Ø8x30mm Ø15x12mm...
- Page 11 All manuals and user guides at all-guidesbox.com · Insert dowel(A) into panel(8) . · Attach panels (8,9,11) to panel (1). Ø8x30mm Ø15x12mm · Insert and secure cam locks (C) to panels ( 8,9,11) to lock it.
- Page 12 All manuals and user guides at all-guidesbox.com x 12 Screw parts (B) into panel (5) . Ø6x24mm...
- Page 13 All manuals and user guides at all-guidesbox.com x 12 · Attach panels (1,2,3,4)to panel(5). · Insert and secure cam locks(C)to panels(1,2,3,4)to lock it. Ø15x12mm...
- Page 14 All manuals and user guides at all-guidesbox.com x 14 · Attach panel (6) to panels (1,2,3,4,10,11) using screws(E). Ø5x50mm...
- Page 15 All manuals and user guides at all-guidesbox.com Secure pins(G) to panel (6) . Ø16*18mm...
- Page 16 All manuals and user guides at all-guidesbox.com x 16 Ø5*16mm · Attach panels(7) to panels(3,4) using parts(F).
- Page 17 All manuals and user guides at all-guidesbox.com Unscrew the 3 screws which already in the back bottom of the fireplace. then fix the L-shaped iron plate to the bottom of fireplace using the screws.
- Page 18 All manuals and user guides at all-guidesbox.com Insert fireplace from back of the tv stand . then fix L shape to panel (6) .
- Page 19 All manuals and user guides at all-guidesbox.com Screw parts (J) into panel(13) Attach panel (13) to panels (1,2) using parts(J,I) Ø3.5x13mm...
- Page 20 All manuals and user guides at all-guidesbox.com WARNING Serious or fatal injuries can occur from furniture tipping over. To prevent the furniture from tipping over we recommend that it is permanently fixed to the wall. Wall anchor and hardware are included with this product. Please make sure hardware is suitable for your walls before installing, as different wall materials may require different types of anchors.
- Page 21 All manuals and user guides at all-guidesbox.com · Stick stickers(D) on cam lock(C). Final Assembly...
- Page 22 All manuals and user guides at all-guidesbox.com...
