Wampat W04E415AR Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Assembly Instructions
W04E415AR W04E415BW
Please read this manual carefully before beginning assembly of this product.Keep this manual for future reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the W04E415AR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wampat W04E415AR

Summary of Contents for Wampat W04E415AR

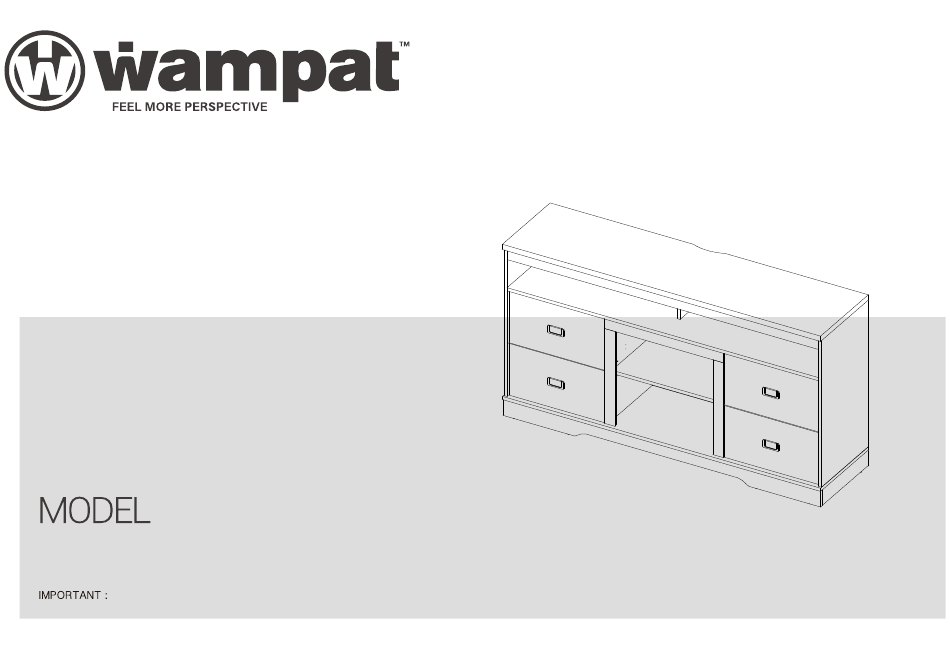

  • Page 1 Assembly Instructions W04E415AR W04E415BW Please read this manual carefully before beginning assembly of this product.Keep this manual for future reference.
  • Page 3 Fireplace Insert (individually wrap)
  • Page 4 Two Assembly Options Option A (TV stand )
  • Page 5 Two Assembly Options Option B (Fireplace TV Stand ) Fireplace Insert (individually wrap)
  • Page 6 Cam bolt Screw Wooden dowel Cam lock Shelf support pin x 36 x 32 x 52 x 24 Plastic wedge Screw Screw PVC nail with pin Cam lock with screw Φ4x14mm Φ4x14mm x 16 x 20 Screw “L” Shaped Drawer slider Φ3.5x12mm Handle with screws Metal bracket...
  • Page 7 x 16 · Screw cam bolts (A) into panels (2,3,4,7).
  • Page 8 x 34 · Screw cam bolts (A) into panels (1,10,11,15,21).
  • Page 9 · Insert dowels (C) into panel (8). · Attach panel (8) to panel (1). · Insert and secure cam locks (B) to panel (8) to lock it.
  • Page 10 Step 1 Step 2 Slider arm Slider bracket · Separate the slide bracket from the slide arm as per diagram.
  • Page 11 Mounting holes x 24 · Attach Slider arms to panels (4,5,6,7) with screws (K) correctly.
  • Page 12 · Insert dowels (C) into panels (5,6). · Attach panels (2) to panels (5,6). · Insert and secure cam locks (B) to panels (5,6) to lock it.
  • Page 13 · Attach panel (11) to panels (5,6). · Insert and secure cam locks (B) to panels (5,6) to lock it.
  • Page 14 · Insert dowels (C) into panels (5,6). · Attach panels (10) to panels (5,6). · Insert and secure cam locks (B) to panels (5,6) to lock it.
  • Page 15 · Insert dowels (C) into panel (2). · Attach panels (4,7) to panel (2). · Insert and secure cam locks (B) to panel (2) to lock it.
  • Page 16 · Screw cam bolts (A) into panel (2).
  • Page 17 · Insert dowel (C) into panel (9). · Attach panel (9) to panel (2). · Insert and secure cam locks (B) to panel (9) to lock it.
  • Page 18 · Carefully slide part (16) into place along the back of the assembly.
  • Page 19 · Insert dowel (C) into panels (4,7,9). · Attach panel (1) to panels (4,7,9). · Insert and secure cam locks (B) to panels (4,7,9) to lock it.
  • Page 20 · Carefully slide parts (17,19) into place along the back of the assembly.
  • Page 21 · Insert dowels (C) into panels (4,5,6,7). · Attach panel (3) to panels (4,5,6,7) with screws (E).
  • Page 22 · Insert dowels (C) into panels (13,14). · Attach panel (15) to panels (13,14). · Insert and secure cam locks (B) to panels (13,14) to lock it.
  • Page 23 · Insert dowels (C) into panel (3). · Attach panels (13,14,15) to part (3). · Insert and secure cam locks (B) to panels (13,14,15) to lock it. · Knock pins (G) into panels (13,14,15).
  • Page 24 x 20 · Secure parts (F1) with screws (F2) as per diagram.
  • Page 25 x 16 · Attach panels (22,23) to panel (24) with screws (E). · Carefully slide panel (25) into place along the bottom of the assembly.
  • Page 26 The slot is on the lower side . · Attach parts (M1) to panels (21) with screws (M2).
  • Page 27 x 16 · Attach part (21) to panels (22,23). · Insert and secure cam locks (H) to panels (22,23) to lock it.
  • Page 28 x 24 · Attach slider brackets to panels (22,23) with screws (K) correctly.
  • Page 29 Slider arm Slider bracket Slider bracket Adjust Height / 高さを調節 · Assembled the drawers as per diagram Note : If the drawer does not go in smoothly. Press or lift the plastic release lever. Pull out the slider bracket from the slider arm.
  • Page 30 Option A (TV stand)
  • Page 31 Option A(TV stand) · Attach panel (12) to panels (5,6) using parts (D).
  • Page 32 Option A(TV stand) · Attach parts (18,20) to panels (5,6) with screws (I) correctly,...
  • Page 33 Option A(TV stand) Wall · To prevent TV cabinet from toppling,install the parts (O).
  • Page 34 Option A(TV stand) Final Assembly...
  • Page 35 Option B (Fireplace TV stand)
  • Page 36 Option B(Fireplace TV stand) · Insert fireplace (27) from back of the TV stand.
  • Page 37 Option B(Fireplace TV stand) · Attach parts (N) to panel (26) with screws (J) correctly. · Attach part (26) to panels (5,6) with screws (J) correctly.
  • Page 38 Option B(Fireplace TV stand) Wall · To prevent TV cabinet from toppling,install the parts (O).
  • Page 39 Option B(Fireplace TV stand) Final Assembly...

This manual is also suitable for:

W04e415bw
