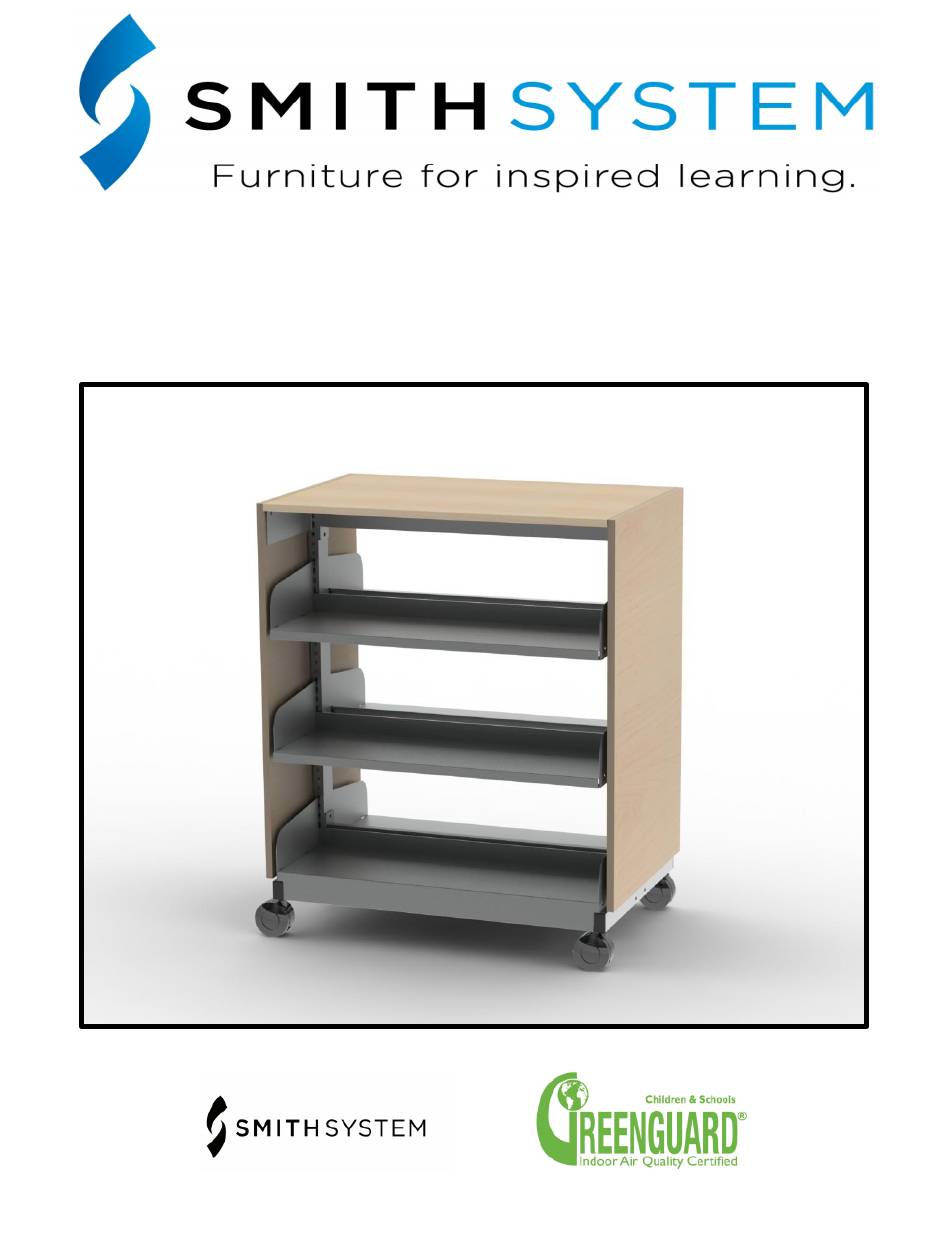

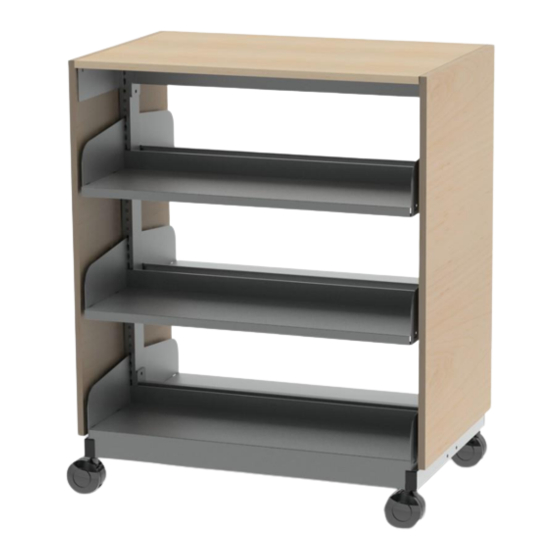

- Page 1 21676 Nomad Assembly Instructions For assistance in assembling product, missing or damaged parts, or to place an order, please contact customer service at 1-800-328-1061. You may also place your order online at Form#179984 www.smithsystem.com 11/2015...
- Page 2 Components and Hardware List Part#: 17554 Part#: L43801 4” Dual-Wheel Caster Library Column Part#: 21295 Pack (Qty. of 4) (Qty. of 2) Flat Shelves (Qty. of 4) Part#: 21298 Part#: 74104 Part#: 74119 Flat Base Shelves Library Spacer Support Library/Nomad (Qty.
- Page 3 Assembly Instructions Step 1: Attach the 4” Dual-Wheel Casters to the bottom of the Library Columns. Ensure that the casters are fully tightened and secure. (If casters are not fully tightened, the unit may get damaged or may not roll correctly) Step 2: Attach both Library Spacer Supports to the Library Columns using the connector bolts and nuts from the hardware pack.
- Page 4 Step 4: Position the Top Panel, with the pre-drilled holes facing downward and centered, between the End Panels and on top of the Flat Top Brackets. Fasten the Top Panel to the Flat Top Brackets using wood screws from the hardware pack.
- Page 5 Step 6: Flat Shelves are assembled in the same manner as Flat Base Shelves - by attaching the end brackets to each shelf. Grasp the shelf by each bracket and insert the tabs into the slots of the column at the desired height. The image below shows how the shelf should seat onto the columns.
