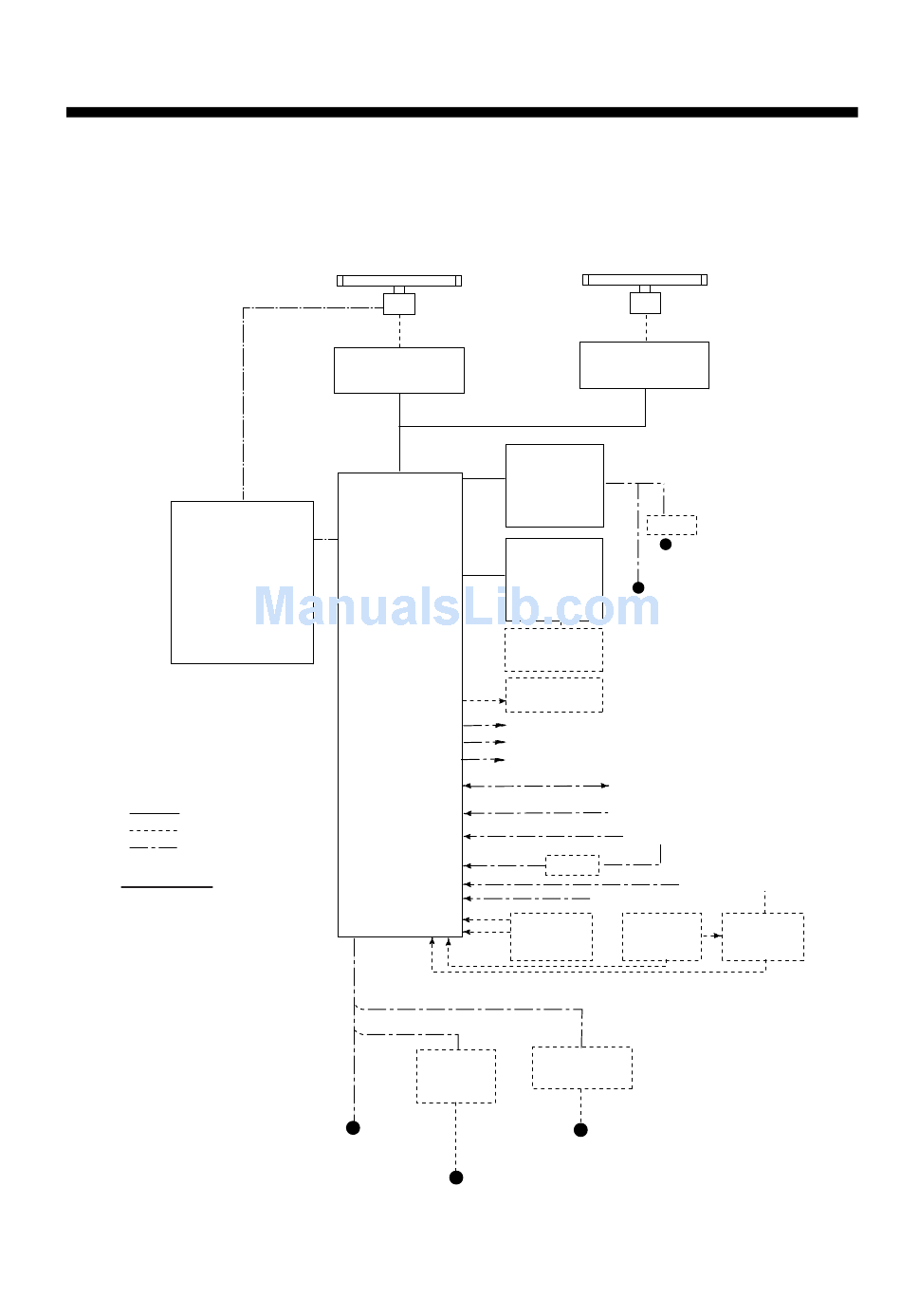

SYSTEM CONFIGURATION

See page xvi for detailed information about antenna units and radiators.
With FURUNO-supplied monitor
* Neither FAR-2157 nor
FAR-2167DS carry a
performance monitor.
POWER SUPPLY UNIT
PSU-006
(For FAR-2157/2167DS)
OR
POWER SUPPLY UNIT
PSU-007
(For FAR-2137S/2837S)
OR
POWER SUPPLY UNIT
PSU-011*
(For FAR-2827W/2837SW)
* Russian flag only
: Standard
: Option
: Dockyard supply
Category of Units
Antenna unit: Exposed to weather
All other units: Protected from weather
FAR-2137S/2167DS/2837S/2837SW
ANTENNA UNIT
(Performance Monitor PM-51* built in)
Waveguide or
Coax cable
(For FAR-2837SW)
TRANSCEIVER UNIT
RTR-082
For FAR-2837SW
PROCESSOR UNIT
RPU-013
Rectifier
RU-3424
RU-1746B-2
24 VDC
or
100-115 VAC/
220-230 VAC
1φ, 50/60 Hz
100/110/115/
220/230 VAC
1φ, 50/60 Hz
FAR-2117/2127/2157/2817/2827/2827W
ANTENNA UNIT
(Performance Monitor PM-31* built in)
TRANSCEIVER UNIT
RTR-081
For FAR-2827W
MONITOR UNIT
MU-201CR
(FAR-21x7)
or
MU-231CR
(FAR-28x7)
CONTROL UNIT
RCU-014
(Keyboard)
or
RCU-015
24 VDC
(Trackball)
115/230 VAC
Control Unit
RCU-016
(Remote)
Sub Display
Alarm
VDR
External Monitor
IEC-61162-1 Serial Data
Navigator (INS, GPS, etc.)
(Input/Output)
IEC-61162-1 Serial Data
Speed Log
(Input)
AD-100
Track Control Unit
OR
Memory Card
Memory Card
Interface Unit
CU-200
HUB has ports for connection of up to 7 processor units
AC spec
DC spec
Transformer Unit
RU-1803
440 VAC
1φ, 50/60 Hz
Waveguide
(For FAR-2827W)
24 VDC
RU-3423
115/230 VAC
or
Gyrocompass
100-230 VAC
AIS
Switching Hub
Interface Unit
HUB-100
CU-200 x 2
