ECM-EHL

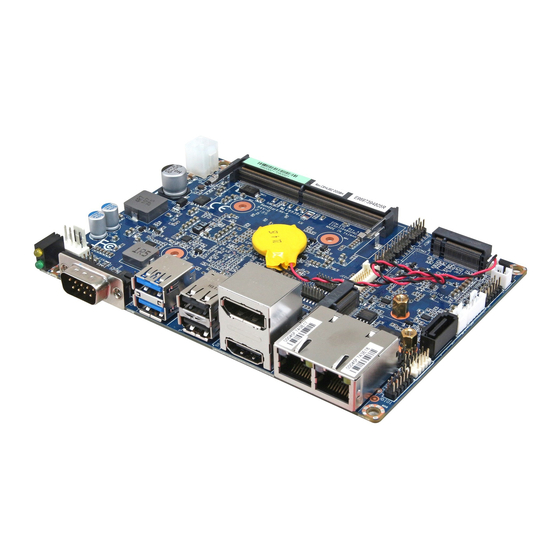

Intel® Elkhart Lake 3.5" Micro Module
User's Manual
Ed –15 October 2021
st
1
Part No. E2047394800R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECM-EHL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avalue Technology ECM-EHL

Summary of Contents for Avalue Technology ECM-EHL

  • Page 1 ECM-EHL Intel® Elkhart Lake 3.5” Micro Module User’s Manual Ed –15 October 2021 Part No. E2047394800R...
  • Page 2 Disclaimer Avalue Technology Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Avalue Technology assumes no responsibility or liability for the...
  • Page 3 Applications that are described in this manual are for illustration purposes only. Avalue Technology Inc. makes no representation or warranty that such application will be suitable for the specified use without further testing or modification.
  • Page 4 A product returned without proof of the purchase date is not eligible for warranty service. Write the RMA number visibly on the outside of the package and ship it prepaid to your dealer. 4 ECM-EHL User’s Manual...

  • Page 5: Table Of Contents

    Cortex Debug + ETM connector (JPSE1) .................. 28 2.3.20 Port80 connector (JESPI1) ......................28 2.3.21 eDP connector (JEDP1) ......................29 2.3.22 Audio connector (JAUDIO1) ...................... 29 Signal Description – Audio connector (JAUDIO1) ..............29 2.3.20.1 3.BIOS Setup ........................30 Introduction ......................31 ECM-EHL User’s Manual...
  • Page 6 3.6.3.1.2 Graphics Configuration ......................51 3.6.3.2 PCH-IO Configuration ......................52 3.6.3.2.1 PCI Express Configuration ....................52 3.6.3.2.2 SATA Configuration ....................... 58 3.6.3.2.3 USB Configuration ......................... 59 3.6.3.2.4 HD Audio Configuration ......................60 3.6.3.3 Board & Panel Configuration ....................60 6 ECM-EHL User’s Manual...
  • Page 7 Install Chipset Driver ....................68 Install ME Driver ...................... 69 Install VGA Driver ....................70 Install Display Audio Driver ..................71 Install Ethernet Driver ....................73 Install HID Driver ..................... 75 Install SIO Driver ..................... 76 5. Mechanical Drawing ....................77 ECM-EHL User’s Manual...

  • Page 8: Getting Started

    1.2 Packing List Before you begin installing your single board, please make sure that the following materials have been shipped: 1 x 3.5” ECM-EHL Micro Module  1 x CPU Heatsink ...

  • Page 9: Document Amendment History

    User’s Manual 1.3 Document Amendment History Revision Date Comment October 2021 Avalue Initial Release ECM-EHL User’s Manual...

  • Page 10: Manual Objectives

    We strongly recommend that you study this manual carefully before attempting to set up ECM-EHL or change the standard configurations. Whilst all the necessary information is available in this manual we would recommend that unless you are confident, you contact your supplier for guidance.

  • Page 11: System Specifications

    1 x M.2 (Key-E, 2230, PCIex1, USB2.0) Storage 1 x M.2 (Key-B, 2242) SATA Interface 1 x SATA III Edge I/O 1x 2x 3pin (2.0mm) for RS422/485 switch by GPIO 1 x D-SUB9 RS232 2 x RJ45 (Independent) ECM-EHL User’s Manual 11...
  • Page 12 Intel® I225-IT, I210IT for extend temperature 1 x 10/100/1000/2.5G Base-Tx GbE compatible, 2.5G support up to 70°C Ta base Ethernet Spec. on Intel spec, above 70°C Ta, the recommended speed is 1G. 1 x 10/100/1000 Base-Tx GbE compatible 12 ECM-EHL User’s Manual...
  • Page 13 2. Intel® Ethernet Controller I225-LM/IT temperature measurement data stated in Avalue Board Product Design Verification Report, Intel does not provide official temperature guide or tool for TC measurement. ECM-EHL User’s Manual 13...

  • Page 14: Architecture Overview-Block Diagram

    ECM-EHL User’s Manual 1.6 Architecture Overview—Block Diagram The following block diagram shows the architecture and main components of ECM-EHL 14 ECM-EHL User’s Manual...

  • Page 15: Hardware Configuration

    User’s Manual 2. Hardware Configuration ECM-EHL User’s Manual 15...

  • Page 16: Product Overview

    ECM-EHL User’s Manual 2.1 Product Overview 16 ECM-EHL User’s Manual...

  • Page 17: Jumper And Connector List

    CPU fan connector 4 x 1 wafer, pitch 2.54mm CPU_FAN1 D-sub 9-pin, male Note：COM1 support RS422/485 Serial Port 1 connector COM1 by BIOS setting Serial port 1 in RS-422/485 mode 3 x 2 header, pitch 2.00 mm J422_485 ECM-EHL User’s Manual 17...
  • Page 18 DDR4 SODIMM socket JPSE1 Cortex Debug + ETM connector 10 x 2 header, pitch 1.27mm JESPI1 Port80 connector 6 x 2 header, pitch 1.27mm JEDP1 eDP connector 10 x 2 wafer, pitch 1.25mm USIM1 SIM card slot 18 ECM-EHL User’s Manual...

  • Page 19: Setting Jumpers & Connectors

    User’s Manual 2.3 Setting Jumpers & Connectors 2.3.1 Serial port 1 pin9 signal select (JRI1) Ring* +12V * Default 2.3.2 Clear CMOS (JBAT1) Normal* Clear CMOS * Default ECM-EHL User’s Manual 19...

  • Page 20: At/Atx Input Power Select (Jat1)

    ECM-EHL User’s Manual 2.3.3 AT/ATX Input power select (JAT1) * Default 2.3.4 LCD inverter connector (JBKL1) Signal +12V BKLEN VBRIGHT 20 ECM-EHL User’s Manual...

  • Page 21: Cpu Fan Connector (Cpu_Fan1)

    User’s Manual 2.3.5 CPU fan connector (CPU_FAN1) Signal CFAN_OUT_PWM CFAN_IN_TACH +12V 2.3.6 Serial port 1 in RS-422/485 mode (J422_485) Signal PIN PIN Signal 485TX2- 485TX2+ 485RX2+ 485RX2- ECM-EHL User’s Manual 21...

  • Page 22: Serial Port 2 Connector (Jcom2)

    2.3.7 Serial port 2 connector (JCOM2) Signal PIN PIN Signal COM_DCD#_2 COM_RXD_2 COM_TXD_2 COM_DTR#_2 COM_DSR#_2 COM_RTS#_2 COM_CTS#_2 COM_RI#_2 2.3.8 Serial port 3 connector (JCOM3) Signal PIN PIN Signal COM_DCD#_3 COM_RXD_3 COM_TXD_3 COM_DTR#_3 COM_DSR#_3 COM_RTS#_3 COM_CTS#_3 COM_RI#_3 22 ECM-EHL User’s Manual...

  • Page 23: Serial Port 4 Connector (Jcom4)

    Serial port 4 connector (JCOM4) Signal PIN PIN Signal COM_DCD#_4 COM_RXD_4 COM_TXD_4 COM_DTR#_4 COM_DSR#_4 COM_RTS#_4 COM_CTS#_4 COM_RI#_4 2.3.10 General purpose I/O connector (JDIO1) Signal PIN PIN Signal DIO_GP20_TGPI4 DIO_GP10_TGPI0 DIO_GP21_TGPI5 DIO_GP11_TGPI1 DIO_GP22_TGPI6 DIO_GP12_TGPI2 DIO_GP23_TGPI7 DIO_GP13_TGPI3 SMB_SCL_S0 SMB_SDA_S0 ECM-EHL User’s Manual 23...

  • Page 24: Sata Power Connector (Sata_Pwr1)

    ECM-EHL User’s Manual 2.3.11 SATA Power connector (SATA_PWR1) Signal 2.3.12 Power connector (PWR1) Signal Signal +VIN_EXT +VIN_EXT 24 ECM-EHL User’s Manual...

  • Page 25: Usb2.0 Connector (Jusb1)

    User’s Manual 2.3.13 USB2.0 connector (JUSB1) Signal PIN PIN Signal +5VSB +5VSB USB_R_DN4 USB_R_DN5 USB_R_DP4 USB_R_DP5 2.3.14 BIOS SPI connector (BIOS_SPI1) Signal PIN PIN Signal +3.3VSB SPI_CS0# SPI_CLK SPI_MISO SPI_MOSI BIOS_HOLD# BIOS_WP# ECM-EHL User’s Manual 25...

  • Page 26: Ec Debug Connector (Jec_Rom1)

    ECM-EHL User’s Manual 2.3.15 EC Debug connector (JEC_ROM1) Signal EC_SMCLK_DBG EC_SMDAT_DBG 2.3.16 Battery connector (BT1) Signal +RTCBATT 26 ECM-EHL User’s Manual...

  • Page 27: Front Panel Connector (Jfp1)

    User’s Manual 2.3.17 Front Panel connector (JFP1) Signal PIN PIN Signal FP_HDD_LED+ FP_PWR_LED+ HDD_LED# PWR_LED# PMC_RSTBTN# PWR_BTN_IN_EC# 2.3.18 PC Buzzer connector (JBZ1) Signal SOC_SPKR_R ECM-EHL User’s Manual 27...

  • Page 28: Cortex Debug + Etm Connector (Jpse1)

    19 PSE_TRACEDATA_3 17 PSE_TRACEDATA_2 15 PSE_TRACEDATA_1 TGTPWR_GND 13 PSE_TRACEDATA_0 TGTPWR_GND PSE_TRACECLK PSE_JTAG_GND_DET 10 PSE_JTAG_NRESET TP_TDI_PIN8 PSE_TRACESWO PSE_SWCLK +1.8VSB PSE_SWDIO 2.3.20 Port80 connector (JESPI1) Signal PIN PIN Signal ESPI_ALERT# ESPI_RST ESPI_CLK ESPI_IO3 ESPI_CS# ESPI_IO2 PLT_RST_BUF# ESPI_IO1 +3.3VSB ESPI_IO0 28 ECM-EHL User’s Manual...

  • Page 29: Edp Connector (Jedp1)

    HD_AGND HD_AGND LINE1-R-IN LINE1-L-IN MIC1-R-IN MIC1-L-IN FRONT-JD LINE1-JD MIC1-JD HD_AGND 2.3.20.1 Signal Description – Audio connector (JAUDIO1) Signal Signal Description LINE1-JD AUDIO IN (LINE_RIN/LIN)sense pin FRONT-JD AUDIO Out(ROUT/LOUT) sense pin MIC1-JD MIC IN (MIC_RIN/LIN) sense pin ECM-EHL User’s Manual 29...

  • Page 30: Bios Setup

    ECM-EHL User’s Manual 3.BIOS Setup 30 ECM-EHL User’s Manual...

  • Page 31: Introduction

    If the message disappears before you respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the "RESET" button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. ECM-EHL User’s Manual 31...

  • Page 32: Using Setup

    Note: Some of the navigation keys differ from one screen to another.  To Display a Sub Menu Use the arrow keys to move the cursor to the sub menu you want. Then press <Enter>. A “” pointer marks all sub menus. 32 ECM-EHL User’s Manual...

  • Page 33: Getting Help

    BIOS Vendor and your systems manufacturer to provide the absolute maximum performance and reliability. Even a seemingly small change to the chipset setup has the potential for causing you to use the override. ECM-EHL User’s Manual 33...

  • Page 34: Bios Setup

    <Enter> to accept and enter the sub-menu. 3.6.1 Main Menu This section allows you to record some basic hardware configurations in your computer and set the system clock. 34 ECM-EHL User’s Manual...

  • Page 35: System Language

    Visit the Avalue website (www.avalue.com.tw) to download the latest product and BIOS information. 3.6.2 Advanced Menu This section allows you to configure your CPU and other system devices for basic operation through the following sub-menus. ECM-EHL User’s Manual 35...

  • Page 36: Cpu Configuration

    Enable/Disable CPU Flex Ratio Programming. Enabled When enabled, a VMM can utilize the additional Intel (VMX) Virtualization Disabled hardware capabilities provided by Vanderpool Technology Enabled[Default] Technology. All[Default] Number of cores to enable in each processor Active Processor Cores package. 36 ECM-EHL User’s Manual...

  • Page 37: Power & Performance

    Max Battery Select the performance state that Boot performance mode Max Non-Turbo Performance[Default], the BIOS will set starting from reset Turbo Performance vector. Enabled[Default], Allows more than two frequency Intel® SpeedStep™ Disabled ranges to be supported. ECM-EHL User’s Manual 37...
  • Page 38 Enable/Disable Energy Efficient Turbo Feature. This feature will opportunistically lower the turbo Disabled frequency to increase efficiency. Recommended Energy Efficient Turbo Enabled[Default] only to disable in overclocking situations where turbo frequency must remain constant. Otherwise, leave enabled. 38 ECM-EHL User’s Manual...

  • Page 39: Gt - Power Management Control

    Check to enable render RC6(Render Standby) Disabled standby support. Default Max Frequency[Default] 100Mhz/150Mhz/200Mhz/250Mhz/300Mhz /350Mhz/400Mhz/450Mhz/500Mhz/550Mhz Maximum GT frequency Auto Updated. /600Mhz/650Mhz/700Mhz/750Mhz/800Mhz /850Mhz/900Mhz/950Mhz/1000Mhz/1050Mhz /1100Mhz/1150Mhz/1200Mhz Enabled: Disables Turbo GT Disable Turbo GT Enabled frequency. Disabled: GT frequency Disabled[Default] frequency is not limited. ECM-EHL User’s Manual 39...

  • Page 40: Pch-Fw Configuration

    When Disabled ME will not be unconfigured on ME Unconfig on RTC Clear Enabled[Default] RTC Clear. 3.6.2.3.1 Firmware Update Configuration Item Option Description Disabled [Default], ME FW Image Re-Flash Enable/Disable Me FW Image Re-Flash function. Enabled 40 ECM-EHL User’s Manual...

  • Page 41: Ptt Configuration

    3.6.2.3.2 PTT Configuration 3.6.2.4 Trusted Computing Item Options Description Enables or Disables BIOS support for security device. Disable, Security Device Support O.S. will not show Security Device. TCG EFI protocol Enable[Default] and INT1A interface will not be available. ECM-EHL User’s Manual 41...

  • Page 42: Apci Settings

    Enabled[Default], option may not be effective with some Select the highest ACPI sleep state the Suspend Disabled, ACPI Sleep State system will enter when the SUSPEND S3 (Suspend to RAM)[Default] button is pressed. 3.6.2.6 HW Monitor 42 ECM-EHL User’s Manual...

  • Page 43: Nct5124Dsec Super Io Configuration

    Set Parameters of Serial Port 1 (COMA). Serial Port 2 Configuration Set Parameters of Serial Port 2 (COMB). Serial Port 3 Configuration Set Parameters of Serial Port 3 (COMC). Serial Port 4 Configuration Set Parameters of Serial Port 4 (COMD). ECM-EHL User’s Manual 43...

  • Page 44: Serial Port 1 Configuration

    3.6.2.7.1 Serial Port 1 Configuration Item Option Description Enabled[Default], Serial Port 1 Enable or Disable Serial Port (COM). Disabled UART 232[Default], Change the Serial Port as UART 232 422 485 UART 422 RS232/422/485. UART 485 3.6.2.7.2 Serial Port 2 Configuration 44 ECM-EHL User’s Manual...

  • Page 45: Serial Port 3 Configuration

    3.6.2.7.3 Serial Port 3 Configuration Item Option Description Enabled[Default], Serial Port 3 Enable or Disable Serial Port (COM). Disabled 3.6.2.7.4 Serial Port 4 Configuration Item Option Description Enabled[Default], Serial Port 4 Enable or Disable Serial Port (COM). Disabled ECM-EHL User’s Manual 45...

  • Page 46: S5 Rtc Wake Settings

    Disabled[Default], Fixed Time, system will wake on the hr::min::sec specified. Wake system from S5 Fixed Time Select Dynamic Time, System will wake on the current time Dynamic Time + Increase minute(s). 3.6.2.9 Serial Port Console Redirection 46 ECM-EHL User’s Manual...

  • Page 47: Usb Configuration

    10 sec Interrupt transfers. 20 sec[Default] 10 sec 20 sec[Default] USB mass storage device Start Unit command Device reset time-out 30 sec time-out. 40 sec Device power-up delay Auto[Default] Maximum time the device will take before it ECM-EHL User’s Manual 47...

  • Page 48: Network Stack Configuration

    Optical drives are emulated as ‘CDROM’, drives with no media will be Hard Disk CD-ROM emulated according to a drive type. 3.6.2.11 Network Stack Configuration Item Options Description Enabled Network Stack Enable/Disable UEFI Network Stack. Disabled[Default] 48 ECM-EHL User’s Manual...

  • Page 49: Nvme Configuration

    User’s Manual 3.6.2.12 NVMe Configuration 3.6.3 Chipset ECM-EHL User’s Manual 49...

  • Page 50: System Agent (Sa) Configuration

    System Agent (SA) Configuration Item Option Description Enabled[Default] VT-d VT-d capability. Disabled Enable/Disable above 4GB Above 4GB MMIO BIOS Enabled MemoryMappedIO BIOS assignment. This assignment Disabled[Default] is enabled automatically when Aperture Size is set to 2048MB. 3.6.3.1.1 Memory Configuration 50 ECM-EHL User’s Manual...

  • Page 51: Graphics Configuration

    Select the GTT Size. 8MB[Default] 128MB Select the Aperture Size. Note: Above 4GB 256MB[Default] MMIO BIOS assignment is automatically enabled Aperture Size 512MB when selecting 2048MB aperture. To use this 1024MB feature, please disable CSM Support. ECM-EHL User’s Manual 51...

  • Page 52: Pch-Io Configuration

    ECM-EHL User’s Manual 3.6.3.2 PCH-IO Configuration 3.6.3.2.1 PCI Express Configuration 52 ECM-EHL User’s Manual...
  • Page 53 L0s State AUTO – BIOS auto ASPM configure DISABLE – Disables ASPM. L0sL1 Auto Disabled[Default] L1 Substates L1.1 PCI Express L1 Substates settings. L1.1 & L1.2 Auto[Default] Gen1 PCIe Speed Configure PCIe Speed. Gen2 Gen3 ECM-EHL User’s Manual 53...
  • Page 54 L0s State AUTO – BIOS auto ASPM configure DISABLE – Disables ASPM. L0sL1 Auto Disabled[Default] L1 Substates L1.1 PCI Express L1 Substates settings. L1.1 & L1.2 Auto[Default] Gen1 PCIe Speed Configure PCIe Speed. Gen2 Gen3 54 ECM-EHL User’s Manual...
  • Page 55 L0s State AUTO – BIOS auto ASPM configure DISABLE – Disables ASPM. L0sL1 Auto Disabled[Default], L1 Substates L1.1 PCI Express L1 Substates settings. L1.1 & L1.2 Auto[Default] Gen1 PCIe Speed Configure PCIe Speed. Gen2 Gen3 ECM-EHL User’s Manual 55...
  • Page 56 L0s State AUTO – BIOS auto ASPM configure DISABLE – Disables ASPM. L0sL1 Auto Disabled[Default], L1 Substates L1.1 PCI Express L1 Substates settings. L1.1 & L1.2 Auto[Default] Gen1 PCIe Speed Configure PCIe Speed. Gen2 Gen3 56 ECM-EHL User’s Manual...
  • Page 57 Disabled[Default] Disabled = CLKREQ will not be used. Platform-POR= clock is assigned to PCIe Platform-POR[Default], port or LAN according to board layout. Clock3 assignment[M.2-M] Enabled Enabled= keep clock enabledeven if unused. Disabled Disabled = Disable clock. ECM-EHL User’s Manual 57...

  • Page 58: Sata Configuration

    Enable/Disable SATA Port 0 DevSlp. For DevSlp to work, both hard drive and SATA Disabled[Default] port need to support DevSlp function, SATA Port 0 DevSlp Enabled otherwise an unexpected behaviour might happen. Please check board design before enabling it. 58 ECM-EHL User’s Manual...

  • Page 59: Usb Configuration

    This option is to select USB3 Link Speed USB3 Link Speed Selection GEN2[Default], GEN1 or GEN2. Selectively Enable/Disable the corresponding Disabled[Default] USB Port Disable Override USB port from reporting a Device Connection Select-Per-Pin to the controller. ECM-EHL User’s Manual 59...

  • Page 60: Hd Audio Configuration

    3.6.3.2.4 HD Audio Configuration Item Option Description Control Detection of the HD-Audio device. Disable = HDA Disabled HD Audio will be unconditionally disabled Enabled = HDA will be Enabled[Default] unconditionally enabled. 3.6.3.3 Board & Panel Configuration 60 ECM-EHL User’s Manual...
  • Page 61 30 sec 40 sec 50 sec Watch Dog Select WatchDog. 1 min 2 min 10 min 30 min Disabled Enable/Disabled USB Standby Power USB Standby Power Enabled[Default] during S3/S4/S5. Disabled[Default] SHOW DMI INFO SHOW DMI INFO. Enabled ECM-EHL User’s Manual 61...

  • Page 62: Security

    ECM-EHL User’s Manual 3.6.4 Security  Administrator Password Set setup Administrator Password  User Password Set User Password 3.6.4.1 Secure Boot 62 ECM-EHL User’s Manual...

  • Page 63: Key Management

    Custom mode Secure Boot Variables can be configured Custom[Default] without authentication. 3.6.4.1.1 Key Management Item Option Description Install factory default Secure Boot keys after Disabled[Default] Factory Key Provision the platform reset and while the System is in Enabled Setup mode. ECM-EHL User’s Manual 63...

  • Page 64: Boot

    Enables or disables boot with initialization of a Disabled[Default] Fast Boot minimal set of devices required to launch active Enabled boot option. Has no effect for BBS boot options. Boot Option #1/#2 Set the system boot order. 64 ECM-EHL User’s Manual...

  • Page 65: Save And Exit

    User’s Manual 3.6.6 Save and exit 3.6.6.1 Save Changes and Exit Use the save changes and reset option to save the changes made to the BIOS options and to exit the BIOS configuration setup program. ECM-EHL User’s Manual 65...

  • Page 66: Discard Changes And Exit

    This option saves a copy of the current BIOS settings as the User Defaults. This option is useful for preserving custom BIOS setup configurations. 3.6.6.9 Restore User Defaults This option restores all BIOS settings to the user defaults. This option is useful for restoring previously preserved custom BIOS setup configurations. 66 ECM-EHL User’s Manual...

  • Page 67: Drivers Installation

    User’s Manual 4. Drivers Installation Note: Installation procedures and screen shots in this section are for your reference and may not be exactly the same as shown on your screen. ECM-EHL User’s Manual 67...

  • Page 68: Install Chipset Driver

    Windows 10 operation system. If the warning message appears while the installation process, click Continue to go on. Step 3. Click Install. Step1. Click Next. Step 4. Setup completed. Step 2. Click Accept. 68 ECM-EHL User’s Manual...

  • Page 69: Install Me Driver

    If the warning message appears while the installation process, click Continue to go on. Step 3. Click Next to continue installation. Step 4. Click Finish to complete setup. Step1. Click Next to start installation. Step 2. Click Next. ECM-EHL User’s Manual 69...

  • Page 70: Install Vga Driver

    Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. Step 3. Click Start. Step 4. Click Finish to complete setup. Step 1. Click Begin installation. Step 2. Click Next. 70 ECM-EHL User’s Manual...

  • Page 71: Install Display Audio Driver

    Windows 10 operation system. Step 3. Click Next. Step 1. Click Update Drivers. Step 4. Click Next. Step 2. Click Browse my computer for Step 5. Click OK. drivers. ECM-EHL User’s Manual 71...
  • Page 72 ECM-EHL User’s Manual Step 6. Click Next. Step 7. Click Yes. Step 8. Install complete. 72 ECM-EHL User’s Manual...

  • Page 73: Install Ethernet Driver

    Windows 10 operation system. Step 3. Click Next. Step 1. Click Install Drivers and Software to continue installation. Step 4. Click Next. Step 2. Click Next. Step 5. Click Install. ECM-EHL User’s Manual 73...
  • Page 74 ECM-EHL User’s Manual Step 6. Click Finish to complete setup. 74 ECM-EHL User’s Manual...

  • Page 75: Install Hid Driver

    Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. Step 3. Click Next. Step 1. Click Next to continue installation. Step 4. Click Finish to complete setup. Step 2. Click Yes. ECM-EHL User’s Manual 75...

  • Page 76: Install Sio Driver

    Windows 10 operation system. Step 3. Click Search automatically for drivers. Step 1. Click Unknown device to continue installation. Step 4. Click Next. Step 2. Click Update driver. Step 5. Install complete. 76 ECM-EHL User’s Manual...

  • Page 77: Mechanical Drawing

    User’s Manual 5. Mechanical Drawing ECM-EHL User’s Manual 77...
  • Page 78 ECM-EHL User’s Manual Unit: mm 78 ECM-EHL User’s Manual...
