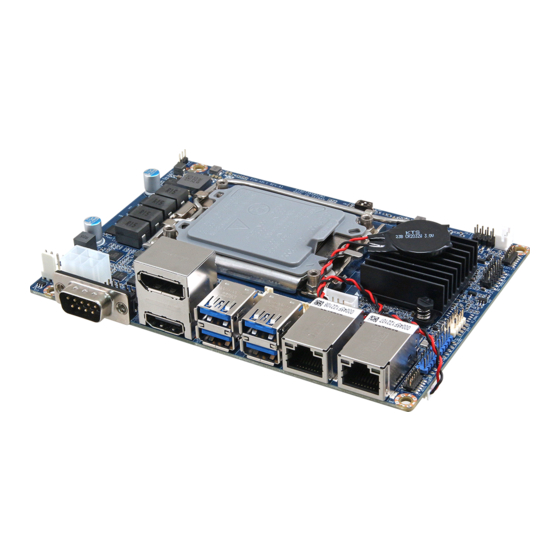

- Page 1 ECM-ADLS 3.5" Alder Lake-S Micro Module User’s Manual Ed –21 June 2023 Part No. E2047395800R...
- Page 2 Disclaimer Avalue Technology Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Avalue Technology assumes no responsibility or liability for the...
- Page 3 Applications that are described in this manual are for illustration purposes only. Avalue Technology Inc. makes no representation or warranty that such application will be suitable for the specified use without further testing or modification.
- Page 4 A product returned without proof of the purchase date is not eligible for warranty service. Write the RMA number visibly on the outside of the package and ship it prepaid to your dealer. 4 ECM-ADLS User’s Manual...
-
Page 5: Table Of Contents
Battery connector (JBAT1) ......................29 3.BIOS Setup ........................30 Introduction ......................31 Starting Setup ......................31 Using Setup ......................32 Getting Help ......................33 In Case of Problems ....................33 BIOS setup ......................34 3.6.1 Main Menu ............................34 ECM-ADLS User’s Manual... - Page 6 Boot .............................. 58 3.6.6 Save and exit ..........................59 3.6.6.1 Save Changes and Reset ...................... 60 3.6.6.2 Discard Changes and Reset ....................60 3.6.6.3 Restore Defaults ........................60 3.6.6.4 Launch EFI Shell from filesystem device ................60 6 ECM-ADLS User’s Manual...
- Page 7 Install Chipset Driver ....................62 Install VGA Driver ....................63 Install ME Driver ...................... 64 Install LAN Driver ....................65 Install Serial IO Driver ..................... 67 Install Audio Driver (For Realtek ALC888S) ............68 5. Mechanical Drawing ....................69 ECM-ADLS User’s Manual...
-
Page 8: Getting Started
1.2 Packing List Before you begin installing your single board, please make sure that the following materials have been shipped: 1 x 3.5” ECM-ADLS Micro Module ⚫ 1 x CPU cooler ⚫... -
Page 9: Document Amendment History
User’s Manual 1.3 Document Amendment History Revision Date Comment June 2023 Avalue Initial Release ECM-ADLS User’s Manual... -
Page 10: Manual Objectives
We strongly recommend that you study this manual carefully before attempting to set up ECM-ADLS or change the standard configurations. Whilst all the necessary information is available in this manual we would recommend that unless you are confident, you contact your supplier for guidance. -
Page 11: System Specifications
1 x 2 pin pitch 2.00mm Buzzer header Front Panel 1 x 2 x 5 pin, pitch 2.00mm connector for front panel 1 x 2 Pin Pitch 1.25mm horizontal type battery connector SMD type (CR2450 RTC Battery Battery) ECM-ADLS User’s Manual 11... - Page 12 LAN Spec. 2 x 2.5 Gigabit Ethernet Mechanical & Environmental Specification DC in +12V Power Note: Only use DC IN 12V for ECM-ADLS, please do not use Switching Power Requirement Supply. Single power ATX Support S0, S3, S4, S5 ACPI ACPI 6.1 Compliant...
- Page 13 5. 30 minutes per each axis 6. IEC 60068-2-64 Test:Fh Packing Drop Reference ISTA 2A, Method : IEC-60068-2-32 Test: Ed Drop Test Drop Test 1 One corner, three edges, six faces 2 ISTA 2A, IEC-60068-2-32 Test:Ed ECM-ADLS User’s Manual 13...
- Page 14 Specifications are subject to change without notice. User condition suggestion: Please only use DC IN 12V for ECM-ADLS, please do not use Switching Power Supply. JLVDS1 connector support 1 x 2CH LVDS or 1x eDP, by BIOS select to eDP and use with eDP panel.
-
Page 15: Architecture Overview-Block Diagram
User’s Manual 1.6 Architecture Overview—Block Diagram The following block diagram shows the architecture and main components of ECM-ADLS ECM-ADLS User’s Manual 15... -
Page 16: Hardware Configuration
ECM-ADLS User’s Manual 2. Hardware Configuration 16 ECM-ADLS User’s Manual... -
Page 17: Product Overview
User’s Manual 2.1 Product Overview ECM-ADLS User’s Manual 17... -
Page 18: Jumper And Connector List
Serial Port 1 connector JCOM2 Serial Port 2 connector 5 x 2 header, pitch 2.00mm JDIO1 General purpose I/O connector 6 x 2 wafer, pitch 1.27mm DIN 40-pin wafer, pitch 1.25mm JLVDS1 LVDS connector Matching Connector: Hirose DF13-40DS-1.25C 18 ECM-ADLS User’s Manual... - Page 19 6 x 2 header, pitch 1.27mm HDMI connector HDMI_DP1 DP connector JAUDIO1 Audio connector 6 x 2 header, pitch 2.00mm JBAT1 Battery connector 2 x 1 wafer, pitch 1.25mm NGFF_M_2 M.2 KEY-M connector NGFF_E_1 M.2 KEY-E connector SO_DIMM1 DDR5 SODIMM socket ECM-ADLS User’s Manual 19...
-
Page 20: Setting Jumpers & Connectors
ECM-ADLS User’s Manual 2.3 Setting Jumpers & Connectors 2.3.1 Multi-function select (SW1) AT mode* ATX mode Clear CMOS Normally* *Default 20 ECM-ADLS User’s Manual... -
Page 21: Lcd Inverter Backlight Connector (Jbkl1)
User’s Manual 2.3.2 LCD inverter backlight connector (JBKL1) Signal VBRIGHT BKLEN +12V 2.3.3 CPU fan connector (JCPU_FAN1) Signal +12V EC_TACH0 PWM_FAN0 ECM-ADLS User’s Manual 21... -
Page 22: Serial Port 2 Connector (Jcom2)
ECM-ADLS User’s Manual 2.3.4 Serial port 2 connector (JCOM2) RS232 mode Signal PIN PIN Signal COM_RI# COM_CTS# COM_RTS# COM_DSR# COM_DTR# COM_TXD COM_RXD COM_DCD# RS422 mode Signal PIN PIN Signal RS485 mode Signal PIN PIN Signal 22 ECM-ADLS User’s Manual... -
Page 23: General Purpose I/O Connector (Jdio1)
User’s Manual 2.3.5 General purpose I/O connector (JDIO1) Signal PIN PIN Signal DIO_GP20 DIO_GP10 DIO_GP21 DIO_GP11 DIO_GP22 DIO_GP12 DIO_GP23 DIO_GP13 SMB_SCL_S0 SMB_SDA_S0 2.3.6 Power connector (PWR1) Signal Signal +VIN +VIN +VIN ECM-ADLS User’s Manual 23... -
Page 24: Lvds Connector (Jlvds1)
+3.3V +3.3V LVDS_A_DATA_P_1/ LVDS_A_DATA_P_0/ eDP_TX1P eDP_HPD LVDS_A_DATA_N_1/ LVDS_A_DATA_N_0 eDP_TX1N LVDS_A_DATA_P_2/ LVDS_A_DATA_P_3 eDP_TX0P LVDS_A_DATA_N_2/ LVDS_A_DATA_N_3 eDP_TX0N LVDS_B_DATA_P_1 LVDS_B_DATA_P_0 LVDS_B_DATA_N_1 LVDS_B_DATA_N_0 LVDS_B_DATA_P_3 LVDS_B_DATA_P_2 LVDS_B_DATA_N_3 LVDS_B_DATA_N_2 LVDS_A_CLK_P/ LVDS_B_CLK_P eDP_AUXP Note: LVDS_A_CLK_N/ Change modes by BIOS LVDS_B_CLK_N eDP_AUXN +12V +12V 24 ECM-ADLS User’s Manual... -
Page 25: Usb2.0 Connector (Jusb1)
User’s Manual 2.3.8 USB2.0 connector (JUSB1) Signal PIN PIN Signal +5VSB +5VSB USB_R_DN4 USB_R_DN5 USB_R_DP4 USB_R_DP5 2.3.9 USB2.0 connector (JUSB2) Signal PIN PIN Signal +5VSB +5VSB USB_R_DN7 USB_R_DN8 USB_R_DP7 USB_R_DP8 ECM-ADLS User’s Manual 25... -
Page 26: Front Panel Connector (Jfp1)
ECM-ADLS User’s Manual 2.3.10 Front Panel connector (JFP1) Signal PIN PIN Signal FP_HDD_LED+ FP_PWR_LED+ HDD_LED# PWR_LED# RSTBTN# PWRBTN_IN# 2.3.11 PC Buzzer connector (JBZ1) Signal SOC_SPKR_R 26 ECM-ADLS User’s Manual... -
Page 27: Spi Connector (Jspi1)
User’s Manual 2.3.12 SPI connector (JSPI1) Signal PIN PIN Signal +V3.3A_SPI SPI_CS0#_ROM SPI_CLK_ROM SPI_MISO_ROM SPI_MOSI_ROM SPI_HOLD#_ROM SPI_WP#_ROM 2.3.13 ESPI connector (JESPI1) Signal PIN PIN Signal ESPI_IO0 +3.3VSB ESPI_IO1 PLT_RST# ESPI_IO2 ESPI_CS0# ESPI_IO3 ESPI_CLK ESPI_RST ECM-ADLS User’s Manual 27... -
Page 28: Ec Debug Connector (Jec1)
HD_AGND HD_AGND LINE1-R-IN LINE1-L-IN MIC1-R-IN MIC1-L-IN FRONT-JD LINE1-JD MIC1-JD HD_AGND 2.3.15.1 Signal Description – Audio connector (JAUDIO1) Signal Signal Description LINE1-JD AUDIO IN (LINE_RIN/LIN)sense pin FRONT-JD AUDIO Out(ROUT/LOUT) sense pin MIC1-JD MIC IN (MIC_RIN/LIN) sense pin 28 ECM-ADLS User’s Manual... -
Page 29: Battery Connector (Jbat1)
User’s Manual 2.3.16 Battery connector (JBAT1) Signal +RTCBAT ECM-ADLS User’s Manual 29... -
Page 30: Bios Setup
ECM-ADLS User’s Manual 3.BIOS Setup 30 ECM-ADLS User’s Manual... -
Page 31: Introduction
If the message disappears before you respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the "RESET" button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. ECM-ADLS User’s Manual 31... -
Page 32: Using Setup
Note: Some of the navigation keys differ from one screen to another. • To Display a Sub Menu Use the arrow keys to move the cursor to the sub menu you want. Then press <Enter>. A “➢” pointer marks all sub menus. 32 ECM-ADLS User’s Manual... -
Page 33: Getting Help
BIOS Vendor and your systems manufacturer to provide the absolute maximum performance and reliability. Even a seemingly small change to the chipset setup has the potential for causing you to use the override. ECM-ADLS User’s Manual 33... -
Page 34: Bios Setup
<Enter> to accept and enter the sub-menu. 3.6.1 Main Menu This section allows you to record some basic hardware configurations in your computer and set the system clock. 34 ECM-ADLS User’s Manual... -
Page 35: System Language
Visit the Avalue website (www.avalue.com.tw) to download the latest product and BIOS information. 3.6.2 Advanced Menu This section allows you to configure your CPU and other system devices for basic operation through the following sub-menus. ECM-ADLS User’s Manual 35... -
Page 36: Cpu Configuration
When enabled, a VMM can utilize the additional Intel (VMX) Virtualization Disabled hardware capabilities provided by Vanderpool Technology Enabled[Default] Technology. All[Default] Number of cores to enable in each processor Active Processor Cores package. Disabled Hyper-Threading Enable or Disable Hyper-Threading Technology. Enabled[Default] 36 ECM-ADLS User’s Manual... -
Page 37: Performance-Core Information
Technology Disabled allow for hardware controlled P-states. Enable/Disable processor Turbo Mode (requires Intel Enabled[Default], Turbo Mode Speed Step or Intel Speed Shift to be available and Disabled enabled). Enabled[Default], C States Enable/Disable CPU Power Management. Disabled ECM-ADLS User’s Manual 37... -
Page 38: Pch-Fw Configuration
AMT BIOS Features Enabled[Default] Setup. Note: This option does not disable Manageability Features in FW. 3.6.2.2.1 AMT Configuration Item Option Description Disabled[Default], Unconfigure ME with resetting MEBx password Unconfigure ME Enabled to default on next boot. 38 ECM-ADLS User’s Manual... -
Page 39: Firmware Update Configuration
User’s Manual 3.6.2.2.2 Firmware Update Configuration Item Option Description Disabled[Default], ME FW Image Re-Flash Enable/Disable Me FW Image Re-Flash function. Enabled 3.6.2.2.3 PTT Configuration ECM-ADLS User’s Manual 39... -
Page 40: Trusted Computing
O.S. will not show Security Device. TCG EFI protocol Enable[Default] and INT1A interface will not be available. 3.6.2.4 APCI Settings Item Options Description Enable ACPI Auto Disabled[Default] Enables or Disables BIOS ACPI Auto Configuration Enabled, Configuration. 40 ECM-ADLS User’s Manual... -
Page 41: Super Io Configuration
You can use this item to set up or change the Super IO configuration for serial ports. Please refer to 3.6.2.5.1 ~ 3.6.2.5.2 for more information. Item Description Serial Port 1 Configuration Set Parameters of Serial Port 1 (COMA). Serial Port 2 Configuration Set Parameters of Serial Port 2 (COMB). ECM-ADLS User’s Manual 41... -
Page 42: Serial Port 1 Configuration
Change the Serial Port as RS232/422/485. UART 485 Auto[Default] Non INT+EXT R Adjust the Serial Port with internal or external INT_EXT R mode INT R termination resistors. EXT R INT+EXT R 3.6.2.5.2 Serial Port 2 Configuration 42 ECM-ADLS User’s Manual... -
Page 43: Hw Monitor
Non INT+EXT R Adjust the Serial Port with internal or external INT_EXT R mode INT R termination resistors. EXT R INT+EXT R 3.6.2.6 HW Monitor Item Options Description Enabled, Smart Fan Function Enables or Disables Smart Fan. Disabled[Default] ECM-ADLS User’s Manual 43... -
Page 44: S5 Rtc Wake Settings
Disabled[Default], Fixed Time, system will wake on the hr::min::sec specified. Wake system from S5 Fixed Time Select Dynamic Time, System will wake on the current time Dynamic Time + Increase minute(s). 3.6.2.8 Serial Port Console Redirection 44 ECM-ADLS User’s Manual... -
Page 45: Usb Configuration
Mass storage device emulation type. ‘AUTO’ Auto[Default] Floppy enumerates devices according to their media Mass Storage Devices Forced FDD format. Optical drives are emulated as ‘CDROM’, drives with no media will be Hard Disk CD-ROM emulated according to a drive type. ECM-ADLS User’s Manual 45... -
Page 46: Network Stack Configuration
ECM-ADLS User’s Manual 3.6.2.10 Network Stack Configuration Item Options Description Enabled Network Stack Enable/Disable UEFI Network Stack. Disabled[Default] 3.6.2.11 NVMe Configuration 46 ECM-ADLS User’s Manual... -
Page 47: Chipset
User’s Manual 3.6.3 Chipset 3.6.3.1 System Agent (SA) Configuration Item Option Description Enabled[Default] VT-d VT-d capability. Disabled ECM-ADLS User’s Manual 47... -
Page 48: Memory Configuration
ECM-ADLS User’s Manual 3.6.3.1.1 Memory Configuration 3.6.3.1.2 Graphics Configuration Item Option Description Auto[Default] Select which of IGFX Graphics device should be Primary Display IGFX Primary Display. GTT Size Select the GTT Size. 8MB[Default] 48 ECM-ADLS User’s Manual... -
Page 49: Dmi/Opi Configuration
User’s Manual 3.6.3.1.3 DMI/OPI Configuration 3.6.3.2 PCH-IO Configuration ECM-ADLS User’s Manual 49... -
Page 50: Pci Express Configuration
M.2 KeyE (PCI-E Port 1~2) Control the PCI Express Root Port. Disabled Set the ASPM Level: Force L0s – Force all Disabled[Default], links to L0s State AUTO – BIOS auto ASPM configure DISABLE – Disables ASPM. Auto 50 ECM-ADLS User’s Manual... - Page 51 L0s State AUTO – BIOS auto ASPM configure DISABLE – Disables ASPM. Auto Disabled, L1 Substates L1.1 PCI Express L1 Substates settings. L1.1 & L1.2[Default] Disabled Enable/Disable Precision Time Enabled[Default], Measurement. Auto[Default] PCIe Speed Gen1 Configure PCIe Speed. Gen2 ECM-ADLS User’s Manual 51...
- Page 52 PCIe Speed Configure PCIe Speed. Gen2 Gen3 The number of milliseconds reference code will wait for link to exit Detect state for Detect Timeout enabled ports before assuming there is no device and potentially disabling the port. 52 ECM-ADLS User’s Manual...
- Page 53 PCIe Speed Configure PCIe Speed. Gen2 Gen3 The number of milliseconds reference code will wait for link to exit Detect state for Detect Timeout enabled ports before assuming there is no device and potentially disabling the port. ECM-ADLS User’s Manual 53...
-
Page 54: Sata Configuration
Test Mode Enable/Disable (Loop Back). Disabled[Default] Disabled SATA Port Enable or Disable SATA Port. Enabled[Default] Hard Disk Drive[Default] Identify the SATA port is connected to Solid SATA Device Type Solid State Drive State Drive or Hard Disk Drive. 54 ECM-ADLS User’s Manual... -
Page 55: Hd Audio Configuration
User’s Manual 3.6.3.2.3 HD Audio Configuration Item Option Description Control Detection of the HD-Audio device. Disable = HDA Disabled HD Audio will be unconditionally disabled Enabled = HDA will be Enabled[Default] unconditionally enabled. 3.6.3.3 Board Configuration ECM-ADLS User’s Manual 55... - Page 56 40 sec 50 sec Watch Dog Select WatchDog. 1 min 2 min 10 min 30 min Disabled Wake Up by Ring Wake Up by Ring from S3/S4/S5. Enabled[Default] USB Standby Power Disabled Enable/Disabled USB Standby Power 56 ECM-ADLS User’s Manual...
-
Page 57: Security
User’s Manual Enabled[Default] during S3/S4/S5. Disabled[Default] SHOW DMI INFO SHOW DMI INFO. Enabled 3.6.4 Security ⚫ Administrator Password Set setup Administrator Password ⚫ User Password Set User Password ECM-ADLS User’s Manual 57... -
Page 58: Secure Boot
ECM-ADLS User’s Manual 3.6.4.1 Secure Boot 3.6.5 Boot Item Option Description Number of seconds to wait for setup activation Setup Prompt Timeout 1~ 65535 key. 65535(0xFFFF) means indefinite waiting. Bootup NumLock State On[Default] Select the keyboard NumLock state 58 ECM-ADLS User’s Manual... -
Page 59: Save And Exit
User’s Manual Disabled[Default] Quiet Boot Enables or disables Quiet Boot option Enabled Boot Option #1/2 Set the system boot order. 3.6.6 Save and exit ECM-ADLS User’s Manual 59... -
Page 60: Save Changes And Reset
This option restores all BIOS settings to the factory default. This option is useful if the controller exhibits unpredictable behavior due to an incorrect or inappropriate BIOS setting. 3.6.6.4 Launch EFI Shell from filesystem device Attempts to Launch EFI Shell application (Shellx64.efi) from one of the available filesystem devices. 60 ECM-ADLS User’s Manual... -
Page 61: Drivers Installation
User’s Manual 4. Drivers Installation Note: Installation procedures and screen shots in this section are for your reference and may not be exactly the same as shown on your screen. ECM-ADLS User’s Manual 61... -
Page 62: Install Chipset Driver
Windows 11 operation system. If the warning message appears while the installation process, click Continue to go on. Step 3. Click Install. Step1. Click Next. Step 4. Click Finish to complete setup. Step 2. Click Accept. 62 ECM-ADLS User’s Manual... -
Page 63: Install Vga Driver
If the warning message appears while the installation process, click Continue to go on. Step 3. Click Start. Step 1. Click Begin installation. Step 4. Complete setup. Step 2. Click I agree to accept license agreement. ECM-ADLS User’s Manual 63... -
Page 64: Install Me Driver
If the warning message appears while the installation process, click Continue to go on. Step 3. Click Next. Step 4. Click Finish to complete setup. Step 1. Click Next to continue setup. Step 2. Click Next. 64 ECM-ADLS User’s Manual... -
Page 65: Install Lan Driver
If the warning message appears while the installation process, click Continue to go on. Step 3. Click Next. Step 1. Click Install Drivers and Software. Step 4. Click Next. Step 2. Click Next. Step 5. Click Install. ECM-ADLS User’s Manual 65... - Page 66 ECM-ADLS User’s Manual Step 6. Click Finish to complete setup. 66 ECM-ADLS User’s Manual...
-
Page 67: Install Serial Io Driver
If the warning message appears while the installation process, click Continue to go on. Step 3. Click Next. Step 1. Click Next. Step 4. Click Next. Step 2. Click Next. Step 5. Click Finish to complete setup. ECM-ADLS User’s Manual 67... -
Page 68: Install Audio Driver (For Realtek Alc888S)
All drivers can be found on the Avalue Official Website: http://www.avalue.com.tw. Note: The installation procedures and screen shots in this section are based on Windows 11 operation system. Step 1. Click Next to continue setup. Step 2. Click Finish to complete the setup. 68 ECM-ADLS User’s Manual... -
Page 69: Mechanical Drawing
User’s Manual 5. Mechanical Drawing ECM-ADLS User’s Manual 69... - Page 70 ECM-ADLS User’s Manual Unit: mm 70 ECM-ADLS User’s Manual...
- Page 71 User’s Manual Thermal Solutions: ECM-ADLS standard package include cooler, please follow below for assembly. ECM-ADLS User’s Manual 71...
