Clarke CSV4A Operation & Maintenance Instructions Manual

Clarke CSV4A Operation & Maintenance Instructions Manual

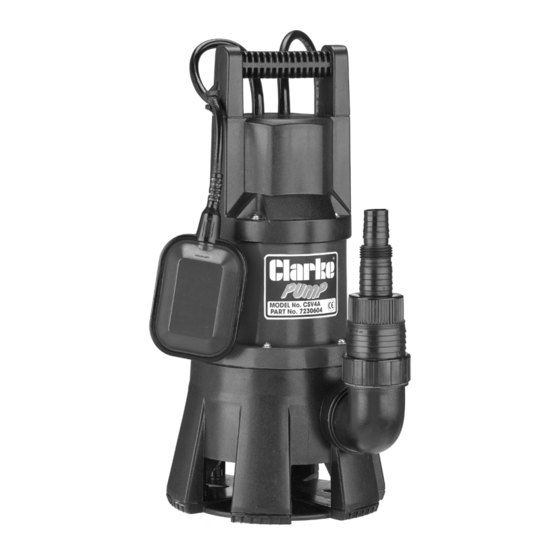

1300w submersible pump

Advertisement

Quick Links

1300W SUBMERSIBLE PUMP
MODEL NO: CSV4A
PART NO: 7230604
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS
GC 1221 ISS4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CSV4A and is the answer not in the manual?

Questions and answers

Summary of Contents for Clarke CSV4A

  • Page 1 1300W SUBMERSIBLE PUMP MODEL NO: CSV4A PART NO: 7230604 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC 1221 ISS4...
  • Page 2: Environmental Recycling Policy

    INTRODUCTION Thank you for purchasing this CLARKE 1300W Submersible pump. This pump is designed for pumping clean water and water containing solid bodies (max 40mm in diameter). It is NOT designed for pumping slurry, sludge, mud or heavily polluted water, or any water containing chemicals or other acidic contaminants including salt water.
  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS GENERAL PUMP SPECIFIC 1. Read all instructions before use 1. DO NOT pump explosive / and save these instructions for flammable liquids or chemicals. future use. 2. NEVER allow the pump to run dry 2. An approved residual current or operate out of the water.
  • Page 4: Electrical Connections

    ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved 13 amp BS 1363 plug, or a suitably fused isolator switch. If the plug has to be changed because it is not suitable for your socket, or because of damage, it must be removed and a replacement fitted, following the wiring instructions shown below.
  • Page 5: Fitting The Elbow

    2. Connect a suitable hose (not supplied) to the pump outlet. • Suitable hoses are available from your local Clarke dealer. FITTING THE HOSE ADAPTER • 2 step adapter 2" hose, 1½" BSP • 3 step adapter 1¼" hose, 1" BSP, 1"...
  • Page 6: Setting Up The Pump

    SETTING UP THE PUMP POSITIONING THE PUMP 1. Place the pump on a flat surface in the area that you want to drain. • If there is sediment in the operating area, the pump should be placed vertically on house bricks, or similar. •...
  • Page 7: Maintenance

    IS UNPLUGGED FROM THE MAINS SUPPLY. IF THE UNIT IS HARD WIRED, ENSURE THE CIRCUIT BREAKER IS OPEN. This pump should require no maintenance other than regular cleaning. If the pump starts to show signs of wear or damage, contact your CLARKE dealer for advice. CLEANING 1.
  • Page 8: Troubleshooting

    6. Float switch may be jammed against side wall, or prevented from moving. 7. If the pump still fails to start, consult your CLARKE dealer for advice. PUMP WILL 1. Check that the inlet is not blocked.
  • Page 9: Parts List And Diagram

    PARTS LIST & DIAGRAM Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
  • Page 10: Parts List

    PARTS LIST Power Cable Stator Float Switch Bushing Handle Gasket Customized Self Tapping Screw Skeleton Seal Gasket Aluminium Bushing Rear Pump Housing O-ring Self Tapping Screw Front Cover Cable Sheath O-ring Cable Gland Locating Ring 16uf Capacitor Adjustable Washer Ground Cover Impeller Nylon Secure Pressing Cap Washer...
  • Page 11: Declarations Of Conformity

    DECLARATIONS OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
