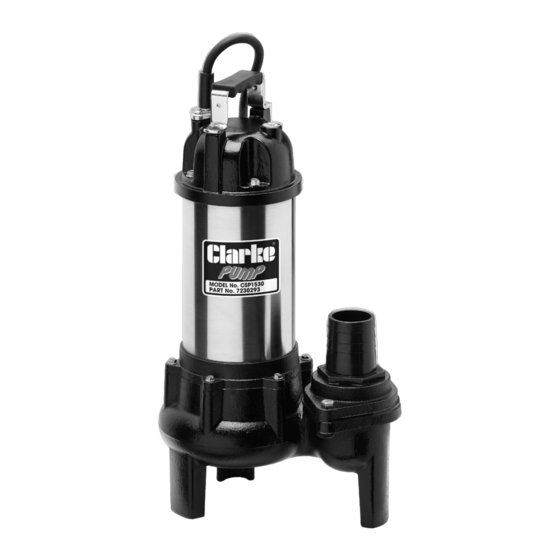

1530w sewage pump

Advertisement

Quick Links

1530W SEWAGE PUMP
MODEL NO: CSP1530
PART NO: 7230293
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS
GC08/22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CSP1530 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Clarke CSP1530

  • Page 1 1530W SEWAGE PUMP MODEL NO: CSP1530 PART NO: 7230293 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC08/22...
  • Page 2: Specifications

    INTRODUCTION Thank you for purchasing this CLARKE submersible pump. The CLARKE range of submersible pumps are suitable for discharging pools, ponds, fountains, pits and any waste water drainage. They can handle foul water containing suspended material as stated in the specification. The pumps are not suitable for handling inflammable, corrosive, explosive or dangerous liquids.
  • Page 3: Overview And Features

    OVERVIEW & FEATURES 1. Water inlet screen 2. Power cable with plug 3. Water outlet 4. Lifting handle PUMP PERFORMANCE CHART Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
  • Page 4: Safety Precautions

    3. NEVER use this pump if any part is damaged. Have it inspected and repaired by your local CLARKE dealer. 4. ALWAYS use an approved cable extension suitable for the power rating of the pump (see specifications). The conductor size should also be at least...
  • Page 5: Servicing & Repairs

    4. If the power cable becomes damaged, it must be replaced rather than repaired. 5. Your CLARKE water pump has been designed to give long and trouble free service. If, however, having followed the instructions in this booklet carefully, you encounter problems, take the unit to your local CLARKE dealer.
  • Page 6: Environmental Recycling Policy

    ENVIRONMENTAL RECYCLING POLICY Through purchase of this product, the customer is taking on the obligation to deal with the WEEE in accordance with the WEEE regulations in relation to the treatment, recycling & recovery and environmentally sound disposal of the WEEE. In effect, this means that this product must not be disposed of with general household waste.
  • Page 7: Electrical Connections

    ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved 13 amp BS 1363 plug, or a suitably fused isolator switch. If the plug has to be changed because it is not suitable for your socket, or because of damage, it must be removed and a replacement fitted, following the wiring instructions shown below.
  • Page 8: Positioning And Connection

    • The adaptor fitting allows for connection of 51 mm (2”) hoses which should be secured with a hose clamp. • Suitable hoses are available from your local CLARKE dealer. POSITIONING THE PUMP 1. It may be safer to raise and lower the pump into deep water using a rope attached to the lifting handle.
  • Page 9: Using The Pump

    PUMP IF IT IS DAMAGED IN ANY WAY. 1. Plug in the pump and switch on the power supply. • Suitable hoses are available from your local CLARKE dealer. 2. Run the pump continuously or remove from the water and store in a frost free location if the water is likely to freeze.
  • Page 10: Cleaning, Maintenance And Storage

    5. If the pump shows signs of wear or damage, contact your CLARKE dealer for advice. DO NOT attempt to repair the pump yourself, as you may damage the waterproof seals and invalidate your guarantee.
  • Page 11: Troubleshooting

    5. The impeller may be jammed. Disconnect from the mains supply and remove any objects that may be obstructing the impeller. 6. If the pump still fails to start, consult your CLARKE dealer. PUMP WILL 1. Check that the inlet is not blocked.
  • Page 12: Component Parts

    COMPONENT PARTS Top cover Shaft sleeve Bearing cover Motor casing Oil seal Rotor O-ring Stator O-ring Bearing bracket O-ring Seal cover O-ring Impeller Gasket Pump casing Handle Capacitor Cable Bearing Outlet connector Bearing Gasket Mechanical seal Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
  • Page 13 ACCESSORIES Hoses Hose Clips • Available in 100 metre coils or per • Various sizes available meter. • Zinc plated for corrosion • Available in ¾” - 3” Diameter. resistance. GUARANTEE This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase.
  • Page 14 DECLARATION OF CONFORMITY-UK Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
  • Page 15: Declaration Of Conformity-Eu

    DECLARATION OF CONFORMITY-EU Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
