Remote Control, cont'd

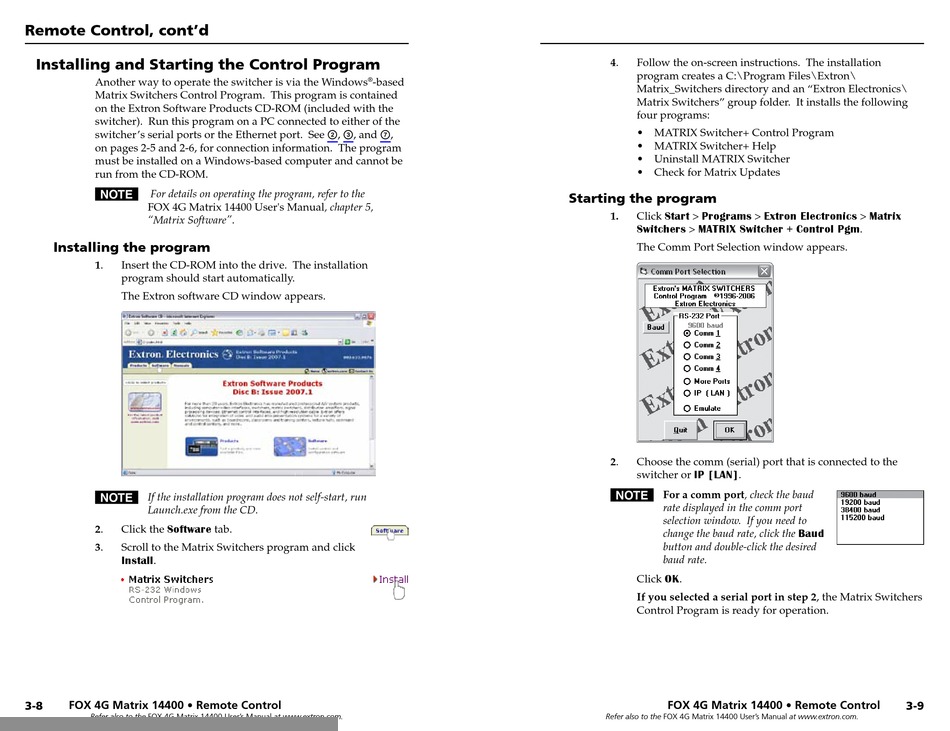

Installing and Starting the Control Program

Another way to operate the switcher is via the Windows
Matrix Switchers Control Program. This program is contained
on the Extron Software Products CD-ROM (included with the
switcher). Run this program on a PC connected to either of the
switcher's serial ports or the Ethernet port. See
on pages 2-5 and 2-6, for connection information. The program
must be installed on a Windows-based computer and cannot be
run from the CD-ROM.
N For details on operating the program, refer to the
FOX 4G Matrix 14400 User's Manual, chapter 5,
"Matrix Software".

Installing the program

1. Insert the CD-ROM into the drive. The installation
program should start automatically.
The Extron software CD window appears.
N If the installation program does not self-start, run
Launch.exe from the CD.
Click the Software tab.
2.
3. Scroll to the Matrix Switchers program and click
Install.
3-8 FOX 4G Matrix 14400 • Remote Control
Refer also to the FOX 4G Matrix 14400 User's Manual at www.extron.com.
-based
®
b , c , and g ,
4. Follow the on-screen instructions. The installation
program creates a C:\Program Files\Extron\
Matrix_Switchers directory and an "Extron Electronics\
Matrix Switchers" group folder. It installs the following
four programs:
• MATRIX Switcher+ Control Program
• MATRIX Switcher+ Help
• Uninstall MATRIX Switcher
• Check for Matrix Updates

Starting the program

1. Click Start > Programs > Extron Electronics > Matrix
Switchers > MATRIX Switcher + Control Pgm.
The Comm Port Selection window appears.
2. Choose the comm (serial) port that is connected to the
switcher or IP [LAN].
N For a comm port, check the baud
rate displayed in the comm port
selection window. If you need to
change the baud rate, click the Baud
button and double-click the desired
baud rate.
Click OK.
If you selected a serial port in step 2, the Matrix Switchers
Control Program is ready for operation.
FOX 4G Matrix 14400 • Remote Control
Refer also to the FOX 4G Matrix 14400 User's Manual at www.extron.com.
3-9
