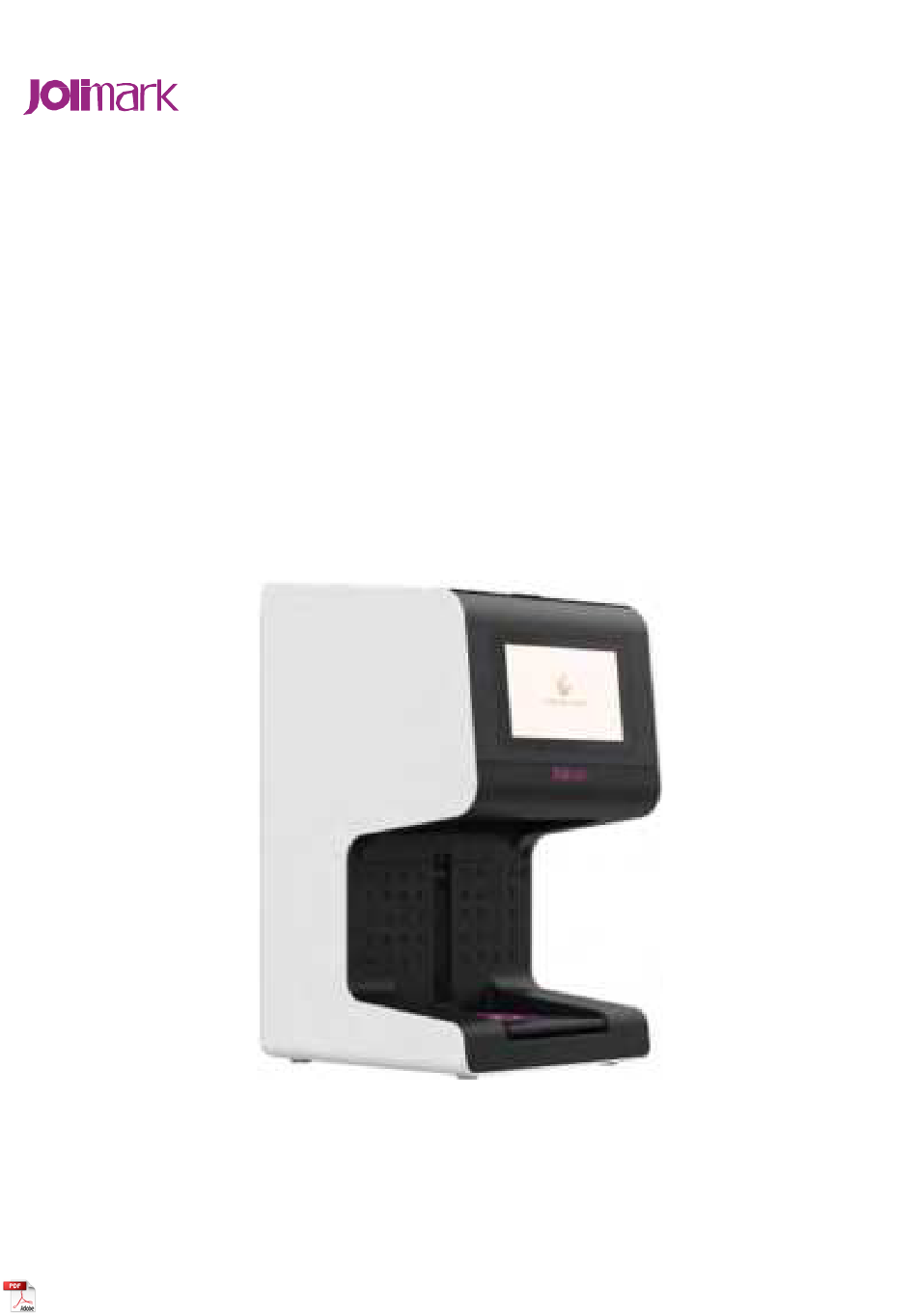

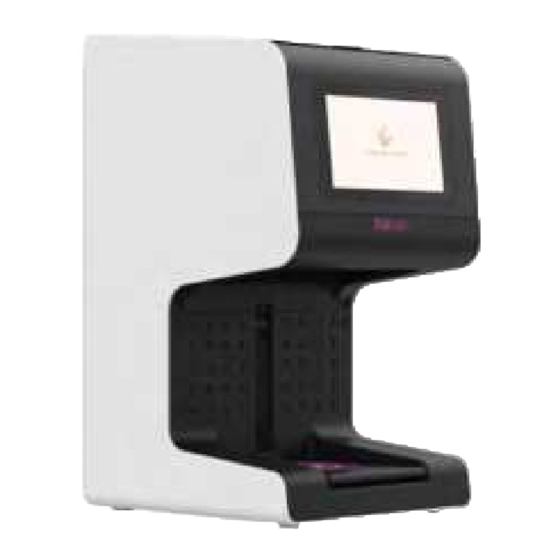

- Page 1 Stock code ： 2028.HK JOLIMARK LATTE ART PRINTER - CP111D INSTRUCTION MANUAL...
-
Page 2: Table Of Contents
3.7 Start a print job 3.8 Cancel print job 3.9 Clean drip tray Product specifications 4.1 Specifications Upgrade 5.1 Jolimark Latte Art Printer firmware upgrade Troubleshooting 6.1 Q/A Troubleshooting Customer support 7.1 Customer Support Information Product safety instructions 8.1 Safety Instructions 9.1 QC Certificate... -
Page 3: Warnings
FOREWORD This manual mainly guides the basic operating procedures and precautions the users when using the product to avoid problems such as product circuit abnormality, electric shock, wire fire, operator injury and damage caused by improper use of the product. Symbol Description Warning: When this indicator appears in the manual , it indicates that the behavior or status may... -
Page 4: Unboxing
Installation Guide Thank you for purchasing Latte Art Printer(Product), please follow the instructions below to install and use this product. 2.1 Unboxing Precaution 1. Open the carton bo x Avoid injury us e lifting tools an d 2. Remove the buffer materials appropriate lift the product 3. -
Page 5: Product Movement
2.4 Product Movement If you want to move the product, please put the product back to the carton box and use the packaging materials to seal the product tightly to avoid damage to the product when moving. Please refer to the following steps for product movement: 1. -
Page 6: Product Introduction
Product settings 3.1 Product Introduction Front cover LED indicator Start button Lift tray and coaster Power switch DC power socket USB port Drip tray Cartridge stabilizer Figure 3.1 Product parts name 3.2 Power On To use this product , first insert the round plug of the power adapter into the DC power socket of the product, insert the other end of the power cord into the AC socket (110V~240V) , and press the power switch to start the product. -
Page 7: Connect To Wifi
3.3 Connecting WIFI (with network ) 3.3.1 After the user turns on the device, if the device is not connected to the Internet, the system will actively remind you to enter the networking page for networking, as shown in Figure 3-3-1, click "Go to Internet"... - Page 8 Figure 3-3-3 Cloud networking mode switch to offline mode 3.4 Installing ink c artridge 3.4.1 Unpack ink cartridg e 1. Remove ink cartridge from the packaging box, open plastic protective bag 2. Lift the protection buckle outward 3. Rip the blue tape at the bottom side of the ink cartridge ①...
- Page 9 3.4.2 Move ink cartridge stabilizer outward (Prepare for ink cartridge installation) Please use APP to move ink cartridge stabilizer 1. Use APP -> Click ‘Information’ -> ‘Check the printer’ -> ‘Printer maintenance’ -> ‘Replace the inkjet cartridge’ 2. On this page, click on the “Move ink cartridge” and the stabilizer will move toward front cover. Please wait stabilizer is fully stopped before open front cover.
- Page 10 3.4.4 Resume Ink cartridge stabilizer 1. Continue with 3.4.2, at ‘Move the ink Cartridge’ page 2. Click ‘Recover the ink cartridge’ and the ink cartridge stabilizer will return to standby position. Figure 3.4.4 Resume the ink cartridge stabilizer 3.4.5 Ink cartridge print test When installing a new ink cartridge at the first time or if the print result is unclear, please use the following steps to execute print test function on the APP.
-
Page 11: Ink Cartridge Maintenance
3.5 Ink cartridge maintenance 1. If the ink cartridge is planning not use for a long time, it is recommended to remove the ink cartridge from the printer and place it in a clean sealed bag or box to avoid contamination. 2. -
Page 12: Start A Print Job
(In the picture below: the white inside the Mug is milk foam, and the brown color represents coffee liquid) ① ② ③ Milk foam is too high milk foam is just right milk foam is too low Coffee milk foa Figure 3.6.2 Height of milk foam , cream or foam 3.7 Start a print job 1. -
Page 13: Cancel Print Job
Figure 3-7-3 Corresponding order to print Figure 3-7-4 Start to print 3.8 Cancel print Job To cancel the print job after receiving the print job, please refer to the following two methods. Method 1: As shown in Figure 3-7-4, click the "Cancel Printing" button on the print page, after confirming, you can cancel the printing of the entire order. -
Page 14: Clean Drip Tray
3.9 Cleaning drip tray Please clean the drip tray every day. This procedure will use APP to operate. Important: If you do not clean the drip tray, it will breed bacteria and damage the product. Purpose: Drip tray is used to load the service drops prior print. 1. - Page 15 Power supply Power adapter Input voltage: 100 ~ 240 Vac ,50~ 60 Hz Power Electrical requirement specifications Output voltage: 24 Vdc, 2500 mA Adapter consumption Acoustic emiss- Sound pressure ≤67dBA ion specifications Width 258mm Depth 306mm Physical dimensions Height 463mm Weight 12kg Caramel ink...
-
Page 16: Jolimark Latte Art Printer Firmware Upgrade
Jolimark Latte Art Printer firmware upgrade Online upgrade: If the firmware has a new version upgrade, after opening the APP, the system will give an upgrade reminder, and the user can enter the upgrade page for online upgrade. The detailed steps are as follows: 1. - Page 17 - If the lift tray still n o t c o m e d o w n , please turn off the power immediately and unplug the power cord and then contact customer service staff. CUSTOMER SUPPORT Webstie www.lap.kamopos.com Email Kamopos@jolimark.com Table 8-1 Customer Support Information · 15 ·...
-
Page 18: Safety Instructions
Product Safety Instructions 1. Please read all manual. 2. This product can only be used with original ink cartridge and accessories. Do not use any unauthorized accessories or supplies. 3. Children should not use this product. 4. Please use 110V~240V as the power input voltage. 5. - Page 19 FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 20 EU Declaration of Conformity Languages Statement This equipment is in compliance with the essential requirements English and other relevant provisions of Directive 2014/53/EU, 2014/35/EU. Cet équipement est conforme aux exigences essentielles et Français autres dispositions de la directive 2014/53/EU, 2014/35/EU. Toto zařízení...
- Page 21 This equipment complies with EU radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.: EU Countries Intended for Use This device is intended for home and office use in Austria, Belgium, Bulgaria, Cyprus, Czech, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Turkey, and United Kingdom.
- Page 22 Certificate Official public number Shenzhen Jolimark-Kamo Mobile Payment Co., LTD. Email : kamopos@jolimark.com Address : B706 , 708 , 7th Floor , Jiuzhou Electric Building, Nanshan Technology South 12th Road, Shenzhen · ·...
