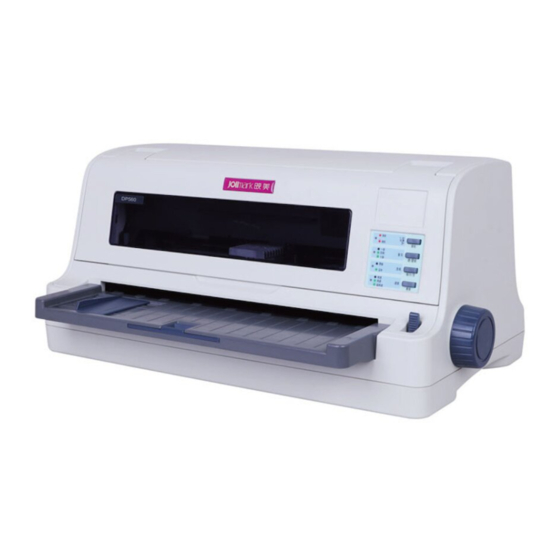

Jolimark DP560 User Manual
  1. Manuals
  2. Brands
  3. Jolimark Manuals
  4. Printer
  5. DP560
  6. User manual

Jolimark DP560 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User's Manual
DP560
Printer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DP560 and is the answer not in the manual?

Questions and answers

Related Manuals for Jolimark DP560

Summary of Contents for Jolimark DP560

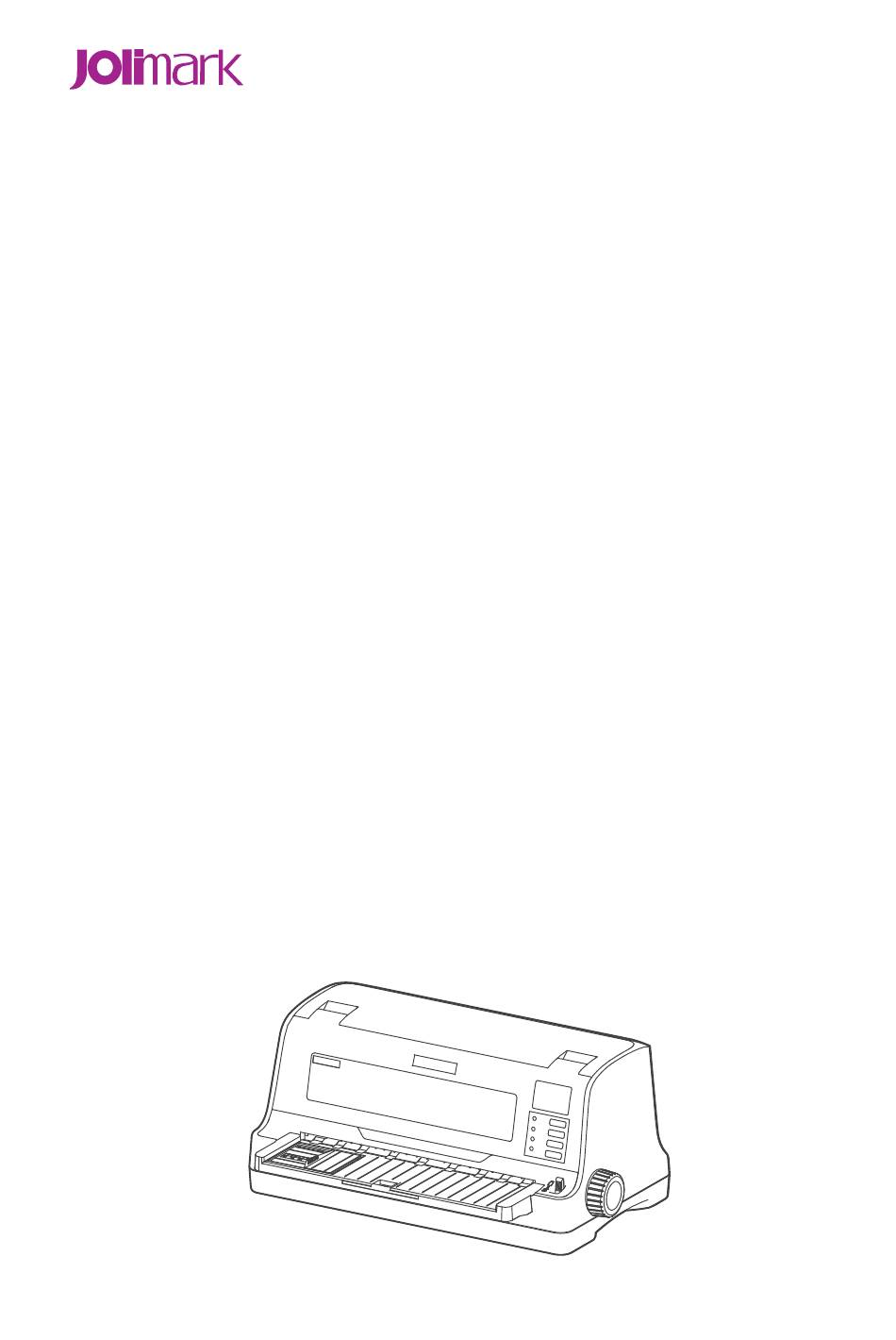

  • Page 1 User's Manual DP560 Printer...
  • Page 2 Corporation names and product names are the registered trademarks or commodity names of the corporation. * Jolimark is a registered trademark of Kong Yue Electronics & Information Industry (XIN HUI) LTD. * EPSON and ESC/PK2 are the registered trademarks of Seiko Epson Corporation.
  • Page 3 DP560 User's Manual Warnings, Cautions, and Notes Pay attention to the following promises when using this manual: Warning: Warnings must be followed carefully to avoid bodily injury. Caution: Cautions must be observed to avoid damage to your equipment. Note: Notes contain important information and useful tips on the operation of your printer.
  • Page 4 DP560 User's Manual Important Safety Instructions Read all of these instructions carefully and thoroughly and save them for later reference. The unauthorized operation would lead to malfunction or accident. Manufacturers have no responsibilities for the problems which are led by unauthorized operations.
  • Page 5 DP560 User's Manual F. If the product exhibits a distinct change in performance, it indicates a need for service. Note: The contents of this manual are subject to change without notice. *All the parts of the printer can be recycled. When it is abandoned, we can call it back freely.

  • Page 6: Table Of Contents

    2.12 Ethernet Settings..........................15 2.12.1 Connecting the Printer ......................15 2.12.2 Setting IP Address ........................15 2.13 Wi-Fi Setting of Jolimark Printer...................... 18 2.13.1 Connecting the Printer ......................18 2.13.2 Wi-Fi Parameters Description....................21 2.13.3 Wi-Fi Interface Status Display and Parameters Reset ..............31 2.14 Mobile Equipment Wi-Fi Printing Function Application ..............32...
  • Page 7 DP560 User's Manual 4.3 LED Menu Setup..........................54 4.4 Asjust the TOF Position and Black Mark Position................54 4.5 Adjust the Tear Position........................55 4.6 Change the Current Setting of Printer ....................55 4.6.1 LED Menu Setup ........................55 4.6.2 Command System Menu Setup....................55 4.6.3 Online-aptitude Parameter Settings....................

  • Page 8: Chapter 1 Product Features

    DP560 User's Manual Chapter 1 Product Features Thank you for choosing this printer. It is a 24 pin high speed bill/ passbook printer, and it can fulfill your multifunctional printing requirement. This printer has many new functions, which can make the usage more easily.
  • Page 9 DP560 User's Manual Auto certificate thickness detect When the gap adjust lever is in the position of “Passbook /card”, the printer will adjust the height of theprint head according to the thickness of the certificate. Auto paper edge detect Auto detect the paper edge position, so that it can make sure the print content is within the paper.

  • Page 10: Chapter 2 Preparation

    DP560 User's Manual Chapter 2 Preparation 2.1 Unpacking and Checking Check the following items in the package, if any of these items is missing, please contact your dealer. (As Figure 2-1 shown) Power cord Ribbon cartridge JMR139 Printer Paper feed knob...

  • Page 11: Installing The Printer

    DP560 User's Manual Printer cover Ribbon cartridge Gap adjust lever Print head Paper select lever Power switch Paper feed knob Paper guider Paper supporting board Figure 2-3 Main parts of the printer (Front view) Tractor Paper feed knob Power supply inlet...

  • Page 12: Installing And Removing The Paper Supporting Board

    DP560 User's Manual The place that is exposed to direct sunlight The place that may be accidentally splashed with water Above 60 cm Approx. 10cm Approx. 10cm Wall Floor Approx.70cm Figure 2-5 Printer placement Installing and Removing the Paper Supporting Board 2.5.1 Installing the Paper Supporting Board...

  • Page 13: Installing The Paper Feed Knob

    DP560 User's Manual 2.6 Installing the Paper Feed Knob Make the opening of the paper feed knob aim at the D-shape shaft of the paper feed wheel shaft and put it into the shaft (as shown in Figure 2-7). D-shape shaft Figure 2-7 Install the paper feed knob 2.7 Installing the Ribbon Cartridge...

  • Page 14: Connecting To Your Computer

    And then install a new ribbon by referring to the description above. 3. Please use the Jolimark original JMR139 ribbon cartridge only. Manufacturer will not honor warranty when using unauthorized ribbon cartridge.

  • Page 15: Connecting The Usb Cable

    DP560 User's Manual 2.8.1 Connecting the USB Cable 1. Plug the USB cable A end (flat shape) into the computer's USB interface connector. 2. Plug the USB cable B end (square shape) into the printer's USB interface connector. (As shown in...

  • Page 16: Connecting The Power Supply

    DP560 User's Manual Note: Please refer to the user’s manual for detailed instructions of network settings. 2.9 Connecting the Power Supply 1. As Figure 2-14 shown, make sure the printer is turned off. (The pressed down side on the switch with “O”...
  • Page 17 DP560 User's Manual 2.10.2.1 The Operating Systems of Windows 2000/XP/Vista/Win7 (1) The hand-operated installing steps of parallel interface cable: In the following, Windows XP is taken as an example to show the installing steps. There are slight differences among different operating systems. The installing way with other operating systems depends on the practical installing process.
  • Page 18 5. Return to the window of “Add New Hardware Wizard”, click “Next”; a window of “Windows driver file search for the device” pops up, click “Next”. 6. After the system finishing installing the file automatically, a window of “Jolimark USB Printer Supported” pops up, click "Finish".

  • Page 19: Installing The Bluetooth Interface Driver

    DP560 User's Manual 4. A window of “Install From Disk” pops up, click “OK”, return to the window of “Add Printer Wizard”, then click "Next". 5. A window of “Printer Port” pops up, select “Available ports”, select “JMUSB”, click "Next", and then the printer’s name will be shown.
  • Page 20 DP560 User's Manual 3. Tick off the option of “My device is set up and ready to be found.” Click “Next” to continue. 4. Select the “DP560”, and then click “Next”. DP560 5. Tick off the option of “Let me choose my own passkey” and enter “1234” as shown, then click “Next”.
  • Page 21 DP560 User's Manual 6. Record the Outgoing COM port and click “Finish”, then reboot the computer. 7. Set the printer driver print port as the outgoing port and the installation is finished. Note: Every Bluetooth device has its own address. Please reinstall it when replacing the Bluetooth device.

  • Page 22: Ethernet Settings

    2.12 Ethernet Settings Please use Jolimark network setting software NetFinder to set the IP address for Jolimark Ethernet interface network printers. NetFinder Software (NetFinder.exe) can be found in the CD or downloaded from www.jolimark.com...
  • Page 23 DP560 User's Manual 2. Searching the Printer Click “Search” button in the main interface, the dialog box appearing will begin searching automatically and displays the status, listing a printer in the main interface if found. The time is counting down in the progress bar (10s in total) and the search will finish as soon as the time is over.
  • Page 24 DP560 User's Manual 1) Correlative description for IP address settings In order to search and set printer’s IP address conveniently for the first time, the factory default setting is DHCP mode which assigns IP address dynamically. If there is no DHCP server in the connected LAN but printer is set to DHCP mode, then it will use the internal pre-set address (IP: 10.0.0.1, Subnet Mask: 255.255.255.0) automatically.

  • Page 25: Wi-Fi Setting Of Jolimark Printer

    DP560 User's Manual 2.13 Wi-Fi Setting of Jolimark Printer 2.13.1 Connecting the Printer TP830 is taken as an example to respectively describe the connection of Windows, Android and iOS operation systems. Please make the connection according to the operating guide of the current system, and skip to the next chapter “Wi-Fi Parameters Description”...
  • Page 26 DP560 User's Manual (2) Connecting to the equipment in Android Take the mobile phone of Android 4.4 as an example to show how to connect the printer with the equipment in Android. 1. Turn on the printer and make sure the printer is in normal working condition. Start the operation 30 seconds after the printer is on.
  • Page 27 DP560 User's Manual The printer Wi-Fi of this example. Figure 3 - 20 -...

  • Page 28: Wi-Fi Parameters Description

    DP560 User's Manual 2.13.2 Wi-Fi Parameters Description After connecting the equipment with the printer through wireless network, please import http://10.10.10.1 in the browser address bar and enter, then the setting interface pops up. The display style of setting interface may differ in different systems, but the parameter items are the same.
  • Page 29 DP560 User's Manual Figure 5 (1) Printer-equipment connected printing Printer-equipment connected printing is a way of printing which uses printer as the hotspot and connects the wireless equipment for printing. “Wireless Settings” is the relevant setting parameter when the printer is as the hotspot (as shown in Figure 6).
  • Page 30 DP560 User's Manual Figure 6 Description in “Wireless Settings” BSSID: The address of the printer wireless card in the “Wireless Settings”, which is the MAC address (Valid when it’s in printer-equipment connected printing). Network name (SSID): The network name of the printer wireless card. You can modify it if necessary, but you have to connect the network again after modifying.
  • Page 31 DP560 User's Manual “AP Client” (as shown in Figure 7) includes the setting parameters of AP connection. Please fill in the information of current outer hotspot in the corresponding place. The parameters of the printer should match that of the current outer hotspot so as to make the communication successful. Please input them correctly.
  • Page 32 DP560 User's Manual Double click it Figure 8 The dialog box “Wireless Network Connection Status” pops up, then click “Properties” (as shown ② in Figure 9). Figure 9 - 25 -...
  • Page 33 DP560 User's Manual When the dialog box pops up, click “Wireless Networks” on the upper side of the dialog box (as ③ shown in Figure 10). Figure 10 Select the current wireless network name in “Preferred networks” and then click “Properties” ( as ④...
  • Page 34 DP560 User's Manual Figure 11 ⑤ When the window of “Properties” pops up, find out the security mode and encrypt type in “Wireless network key” (as shown in Figure 12). - 27 -...
  • Page 35 DP560 User's Manual Security mode Encrypt type Figure 12 Close the windows in turn, then the dialog bo x “Local Area Connection 2 Status” pops up ⑥ according to the operation of step , click “View Wireless Networks” (as shown in Fi gure 13).
  • Page 36 DP560 User's Manual Figure 13 - 29 -...
  • Page 37 DP560 User's Manual The current Wi-Fi hotspot of this example. Figure 14 The setting of Security Mode and Encrypt Type Refer to “Connecting the Printer”, connect the wireless equipment with the printer and select the parameters acquired by the above steps in the “Security Mode” and “Encrypt Type” of the “AP Client”.

  • Page 38: Wi-Fi Interface Status Display And Parameters Reset

    DP560 User's Manual Figure 15 Note: The green handshaking mark on the right side of the SSID column denotes the connection between the printer and the outer Wi-Fi hotspot is successful. IP Address: Set the IP address of the printer wireless card and the IP address should be in the same segment with the wireless networks you are using.

  • Page 39: Mobile Equipment Wi-Fi Printing Function Application

    2.14 Mobile Equipment Wi-Fi Printing Function Application The Jolimark printer which is equipped with Wi-Fi interface supports the print service of Android system 4.4 or above version and the AirPrint wireless printing function of iPhone iOS system. After the Android mobile equipment has installed the Jolimark print service plug-in, it can directly use the system print service to realize wireless printing;...

  • Page 40: The System Print Service Application Of Android Equipment

    The parameter setting way may be different because of the different interfaces. 1. Install the print service Download the print service installation package AdrPrintSvc.apk from www.jolimark.com. After running the installation program, the “JM Print Service” will be added in the Android system. 2. Connect Wi-Fi printer 2.1 Enter into the “Settings”...
  • Page 41 DP560 User's Manual Figure 18 Figure 19 2.3 Select the “Wi-Fi” function to “ON”, and select the “TP830” hotspot, as shown in Figure 20. Figure 20 3. Turn on the print service 3.1 Enter into the “Settings” of the system, as shown in Figure 18;...
  • Page 42 DP560 User's Manual Figure 22 Figure 21 3.4 Switch the “JM Print Service” function from “OFF” to “ON”, as shown in Figure 23; Note: If there is no function switch in the upper right of “JM Print Service” interface, it means the current system has no complete Android Print function;...
  • Page 43 DP560 User's Manual 4. Run APP APP has to support the system’s print service, WPS Office is taken as an example to describe. 4.1 Run the APP “WPS Office”, as shown in Figure 25; 4.2 Open the document which is to be printed in the software, then click the “Tools” button, as shown in Figure 26;...
  • Page 44 DP560 User's Manual 4.5 When the “Select Print Service” interface pops up, select “System Print Service”, as shown in Figure 29; 4.6 Select “TP830@10.10.10.1”, as shown in Figure 30; Figure 29 Figure 30 4.7 Make sure the printer and the corresponding printing parameters are correct, click “Print”, as shown in Figure 31;...

  • Page 45: Airprint Printing Application Of Iphone Ios Equipment

    DP560 User's Manual 2.14.2 AirPrint Printing Application of iPhone iOS Equipment iPhone iOS equipment used in this example is iPad Air2, iOS system version is 9.1. The application situation of other iOS equipment or system version may be different to this example.
  • Page 46 DP560 User's Manual 2. Run APP As the interface designs of APP are different, the operating way of printing function will also be different. “Word” is taken as an example to describe. 2.1 Install and run “Word”, as shown in Figure 37;...

  • Page 47: Installing Printer Network Driver

    DP560 User's Manual Figure 42 Figure 41 2.7 Return to “Printer Options” interface and click “Print”, the system sends print data to the printer, as shown in Figure 43. Figure 43 2.15 Installing Printer Network Driver The ways of installing network driver are classified into Newly-install way and Upgrade-install way according to whether the PC is installed the printer driver or not.
  • Page 48 DP560 User's Manual 1) Click “Start” → “Settings” → “Select Printers”. 2) Click “Add printer”, then a window of “Add Printer Wizard” pops up, click “Next”. 3) A window of “Add Printer Wizard” pops up, select “Local printer” in the “Local or Network Printer”...
  • Page 49 DP560 User's Manual 7) A window of “Additional Port Information Required” pops up, select “Custom” in the “Device Type”, then click “Settings”. 8) A window of “Port Settings” pops up. Affirm that “Port Name” and “Printer Name or IP Address”...
  • Page 50 DP560 User's Manual 9) Return to “Additional Port Information Required”, click “Next”. 10) A window of “Completing the Add Standard TCP/IP Printer Port Wizard” pops up, click “Finish”. 11) In the window of “Install Printer Software”, click “Have Disk”. 12) A window of “Install from Disk” pops up. Please according to the operating system environment, such as Windows 2000/XP/Vista/Win7 operating system you should select the path as follows: CD-ROM →...
  • Page 51 DP560 User's Manual 5) A window of “Add Standard TCP/IP Printer Port Wizard” pops up, click “Next”. 6) A window of “Add Port” pops up, import the IP address reported by the “Setting printer’s IP address” in the “Printer name or IP address” column. Take IP address “192.168.0.240” for example.
  • Page 52 DP560 User's Manual 8) A window of “Port Settings” pops up. Affirm that “Port Name” and “Printer Name or IP Address” are correct, “Protocol” is “RAW” and “Port Number” is “9100”, click “OK”. - 45 -...
  • Page 53 DP560 User's Manual 9) Return to “Additional Port Information Required”, click “Next”. 10) A window of “Completing the Add Standard TCP/IP Printer Port Wizard” pops up, click “Finish”. 11) Return to “Printer Ports”, click “Close”. 12) Return to “Properties”, make sure the network port is selected, click “Apply”, and then click “Close”.

  • Page 54: Chapter 3 Paper Loading

    DP560 User's Manual Chapter 3 Paper Loading 3.1 Adjust the Gap Adjust Lever Position Adjust the paper thickness No matter which paper is used, user needs to set the gap adjust lever which is on the right side of the printer according to the paper thickness. The gap adjust lever can change the print head height so that it can fix to the paper thickness.

  • Page 55: Bill Function Mode

    DP560 User's Manual detect the page length). When it is ready, it can print. Figure 3-3 Install the passbook 5. If user needs to print the bill, adjust the paper guider to the proper position, push the 1-4 sheets bill to the printer along the paper guider, the printer will feed the bill to the printing start position, when the printer is ready, it will print.

  • Page 56: Continuous Paper Function Mode

    DP560 User's Manual Figure 3-4 Adjust the proper position 4. Insert paper, as shown in Figure 3-5, the paper will be fed to the print position. Note: If the Paper Loading menu item is set as Feed by key, the paper will not be fed to...

  • Page 57: Set The Continuous Paper Printing Mode

    DP560 User's Manual 3.4.1 Set the Continuous Paper Printing Mode 1. Pull the paper select lever to the continuous paper position (as shown in Figure 3-7). 2. According to the paper pages, set the copy sheet (1-sheet, 4-sheet and 7-sheet) on the panel menu COPY item.

  • Page 58: Tear Continuous Paper

    DP560 User's Manual Note: Please make the top of continuous paper aim at the edge of the tractor (as shown in Figure 3-10). Tractor sprocket wheel cover The top of paper Figure 3-10 Install continuous paper to the tractor sprocket pins 5.
  • Page 59 DP560 User's Manual Figure 3-12 Tear continuous paper - 52 -...

  • Page 60: Chapter 4 Operation Instruction

    DP560 User's Manual Chapter 4 Operation Instruction 4.1 Button and LED Light on the Control Panel 4.1.1 Control Panel There are four LEDs and four buttons on the control panel. (As Figure 4-1 shown) Figure 4-1 Control Panel 4.1.2 LED...

  • Page 61: Led Menu Setup

    DP560 User's Manual Note: When using continuous paper to print, if there is paper out, please press LOAD/EJECT or LF/FF key to feed paper after loading paper. 4.3 LED Menu Setup 1. Long press ONLINE key about 3 seconds, the printer beeps once, enters into three LED menu setup mode: COPY, PAPER SELECT and SPEED.

  • Page 62: Adjust The Tear Position

    Note: if user just exits the mode without saving, please turn off the printer. 4.6 Change the Current Setting of Printer DP560 printer settings includes LED menu settings, command system menu settings and online parameter settings. 4.6.1 LED Menu Setup When in offline mode, press ONLINE button about 3 seconds,printer enters into LED menu setup.
  • Page 63 DP560 User's Manual Current Setting Report Jolimark DP560 VX.X XXX XXXX/XX/XX SN: XXXXXXXXXX MAC:XX-XX-XX-XX-XX-XX DHCP:YES IP:10.0.0.1 Subnet:255.255.255.0 gateway:255.255.255.255 LANGUAGE CHINESE EMULATION China CHAR.MODE FONT SANS SER COURIER PRESTIGE SCRIPT OCR-B OCR-A ORATOR ENG PITCH 12 CPI 15 CPI PROPORTIONAL CHI PITCH 7.5 CPI...

  • Page 64: Online-Aptitude Parameter Settings

    The title and main menu are printed out firstly (as the following figure shown), the default settings are underlined. Print head stays under the current default item. Jolimark DP560 SETUP MENU SYSTEM Use the LOAD/EJECT key to point the print head to the desired setting.
  • Page 65 DP560 User's Manual 3. Right click this printer driver, select “Properties”. 4. Click “Printer settings” in the property page. 5. Printer settings are classified into three levels: the first level is the normal items, the second level is maintenance items and the third level is non-driver settings. Items shown in Printer Settings are normal items;...
  • Page 66 DP560 User's Manual - 59 -...
  • Page 67 DP560 User's Manual 6. The left side of each items is the parameter icon, the top right is the item name and the bottom right is the current setting. The current settings of the printer will be loaded automatically when opening each parameters settings window.
  • Page 68 DP560 User's Manual 7. When setting the parameter, please click the parameter icon firstly to open the parameter setting window. In the parameter setting window, there are parameter options, item explanation and control buttons. After selecting the corresponding parameter, click “Set”, the printer will change the setting at the moment it receives the change command.
  • Page 69 DP560 User's Manual 9. After finishing setting, click “OK” to exit the Properties window. Sample of the online parameter setting: The paper type includes bill and card, each option can set the parameters, for example, user can define the common used bill printing format, so that user can quickly switch different bill to print.

  • Page 70: Explaining Menu Terms

    DP560 User's Manual 3. The parameter setting interface pops up, set the parameters. 4. Click “Set”, the interface of setting successfully pops up; click “OK” to return to previous interface and click “Cancel” until the Printer settings window is closed.
  • Page 71 DP560 User's Manual with page length instruction, printer would give priority to print data instruction. After selecting this function on, printer would lock the page length setting. Printer FORM LOCK feeds to next page according to the current setting parameter and would not affected by the page length instruction of the print data.

  • Page 72: Restore The Default Settings (Without Alignment And Print Head Gap)

    Press ONLINE and LF/FF keys and turn on the printer at the same time, the printer will print a “H self test mode” sample and exit the mode automatically. Press ONLINE key to stop printing, if need to exit the mode during printing, turn off the printer. H Self Test Jolimark DP560 VX.X XXX XXXX/XX/XX SN: XXXXXXXXXX HHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHH HHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHH HHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHH...
  • Page 73 DP560 User's Manual Alignment Adjust Mode After a long time using, some printers’ printing position may move a little bit, so that the two lines printout may not be aligned in BID printing. At this time, printer alignment needs adjusting so as to improve the printing quality.

  • Page 74: Appendix A Maintenance And Troubleshooting

    DP560 User's Manual Appendix A Maintenance and Troubleshooting A.1 Cleaning the Printer Carriage shaft Paper feed platform Figure A-1 Cleaning the printer Cleaning periodically and the cleaning tool Periodical cleaning: every three months or every 300 working hours once. Cleaning tool: dry cloth (please use soft cloth to clean metal parts.) Cleaning the paper feed platform Wipe off the wasted paper and clean the dirt and dust.

  • Page 75: Contact The Technical Service Centre

    DP560 User's Manual C. Home position sensor error: There is error reporting during printing, and the printing stops. Solution: Press the ONLINE key or turn off the printer and restart it. The printer will get right again. D. Paper out or paper jam: There is paper out or paper jam in the printer.

  • Page 76: Appendix B Specifications

    DP560 User's Manual Appendix B Specifications B.1 General Specifications Item Description Printing 24 Pins dot matrix impact method Printing Bidirectional logic seeking direction Printing width 82 column (10cpi/208.3mm) ASCII Speed 10 CPI 12 CPI Printing speed Normal speed 150 CPS...
  • Page 77 DP560 User's Manual Continuous paper Width: 60 ~ 272 mm Width: 55 ~ 297 mm Cut sheet Length: 67 ~ 536 mm Paper Lay open thickness of transverse Lay open thickness of transverse passbook / certificate: specification certificate 1.8 mm...

  • Page 78: Interface Specifications

    DP560 User's Manual B.2 Interface Specifications This printer is equipped with USB interface, parallel interface, Ethernet interface, Bluetooth or Wi-Fi. B.2.1 USB Interface USB Interface is 2.0 Full-Speed. The USB interface connector is USB-B type (as shown by Figure B-1):...

  • Page 79: Ethernet Interface

    DP560 User's Manual — AUTO FEED Printer ← Host — — SIGNAL GND Printer ←→ Host — CHASSIS GND Printer ←→ Host — Printer → Host — PRIME Printer ← Host — ERROR Printer → Host — SIGNAL GND Printer ←→ Host —...

  • Page 80: Appendix C Paper Specification

    DP560 User's Manual Appendix C Paper Specification C.1 Paper Specification and Printable Area C.1.1 The Notice Relating to Paper Using the following paper will cause unstable paper feeding, paper jam or paper crease, even leads to break pin. So please do not use them.

  • Page 81: Cut Sheet

    DP560 User's Manual Paper type Guarantee grade Other conditions Cut sheet ● Continuous paper ● Post card ● Card ▲ Envelope ▲ Delivery order form ▲ Passbook ▲ Label × Recycled paper ● Caution: “Guarantee” here means the specifications which accord with print specification, noise specification and paper feed performance, etc.
  • Page 82 DP560 User's Manual ◆ Cut Sheet Dimension and Printable area ○ Single-ply paper First character (10CPI) Printable area : Printable area : Print area Print area is not included in print specification. Mark Name Specification value Paper width 55 ~ 297 mm...
  • Page 83 DP560 User's Manual ○ Multi-ply paper (NCR paper) Datum line (1 mm) Plumb at datum line Paper insert direction Datum line Less than 0.2 First character (10CPI) Printable area : Printable area : Print area Print area is not included Print side in print specification.
  • Page 84 DP560 User's Manual Strong mucilage Paper inserts direction (1 mm width) ◆ The combination requirements of multi-ply paper (NCR paper) We recommend using the perfect paper or which the quality is above. The low quality NCR paper will affect the copy effect and the printing life.

  • Page 85: Continuous Paper

    DP560 User's Manual The paper that the whole page has folded can not be used. Amend to less than 2 mm More than 15 mm The fold of corner ○ Bend and curliness (cut sheet, continuous paper) • The paper can be used when the curliness of the whole page is less than 2 mm.
  • Page 86 DP560 User's Manual Note: 1. This thickness is added by several single-ply papers, and it is only achieved when just printing on the upper paper. (No need to copy) 2. Refer to the requirement of the multi-ply paper (NCR paper), the mount paper can be thicker than other plies, but we can’t guarantee the printing effect as it...
  • Page 87 DP560 User's Manual Figure of continuous paper specification and tractor hole Central line Central line Transverse perforation 90° Vertical perforation Vertical perforation Transverse perforation Edge Edge Item Mark Size (mm) Function The distance from central line to the nearer edge. The Position of Central line 6.0 ±...
  • Page 88 DP560 User's Manual tractor holes central line through any tractor hole in the left and the center of corresponding tractor hole in the right. Lean of right and left The distance to other end when the parallel moved right –...
  • Page 89 DP560 User's Manual First Second Third Forth Fifth page page page page page Line pulp 1 ~ 2 mm ○ Paper Binding • Paper binding should be in both ends, it is not allow paper binding only in one end.
  • Page 90 DP560 User's Manual Unit: mm 6.35 6.35 Loading direction Fixed tightly Transverse perforation Above 2 Not fixed tightly Paper binding space is over 25.4 50.8mm (2 inches) Press down About 1 avoid warping 50.8 Space If bind the four places together...
  • Page 91 DP560 User's Manual ◆ Warp between toothed holes of each ply Please use the paper which toothed holes warp between each ply (causes by the warp of multi-ply papers superposition) is less than 0.4 mm. Toothed hole Warp is less than 0.4 mm...

  • Page 92: Postcard

    DP560 User's Manual Protrusive part C.1.5 Postcard The printer supports the postcards whose specifications are shown below. Print size and the printable area ◆ Length (mm) Width (mm) Size Material Ivory board or Coated paper which is B grade or above Weight ≤2 mm...

  • Page 93: Passbook/Certificate

    DP560 User's Manual Postcard print direction and printable area (vertical) C.1.6 Passbook/Certificate The cover and inner of passbook should not be creased, twisted or broken. The passbook cover should have the same thickness. Open the passbook; fold it along the binding line to make it flat before printing.

  • Page 94: Envelope

    DP560 User's Manual Horizontal passbook printable area Size Min. Max. Passbook width 90 mm 297 mm Passbook length 75 mm 300 mm Left and right margins 3 mm Top margin 3 mm Centre binding margin 8 mm Bottom margin 6 mm...
  • Page 95 DP560 User's Manual Envelope type Code name Length (mm) Width (mm) Support Sample 1 Envelope Yes (Note 1) Yes (Note 2 Sample 2 Envelope Material Envelope which is Grade B or above Weight 6.25 mm Bottom 6.25 mm Non-guarantee Left 6.25 mm...
  • Page 96 DP560 User's Manual Sample 1 Envelope (Rear view) Sample 1 Envelope print direction and printable area Stamp - 89 -...
  • Page 97 DP560 User's Manual Sample 2 Envelope (Front view) Stamp Sample 2 Envelope (Rear view) - 90 -...
  • Page 98 DP560 User's Manual Sample 2 Envelope print direction and printable area Note: • Envelope refers to single layer envelope. Printer doesn’t support double layer envelope and the envelope should not be with solid edge. • When the envelope pulp at the top or bottom, please don’t print at that area with 5mm.

  • Page 99: Delivery Note

    DP560 User's Manual C.1.8 Delivery Note Delivery notes here refers to the multi-ply papers (2-ply ~ 7-ply). Its paper size and printable area base on the specifications of continuous paper and cut sheet. Moreover, the copy capability and printing precision are not guaranteed because they are affected by paper thickness and inner paper quality (such as, thickness).
