User's Manual

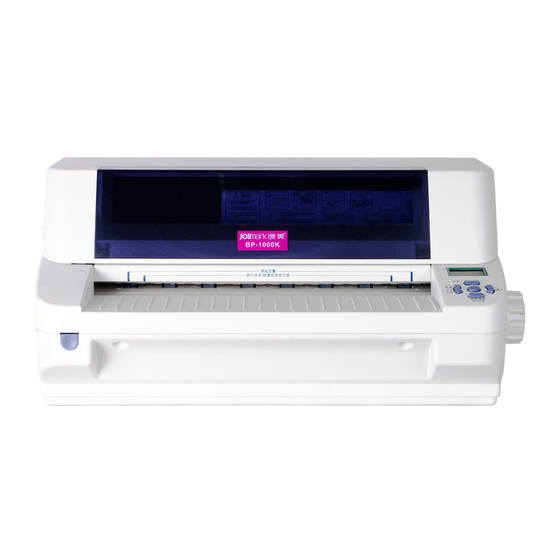

BP-1000K (Model B)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BP-1000K and is the answer not in the manual?

Questions and answers

Related Manuals for Jolimark BP-1000K

Summary of Contents for Jolimark BP-1000K

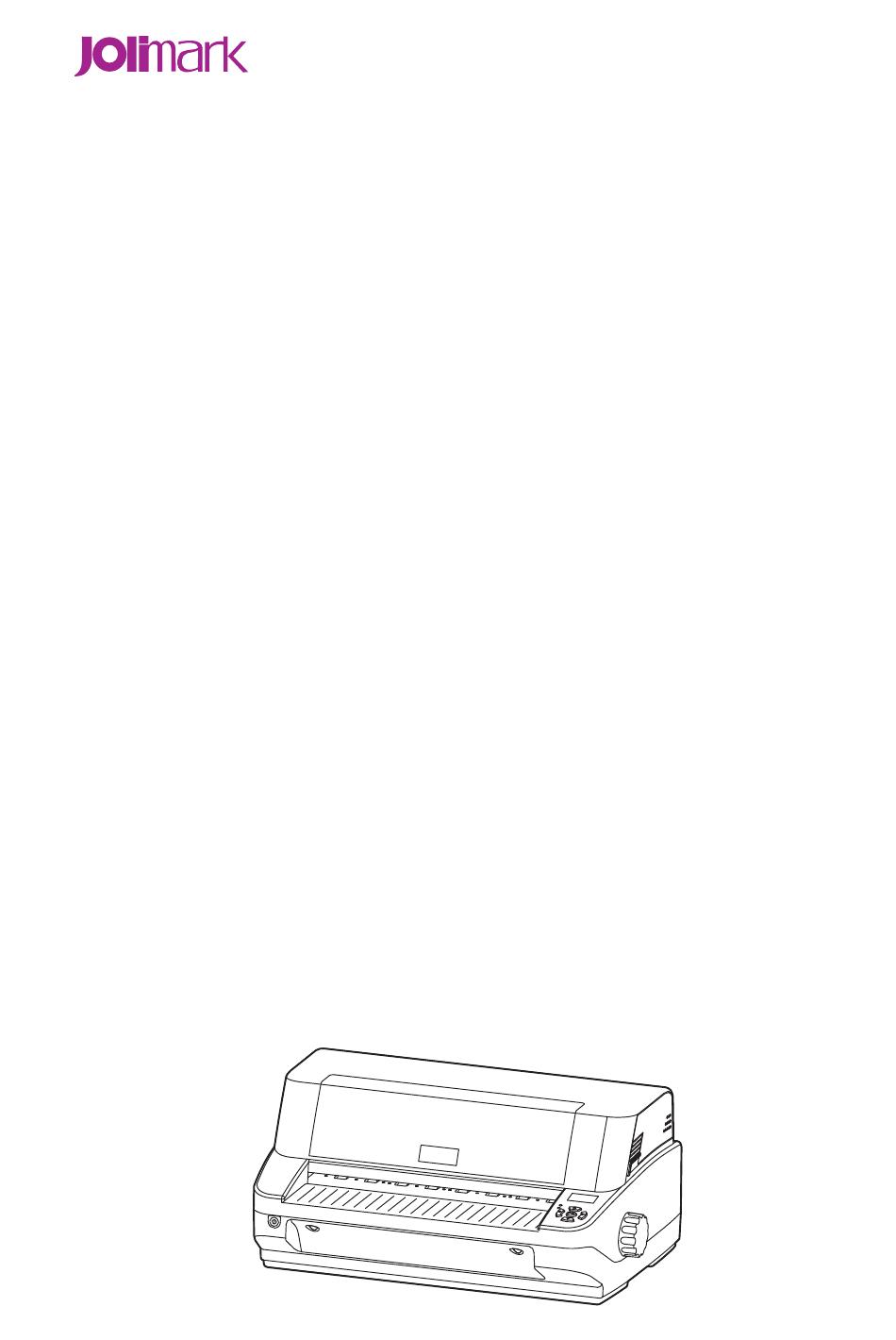

  • Page 1 User's Manual BP-1000K (Model B)
  • Page 2 BP-1000K User’s Manual Important Safety Instructions 1. Read all of these instructions carefully and thoroughly and save them for later reference. 2. Follow all warnings and instructions in the manual as well as marked on the product. 3. If the printer has been used just now, please not touch the print head for overheating.

  • Page 3: Table Of Contents

    BP-1000K User’s Manual Table of Contents Important Safety Instructions ........................i Chapter 1 Product Features........................1 Chapter 2 Checking and Installing ......................3 2.1 Unpacking and Checking ........................3 2.2 Unpacking the Protective Materials .....................3 2.3 Main Parts of the Printer........................4 2.4 Installing the Printer ..........................4 2.4.1 Choose Proper Installing Place ....................4...
  • Page 4 BP-1000K User’s Manual 5.1 Cleaning the Printer .......................... 27 5.2 Problems and Solutions ........................27 5.3 Error Indication on the Display of Control Panel................29 Chapter 6 Paper Specification ......................... 31 6.1 Cut Sheet Printable Area........................31 6.2 Tractor Papers Printable Area ......................32 6.3 Passbook Printable Area ........................

  • Page 5: Chapter 1 Product Features

    BP-1000K User’s Manual Chapter 1 Product Features Thank you for choosing Jolimark passbook printer. The printer is a product of 24 pin high quality 110 column multifunction passbook/certificate/report printer, it can fulfill your printing requirement. The printer has the specialties as follows:...
  • Page 6 BP-1000K User’s Manual cover does not be covered and make the print head move to the middle position. If you close the cover it will continue printing again. Function of auto select the data transmission interface The printer fittings the parallel interface or USB interface. (According to specific interface standard) So it can receive the date of parallel interface (Centronics) and USB interface.

  • Page 7: Chapter 2 Checking And Installing

    BP-1000K User’s Manual Chapter 2 Checking and Installing 2.1 Unpacking and Checking Check the following items in the package, if any of these items is missing, please contact your dealer. (1) Printer; (2) Ribbon cartridge (JMR115); (3) Power cord; (4) Driver CD; (5) Paper feed knob; (6) Packing list;...

  • Page 8: Main Parts Of The Printer

    BP-1000K User’s Manual 2.3 Main Parts of the Printer Figure 2-3and Figure 2-4 mark the names of main parts. Upper cover Ribbon cartridge Upper frame lever Carriage shaft Print head Ribbon guide board LCD display Paper feed knob Power switch...

  • Page 9: Installing The Ribbon Cartridge

    BP-1000K User’s Manual Paper feed knob Figure 2-5 Installing the Paper feed knob Note：The D shape placket of the knob should match the D shape shaft inside the printer cover. 2. Press the paper feed knob till it very close up the cover of the printer.
  • Page 10 BP-1000K User’s Manual Figure 2-8 Turn over the guide of the carriage 4. Buckle the bottom and upper button of the ribbon frame in turn into the slot of the printer frame. Figure 2-9 Installing the ribbon cartridge 5. Fix the ribbon core into the ribbon path.

  • Page 11: Connecting To Your Computer

    3. Never move the print head when the printer is ON condition or else the printer may be damaged. Don’t touch the print head as it will be hot during printing. 4. Use genuine Jolimark JMR115 consumables or else warranty will be void. 2.5 Connecting to Your Computer The printer can configured with a parallel interface or USB interface.

  • Page 12: Connecting The Usb Interface

    BP-1000K User’s Manual Wire clips Parallel interface Parallel cable Figure 2-13 Connecting the parallel interface 2.5.2 Connecting the USB Interface 1. Plug the USB cable A end (flat shape) into the computer's USB interface. 2. Plug the USB cable B end (square shape) into the printer's USB interface.

  • Page 13: Installing The Driver

    BP-1000K User’s Manual Note：1. If the rated voltage and your outlet voltage do not match, contact your dealer for assistance. Do not plug in the power cord. 2. You should use the properly grounded electrical outlet 2.7 Installing the Driver...
  • Page 14 BP-1000K User’s Manual 5. Come out a window of "Install From Disk". Please according to the operating system environment, you should select the path as follow: CD-ROM-"Driver"-"WIN2000 (XP-Vista-Win7)", where you can find a file named: BP1000K.inf, click "Open", then click "OK" to return to the window of "Manufacturers/Printers", click "Next".
  • Page 15 BP-1000K User’s Manual can find a file named: BP1000K.inf "Open", and then click "OK". 4. Come out a window of “Install From Disk”, click "OK", return to a window of "Add Printer", then click "Next". 5. Come out a window of "Printer port", select "Available ports", select "JMUSB", click "Next", and then show the printer’s name.

  • Page 16: Chapter 3 Paper Process

    Chapter 3 Paper Process 3.1 Paper Switch When Jolimark leave factory it was setting four paper process modes, that is cut sheet mode, passbook mode, thick paper mode and tractor paper mode (tractor is optional). 1) Cut sheet mode (Front feed): It is fit for the medium of A4 and thin paper, passbook and the certificate which thickness less than 2mm.

  • Page 17: Feeding The Passbook

    BP-1000K User’s Manual 4. 1+6 copy mode fit for 1+5 or 1+6 copy paper. 3.3 Feeding the Passbook Follow the steps as below to feed passbook: 1. Turn the printer and setting the paper process of cut sheet mode. 2. Open the passbook, turn to the page which should be printed and make it flat.

  • Page 18: Feeding The Passbook

    BP-1000K User’s Manual 3.5 Feeding the Passbook Follow the step as below to feed the book which the thickness is over 2MM: 1. Turn on the printer and setting the paper process of thick paper mode. 2. Open the passbook, turn to the page which should be printed and make it flat.

  • Page 19: Tearing The Tractor Paper

    BP-1000K User’s Manual Figure 3-6 Installing the tractor paper onto the chain gear of the tractor (optional) Remark Please remember to place the top of paper in level position (Show as figure 3-7). Tractor (optional) gear cover Top of the paper Figure 3-7 Installing the tractor paper on the tractor (optional) gear 5.
  • Page 20 BP-1000K User’s Manual Figure 3-8 Tearing the tractor paper - 16 -...

  • Page 21: Chapter 4 Control Panel

    BP-1000K User’s Manual Chapter 4 Control Panel 4.1 Key, Indicator Light and LCD Display on the Control Panel There are five keys, two LED indicator lights and a LCD display. (Show as figure 4-1) The LCD display is dot matrix display module (106×56 dots), the display size is 32.6mm*17.6mm.

  • Page 22: The Information On The Lcd Display When At Stand By State

    4.3 The information on the LCD Display When at Stand by State In the state of stand by (not error state), the printer BP-1000K would display some common state information of the printer on the LCD. The information would towards left cycle roll display as follow format: Paper information＋speed information＋copy information＋[Self test printing information]...

  • Page 23: Use Of The Menu Setting System

    4.4.1 Change the Current Setting in the Menu of the Printer The menu of BP-1000K is containing main menu and sub menu, and displays it on the LCD display. The users can easy setting all the basic function of the printer.

  • Page 24: Printing The Current Setting Report

    BP-1000K User’s Manual As the right picture show, the PRT-SPEED setting option which mark a “√” is the current default setting. 4) Press “▲”，“▼” for selection. For example, if you need to change the speed to “super high speed”, you can press “▲” and “▼”...
  • Page 25 BP-1000K User’s Manual Jolimark BP-1000K Current Setting Report Version: 1000K vx.x xxx/xx/xx PRINT SETUP PRT-SPEED NORMAL COPY NORMAL EMULATION EPSON CHAR MODE ASCII FONT ROMAN COMPRESS 100% AUTO_COMP PITCH 10 CPI CHIN. PITCH 6.7 CP LINE SPACE 6 LPI FORM...

  • Page 26: Menu Item Description

    BP-1000K User’s Manual 4.4.3 Menu Item Description Table 4-2: Menu item description as follow: Item Description Select the print speed mode among Normal speed, High speed and Super high PRT-SPEED speed. Correspond with High Speed key on control panel. COPY Select the print copy mode among Normal, “1+3 copy”...

  • Page 27: Online Aptitude Parameter Setting

    BP-1000K User’s Manual BAUD RATE Set the printer RS-232C interface speed. PARITY Set the printer RS-232C interface parity error checking type. DATA BIT Set the printers RS-232C data width either 8 bits or 7 bits. STOP BIT Set the printers RS-232C transmission stop bits.

  • Page 28: Tof Adjustment

    If you press Online and Load /Eject at the same time then turn on the printer, it will print out the ASCII pattern continuously. Press Online can pause it. If you want to exit now, you can turn off the power then turn on again. ASCII SELF TEST MODE Version: BP-1000K v XXX 20XX/XX/XX !"#$%&’( )*+-./0123456789:;<=>?@ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^_`abc !"#$%&'( )*+-./0123456789:;<=>?@ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^_`abcd "#$%&'( )*+-./0123456789:;<=>?@ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^_`abcde Figure 4-3 ASCII self test mode 4.7.2 Chinese Self Test Mode...

  • Page 29: Maintenance Printing Test (H Pattern)

    If you press Copy now, then turn on the power, the printer would print H pattern continuously. Press Online can pause it. If you want to exit now, you can turn off the power then turn on again. H SELF TEST MODE Version: BP-1000K v XXX 20XX/XX/XX HHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHH HHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHH...
  • Page 30 BP-1000K User’s Manual When the printer enters dot Alignment Mode, online LED blinks. In Dot Alignment mode, press the Load/Eject or LF/FF keys for adjusting dot alignment. Load/Eject: Press to move the odd line to the right (original parameter values increase) LF/FF: Press to move the odd line to the left (original parameter values decrease) High Speed: Press for next type of DPI character adjustment.

  • Page 31: Chapter 5 Maintenance And Troubleshooting

    BP-1000K User’s Manual Chapter 5 Maintenance and Troubleshooting 5.1 Cleaning the Printer Upper cover Carriage shaft Paper feed sensor protector Paper feed platform Figure 5-1 Clean the printer Cleaning periodically and the cleaning tool Periodical cleaning: every six months or every 300 working hours once.
  • Page 32 BP-1000K User’s Manual printing. When paper jam, please do as following steps: 1. Shut down the power and open the upper cover of the printer. 2. Open the upper frame; pull the upper frame lever in the front of the printer, then the upper frame move up.

  • Page 33: Error Indication On The Display Of Control Panel

    BP-1000K User’s Manual 5. Press down the upper frame and pull the upper frame lever ahead till it locks in the correct position. Then pull backwards the upper frame lever and lock the upper frame. Figure 5-5 Press down the upper frame 6.
  • Page 34 BP-1000K User’s Manual Power light and Please eject the paper switch Paper switch Eject the paper first, online light blink mode error mode error then switch to loaded paper, slowly for fear affect correct paper mode. alternately paper switch Upper...

  • Page 35: Chapter 6 Paper Specification

    BP-1000K User’s Manual Chapter 6 Paper Specification The printing paper should be up to follow demand: Use the paper that request in our manual It should be finer of the paper around edge, and the printing area should finer too, it can not has any perforation or cranny.

  • Page 36: Tractor Papers Printable Area

    BP-1000K User’s Manual printable scope width 279.4 mm left, right margin width 2 mm top margin 4 mm bottom margin 6 mm weight 55 g/m 180 g/m 6.2 Tractor Papers Printable Area Printable area Printable area Figure 6-2 tractor papers printable area...

  • Page 37: Passbook Printable Area

    BP-1000K User’s Manual 6.3 Passbook Printable Area 6.3.1 Size Specifications of Horizontal Passbook The cover and the inner paper of the passbook should not has any crease, twist and breakage. The cover should be same thickness. Before printing, open the passbook, and turn down by the bind line which makes it more flat to load into the printer.

  • Page 38: Size Specifications Of Vertical Passbook

    BP-1000K User’s Manual 6.3.2 Size Specifications of Vertical Passbook Printable area Printable area Figure 6-4 Vertical passbook printable area Dimension passbook width 65 mm 280 mm passbook length 85 mm 220 mm left, right margin width 2 mm top margin bottom margin...

  • Page 39: Appendix A Technical Specification

    BP-1000K User’s Manual Appendix A Technical Specification A.1 Technical data Item Description Type 24-Pin Flatbed Dot Matrix Impact Printer Print direction Bi-directional logic seeking Number of columns 110 column (10cpi)/279.4mm Print speed ASCII Chinese speed 10 CPI 12 CPI speed 6.7 CPI...

  • Page 40: Parallel Interface

    BP-1000K User’s Manual Total Thickness: 0.08 ～ 0.5 mm Weight (Single paper): 55 ～ 180 g/m Multiple paper (Every page): 30 ～ 40 g/m Width: 65 ～ 280 mm Length: 105 ～ 220 mm Passbook and certificate Total Thickness: Max 3.0 mm Weight (inner page): 90 ～...
  • Page 41 BP-1000K User’s Manual DATA STROBE BUSY (Field number 77: MODE 1) : Min.0.5us : Approx.3.8us Approx.2.1us (Field number 77: MODE 2) Figure A-1 Timing figure Connector Pin Assignments Signal Pin No. Return Line Pin No. Signal Name Signal Direction Printer ← Host STROBE Printer ←...

  • Page 42: Usb Interface

    BP-1000K User’s Manual A.3 USB Interface USB interface is 2.0 (Full Speed), the interface connector A and B signal assignments are shown below: Name Color VBUS white green black Figure A-3 USB-B type connector A.4 Cautions of Printing The paper which inserted should not be collapsed, tore or carry any staple, clip or pin and so on. (As shown in A-5) Or else, it will damage the printer seriously.
  • Page 43 BP-1000K User’s Manual Printer safety working environment: Humidity (%) 40 Temperature (℃) Printer safety working environment Figure A-7 - 39 -...
