Vitek Transcendent VTD-THD16R2F Manual

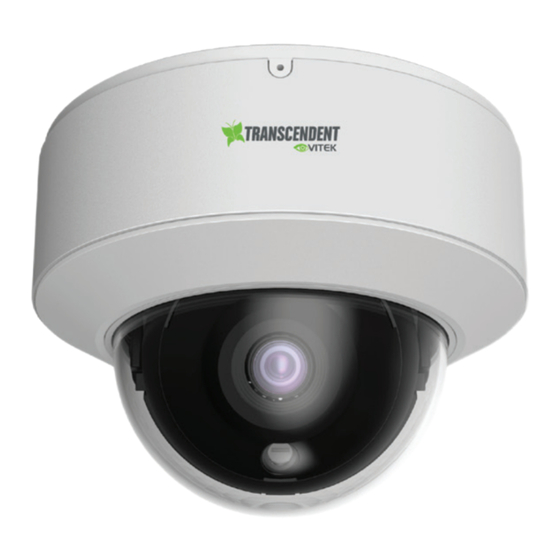

2.0 megapixel indoor/outdoor 4-in-1 starlight fixed lens vandal dome camera
Hide thumbs Also See for Transcendent VTD-THD16R2F:
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
FEATURES
1/2.8" 2.1 Megapixel Progressive Scan
•
CMOS Sensor
•
Advanced Starlight Technology Offers Dramatically
Higher Sensitivity to Light Producing Color Images in
•
Very Dark & Night Scenes
• 2.1 MegaPixel High Definition Analog (HDA):
HD-TVI , AHD, CVI / 960H: CVBS: Output
•
2.8 or 3.6mm Fixed Lens Options
•
16 SMD type IR LEDs w/ up to 65' Range
•
True Wide Dynamic Range (WDR)
•
True Mechanical Day/Night function by ICR
•
3D-DNR Noise Reduction
• IP67 + IK10

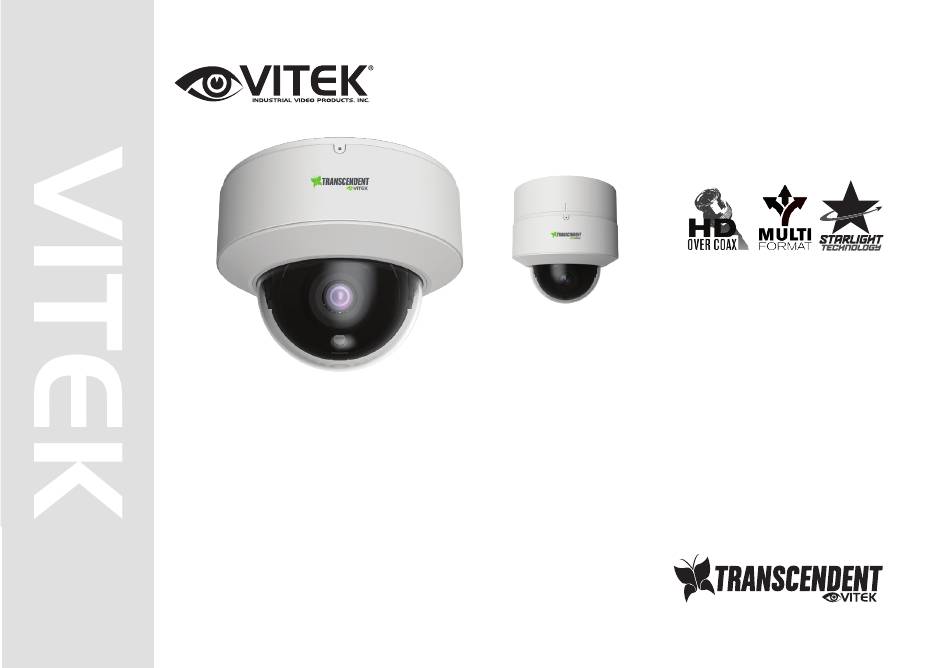

Transcendent Series 2.0 Megapixel Indoor/Outdoor
4-in-1 Starlight Fixed Lens Vandal Dome Camera
*Shown with optional junction box,
VT-TJB03A
•
Supports Up The COAX Control
•
Over 1500' HD Video Transmission (Depending on
cable characteristics and integrity)
• Optional J Box VT-TJB03A, Wall Mount
VT-TWMT-3, In-ceiling Semi Flush Mount VT-TFMT-S,
VT-TPLMT (Pole Adapter, reqs. VT-TJB03A),
VT-TCNMT (Corner Adapter,t reqs. VT-TJB03A)
•
12VDC Operation
•
3 Year Warranty
VTD-THD16R2F

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Transcendent VTD-THD16R2F and is the answer not in the manual?

Questions and answers

Related Manuals for Vitek Transcendent VTD-THD16R2F

Summary of Contents for Vitek Transcendent VTD-THD16R2F

  • Page 1 VTD-THD16R2F Transcendent Series 2.0 Megapixel Indoor/Outdoor 4-in-1 Starlight Fixed Lens Vandal Dome Camera *Shown with optional junction box, VT-TJB03A FEATURES 1/2.8” 2.1 Megapixel Progressive Scan • • Supports Up The COAX Control CMOS Sensor • • Over 1500’ HD Video Transmission (Depending on Advanced Starlight Technology Offers Dramatically cable characteristics and integrity) Higher Sensitivity to Light Producing Color Images in...

  • Page 2: Safety Precaution

    Limited Product Warranty To prevent electrical shock and risk of fire hazards, do not expose this unit VITEK products carry a three (3) year limited warranty. VITEK warrants to to rain or moisture and only use specified power source.. the purchaser that products manufactured by VITEK are free of any rightful...

  • Page 3: Video Connection

    Video Connection VTD-THD16R2F Components Connect the BNC video connector to a BNC cable, then to a DVR. Monitor Camera Screws Manual Allen Key Drill Template Video Overview Video Output Mode Switch: Video Switch Cable This series supports TVI/AHD/CVI/CVBS video output. The video output can be changed by pressing and holding the button in the video switch cable for 5 seconds (TVI is the default video output).

  • Page 4: Installation

    Installation Before beginning installation, make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. The mounting steps are as follows: 1. Attach the drill template to the place where you want to install the camera, then drill the screw holes and 1 cable hole according to the drill...
  • Page 5 4. Adjust the Three-axis camera bracket to obtain the optimium viewing angle. Pan: 0°~240° Tilt: 0°~68° Rotation: 0°~220° 5. Install the dome bubble on the camera with the screws, then replace the trim ring by turning it clockwise. Finally, carefully remove the protective film to complete the installation.

  • Page 6: Camera Osd Menu

    Camera OSD Menu The Transcendent 4-in1 camera series must be connected to a DVR which supports HD-TVI/AHD video signal input and COC protocol to access the OSD setup menu. Different DVRs manufacturers may have different modes of menu operation. The Following image will pop-up when you left click once on the image when using Transcendent HDA DVR's.
  • Page 7 VTD-THD16R2F, VTD-THD16R2F-2 Detailed Specifications Image Sensor 1/2.8” 2.0 Megapixel Progressive Scan CMOS Sensor with Advanced Starlight Technology Signal System PAL / NTSC Effective Pixels 1920 × 1080 Resolution 2.0 MegaPixel Video Output HD-TVI / AHD / CVI / CVBS (Selectable) Frame Rate 30fps Lens...
  • Page 8 HD-TVI / / CVI for Distances AHD / CVI for Up to 1000’ Distances Up Pair with VITEK Transcendent to 1440’ Series 5-in-1 Digital Video Recorders Supporting HD-TVI / AHD / CVI / IP / 960H Cameras! Version 1.0...
