FEATURES
• 1/2.5" 5.0 Megapixel Progressive Scan CMOS
Sensor
• High Definition Analog (HDA): HD-TVI & AHD: 5.0
MegaPixel / CVI: 4.0 MegaPixel / CVBS: 960H
Video Output
• 3.6mm Fixed Lens
• Infrared LED's with up to 120' IR Range
• Digital Wide Dynamic Range (D-WDR)
• True Mechanical Day/Night function by ICR

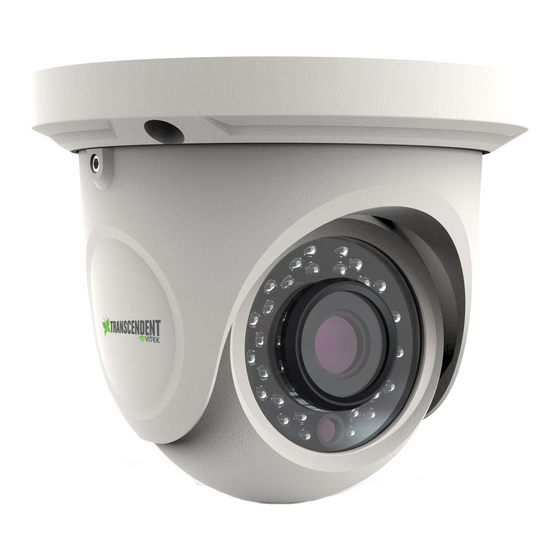

VTD-THD5R3
VTC-THT5R3
VTC-THB5R3
Transcendent 5.0 Megapixel Indoor/
Outdoor 4-IN-1 HDA Cameras w/IR LED
• 2D-DNR Noise Reduction
• IP66 Weather Resistance & IK10 Impact Rating
• Supports Up The COAX Control
• Over 1500' HD Video Transmission (Depending on
cable characteristics and integrity)
• Optional Junction Box & Wall Mounts Available
• 12VDC Operation
• 3 Year Warranty
Illumination
Advertisement
Table of Contents
Related Manuals for Vitek VTC-THT5R3
Summary of Contents for Vitek VTC-THT5R3
- Page 1 VTD-THD5R3 VTC-THT5R3 VTC-THB5R3 Transcendent 5.0 Megapixel Indoor/ Outdoor 4-IN-1 HDA Cameras w/IR LED Illumination FEATURES • 1/2.5” 5.0 Megapixel Progressive Scan CMOS • 2D-DNR Noise Reduction Sensor • IP66 Weather Resistance & IK10 Impact Rating • High Definition Analog (HDA): HD-TVI & AHD: 5.0 •...
-
Page 2: Safety Precaution
Limited Product Warranty To prevent electrical shock and risk of fire hazards, do not expose this unit VITEK products carry a three (3) year limited warranty. VITEK warrants to to rain or moisture and only use specified power source.. the purchaser that products manufactured by VITEK are free of any rightful... -
Page 3: Video Connection
VTC-THB5R3 Components Video Connection Connect the BNC video connector to a BNC cable, then to a DVR. Camera Screws Monitor User Manual Drill Template Overview Video Video Output Mode Switch: Select the desired video mode using the dip switches contained within the on-cable Output Mode Switch as follows: HD-TVI CVBS... -
Page 4: Installation
Installation Before you begin, please make sure that the wall or ceiling is strong 3. Loosen the mount lock to adjust the Pan and Tilt of the camera, then enough to withstand 3 times the weight of the camera. The mounting tighten the mount lock to secure the viewing angle adjustments. - Page 5 VTC-THT5R3 Components Video Connection Connect the BNC video connector to a BNC cable, then to a DVR. Monitor Camera Hex Wrench Manual Mounting Plate Screws Rubber Plug Overview Video Video Output Mode Switch: Select the desired video mode using the dip switches contained...
- Page 6 Installation Before you begin, please make sure that the wall or ceiling is strong 4. Tighten the lock screws to secure the viewing angle adjustments. enough to withstand 3 times the weight of the camera. The mounting steps are as follows: 1.
- Page 7 Video Connection VTD-THD2RFE Components Connect the BNC video connector to a BNC cable, then to a DVR. Monitor Camera Screws Manual Hex Wrench Drill Template Overview Video Video Output Mode Switch: Select the desired video mode using the dip switches contained within the on-cable Output Mode Switch as follows: HD-TVI CVBS...
- Page 8 Installation Before beginning installation, make sure that the wall or ceiling is 4. Adjust the Three-axis camer bracket to obtain the optimium strong enough to withstand 3 times the weight of the camera. The viewing angle. mounting steps are as follows: 1.
-
Page 9: Camera Osd Menu
Camera OSD Menu The Transcendent 4-in1 camera series must be connected to a DVR which supports HD-TVI/AHD video signal input and COC protocol to access the OSD setup menu. Different DVRs manufacturers may have different modes of menu operation. The Following image will pop-up when you left click once on the image when using Transcendent HDA DVR's. - Page 10 Detailed Specifications VTC-THB5R3 VTC-THT5R3 VTD-THD5R3 Image Sensor 1/2.5” 5.0 Megapixel Progressive Scan CMOS Sensor Signal System PAL/NTSC Effective Pixels 2592 x 1944 Resolution HD-TVI & AHD: 5.0 MegaPixel / CVI: 4.0 MegaPixel / CVBS: 960H Video Output HD-TVI / AHD / CVI / CVBS (Selectable)
- Page 11 TRANSCENDENT VARIFOCAL 4-IN-1 CAMERAS ALSO AVAILABLE! VTD-THD5RV VTC-THB5RV Transcendent 5.0 Megapixel Indoor/ Transcendent 5.0 Megapixel Indoor/ Outdoor 4-IN-1 HDA Varifocal Dome Outdoor 4-IN-1 HDA Varifocal Bullet Camera w/30 IR LED Illumination Camera w/36 IR LED Illumination OPTIONAL MOUNTS FOR FIXED TRANSCENDENT CAMERAS VT-TJB01 VT-TJB03A VT-TWMT3...
- Page 12 Version 1.0 28492 CONSTELLATION ROAD VALENCIA, CA 91355 December 2017 WWW.VITEKCCTV.COM...
