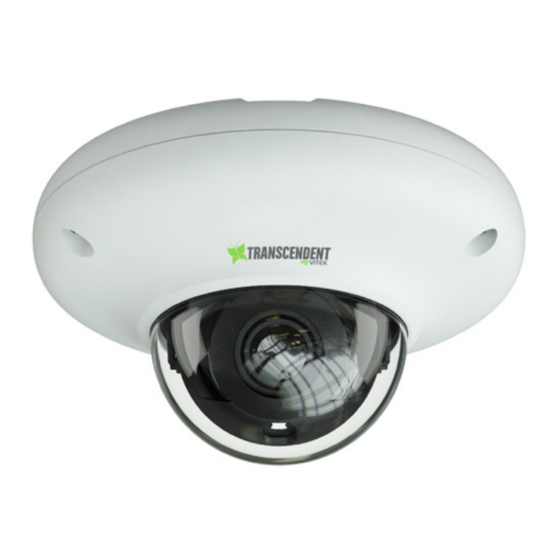

Vitek Transcendent Series Quick Start Manual

Fixed ip vandal dome camera
Hide thumbs Also See for Transcendent Series:
Table of Contents

Advertisement

Quick Links

Download this manual

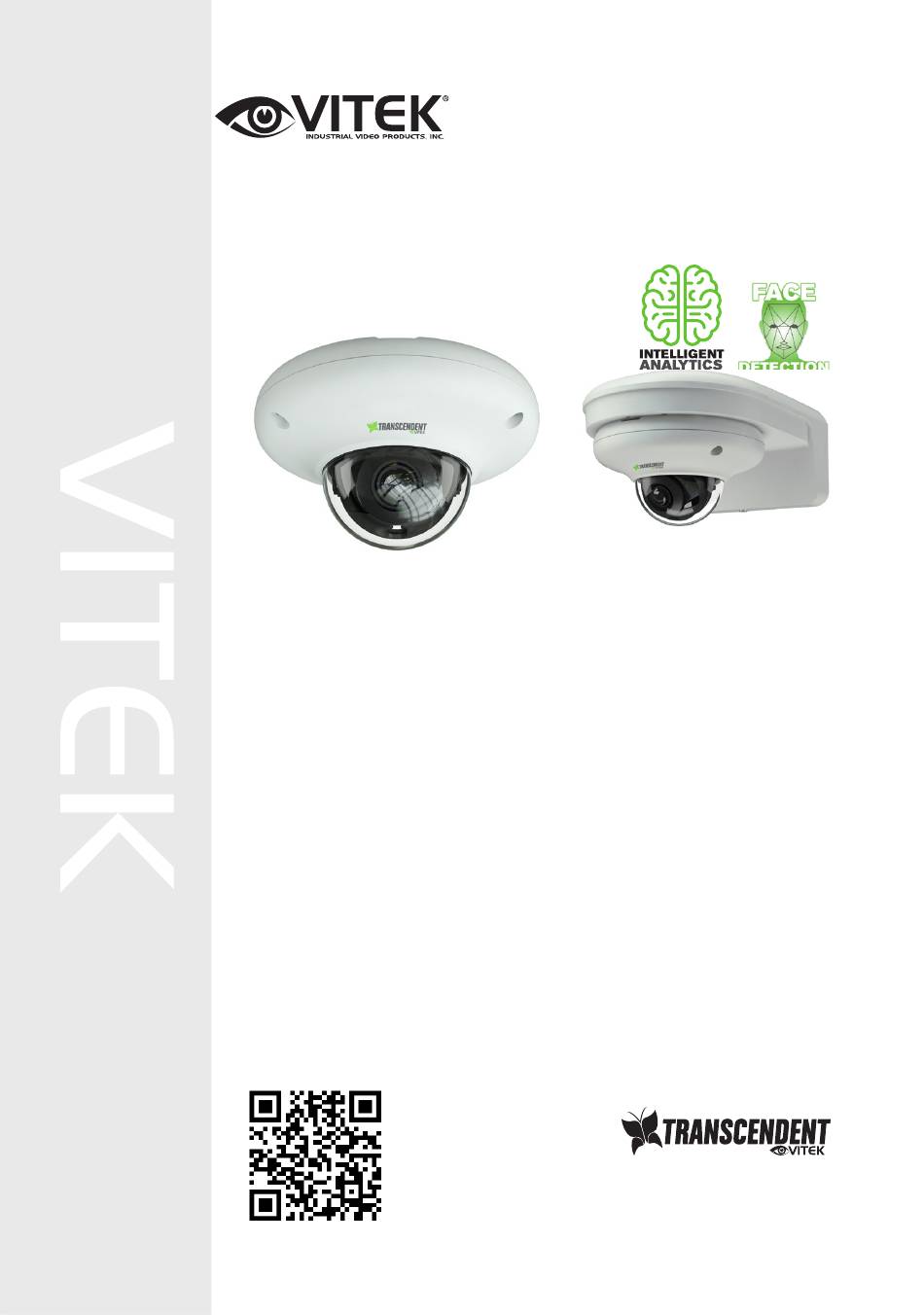

QUICK START GUIDE
FEATURES:
• 1/3" 4.0 Megapixel Progressive Scan CMOS image sensor
• Up to 30fps live view @ 4 MegaPixel (2592x1520)
• 2.8mm Fixed Iris Lens
• Matrix IR with up to 65' IR Range
• 120dB Super Wide Dynamic Range (WDR)
• True Mechanical Day/Night function by ICR
• XD-DNR (2D-DNR & 3D-DNR) Noise Reduction
• Gen. III Advanced Analytics including Object Removal/Museum
Search, Line Crossing, and Area Intrusion Detection
• Smart H.265/H.265+/H.265/H.264/MJPEG Triple Streaming
• Remote Viewing via VMS, Internet Explorer, and iOS & Android
Apps
• ONVIF Compliant
• MicroSD memory card slot for Local recording supporting up to
256GB
• IP66 Weather Resistance
• Built-In Microphone*
• 12VDC & PoE (Power over Ethernet) Operation
VTD-TNMD4RFA3-2
Transcendent Series 4 MegaPixel
Gen. III Advanced A.I. Fixed IP
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
Vandal Dome Camera
*Shown with optional wall
mount VT-TWMT-3
