FEATURES
• 1/2.7" 5.0 MegaPixel Progressive Scan CMOS Image Sensor
• High Definition Analog (HDA): HD-TVI / AHD: 5.0MP
/ HD-CVI: 4.0MP / CVBS: 960H Video Output
• 3.6 or 2.8mm Fixed Iris Lens Options
• Supports OSD Menu
• Matrix IR with up to 165' IR Range (VTC-THB5R3/R2)
• Matrix IR with up to 100' IR Range (VTC-THT5R3/R2)
• 16 IR LEDs with up to 65' IR Range (VTD-THD5R3/R2)
• True Mechanical Day/Night function by ICR
• Digital Wide Dynamic Range (D-WDR)
• XD-DNR Noise Reduction
• IP67 Weather Resistance (+IK10 on VTD-THD5R3/R2)
VTC-THB5R3/R2
VTC-THT5R3/R2
VTD-THD5R3/R2

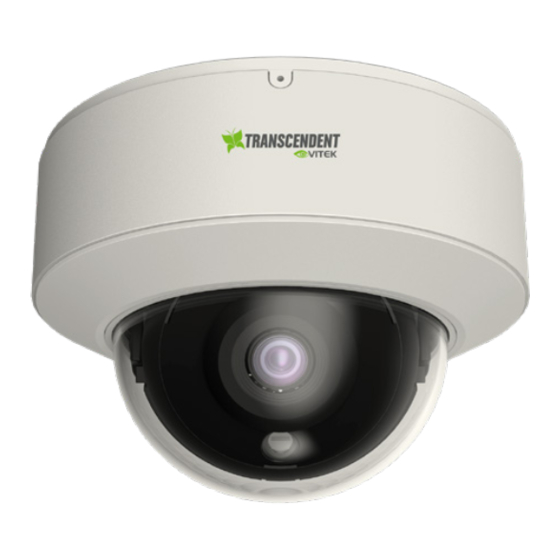

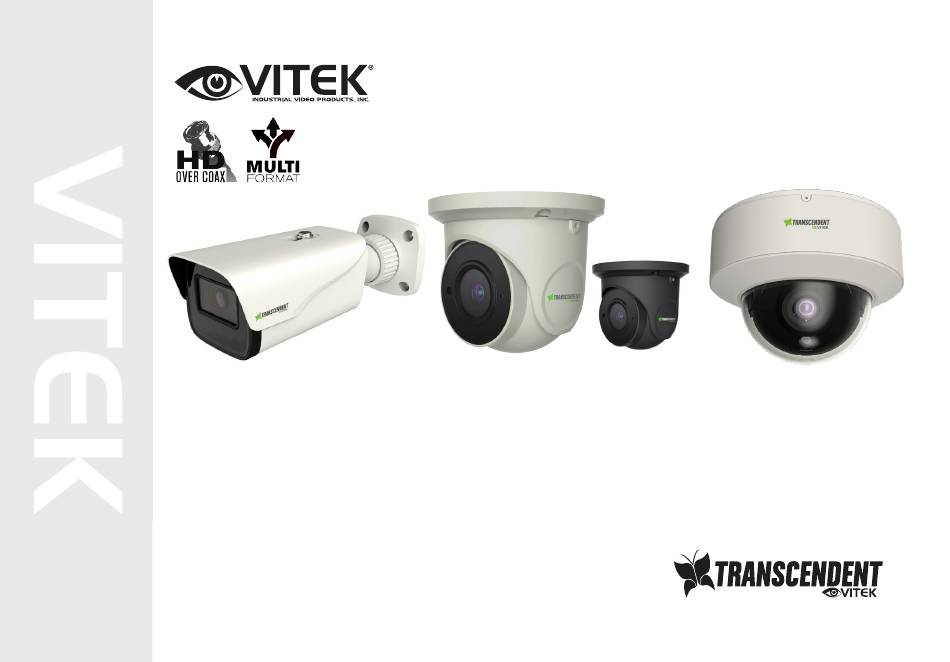

Transcendent 5.0 Megapixel Indoor/Outdoor
4-in-1 Fixed Lens Cameras
• Supports Control over COAX (CoC)
• Over 1500' HD Video Transmission (Depending on cable
characteristics and integrity)
• VTC-THB5R3/R2: J Box - TJB08
VTC-THT5R3/R2: J Boxes - VT-TJB01, TJB08, Wall Mount VT-TWMT-3
VTD-THD5R3/R2: J Box - VT-TJB03A, Wall Mount VT-TWMT-3,
In-ceiling Semi Flush Mount VT-TFMT-S
*Corner and pole adapters also available - see rear page
•
VTC-THT5R3/R2 also Available in Charcoal (VTC-THT5R3B/2B)
•
12VDC Operation
•
3-year Warranty
Advertisement
Table of Contents
Related Manuals for Vitek TRANSCENDENT VTD-THD5R3
Summary of Contents for Vitek TRANSCENDENT VTD-THD5R3
- Page 1 All manuals and user guides at all-guides.com VTC-THB5R3/R2 VTC-THT5R3/R2 VTD-THD5R3/R2 Transcendent 5.0 Megapixel Indoor/Outdoor 4-in-1 Fixed Lens Cameras FEATURES • 1/2.7” 5.0 MegaPixel Progressive Scan CMOS Image Sensor • Supports Control over COAX (CoC) • High Definition Analog (HDA): HD-TVI / AHD: 5.0MP •...
-
Page 2: Safety Precaution
All manuals and user guides at all-guides.com Safety Precaution To prevent electrical shock and risk of fire hazards, do not expose this unit to rain or moisture and only use specified power source.. CAUTION: TO REDUCE THE RISK OF ELECTICAL SHOCK, DO NOT REMOVE COVER (OR BACK). -
Page 3: Video Connection
All manuals and user guides at all-guides.com Video Connection VTC-THB5R3/R2 - Components Connect the BNC video connector to a BNC cable, then to a DVR. Monitor Camera Screws Manual Allen Key Drill Template Video Video Output Mode Switch: Overview Video Switch Cable This series supports TVI/AHD/CVI/CVBS video output. -
Page 4: Installation
All manuals and user guides at all-guides.com 2. Route the cables and connect the power & video cables, use the Installation rubber plug to fill the gap of the mounting base, then secure the Before beginning installation, make mounting base to the ceiling or wall with screws. sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. - Page 5 All manuals and user guides at all-guides.com VTC-THT5R3/R2 Components Video Connection Connect the BNC video connector to a BNC cable, then to a DVR. Monitor Camera Allen Keyt Manual Mounting Plate Screws Rubber Plug Overview Video Video Output Mode Switch: Video Switch Cable This series supports TVI/AHD/CVI/CVBS video output.
- Page 6 All manuals and user guides at all-guides.com Installation Before you begin, please make sure that the wall or ceiling is strong 4. Tighten the lock screws to secure the viewing angle adjustments. enough to withstand 3 times the weight of the camera. The mounting steps are as follows: 1.
- Page 7 All manuals and user guides at all-guides.com Video Connection VTD-THD5R2/R3 Components Connect the BNC video connector to a BNC cable, then to a DVR. Monitor Camera Screws Manual Allen Key Drill Template Video Overview Video Output Mode Switch: Video Switch Cable This series supports TVI/AHD/CVI/CVBS video output.
- Page 8 All manuals and user guides at all-guides.com Installation 4. Adjust the Three-axis camera bracket to obtain the optimium viewing angle. Before beginning installation, make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. The mounting steps are as follows: Pan: 0°~240°...
-
Page 9: Camera Osd Menu
All manuals and user guides at all-guides.com Camera OSD Menu The Transcendent 4-in1 camera series must be connected to a DVR which supports HD-TVI/AHD video signal input and COC protocol to access the OSD setup menu. Different DVRs manufacturers may have different modes of menu operation. - Page 10 All manuals and user guides at all-guides.com Detailed Specifications VTC-THB5R3/R2 VTC-THT5R3(B)/R2(B) VTD-THD5R3/R2 1/2.7” 5.0 Megapixel Progressive Scan CMOS Sensor Image Sensor PAL / NTSC Signal System 2560 x 1936 Effective Pixels Resolution HD-TVI & AHD: 5.0 MegaPixel / CVI: 4.0 MegaPixel / CVBS: 960H Video Output HD-TVI / AHD / CVI / CVBS (Selectable) Lens...
- Page 11 CONSIDER THESE OTHER GREAT TRANSCENDENT PRODUCTS! VT-TR4K VT-TR4VPK Passive Video Balun Video and Transmitter / Power Balun Pair with VITEK Transcendent Receiver Pair for Transmitter / Reciver Series 5-in-1 Digital Video Recorders Pair for HD-TVI / HDI-TVI / AHD / CVI...
-
Page 12: Limited Product Warranty
All manuals and user guides at all-guides.com Limited Product Warranty VITEK products carry a three (3) year limited warranty. VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended,...
