• 1/2.7" 5.0 MegaPixel Progressive Scan CMOS Image Sensor
• High Definition Analog (HDA): HD-TVI / AHD: 5.0MP /
HD-CVI: 4.0MP / CVBS: 960H Video Output
• 2.8~12mm Motorized Varifocal Lens
• Supports OSD Menu
• 2 Matrix IRs with up to 165' IR Range (VTC-THB5RM)
• 2 Matrix IRs with up to 165' IR Range (VTC-THT5RM)
• 30 IR LEDs with up to 100' IR Range (VTD-THD5RM)
• True Mechanical Day/Night function by ICR
• Digital Wide Dynamic Range (D-WDR)
• Digital Noise Reduction (DNR)
• IP67 Weather Resistance (+IK10 on VTD-THD5RM)
• Supports Control over COAX (CoC)
Transcendent 5.0 Megapixel Indoor/Outdoor
HD-TVI/AHD/CVI/CVBS Motorized Lens IR Cameras
• Over 1500' HD Video Transmission (Depending on cable
characteristics and integrity)
• VTC-THB5RM: J Boxes - VT-TJB07, TJB08
VTC-THT5RM: J Boxes ( VT-TJB01, VT-TJB021), Wall Mounts
(VT-TWM03, VT-TWMT-4) and Pendant Mounts (VT-TPDM-2
[use w/ VT-TJB01], VT-TPDM-3 [use w/ VT-TJB021])
VTD-THD5RM: J Boxes (VT-TJB02A, VT-TJB021), Wall Mounts
(VT-TWM03, VT-TWMT-A1), Pendant Mounts (VT-TPDMT-A1
[use w/ VT-TJB02A],VT-TPDM-3 [use w/ VT-TJB021]) and
In-Ceiling Semi Flush Mount (VT-TFMT-L)
•
12VDC Operation
•
3-year Warranty

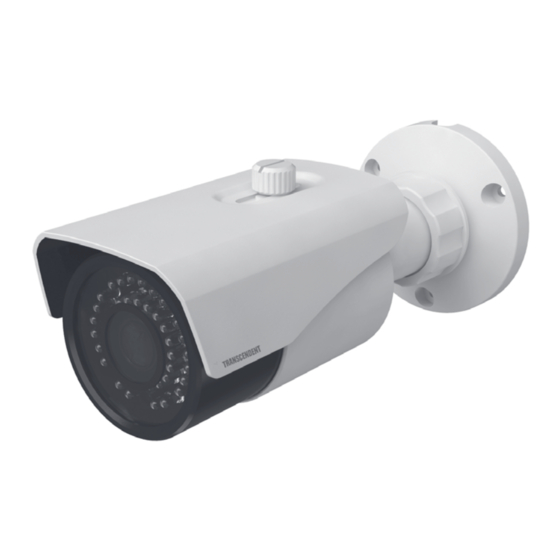

VTC-THB5RM
VTC-THT5RM
VTD-THD5RM
Advertisement
Table of Contents
Related Manuals for Vitek Transcendent VTC-THB5RM
Summary of Contents for Vitek Transcendent VTC-THB5RM

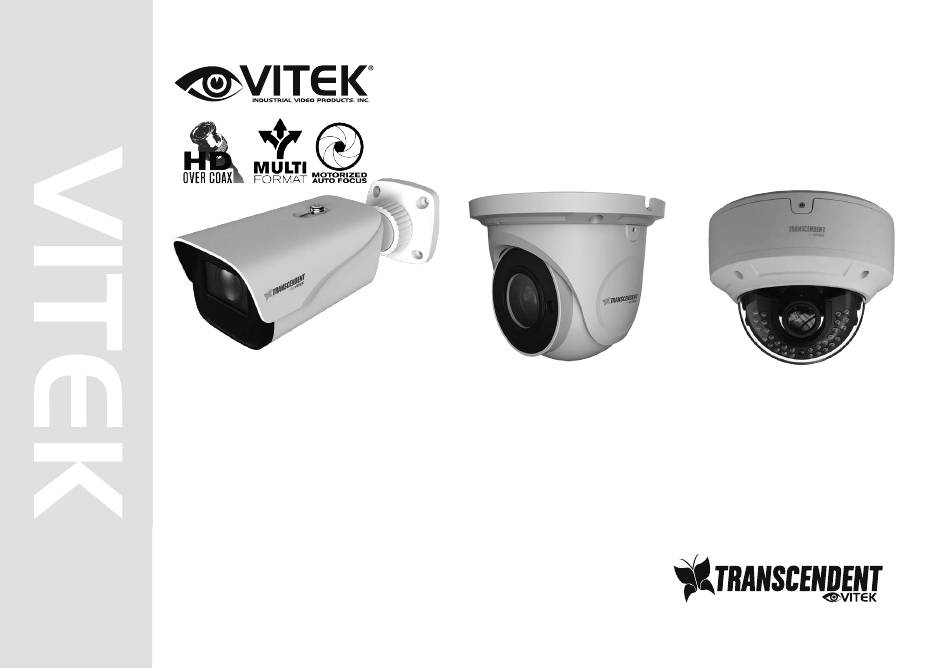

- Page 1 VTC-THB5RM VTC-THT5RM VTD-THD5RM Transcendent 5.0 Megapixel Indoor/Outdoor HD-TVI/AHD/CVI/CVBS Motorized Lens IR Cameras • 1/2.7” 5.0 MegaPixel Progressive Scan CMOS Image Sensor • Over 1500’ HD Video Transmission (Depending on cable • High Definition Analog (HDA): HD-TVI / AHD: 5.0MP / characteristics and integrity) HD-CVI: 4.0MP / CVBS: 960H Video Output •...
-
Page 2: Safety Precautions
Safety Precautions To prevent electrical shock and risk of fire hazards, do not expose this unit to rain or moisture and only use specified power source. CAUTION: TO REDUCE THE RISK OF ELECTICAL SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. -
Page 3: Video Connection
Video Connection VTC-THB5RM - Components Connect the BNC video connector to a BNC cable, then to a DVR. Monitor Camera Screws Manual Hex Wrench Drill Template Video Video Output Mode Switch: Overview This series supports AHD/TVI/CVI/CVBS video output. The video output can be changed by pressing and holding the button in the video switch cable for 5 seconds (the default video output is TVI video output). -
Page 4: Installation
2. Route the cables and connect the power & video cables, use the Installation rubber plug to fill the gap of the mounting base, then secure the Before beginning installation, make mounting base to the ceiling or wall with screws. sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. - Page 5 VTC-THT5RM Components Video Connection Connect the BNC video connector to a BNC cable, then to a DVR. Monitor Camera Hex Wrench Manual Mounting Plate Screws Rubber Plug Overview Video Video Output Mode Switch: This series supports TVI /AHD/CVI/CVBS video output. The video output can be changed by holding and pressing the button in the video switch cable for 5 seconds (the default video output is TVI video output).
- Page 6 Installation Before you begin, please make sure that the wall or ceiling is strong 4. Tighten the lock screws to secure the viewing angle adjustments. enough to withstand 3 times the weight of the camera. The mounting steps are as follows: 1.
- Page 7 Video Connection VTD-THD5RM Components Connect the BNC video connector to a BNC cable, then to a DVR. Monitor Camera Screws Manual Hex Wrench Drill Template Overview Video Video Output Mode Switch: This series supports TVI /AHD/CVI/CVBS video output. The video output can be changed by holding and pressing the button in the video switch cable for 5 seconds (the default video output is TVI video output).
- Page 8 Installation Before you begin, please make sure that the wall or ceiling is strong 4. Install the camera to the mounting base with the lock screw. enough to withstand 3 times the weight of the camera. The mounting steps are as follows: 1.
- Page 9 Adjusting the Motorized Lens 1. Click once on the image you want to adjust and then click on the PTZ icon on the sub toolbar 2. The PTZ screen will open and using the Zoom -/+ the lens in the camera will now Zoom in or out and will auto focus...
-
Page 10: Camera Osd Menu
Camera OSD Menu The Transcendent 4-in1 camera series must be connected to a DVR which supports HD-TVI/AHD video signal input and COC protocol to access the OSD setup menu. Different DVRs manufacturers may have different modes of menu operation. The Following image will pop-up when you left click once on the image when using Transcendent HDA DVR's. - Page 11 Detailed Specifications VTC-THT5RM VTC-THB5RM VTD-THD5RM Image Sensor 1/2.7” 5.0 Megapixel Progressive Scan CMOS Sensor Signal System PAL/NTSC Effective Pixels 2592 x 1944 Resolution HD-TVI & AHD: 5.0 MegaPixel / CVI: 4.0 MegaPixel / CVBS: 960H Video Output HD-TVI / AHD / CVI / CVBS (Selectable) Frame Rate 20fps Lens...
- Page 12 OPTIONAL MOUNTS FOR TRANSCENDENT MOTORIZED CAMERAS VT-TJB02A VT-TJB01 VT-TJB021 VT-TJB07 VT-TJB08 VT-TWMT-4 VT-TWM03 Optional Junction Optional Junction Optional Junction Optional Junction Optional Junction Optional Wall Optional Wall Box for use with Box for use Box for use with Box for use with Box for use with Mount for use Mount for use...
