Vitek VTC-THB8R2 Manual

Transcendent 8.0 megapixel indoor/ outdoor 4-in-1 hda cameras
Hide thumbs Also See for VTC-THB8R2:
Table of Contents

Advertisement

Quick Links

Download this manual
FEATURES
• 1/2.5" 8 MegaPixel [4K] Progressive Scan CMOS image
sensor
• High Definition Analog (HDA) / HD-TVI / AHD / HD-CVI /
CVBS
•
8MP@15fps, 5MP@20fps, 4MP@30fps High Res, True Color
•
Supports OSD Menu
•
2.8mm Fixed Iris Lens
•
1 Matrix IR with up to 100' IR Range (VTC-THB8R2, VTC-
THT8R2), 16 SMD IRs with up to 100' Range (VTD-THD8R2)
•
True Mechanical Day/Night function by ICR
•
XD-DNR Noise Reduction
•
IP67 Weather Resistance

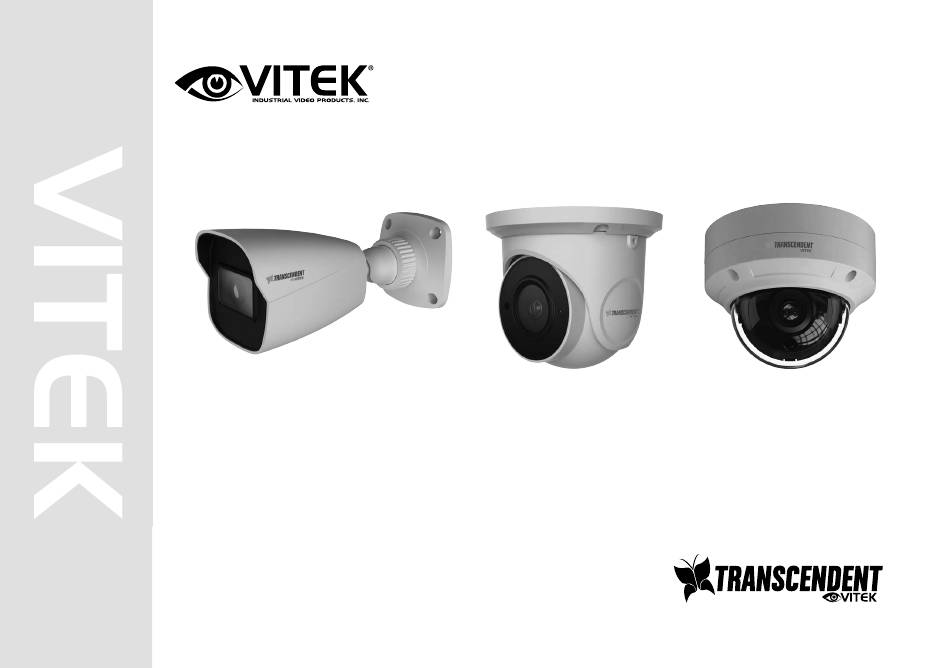

Transcendent 8.0 Megapixel Indoor/
Outdoor 4-IN-1 HDA Cameras
• Supports Up The COAX Control (CoC)
• Over 1500' HD Video Transmission (Depending on cable
characteristics and integrity)
• VTC-THB8R2: J Boxes - VT-TJB07, TJB08
VTC-THT8R2: J Boxes - VT-TJB01, TJB08, Wall Mount VT-TWMT-3
VTD-THD8R2: J Box - VT-TJB03A, Wall Mount VT-TWMT-3,
In-ceiling Semi Flush Mount VT-TFMT-S
•
12VDC Operation
•
3-year Warranty
VTC-THB8R2
VTC-THT8R2
VTD-THD8R2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VTC-THB8R2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vitek VTC-THB8R2

Summary of Contents for Vitek VTC-THB8R2

  • Page 1 VTD-THD8R2: J Box - VT-TJB03A, Wall Mount VT-TWMT-3, • 2.8mm Fixed Iris Lens In-ceiling Semi Flush Mount VT-TFMT-S • 1 Matrix IR with up to 100’ IR Range (VTC-THB8R2, VTC- • 12VDC Operation THT8R2), 16 SMD IRs with up to 100’ Range (VTD-THD8R2) •...

  • Page 2: Safety Precaution

    Safety Precaution To prevent electrical shock and risk of fire hazards, do not expose this unit to rain or moisture and only use specified power source.. CAUTION: TO REDUCE THE RISK OF ELECTICAL SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.

  • Page 3: Video Connection

    VTC-THB8R2 Components Video Connection Connect the BNC video connector to a BNC cable, then to a DVR. Camera Screws Monitor User Manual Drill Template Overview Video Video Output Mode Switch: This series supports AHD/TVI/CVI/CVBS video output. The video output can be changed by pressing and holding the button in the video switch cable for 5 seconds (the default video output is TVI video output).

  • Page 4: Installation

    Installation 2. Route the cables and connect the power & video cables, use the rubber plug to fill the gap of the mounting base. then secure the Before you begin, please make sure that the wall or ceiling is strong mounting base to the ceiling or wall with screws.

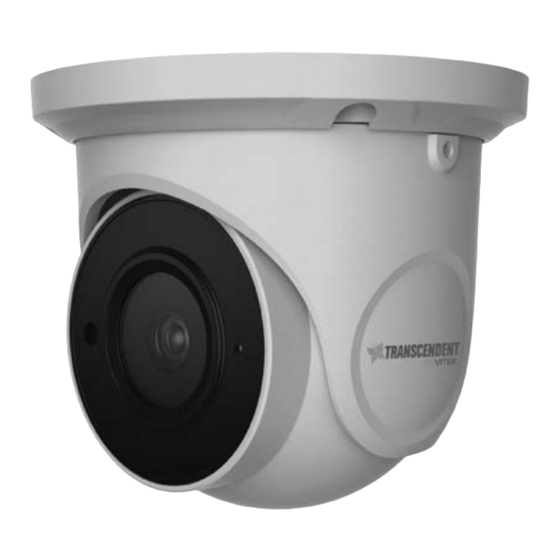

  • Page 5 VTC-THT8R2 Components Video Connection Connect the BNC video connector to a BNC cable, then to a DVR. Monitor Camera Hex Wrench Manual Mounting Plate Screws Rubber Plug Overview Video Video Output Mode Switch: This series supports AHD/TVI/CVI/CVBS video output. The video output can be changed by pressing and holding the button in the video switch cable for 5 seconds (the default video output is TVI video output).
  • Page 6 Installation Before you begin, please make sure that the wall or ceiling is strong 4. Tighten the lock screws to secure the viewing angle adjustments. enough to withstand 3 times the weight of the camera. The mounting steps are as follows: 1.
  • Page 7 Video Connection VTD-THD8R2 Components Connect the BNC video connector to a BNC cable, then to a DVR. Monitor Camera Screws Manual Hex Wrench Drill Template Video Overview Video Output Mode Switch: This series supports AHD/TVI/CVI/CVBS video output. The video output can be changed by holding and pressing the button in the video switch cable for 5 seconds (the default video output is AHD video output).
  • Page 8 Installation Before beginning installation, make sure that the wall or ceiling is 4. Adjust the Three-axis camer bracket to obtain the optimium strong enough to withstand 3 times the weight of the camera. The viewing angle. mounting steps are as follows: 1.

  • Page 9: Camera Osd Menu

    Camera OSD Menu The Transcendent 4-in1 camera series must be connected to a DVR which supports HD-TVI/AHD video signal input and COC protocol to access the OSD setup menu. Different DVRs manufacturers may have different modes of menu operation. The Following image will pop-up when you left click once on the image when using Transcendent HDA DVR's.
  • Page 10 Detailed Specifications VTC-THB8R2 VTC-THT8R2 VTD-THD8R2 1/2.5” 8.0 Megapixel Progressive Scan CMOS Sensor Image Sensor Signal System PAL/NTSC 3840 x 2160 Effective Pixels HD-TVI & AHD: 8.0 MegaPixel / CVI: 4.0 MegaPixel / CVBS: 960H Resolution HD-TVI / AHD / CVI / CVBS (Selectable)
  • Page 11 Transcendent Fixed Lens Turrets and Domes. for use with Select use with Select Transcendent Bullet Transcendent and Turret Style Cameras including Cameras including VTC-THT8R2, VTC-THB8R2. VTC-THT8R2. VT-TJB07 VT-TJB03A VT-TFM-S Optional Junction Optional Junction Optional In-Ceiling Box for Cable Box for Cable Management...

  • Page 12: Limited Product Warranty

    Limited Product Warranty VITEK products carry a three (3) year limited warranty. VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended,...

This manual is also suitable for:

Vtc-tht8r2Vtd-thd8r2
