FEATURES
• 1/2.5" 5.0 Megapixel Progressive Scan CMOS
Sensor
•
High Definition Analog (HDA): HD-TVI & AHD: 5.0
MegaPixel / CVI: 4.0 MegaPixel / CVBS: 960H
Video Output
• 2.8-12mm Motorized Varifocal Lens
• Infrared LED's with up to 120' IR Range
• Digital Wide Dynamic Range (D-WDR)
• True Mechanical Day/Night function by ICR

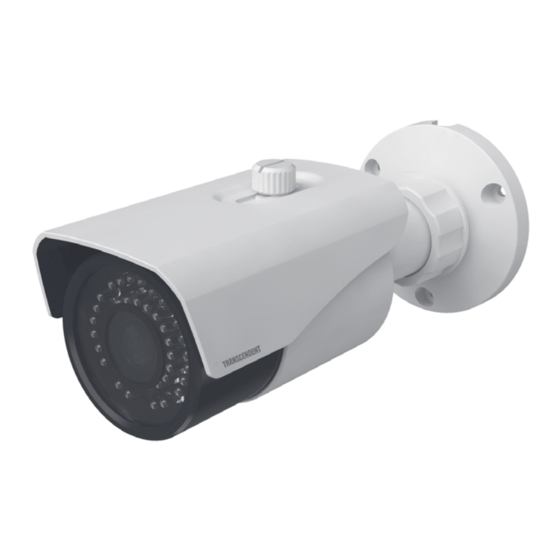

Transcendent 5.0 Megapixel Indoor/
Outdoor 4-IN-1 HDA Cameras w/IR LED
Illumination & Motorized Varifocal Lens
• 3D-DNR Noise Reduction
• IP66 Weather Resistance
• Supports Up The COAX Control
• Over 1500' HD Video Transmission (Depending on
cable characteristics and integrity)
• Optional Mounts Available
• 12VDC Operation
• 3 Year Warranty
Advertisement
Related Manuals for Vitek Transcendent VTC-THB5RM
Summary of Contents for Vitek Transcendent VTC-THB5RM
- Page 1 Transcendent 5.0 Megapixel Indoor/ Outdoor 4-IN-1 HDA Cameras w/IR LED Illumination & Motorized Varifocal Lens FEATURES • 1/2.5” 5.0 Megapixel Progressive Scan CMOS • 3D-DNR Noise Reduction Sensor • IP66 Weather Resistance • High Definition Analog (HDA): HD-TVI & AHD: 5.0 •...
-
Page 2: Safety Precaution
Limited Product Warranty To prevent electrical shock and risk of fire hazards, do not expose this unit VITEK products carry a three (3) year limited warranty. VITEK warrants to to rain or moisture and only use specified power source.. the purchaser that products manufactured by VITEK are free of any rightful... - Page 3 VTC-THB5RM Components Video Connection Connect the BNC video connector to a BNC cable, then to a DVR. Camera Screws Monitor User Manual Drill Template Overview Video Video Output Mode Switch: This series supports TVI /AHD/CVI/CVBS video outp ut. The video output can be changed by holding and pressing the button in the video switch cable for 5 seconds (the default video output is TVI).
-
Page 4: Installation
Installation Before you begin, please make sure that the wall or ceiling is strong 3. Loosen the mount lock to adjust the Pan and Tilt of the camera, then enough to withstand 3 times the weight of the camera. The mounting tighten the mount lock to secure the viewing angle adjustments. - Page 5 Video Connection VTD-THD5RM Components Connect the BNC video connector to a BNC cable, then to a DVR. Monitor Camera Screws Manual Hex Wrench Drill Template Overview Video Video Output Mode Switch: This series supports TVI /AHD/CVI/CVBS video output. The video output can be changed by holding and pressing the button in the video switch cable for 5 seconds (the default video output is TVI video output).
- Page 6 Installation Before you begin, please make sure that the wall or ceiling is strong 4. Install the camera to the mounting base with the lock screw. enough to withstand 3 times the weight of the camera. The mounting steps are as follows: 1.
- Page 7 VTC-THT5RM Components Video Connection Connect the BNC video connector to a BNC cable, then to a DVR. Monitor Camera Hex Wrench Manual Mounting Plate Screws Rubber Plug Overview Video Video Output Mode Switch: This series supports TVI /AHD/CVI/CVBS video output. The video output can be changed by holding and pressing the button in the video switch cable for 5 seconds (the default video output is TVI video output).
- Page 8 Installation Before you begin, please make sure that the wall or ceiling is strong 4. Tighten the lock screws to secure the viewing angle adjustments. enough to withstand 3 times the weight of the camera. The mounting steps are as follows: 1.
- Page 9 Adjusting the Motorized Lens 1. Click once on the image you want to adjust and then click on the PTZ icon on the sub toolbar 2. The PTZ screen will open and using the Zoom -/+ the lens in the camera will now Zoom in or out and will auto focus...
-
Page 10: Camera Osd Menu
Camera OSD Menu The Transcendent 4-in1 camera series must be connected to a DVR which supports HD-TVI/AHD video signal input and COC protocol to access the OSD setup menu. Different DVRs manufacturers may have different modes of menu operation. The Following image will pop-up when you left click once on the image when using Transcendent HDA DVR's. - Page 11 Detailed Specifications VTC-THB5RM VTC-THT5RM VTD-THD5RM Image Sensor 1/2.5” 5.0 Megapixel Progressive Scan CMOS Sensor Signal System PAL/NTSC Effective Pixels 2592 x 1944 Resolution HD-TVI & AHD: 5.0 MegaPixel / CVI: 4.0 MegaPixel / CVBS: 960H Video Output HD-TVI / AHD / CVI / CVBS (Selectable) Frame Rate 20fps Lens...
