Vitek VTC-THB5R3 Manual

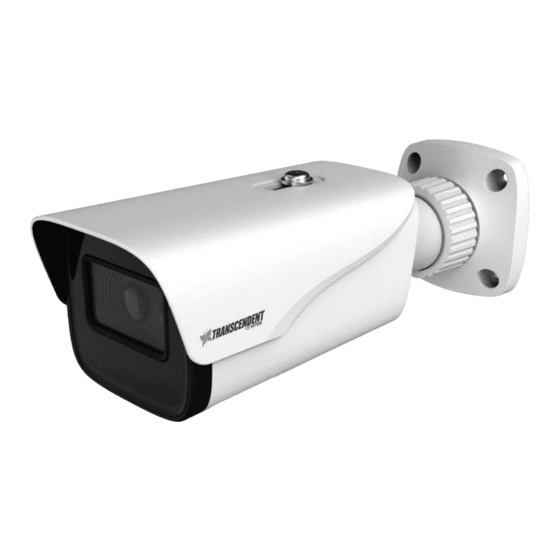

Transcendent 5.0 megapixel indoor/outdoor hd-tvi/ahd/cvi/cvbs fixed lens ir cameras
Hide thumbs Also See for VTC-THB5R3:
Table of Contents

Advertisement

Quick Links

Download this manual
FEATURES
• 1/2.7" 5.0 MegaPixel Progressive Scan CMOS Image Sensor
• High Definition Analog (HDA): HD-TVI / AHD: 5.0MP /
HD-CVI: 4.0MP / CVBS: 960H Video Output
• 3.6 or 2.8mm Fixed Iris Lens Options
• Supports OSD Menu
• 2 Matrix IRs with up to 165' IR Range (VTC-THB5R3/R2)
• 1 Matrix IR with up to 100' IR Range (VTC-THT5R3/R2)
• 16 IR LEDs with up to 65' IR Range (VTD-THD5R3/R3)
• True Mechanical Day/Night function by ICR
• Digital Wide Dynamic Range (D-WDR)
• XD-DNR Noise Reduction
• IP67 Weather Resistance (+IK10 on VTD-THD5R3/R2)
VTC-THB5R3/R2
VTC-THT5R3/R2
VTD-THD5R3/R2
Transcendent 5.0 Megapixel Indoor/Outdoor
HD-TVI/AHD/CVI/CVBS Fixed Lens IR Cameras
• Supports Control over COAX (CoC)
• Over 1500' HD Video Transmission (Depending on cable
characteristics and integrity)
• VTC-THB5R3/R2: J Boxes - VT-TJB07, TJB08
VTC-THT5R3/R2: J Boxes - VT-TJB01, TJB08, Wall Mount VT-TWMT-3
VTD-THD5R3/R2: J Box - VT-TJB03A, Wall Mount VT-TWMT-3,
In-ceiling Semi Flush Mount VT-TFMT-S
•
12VDC Operation
•
3-year Warranty

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VTC-THB5R3 and is the answer not in the manual?

Questions and answers

Related Manuals for Vitek VTC-THB5R3

Summary of Contents for Vitek VTC-THB5R3

  • Page 1 • Supports OSD Menu VTC-THT5R3/R2: J Boxes - VT-TJB01, TJB08, Wall Mount VT-TWMT-3 • 2 Matrix IRs with up to 165’ IR Range (VTC-THB5R3/R2) VTD-THD5R3/R2: J Box - VT-TJB03A, Wall Mount VT-TWMT-3, • 1 Matrix IR with up to 100’ IR Range (VTC-THT5R3/R2) In-ceiling Semi Flush Mount VT-TFMT-S •...

  • Page 2: Safety Precautions

    Safety Precautions To prevent electrical shock and risk of fire hazards, do not expose this unit to rain or moisture and only use specified power source.. CAUTION: TO REDUCE THE RISK OF ELECTICAL SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.

  • Page 3: Video Connection

    Video Connection VTC-THB5R3/R2 - Components Connect the BNC video connector to a BNC cable, then to a DVR. Monitor Camera Screws Manual Hex Wrench Drill Template Video Video Output Mode Switch: Overview This series supports AHD/TVI/CVI/CVBS video output. The video output can be changed by pressing and holding the button in the video switch cable for 5 seconds (the default video output is TVI video output).

  • Page 4: Installation

    2. Route the cables and connect the power & video cables, use the Installation rubber plug to fill the gap of the mounting base, then secure the Before beginning installation, make mounting base to the ceiling or wall with screws. sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera.
  • Page 5 VTC-THT5R3/R2 Components Video Connection Connect the BNC video connector to a BNC cable, then to a DVR. Monitor Camera Hex Wrench Manual Mounting Plate Screws Rubber Plug Overview Video Video Output Mode Switch: This series supports AHD/TVI/CVI/CVBS video output. The video output can be changed by pressing and holding the button in the video switch cable for 5 seconds (the default video output is TVI video output).
  • Page 6 Installation Before you begin, please make sure that the wall or ceiling is strong 4. Tighten the lock screws to secure the viewing angle adjustments. enough to withstand 3 times the weight of the camera. The mounting steps are as follows: 1.
  • Page 7 Video Connection VTD-THD5R3/R2 Components Connect the BNC video connector to a BNC cable, then to a DVR. Monitor Camera Screws Manual Hex Wrench Drill Template Video Overview Video Output Mode Switch: This series supports AHD/TVI/CVI/CVBS video output. The video output can be changed by holding and pressing the button in the video switch cable for 5 seconds (the default video output is AHD video output).
  • Page 8 Installation Before beginning installation, make sure that the wall or ceiling is 4. Adjust the Three-axis camer bracket to obtain the optimium strong enough to withstand 3 times the weight of the camera. The viewing angle. mounting steps are as follows: 1.

  • Page 9: Camera Osd Menu

    Camera OSD Menu The Transcendent 4-in1 camera series must be connected to a DVR which supports HD-TVI/AHD video signal input and COC protocol to access the OSD setup menu. Different DVRs manufacturers may have different modes of menu operation. The Following image will pop-up when you left click once on the image when using Transcendent HDA DVR's.
  • Page 10 Detailed Specifications VTC-THB5R3/R2 VTC-THT5R3/R2 VTD-THD5R3/R2 1/2.7” 5.0 Megapixel Progressive Scan CMOS Sensor Image Sensor Signal System PAL/NTSC 2592 x 1944 Effective Pixels HD-TVI & AHD: 5.0 MegaPixel / CVI: 4.0 MegaPixel / CVBS: 960H Resolution HD-TVI / AHD / CVI / CVBS (Selectable)
  • Page 11 OPTIONAL MOUNTS AND ACCESSORIES FOR FIXED LENS TRANSCENDENT HD COAX CAMERAS VT-TJB01 VT-TJB08 VT-TWMT3 Optional Junction Optional Junction Optional Wall Mount Box for Cable Box for Cable for use with Select Management Management for Transcendent Fixed for use with Select use with Select Lens Turrets and Dome Transcendent Bullet...

  • Page 12: Limited Product Warranty

    Limited Product Warranty VITEK products carry a three (3) year limited warranty. VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended,...
