QUICK START GUIDE
FEATURES:
• 1/3" 4.0 Megapixel CMOS Image Sensor
• Up to 30fps @ 4MP (2560 × 1440), 3MP (2304 × 1296), 1080P (1920 × 1080), 720P
(1280 × 720), D1, CIF, 480 × 240
• 2.8mm Fixed Iris Lens
• Matrix IR with up to 100' IR Range
• True 120dB Wide Dynamic Range
• True Mechanical Day/Night function by ICR
• XD-DNR (3D & 2D-DNR) Noise Reduction
• Built-in Mic*
• Programmable Analytics: Region Intrusion Detection, Object Removal / Missing, Scene
Change Detection, Line Crossing, Video Blur, Video Cast Detection
• Compression - Main stream: H.265+ / H.265 / H.264+ / H.264
Compression - Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
• MicroSD Card Slot for Local Recording (Up to 256GB)
• Remote Viewing via CMS, Internet Explorer, and iOS & Android Apps
• ONVIF Compliant
• IP67 Weather Resistance + IK10 Impact
• Optional Junction Box (VT-TJB03A), Wall Mount (VT-TWMT3), Pendant Mount (VT-TPDM-1
[reqs. VT-TJB03A]) and In-Ceiling Semi Flush Mount (VT-TFMT-S) Available
• 12VDC & PoE (Power over Ethernet) Operation
*Please research local, state and federal laws regarding the implementation of audio
surveillance.

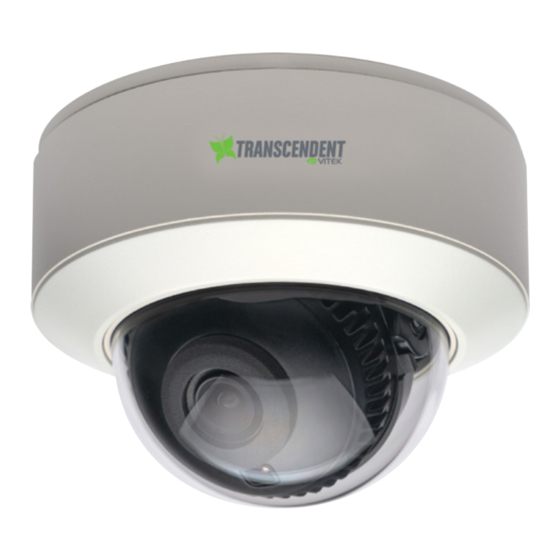

VTD-TND4FLN-2
4 MegaPixel Fixed IP WDR
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
Transcendent Series
Vandal Dome Camera
Advertisement
Related Manuals for Vitek Transcendent VTD-TND4FLN-2
Summary of Contents for Vitek Transcendent VTD-TND4FLN-2
- Page 1 VTD-TND4FLN-2 Transcendent Series 4 MegaPixel Fixed IP WDR Vandal Dome Camera QUICK START GUIDE FEATURES: • 1/3” 4.0 Megapixel CMOS Image Sensor • Up to 30fps @ 4MP (2560 × 1440), 3MP (2304 × 1296), 1080P (1920 × 1080), 720P (1280 ×...
-
Page 2: Components And Accessories
Components and Accessories Rubber plug Camera Quick start guide 4 tapping screws PA 4×2 ×4 Screwdriver Drill template Plastic plug Overview Cable Connections First connect the weather resistant cap to an ethernet patch cable, then connect the cameras ethernet adaptor. If not powering the camera with PoE, also connect the power Cable to an approved 12VDC power supply. -
Page 3: Installation
Weather Resistant Network Coupler 1. Loosen the nut from the Weather Resistant Network Coupler. 2. Run ethernet cable through coupler, then attach a RJ-45 connector. 3. Tighten the nut and coupler for a weather resistant seal. Installation Before beginning installation, make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. - Page 4 3. Route the cables and 3. Route the cables and 3. Route the cables and connect the power & video connect the power & video connect the power & video cables, use the rubber plug cables, use the rubber plug cables, use the rubber plug to fill the gap of the mounting to fill the gap of the mounting...
- Page 5 LAN Configuration LAN Configuration LAN Configuration Switch Switch Switch Network Cable Network Cable Network Cable Network Cable MENU MENU Network Cable Network Cable IP Camera IP Camera MENU Computer Computer Router Router IP Camera Computer Router The camera can be accessed on the local network either using the The camera can be accessed on the local network either using the The camera can be accessed on the local network either using the IP-Tool or directly in a web browser.
- Page 6 4. Double-click the IP address and then the system will pop up the web 4. Double-click the IP address and then the system will pop up the web 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM .
- Page 7 2. Open the IE Browser and input the default address of IP-CAM and 2. Open the IE Browser and input the default address of IP-CAM and 2. Open the IE Browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control. confirm.
- Page 8 VTD-TND4FLN-2 Detailed Specifications Image Sensor, Size 1/3” 4.0 Megapixel CMOS Image Sensor 4MP(2560 × 1440), 3MP(2304 × 1296), 1080P(1920 × 1080), 720P(1280 × 720), D1, CIF, 480 × 240 Resolution 0.005 lux @F1.6, AGC ON; 0 lux with IR Min. Illumination 2.8mm Fixed Iris Lens Lens True Day/Night by ICR...
- Page 9 OPTIONAL ACCESSORIES AND RELATED PRODUCTS FOR VTD-TND4FLN-2 VT-TWMT3 VT-TJB03A VT-TFMT-S Optional Wall Mount Optional Junction Box Optional Semi-Flush 4.64“ 8.27” 5.10” 8.27” VT-TPLMT VT-TPDM-1 VT-TCNMT Transcendent Universal Pole Optional Pendant Mount Transcendent Universal Mount - reqs. - reqs. VT-TJB03A Corner Mount - reqs. VT-TJB03A VT-TJB03A 8.47”...
- Page 10 OPTIONAL ACCESSORIES AND RELATED PRODUCTS FOR NDAA COMPLIANT TRANSCENDENT IP CAMERAS Transcendent NVRs A Standalone Solution with Analytic Support and NDAA Compliance! • 8MP (4K) HDMI Output • H.265S / H.265+ / H.265 / H.264 Video Compression • Analytic Support Including Basic Face Detection, License Plate Recognition, and More! •...
- Page 11 Also Consider Vitek NDAA Compliant Wireless Access Points to Reduce Costly Cable Installation! VT-WAP1150 and VT-WAP2150 High Speed 5.8GHz DIP AP / CPE Wireless Bridge w/ 8MB Storage, 64MB RAM, 150MBps transmission, and Point-to-Multi-Point (P2MP) Topology With high speed transmission of 150Mbps and a wireless range of 3000ft.
-
Page 12: Limited Product Warranty
LIMITED PRODUCT WARRANTY VITEK products carry a three (3) year limited warranty. VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of three (3) years, or as otherwise stated above, from the date of purchase by the end user.
