Vitek Transcend VTC-THB5R3/R2 Manual

Transcendent 5.0 megapixel indoor/outdoor 4-in-1 fixed lens cameras
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
FEATURES
• 1/2.7" 5.0 MegaPixel Progressive Scan CMOS Image Sensor
• High Definition Analog (HDA): HD-TVI / AHD: 5.0MP
/ HD-CVI: 4.0MP / CVBS: 960H Video Output
• 3.6 or 2.8mm Fixed Iris Lens Options
• Supports OSD Menu
• Matrix IR with up to 165' IR Range (VTC-THB5R3/R2)
• Matrix IR with up to 100' IR Range (VTC-THT5R3/R2)
• 16 IR LEDs with up to 65' IR Range (VTD-THD5R3/R2)
• True Mechanical Day/Night function by ICR
• Digital Wide Dynamic Range (D-WDR)
• XD-DNR Noise Reduction
• IP67 Weather Resistance (+IK10 on VTD-THD5R3/R2)

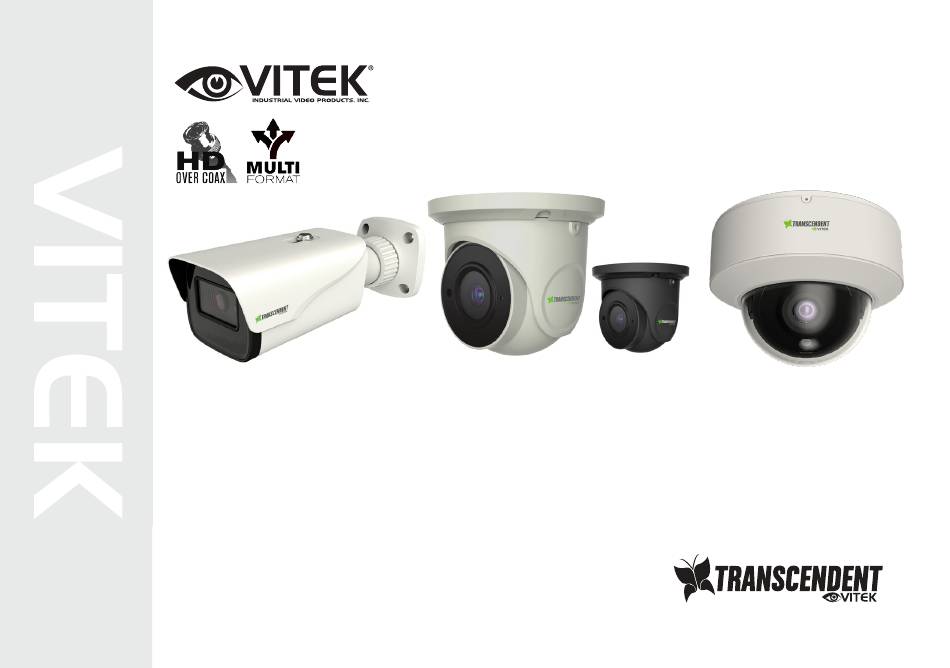

VTC-THB5R3/R2
VTC-THT5R3/R2
VTD-THD5R3/R2
Transcendent 5.0 Megapixel Indoor/Outdoor
4-in-1 Fixed Lens Cameras
• Supports Control over COAX (CoC)
• Over 1500' HD Video Transmission (Depending on cable
characteristics and integrity)
• VTC-THB5R3/R2: J Box - TJB08
VTC-THT5R3/R2: J Boxes - VT-TJB01, TJB08, Wall Mount VT-TWMT-3
VTD-THD5R3/R2: J Box - VT-TJB03A, Wall Mount VT-TWMT-3,
In-ceiling Semi Flush Mount VT-TFMT-S
*Corner and pole adapters also available - see rear page
•
VTC-THT5R3/R2 also Available in Charcoal (VTC-THT5R3B/2B)
•
12VDC Operation
•
3-year Warranty

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Transcend VTC-THB5R3/R2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vitek Transcend VTC-THB5R3/R2

Summary of Contents for Vitek Transcend VTC-THB5R3/R2

  • Page 1 VTC-THB5R3/R2 VTC-THT5R3/R2 VTD-THD5R3/R2 Transcendent 5.0 Megapixel Indoor/Outdoor 4-in-1 Fixed Lens Cameras FEATURES • 1/2.7” 5.0 MegaPixel Progressive Scan CMOS Image Sensor • Supports Control over COAX (CoC) • High Definition Analog (HDA): HD-TVI / AHD: 5.0MP • Over 1500’ HD Video Transmission (Depending on cable / HD-CVI: 4.0MP / CVBS: 960H Video Output characteristics and integrity) •...

  • Page 2: Safety Precaution

    Safety Precaution To prevent electrical shock and risk of fire hazards, do not expose this unit to rain or moisture and only use specified power source.. CAUTION: TO REDUCE THE RISK OF ELECTICAL SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.

  • Page 3: Video Connection

    Video Connection VTC-THB5R3/R2 - Components Connect the BNC video connector to a BNC cable, then to a DVR. Monitor Camera Screws Manual Allen Key Drill Template Video Video Output Mode Switch: Overview Video Switch Cable This series supports TVI/AHD/CVI/CVBS video output. Before switching video outputs, please remove the cover of the video switch cable.

  • Page 4: Installation

    2. Route the cables and connect the power & video cables, use the Installation rubber plug to fill the gap of the mounting base, then secure the Before beginning installation, make mounting base to the ceiling or wall with screws. sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera.
  • Page 5 VTC-THT5R3/R2 Components Video Connection Connect the BNC video connector to a BNC cable, then to a DVR. Monitor Camera Allen Keyt Manual Mounting Plate Screws Rubber Plug Overview Video Video Output Mode Switch: Video Switch Cable This series supports TVI/AHD/CVI/CVBS video output. Before switching video outputs, please remove the cover of the video switch cable.
  • Page 6 Installation Before you begin, please make sure that the wall or ceiling is strong 4. Tighten the lock screws to secure the viewing angle adjustments. enough to withstand 3 times the weight of the camera. The mounting steps are as follows: 1.
  • Page 7 Video Connection VTD-THD5R2/R3 Components Connect the BNC video connector to a BNC cable, then to a DVR. Monitor Camera Screws Manual Allen Key Drill Template Video Overview Video Output Mode Switch: Video Switch Cable This series supports TVI/AHD/CVI/CVBS video output. Before switching video outputs, please remove the cover of the video switch cable.
  • Page 8 Installation 4. Adjust the Three-axis camera bracket to obtain the optimium viewing angle. Before beginning installation, make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. The mounting steps are as follows: Pan: 0°~240°...

  • Page 9: Camera Osd Menu

    Camera OSD Menu The Transcendent 4-in1 camera series must be connected to a DVR which supports HD-TVI/AHD video signal input and COC protocol to access the OSD setup menu. Different DVRs manufacturers may have different modes of menu operation. The Following image will pop-up when you left click once on the image when using Transcendent HDA DVR's.
  • Page 10 Detailed Specifications VTC-THB5R3/R2 VTC-THT5R3(B)/R2(B) VTD-THD5R3/R2 1/2.7” 5.0 Megapixel Progressive Scan CMOS Sensor Image Sensor Signal System PAL / NTSC 2560 x 1936 Effective Pixels HD-TVI & AHD: 5.0 MegaPixel / CVI: 4.0 MegaPixel / CVBS: 960H Resolution HD-TVI / AHD / CVI / CVBS (Selectable) Video Output Lens 3.6 or 2.8mm - Fixed...
  • Page 11 CONSIDER THESE OTHER GREAT TRANSCENDENT PRODUCTS! VT-TR4K VT-TR4VPK Passive Video Balun Video and Transmitter / Power Balun Pair with VITEK Transcendent Receiver Pair for Transmitter / Reciver Series 5-in-1 Digital Video Recorders Pair for HD-TVI / HDI-TVI / AHD / CVI...

  • Page 12: Limited Product Warranty

    Limited Product Warranty VITEK products carry a three (3) year limited warranty. VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended,...

This manual is also suitable for:

Transcend vtc-tht5r3/r2Transcend vtd-thd5r3/r2
