Parts List - Linear Technology DC2283A Demo Manual

Ltpowerplay Quick start proceDure
Then, click the "W" (PC to RAM) icon to write these
register values to the LTC3884. After finishing this
step, you will see the output voltage will change to
1.2V.

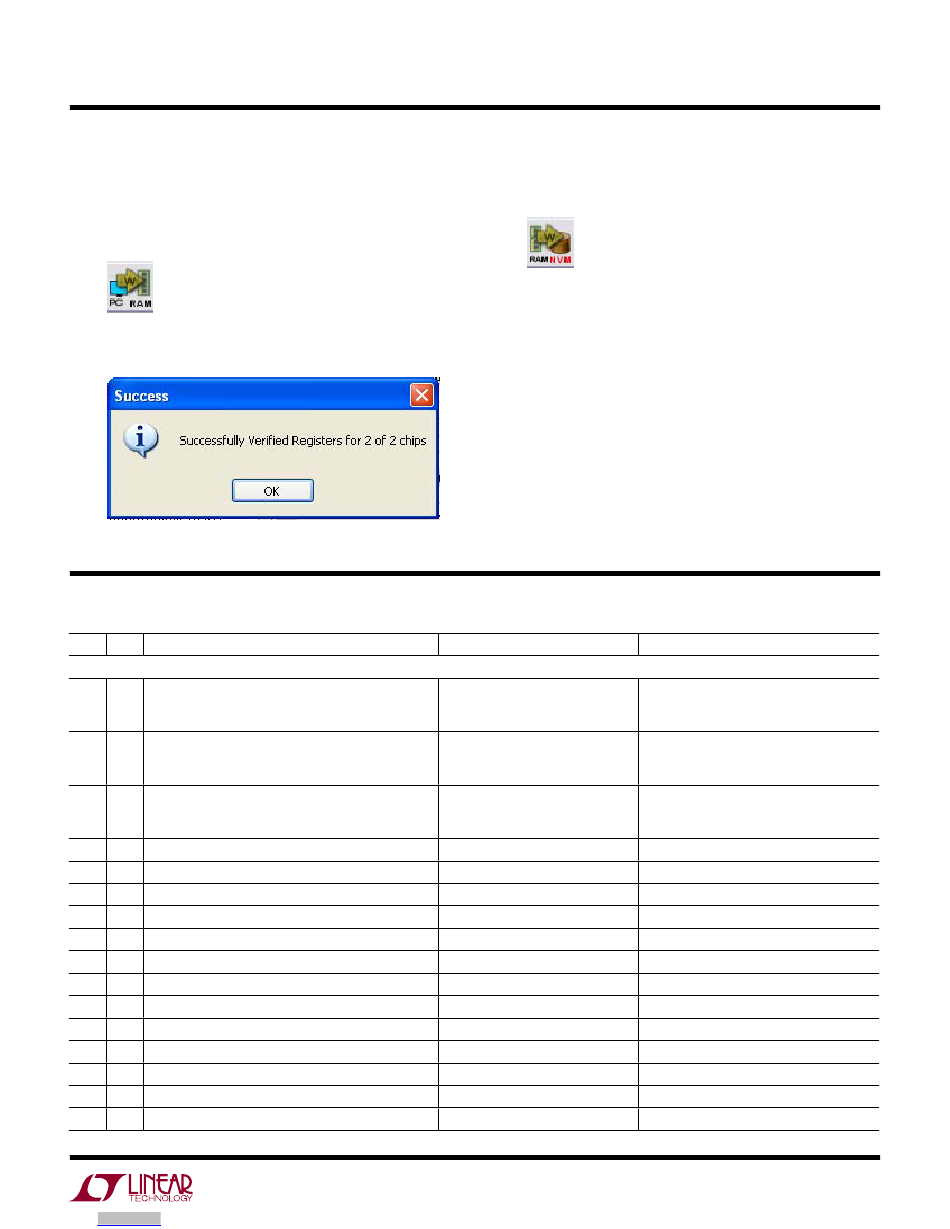

If the write is successful, you will see the following
message:

parts List

ITEM QTY REFERENCE
Required Circuit Components
1 16 CIN1, CIN2, CIN3, CIN4, CIN5, CIN6, CIN7, CIN8,
CIN9, CIN10, CIN11, CIN12, CIN13, CIN14, CIN15,
CIN16
2 16 COUT1, COUT2, COUT5, COUT6, COUT10, COUT11,
COUT12, COUT16, COUT19, COUT20, COUT24,
COUT25, COUT27, COUT28, C34, C35
3 12 COUT3, COUT4, COUT7, COUT8, COUT9, COUT13,
COUT14, COUT15, COUT17, COUT18, COUT22,
COUT23
4 6 C7, COUT21, COUT26, C36, C41, C42
5 2 C1, C47
6 2 C2, C32
7 2 C3, C23
8 4 C4, C6, C24, C29
9 4 C8, C15, C37, C46
10 4 C9, C16, C21, C33
11 2 C10, C40
12 1 C11
13 6 C14, C17, C18, C27, C28, C38
14 1 C20
15 2 C30, C44
16 1 C31
Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from
DEMO MANUAL DC2283A
e. You can save the changes into the NVM. In the tool
bar, click "RAM to NVM" button, as following
f. Save the demo board configuration to a (*.proj)
file. Click the Save icon and save the file with a user
filename.
PART DESCRIPTION
CAP , 1210 22µF 10% 25V X7R
CAP , 1210 100µF 20% 6.3V X5R
CAP , 7343 470µF 20% 2.5V
CAP , 0603 1µF 20% 25V X5R
CAP , 0603 2.2µF 20% 6.3V X5R
CAP , 270µF 20% 16V OSCON
CAP , 0805 2.2µF 10% 16V X5R
CAP , 0603 4.7µF 10% 10V X5R
CAP , 0603 0.1µF 10% 25V X7R
CAP , 0603 220nF 10% 25V X7R
CAP , 0603 150pF 5% 50V NP0
CAP , 0603 3.3nF 5% 50V C0G
CAP , 0603 10nF 10% 25V X7R
CAP , 0603 47pF 5% 50V NP0
CAP , 1210 100µF 20% 10V X5R
CAP , 1210 10µF 10% 16V X7R
MANUFACTURER/PART NUMBER
MURATA, GRM32ER71E226KE15L
TDK, C3225X5R0J107M
PANASONIC, ETPF470M5H
AVX, 06033D105MAT2A
TDK, C1608X5R0J225M
PANASONIC, 16SVPG270M
TDK, C2012X5R1C225K125AC
AVX, 0603ZD475KAT2A
AVX, 06033C104KAT2A
TDK, C1608X7R1E224K080AC
AVX, 06035A151JAT2A
MURATA, GRM1885C1H332JA01D
AVX, 06033C103KAT2A
AVX, 06035A470JAT2A
MURATA, GRM32ER61A107ME20L
MURATA, GRM32DR71C106KA01L
