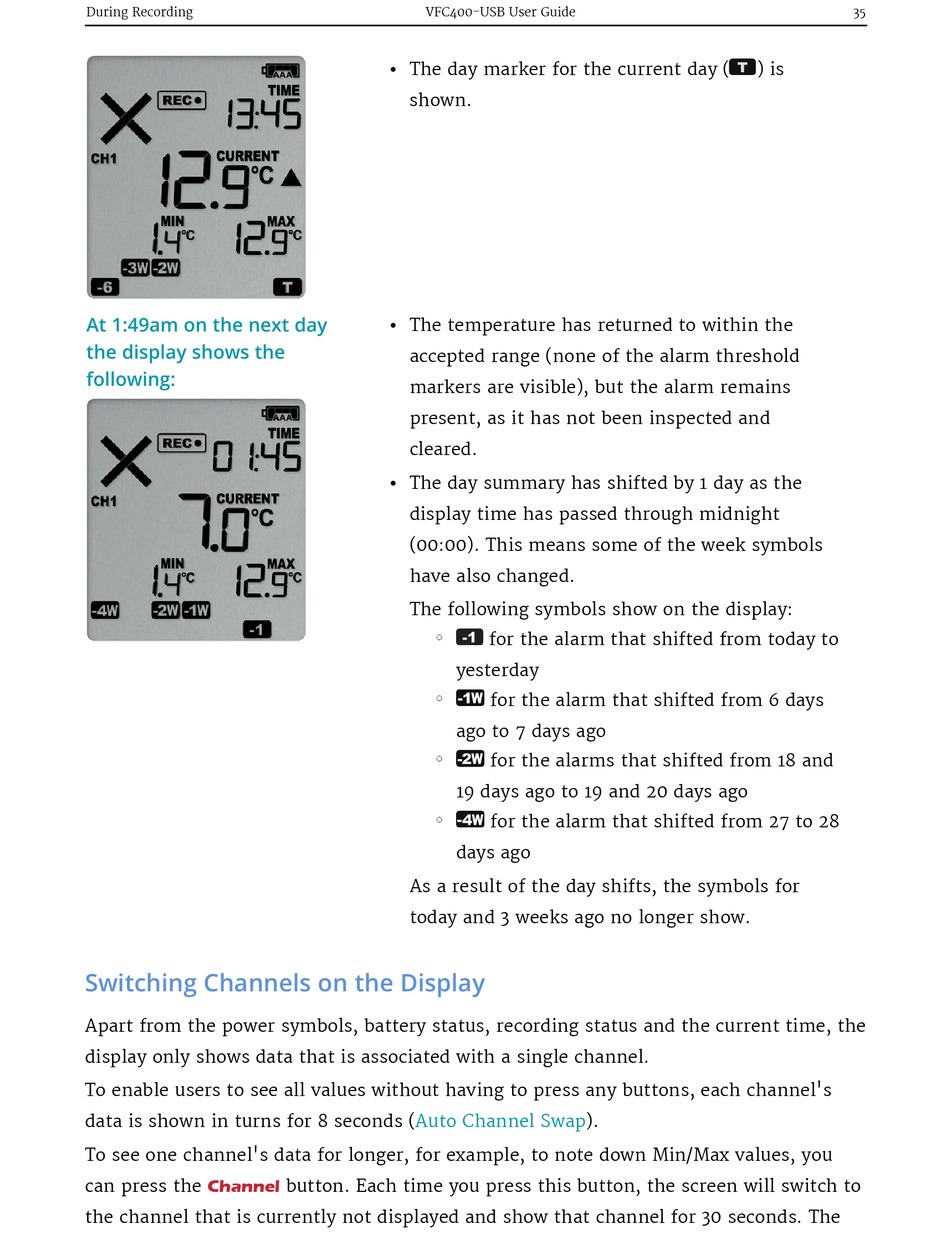

Switching Channels On The Display - CONTROL SOLUTIONS LogTag VFC400-USB Product User Manual

During Recording
At 1:49am on the next day
the display shows the
following:

Switching Channels on the Display

Apart from the power symbols, battery status, recording status and the current time, the
display only shows data that is associated with a single channel.
To enable users to see all values without having to press any buttons, each channel's
data is shown in turns for 8 seconds
To see one channel's data for longer, for example, to note down Min/Max values, you
can press the
Channel
the channel that is currently not displayed and show that channel for 30 seconds. The
VFC400-USB User Guide
The day marker for the current day (
l
shown.
The temperature has returned to within the
l
accepted range (none of the alarm threshold
markers are visible), but the alarm remains
present, as it has not been inspected and
cleared.
The day summary has shifted by 1 day as the
l
display time has passed through midnight
(00:00). This means some of the week symbols
have also changed.
The following symbols show on the display:
o
yesterday
o
ago to 7 days ago
o
19 days ago to 19 and 20 days ago
o
days ago
As a result of the day shifts, the symbols for
today and 3 weeks ago no longer show.
(Auto Channel
button. Each time you press this button, the screen will switch to
for the alarm that shifted from today to
for the alarm that shifted from 6 days
for the alarms that shifted from 18 and
for the alarm that shifted from 27 to 28
Swap).
35
) is
