Northern Telecom DNC-50 Installation Manual page 97

90 Cross-Connections to Distribution Frames and Building
(2) Hold the tool with the black cutting blade toward the wires to be cut off. (See
(3) Insert the tool into the connector. Hold the tool at a right angle to, and level
Wires will not be properly inserted unless the tool is pushed fully forward and
bottomed in the connector. The click made by the tool does not necessarily
indicate that the wire has been properly inserted.
(4) Push the connection tool fully forward to seat the wire in the connector.
(5) Apply forward pressure to complete the connection. Note that the excess wire

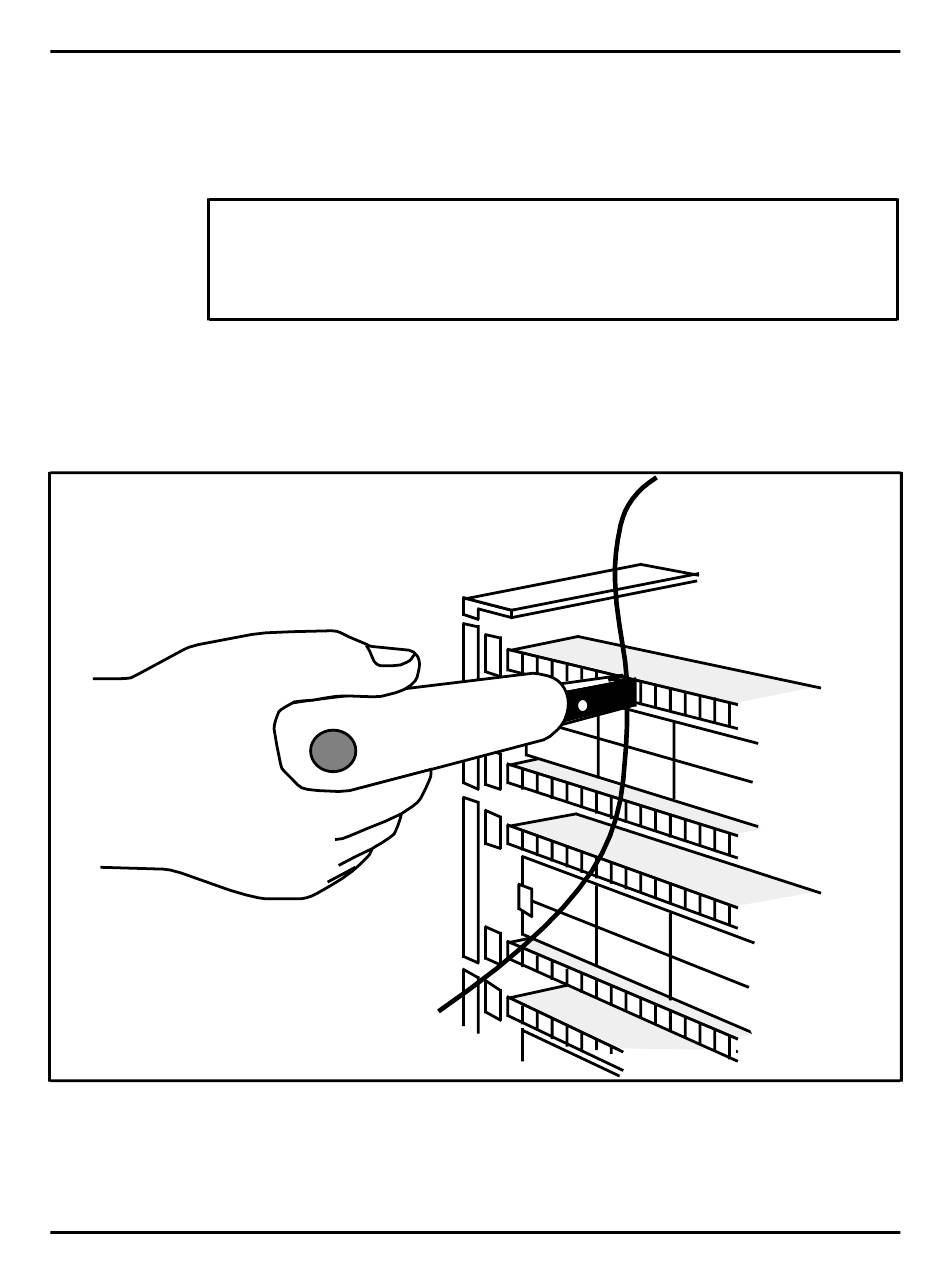

Figure 9-2
Using the Connection Tool
450-0072
Practice 450-1011-201
Fig. 9-2.)
with, the connector.
was cut off if the tool was set to the CUT position.
- CAUTION -
